Solstex® Features & Benefits
Features and Benefits of a BIPV Solar Facade
Leed Compliance
Use of the Solstex Facade System lessens a building’s dependence on energy generated by fossil fuels and can earn up to five LEED credits.
Reliable Return
With federal incentives applied, energy savings from the Solstex® Facade System can cover the cost of installation in 8 to 10 years. Results depend on the project.
Design Flexibility
Using Elemex’s proprietary Unity® technology, Solstex® can be integrated with other Elemex® facade systems to provide a flush plane and design flexibility.
Eco-Efficient
Solstex® panels have a small carbon footprint and low water usage in photovoltaic (PV) manufacturing.
High-Efficiency
Solstex panels deliver significantly more energy than other PV panels, at up to 17.6 W/sq. ft.
Weather Resistant
Solstex panels have been independently tested and certified to provide reliable performance that exceeds IEC standards in high temperature, high humidity, and extreme weather, including rain and snow.
Large Format
Solstex large format panels maximize facade coverage and energy production.
Lightweight
At a standard weight of less than 3.5 lbs per square foot, the Solstex Facade system is designed to make the installation as easy as possible.
Want to know more about Solstex® Solar Facade System features & benefits?
Solstex® is available in a wide range of standard colors.
Please contact a representative for availability.
Solstex – 9mm
Browse Standard Collections
Filter by
Product Description + Basic Use
Composition + Materials
Solstex® Solar Panels consist ofcrystalline silicone technology encapsulated between 2 sheets of heat-strengthened glass, adhered to our proprietary Unity® attachment technology.
Sizing + Details
- Solstex® O-Series – 39 3/8” x 67” (1000 mm x 1700 mm)
- Solstex® O-Series – 39 3/8” x 78 3/4” (1000 mm x 2000 mm)
Watts/Panel
- Solstex® O-Series – 97-303 W
- Solstex® O-Series – 113-354 W

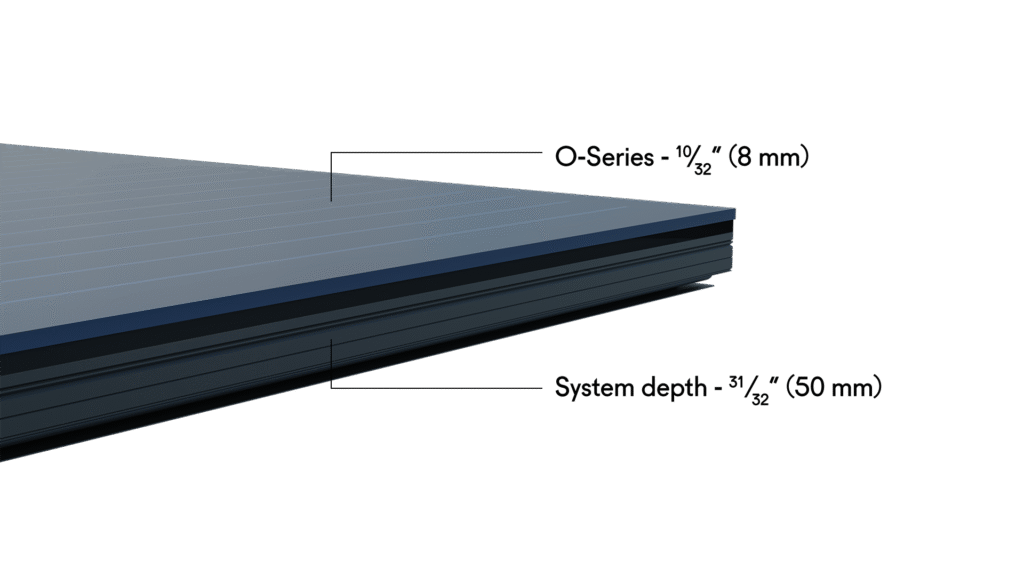

- Standard Thicknesses 10/32" (8 mm)
- System depth - 31/32" (50 mm)
Finish
- O-Series - 5/32” (4 mm) Tempered Low-Iron Glass with a Tempered Glass back.
Pre-Fabricated System
Installation
Building Codes
Solstex® – Solar Facade System meets or exceeds North American Building Codes.
Maintenance
Warranty
Product Finish: 10-year panel manufacturer warranty against any defect in material or manufacture.
Materials & Workmanship: 1-year system manufacturer warranty against defects or deficiencies from date of substantial completion.
Power Production: 25-year manufacturer warranty ensuring power production is at 80% or higher after 25 years from date of electrical connection to local use, storage, or grid.
Unity® Attachment Technology
Unity® is Elemex’s proprietary concealed attachment technology that supports simple and elaborate designs from flat panels to complex shapes. Unity® seamlessly integrates all of Elemex’s facade surfaces by bringing all your design ideas together for a new North American standard.
Product Technical Data
- NFPA 285 Certified
- Other Testing in Progress
Did You Know Solstex® Can Qualify for a Federal Tax Credit?
Solstex Pricing Guide
It’s Easy to Get in Touch.
Interested in learning more about how Solstex® could be the right choice for your project? Call us, email us, or fill out the form.
