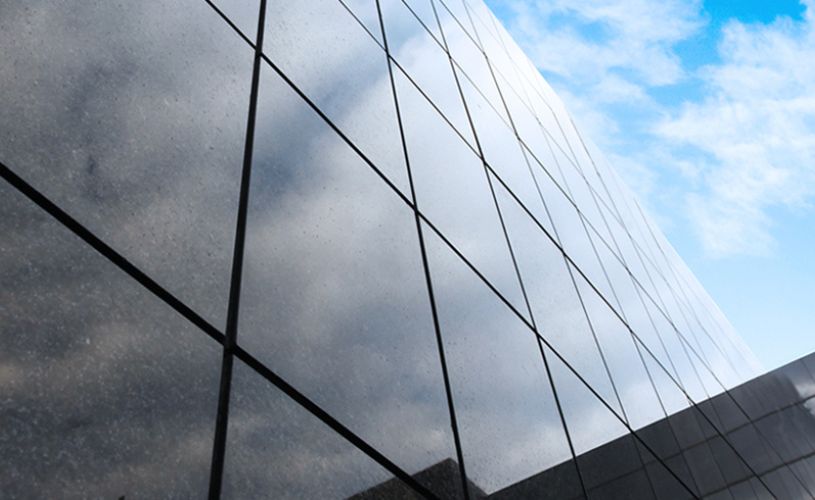

Stonitex®. Stone Building Facade Made From 100% Natural North American Quarried Stone, for a Truly Unique Look and Pattern.
Natural. Timeless. Versatile.

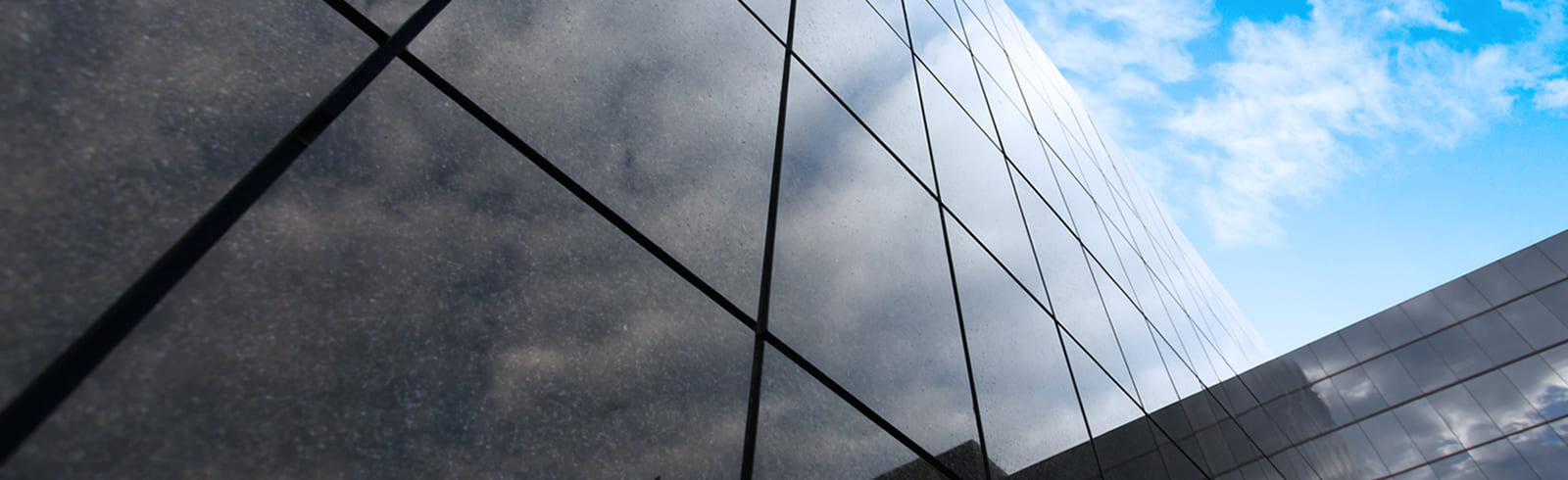

Introducing Stonitex®. A facade system that delivers natural beauty, unimaginable versatility, and timeless durability to your building. Designed to be lightweight and easy to install, Stonitex® creates new possibilities and ensures your building remains as beautiful as the day you designed it.
From Concept To Completion
Stone Building Facade Features & Benefits
100% Natural
Panels are made from 100% natural North American quarried stone, so every panel has its own unique beauty.
UV Resistant
Because the panels are 100% natural stone, they resist fading from sun and weather—ensuring your façade stays timeless.
Climate Defiant
Built to withstand expansion and contraction in both extremely hot and freezing conditions.
Lightweight
Weighing just 40% of traditional granite panels, these ultralight units simplify installation and reduce structural load.
Design Versatility
Thin and lightweight, Stonitex panels open up architectural possibilities previously unattainable with heavier stone façades.
Mitered Corners
You can create clean, sharp exterior corners with mitered returns, giving a sophisticated, dimensional effect.
Flexural Strength
Reinforced with carbon-fiber mesh, panels boast ten times the flexural strength of a conventional 30 mm stone slab.
Large Format
The system supports large-format panels—thanks to its slender profile and reduced weight—expanding visual and design flexibility.
Want to know more about Stonitex® natural stone facade features & benefits?

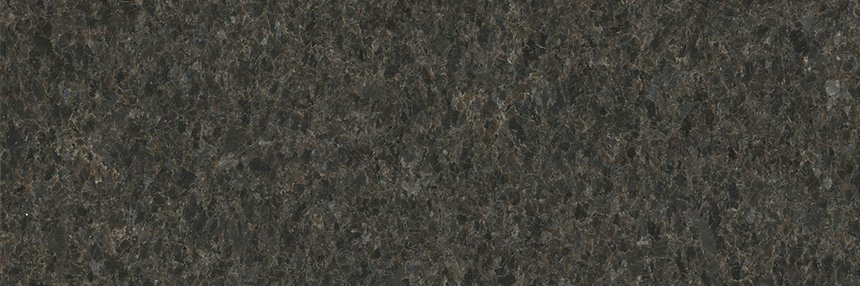

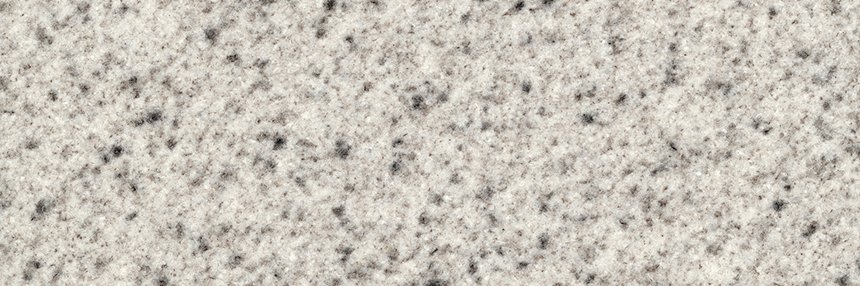

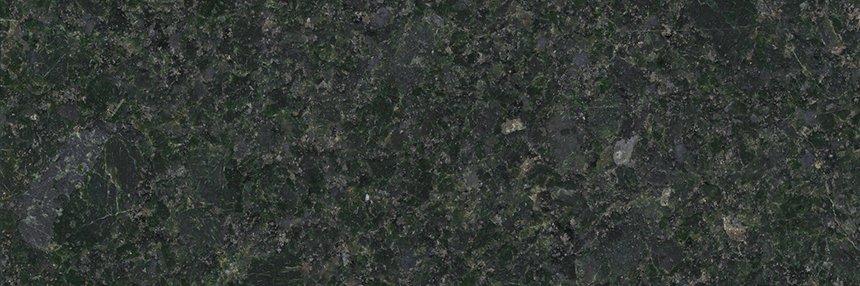

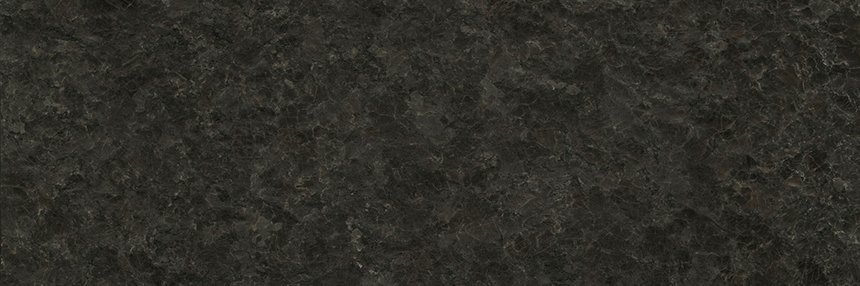

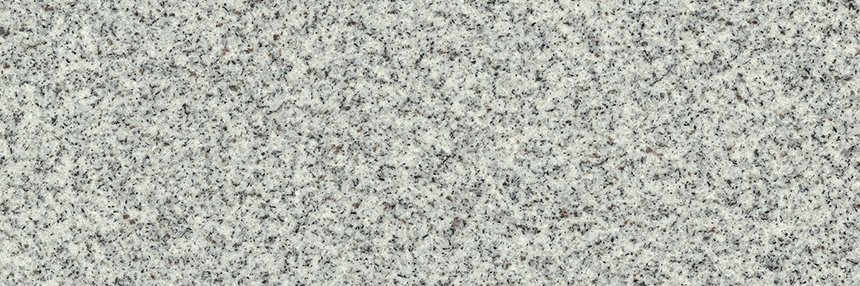

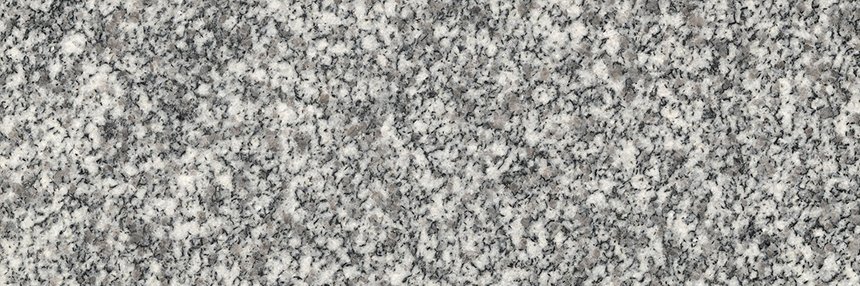

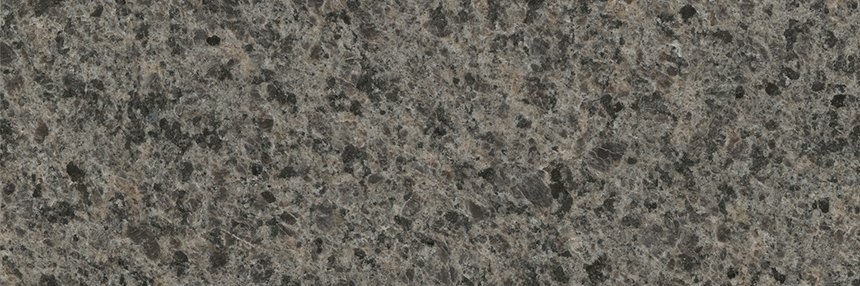

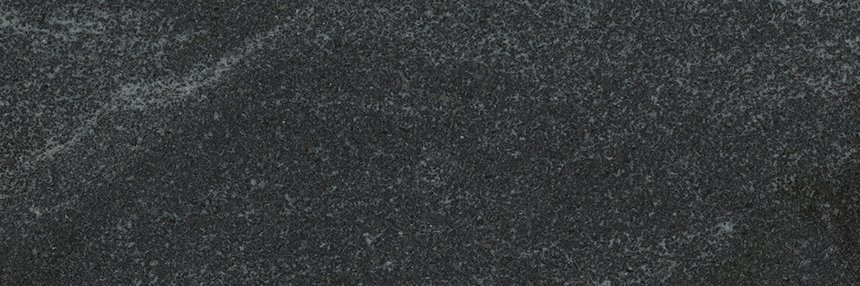

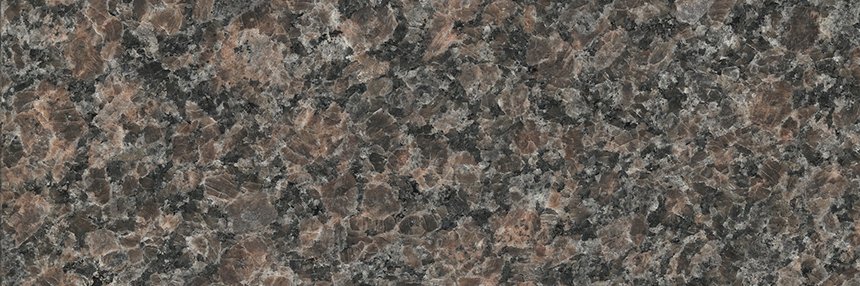

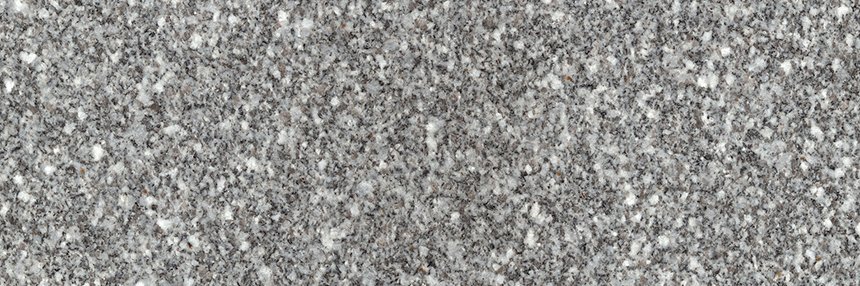

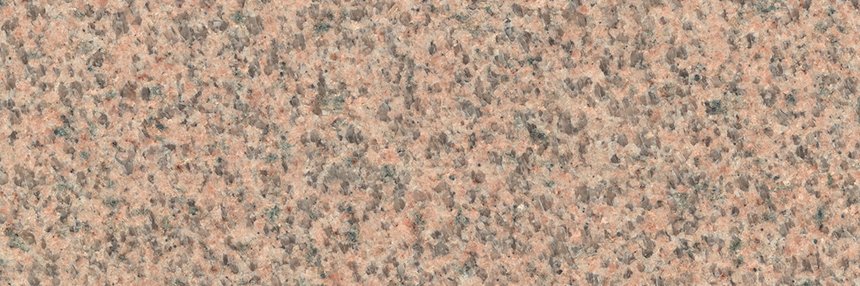

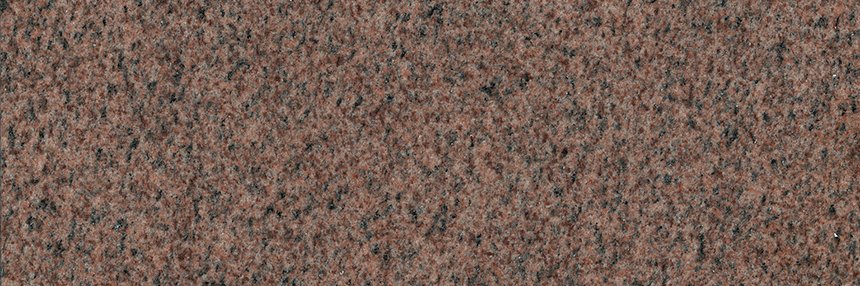

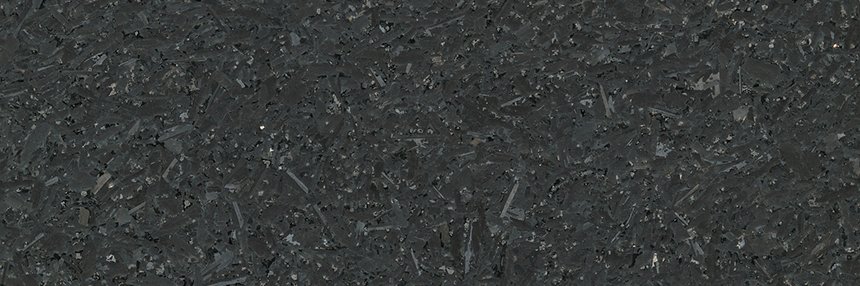

Stonitex® stone facades are available in a wide variety of standard finishes.
Please contact a representative for availability of finishes for each color.
Browse Standard Collections
Product Description + Typical Uses
Stonitex® is a pressure-equalized, rear-ventilated rainscreen system for exterior or interior wall panels, suitable for both new construction and renovation projects in commercial and other applications. Typical uses include exterior wall panels, fascia panels, ceiling panels, spandrel panels, beam and column covers, wall trim, accent panels, and signage. Note: Panels are for non-load-bearing applications only.
Composition + Material
Stonitex® Natural Stone Panels consist of a granite slab with a carbon-fiber-reinforced mesh backing, adhered to our proprietary Unity® attachment technology.
Sizing + Details
Panels are available in 4′ × 8′ (1219 mm × 2438 mm) with a standard thickness of 3/8″ (10 mm). Custom sizes and thicknesses are available upon request.
Finish Options
Granite panels are offered in polished, honed, and antique finishes. Stone appearance may vary depending on the cut. Note: Contact a representative for information on the availability of specific finishes for each color.
Pre-Fabricated System
Elemex® delivers Stonitex® natural stone panels to building sites through our network of agents and installers. The panels arrive as a pre-fabricated facade system on the Unity® platform, allowing installers to quickly and accurately create a high-quality stone facade for any structure.
Installation
Installation guide and specifications are available. Stonitex® must be installed by an Elemex® qualified installer. Elemex® can provide training and certification to local installers. For additional details on installer training contact info@elemex.com .
Building Codes
Stonitex® system meets or exceeds North American Building Codes.
Maintenance
Stonitex® Facade System has a surface that is easily cleaned with neutral cleaner/stone soap and water. As the panels are UV- resistant, they maintain their appearance over time.
Warranty
Unity® Attachment Technology
Unity® Attachment Technology: a proprietary integrated attachment technology developed and perfected by Elemex® to panelize, mount and seamlessly integrate a variety of surfaces such as: Natural Stone, Sintered Ceramic, ACM, Aluminum Plate and other specialty veneers.
Product Technical Data
- ASTM C97 Absorption and Bulk Specific Gravity of Dimension Stone
- ASTM C99 Modulus of Rupture of Dimension Stone
- ASTM C170 Compressive Strength of Dimension Stone
- ASTM C880 Flexural Strength of Dimension Stone
- ASTM C1352 Flexural Modulus of Elasticity of Dimension Stone (in progress)
Fire Test Data
- NFPA 285 Fire Propagation Characteristics of Exterior Non-Load Bearing Wall Assemblies (in progress)
- ASTM E84 Standard Test Method for Surface Burning Characteristics of Materials (in progress)
- CAN/ULC S134-92 Standard Method of Fire Test of Exterior Wall Assemblies (in progress)
- CAN/ULC S102:2018 Surface Burning Characteristics of Building Materials (in progress)
- CAN/ULC S114 Determination of Non-Combustibility (in progress)
- ASTM E119 Fire Rating Test (in progress)
System Technical Data
- ASTM C1201 Structural Performance of Exterior Dimension Stone Cladding System (in progress)
- ASTM C794 Adhesion-in-Peel of Elastomeric Structural Silicone (in progress)
- TAS 201 Missile Impact Testing (in progress)
- TAS 202 Air and Water Penetration Testing (in progress)
- TAS 203 Pressure Cycling Testing (in progress)
It’s Easy to Get in Touch.
Interested in learning more about how Stonitex® could be the right choice for your project? Call us, email us, or fill out the form.
Curious How Elemex® Can Elevate Your Next Project?
Frequently Asked Questions
What is a stone building facade?
A stone building facade is basically a decorative outer covering constituted of natural stone panels. It provides a building with a classic, sophisticated look and, at the same time, shields it against the elements. Stonitex takes this concept a step further by using lightweight, reinforced panels that are easier to install and still retain the beauty of natural stone.
Why would someone choose a stone facade building over other materials?
How durable is a stone facade exterior?
A stone facade exterior is built to last. The panels are fade and crack-resistant and can withstand extreme temperature changes, so they look as good as the day they are installed years later. They are made with reinforced backing and are weatherproof to withstand the most extreme weather.
Can a house with a stone facade look modern?
Definitely, a house with a stone facade does not imply a rustic or traditional design. Stone can be used to achieve clean, modern appearances with thin, large-format panels. Many architects use it to incorporate classic materials with modern design.
How heavy are stone facade panels compared to traditional stone?
Are stone facades difficult to maintain?
Not at all. One of the advantages of a stone facade is low maintenance. They are inherently resistant to dirt, UV and moisture. Cleaning is generally just a matter of mild soap and water, and the surface remains fresh with little effort.
Where can stone facades be used besides houses?
Although most people imagine a house with a stone facade, these systems are also suitable in commercial projects, offices, and institutional buildings. They apply to exterior walls, columns, or even interior feature walls, providing architects and designers with considerable flexibility.
