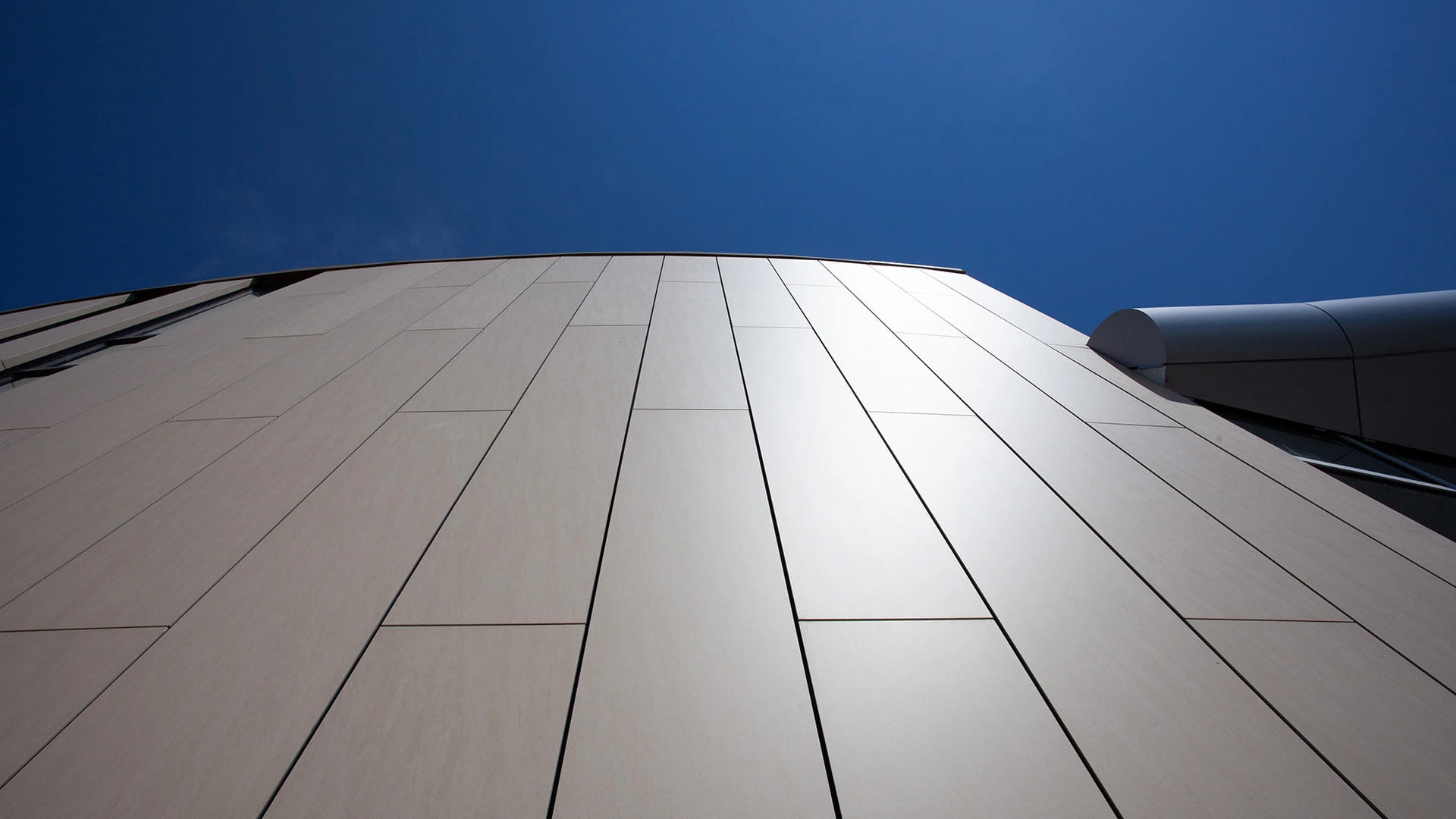

Introducing Ceramitex®, the Sintered Ceramic Facade System That Simply Outperforms.
From Concept to Completion
Our solutions combine sleek design, precision engineering, and industry-leading service.
Code Compliant
The Ceramitex® System is an architectural ceramic product that has been proven to meet or exceed industry code standards throughout North America.
Climate Defiant
The Ceramitex® System is resistant to expansion and contraction in high temperature or freezing conditions.
Lightweight
Ceramitex® panels with a thickness of 6 mm are approximately 3.8 lbs per square foot.
Large Format
Large format sintered ceramic panels open a world of design possibilities. They are offered in a range of colors and textures.
Impact Resistant
Ceramitex® panels combine strength and lightness to deliver lasting performance in high-impact environments.
Mitered Corners
Unique to the Ceramitex® System is the ability to create large mitered returns, giving a striking dimensional appearance to any returning edge.
Waterproof
Waterproof Ceramitex® panels combined with a patented pressure-equalized rainscreen system provide the ultimate weather barrier.
Graffiti-Proof
Ceramitex® sintered ceramic panels are easy to maintain and impervious to chemicals.
UV Resistant
Since the color is 100% natural, it does not deteriorate due to sun exposure or extreme temperatures.
Scratch Resistant
Ceramitex® panels are resistant to scratching due to the hardness of the surface.
Want to know more about Ceramitex® sintered ceramic cladding features & benefits?

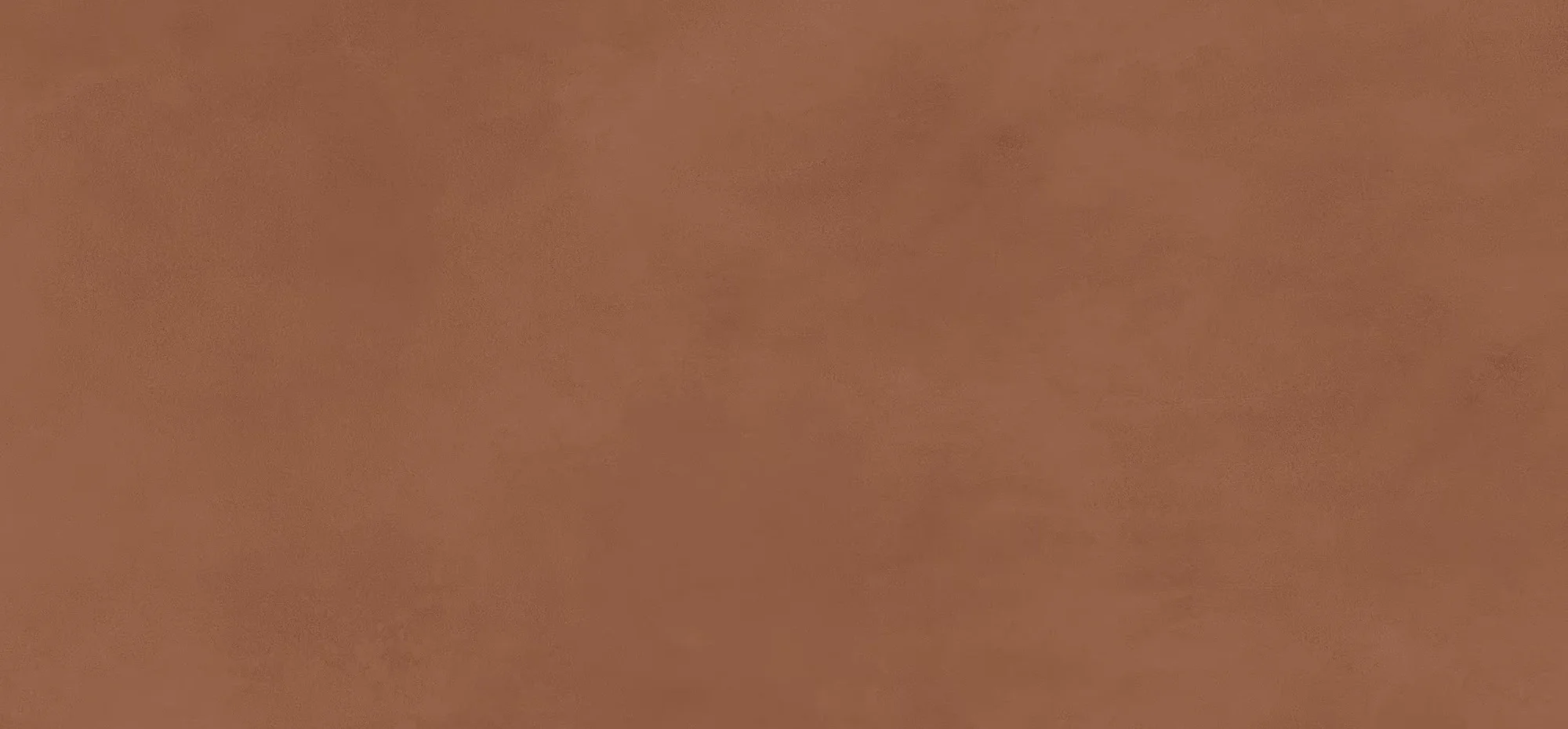

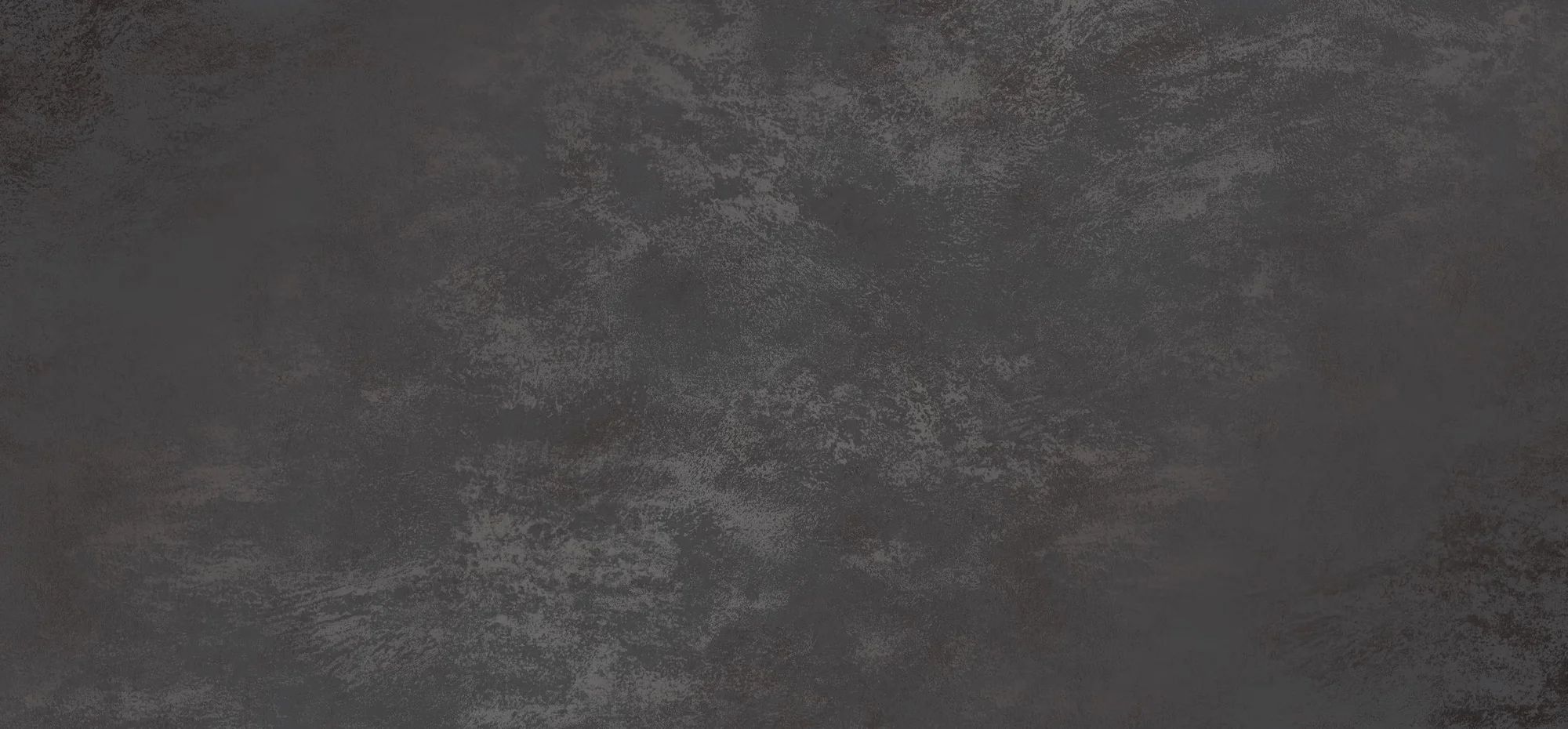

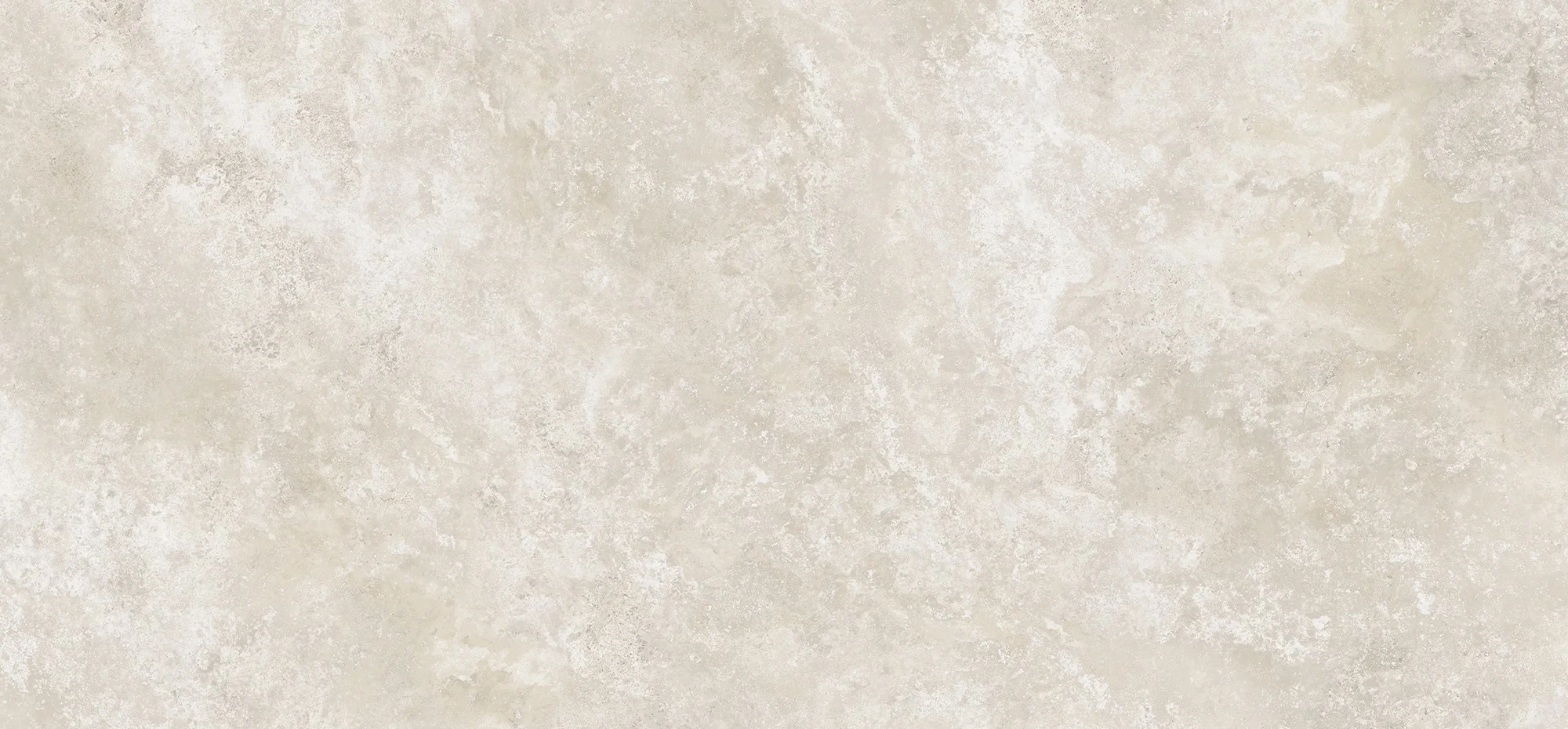

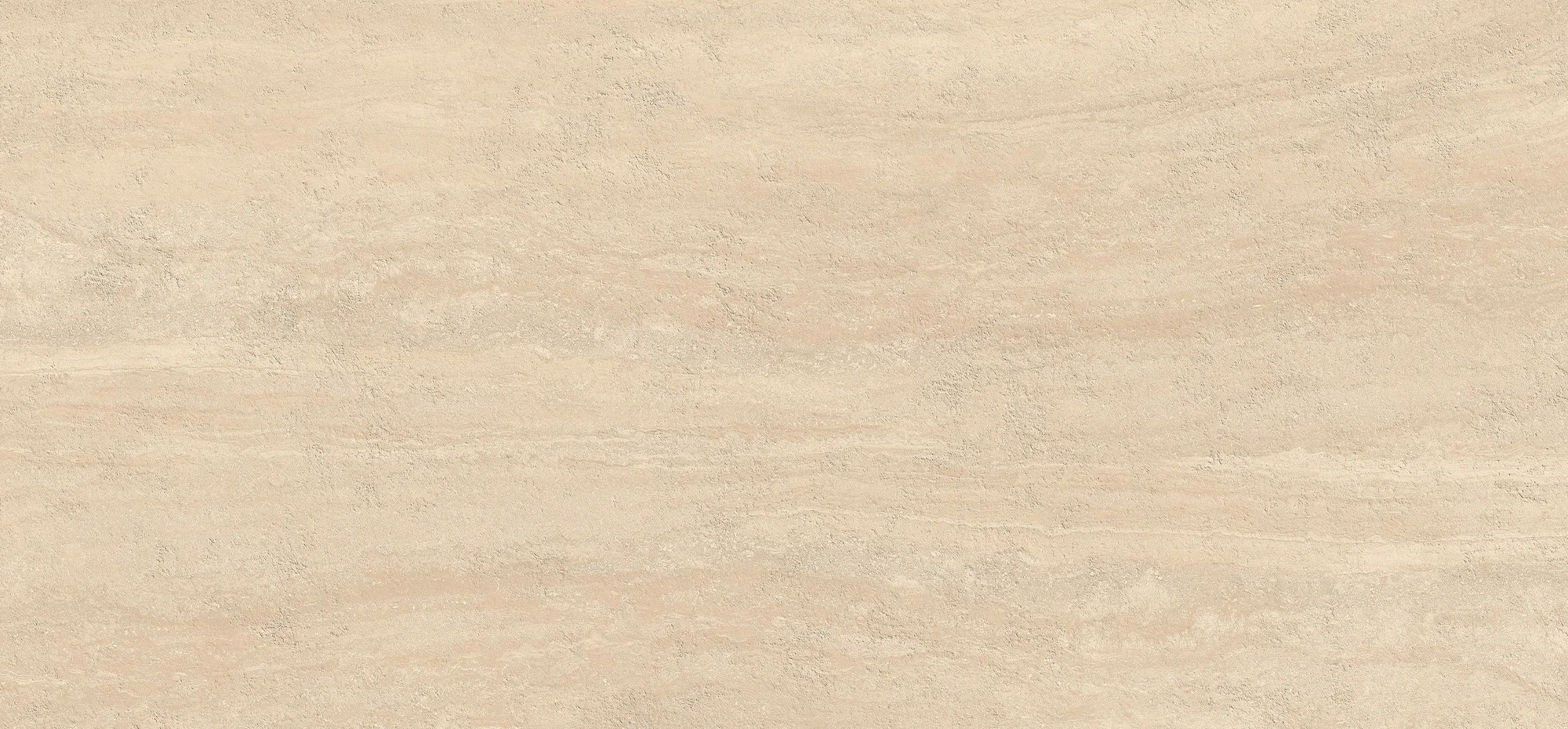

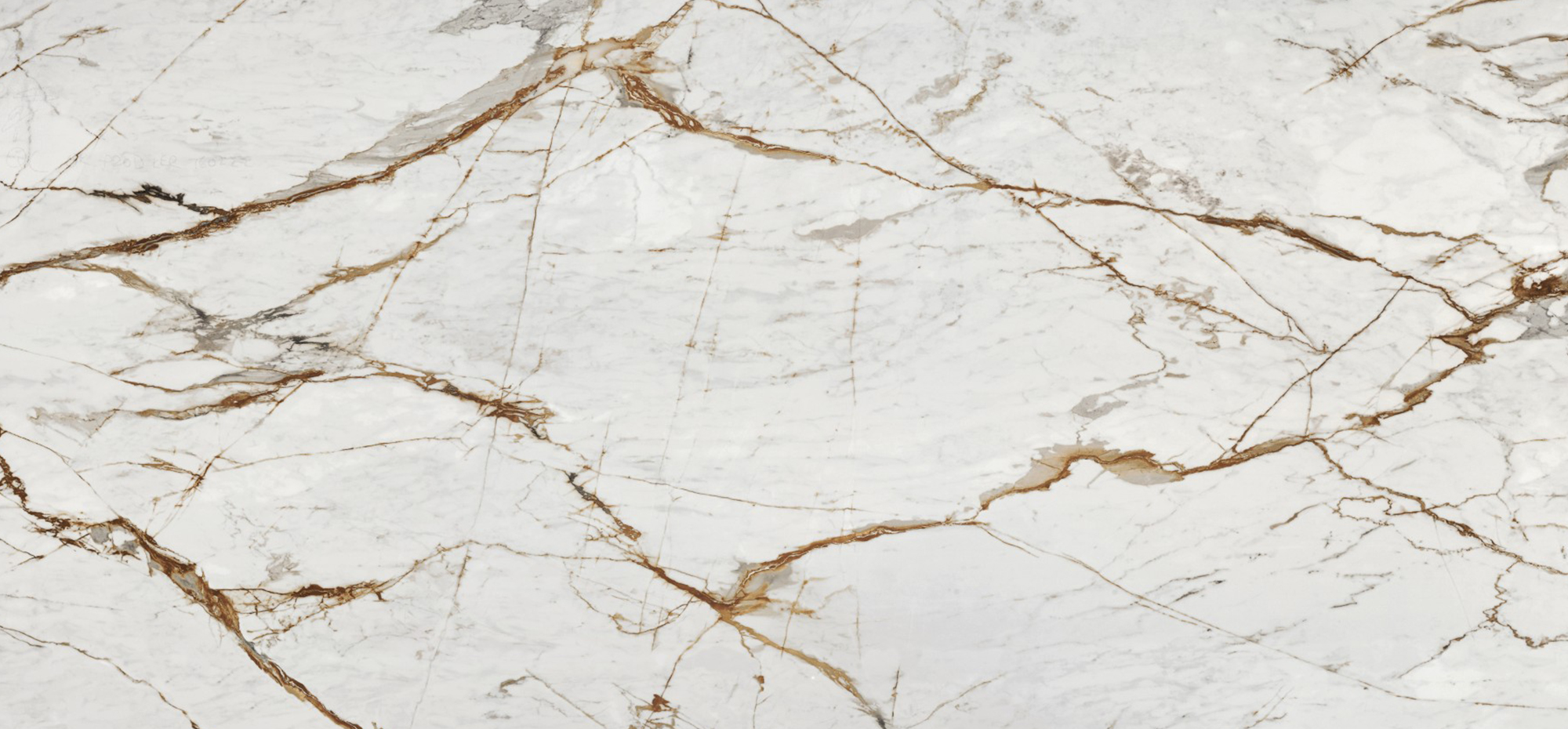

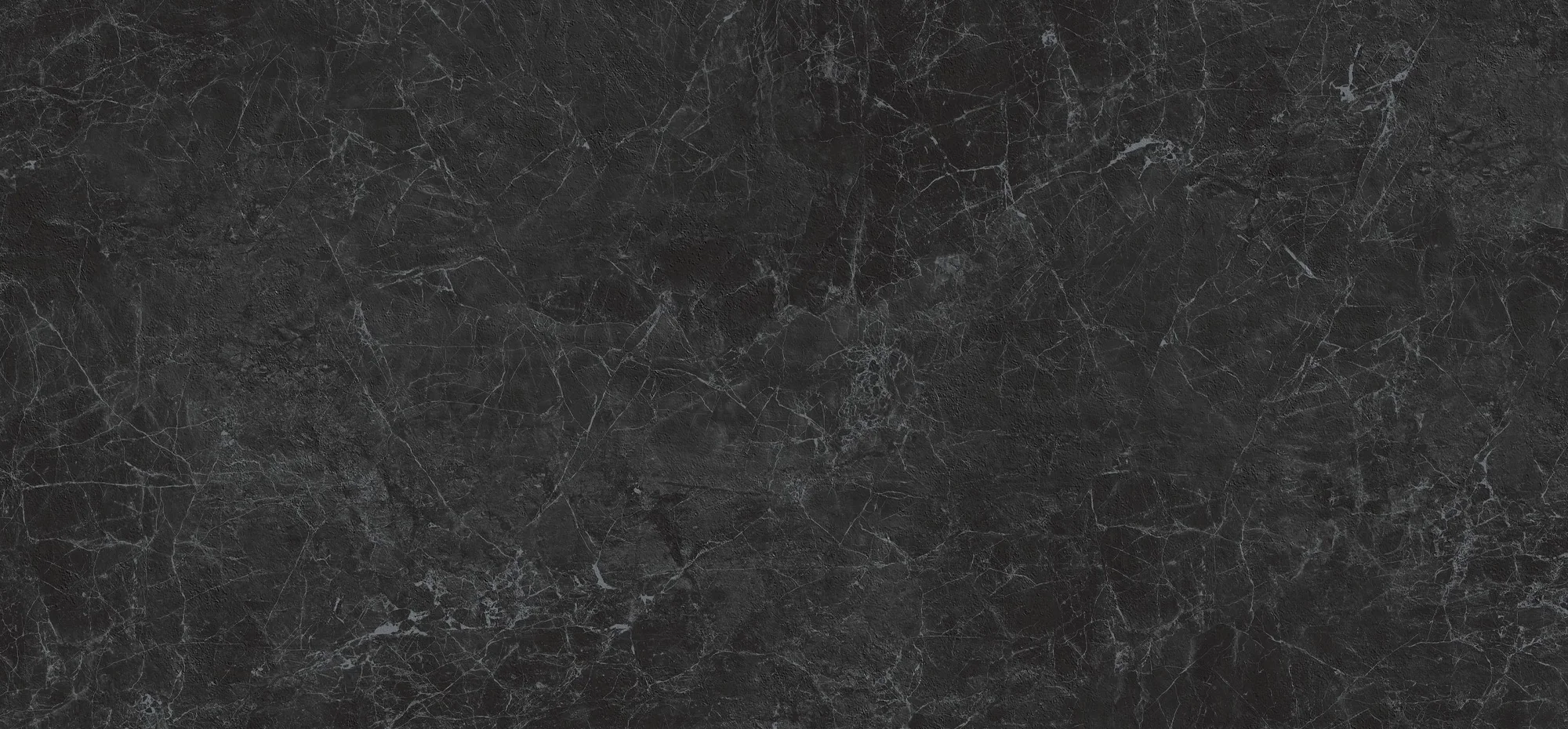

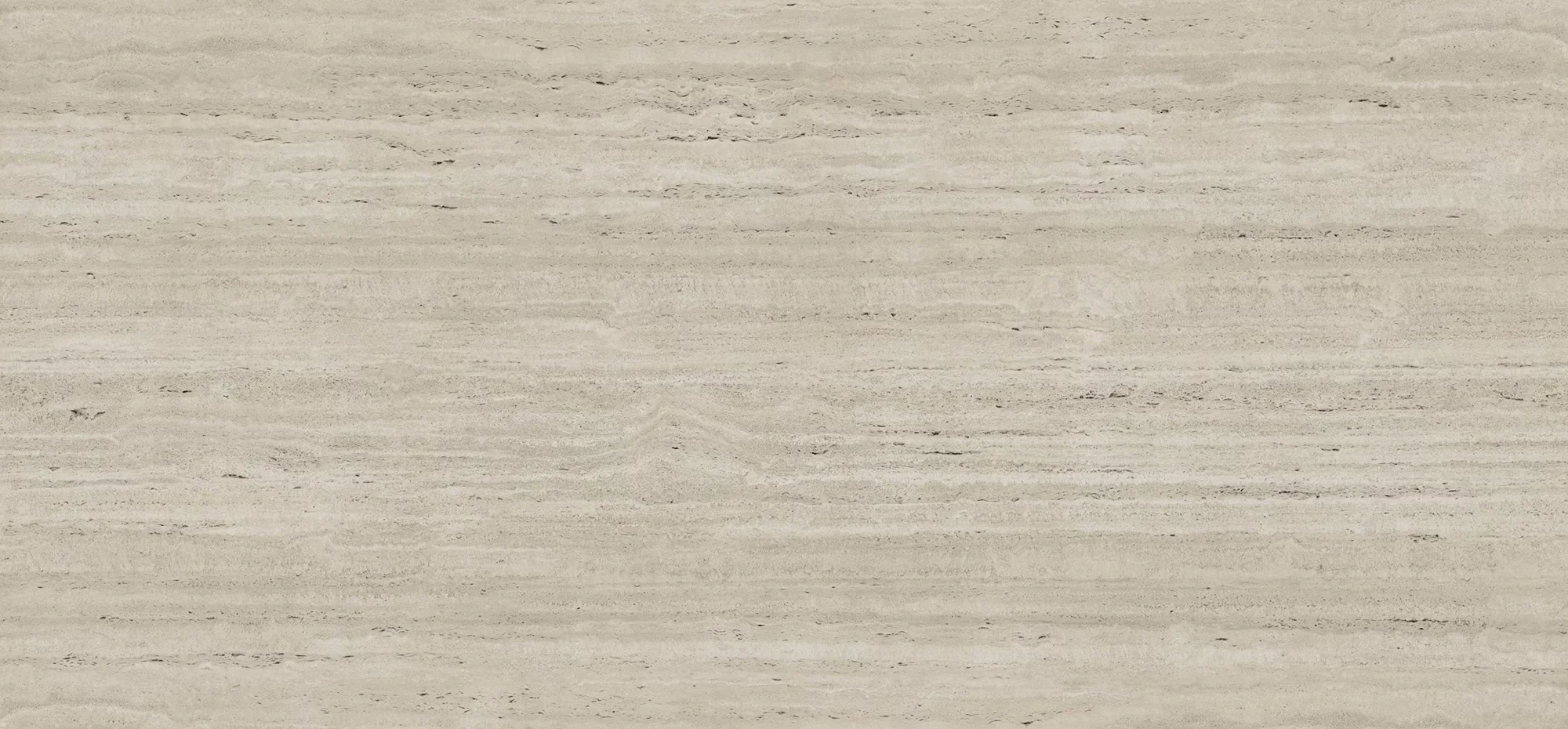

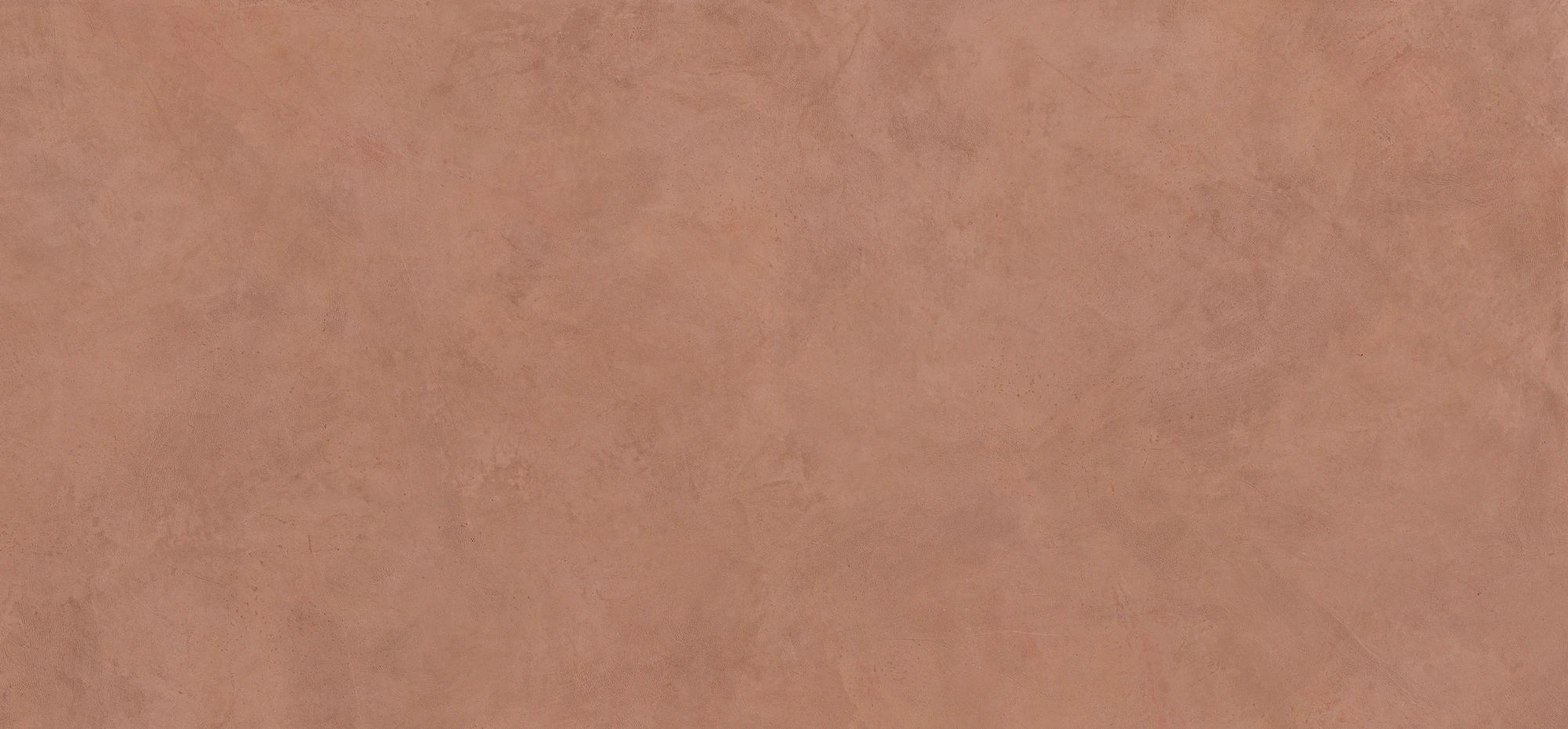

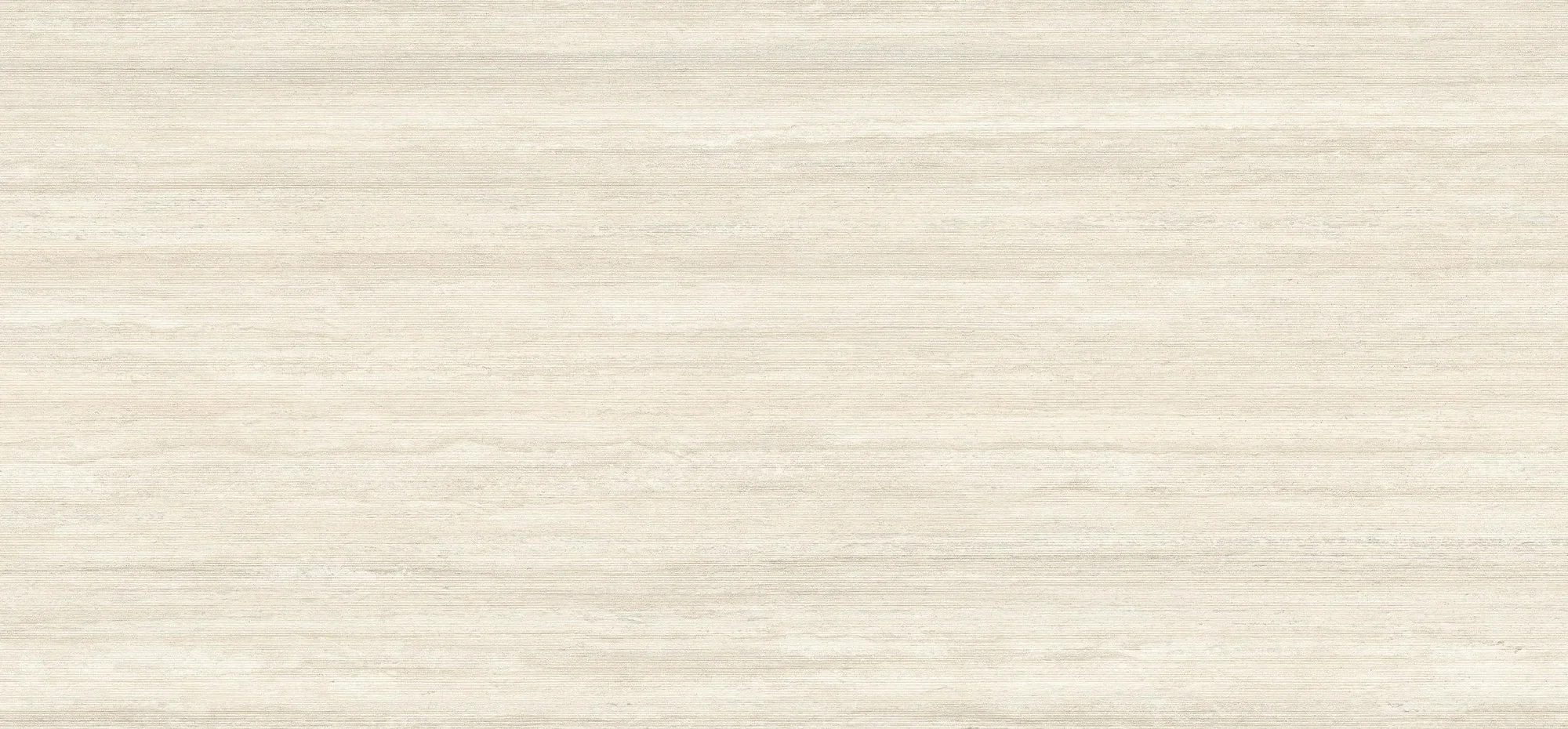

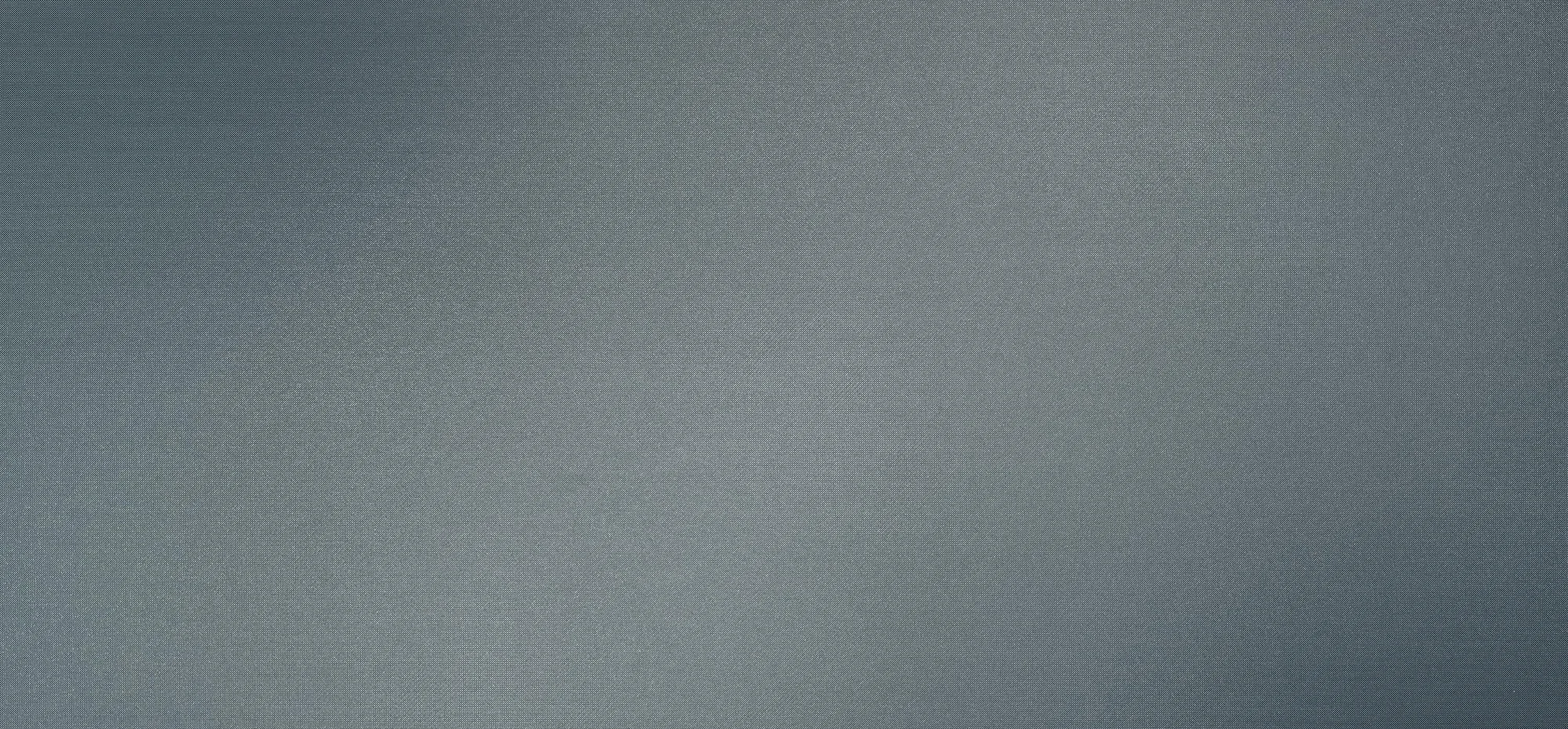

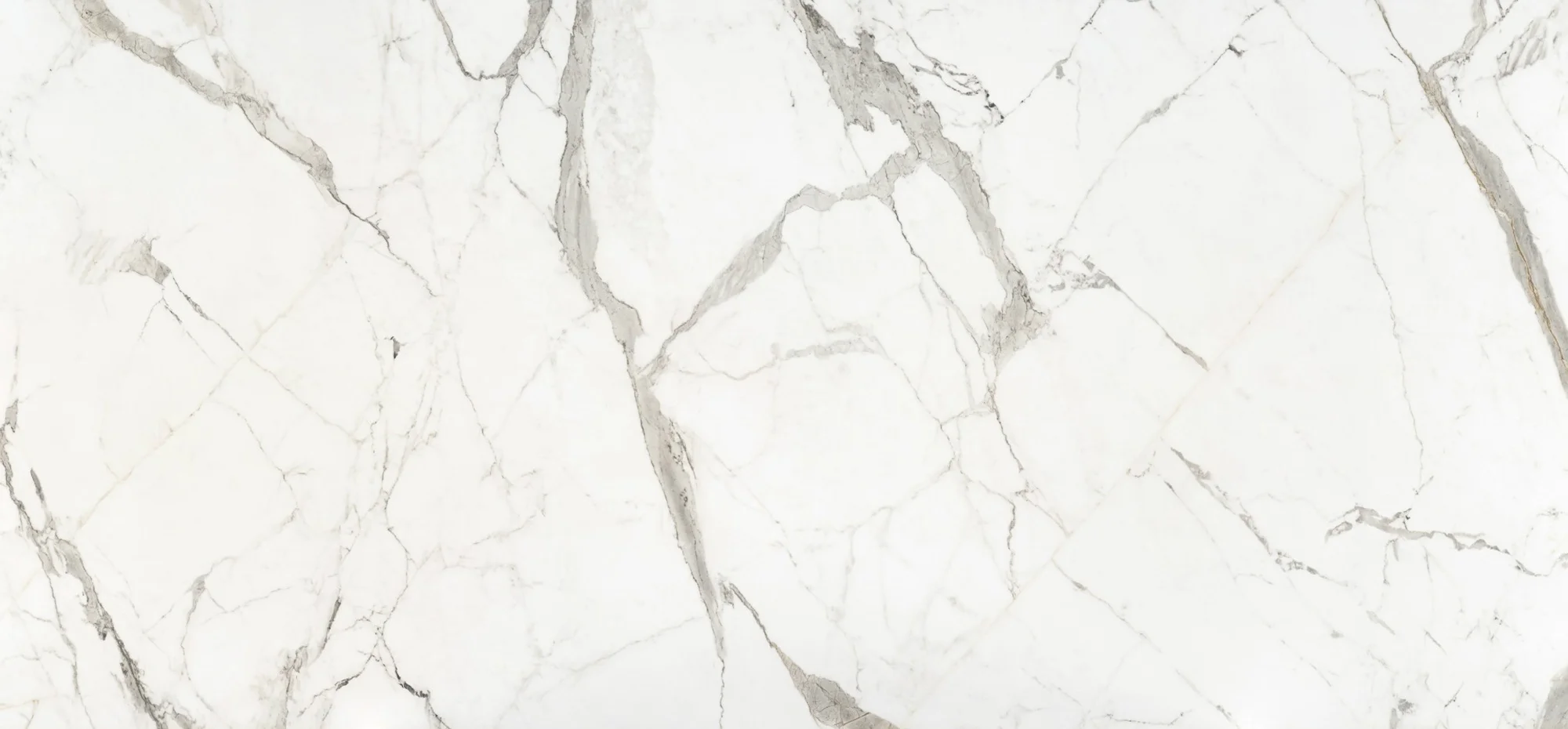

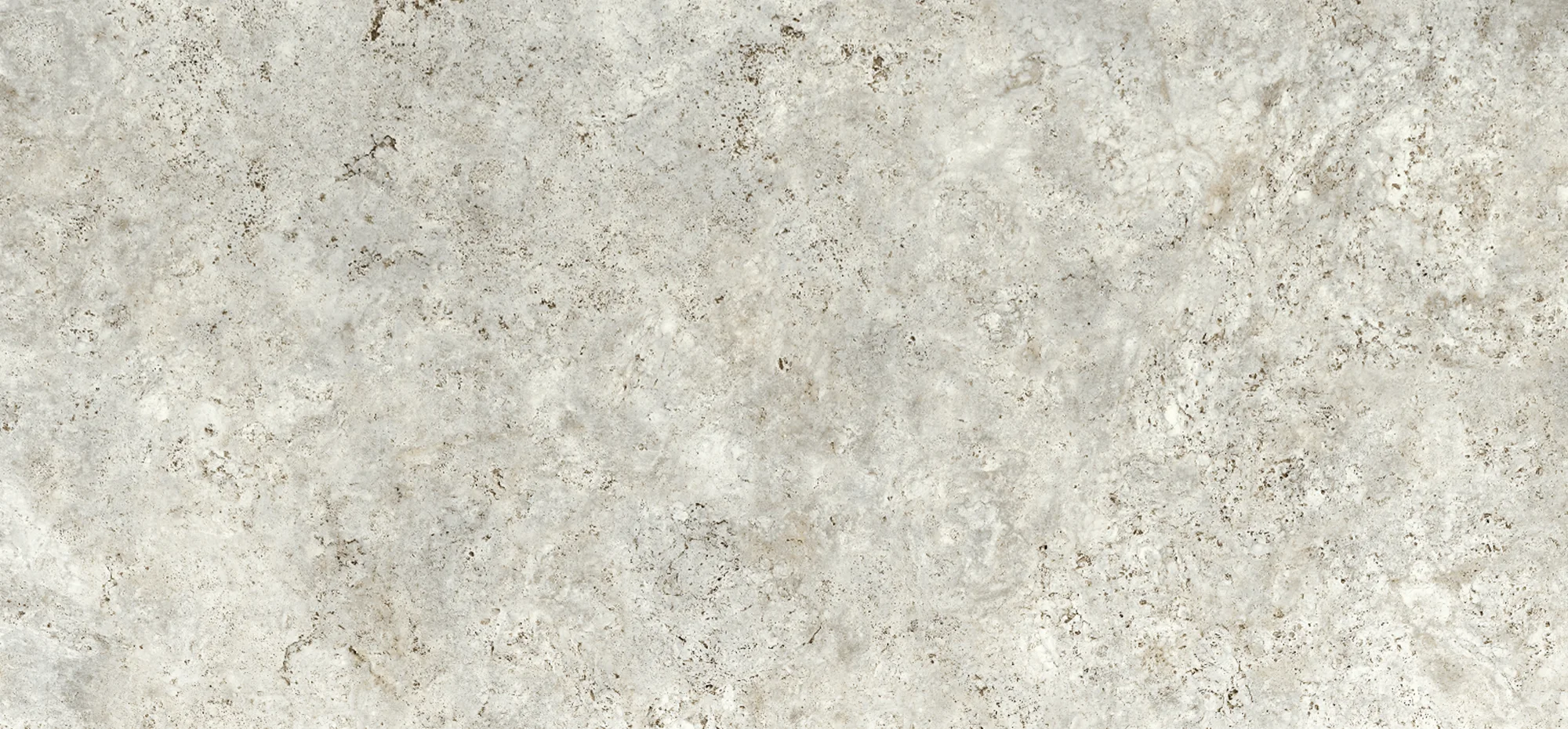

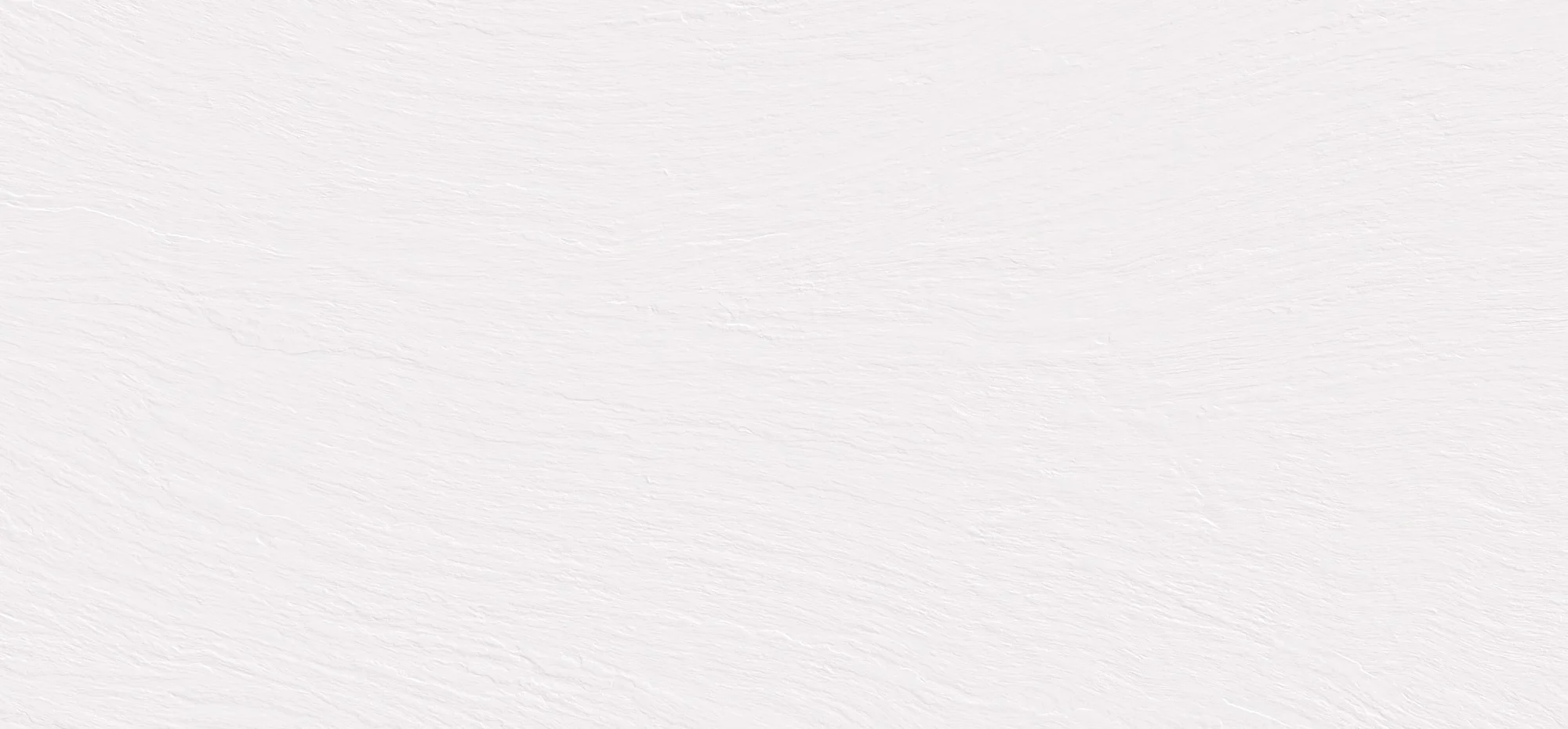

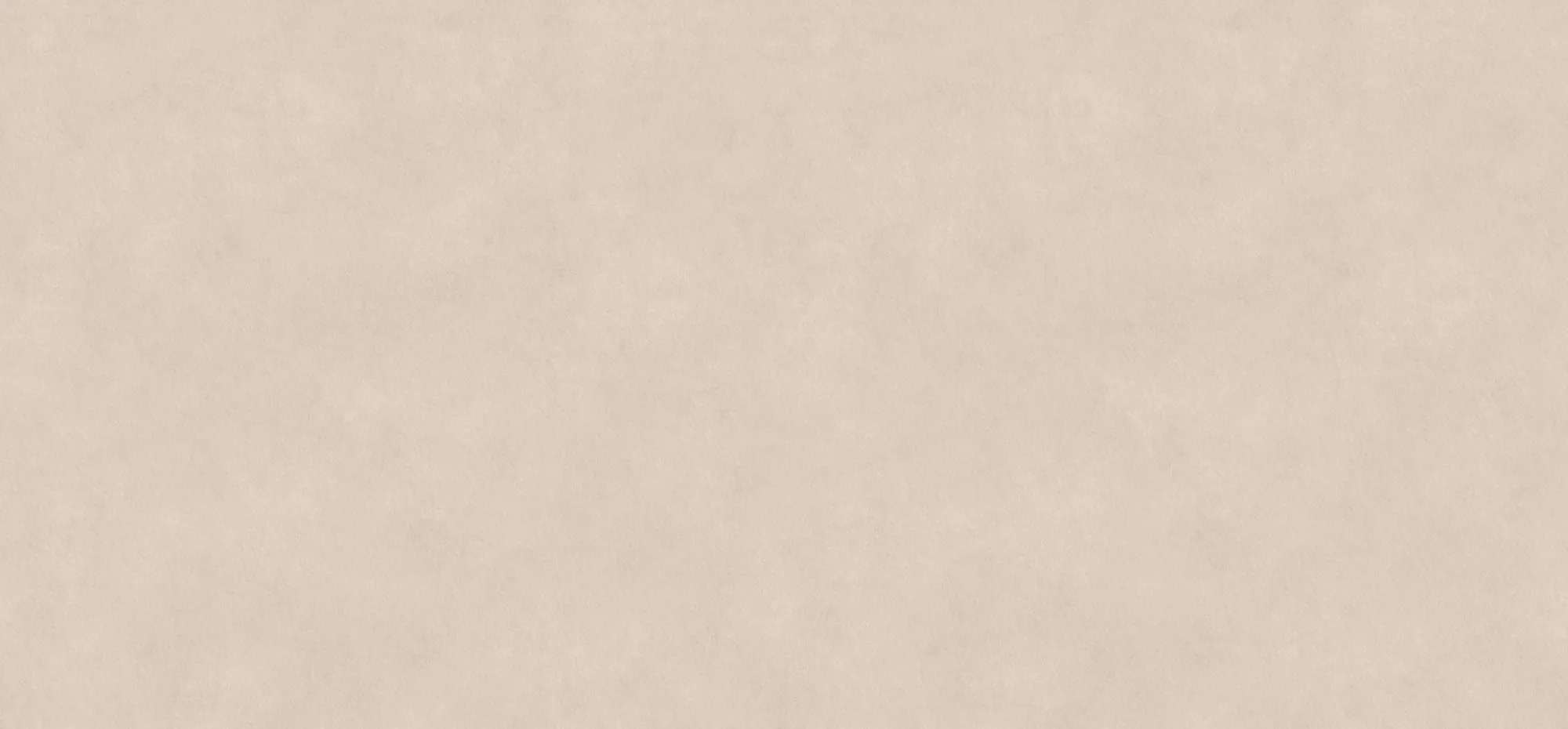

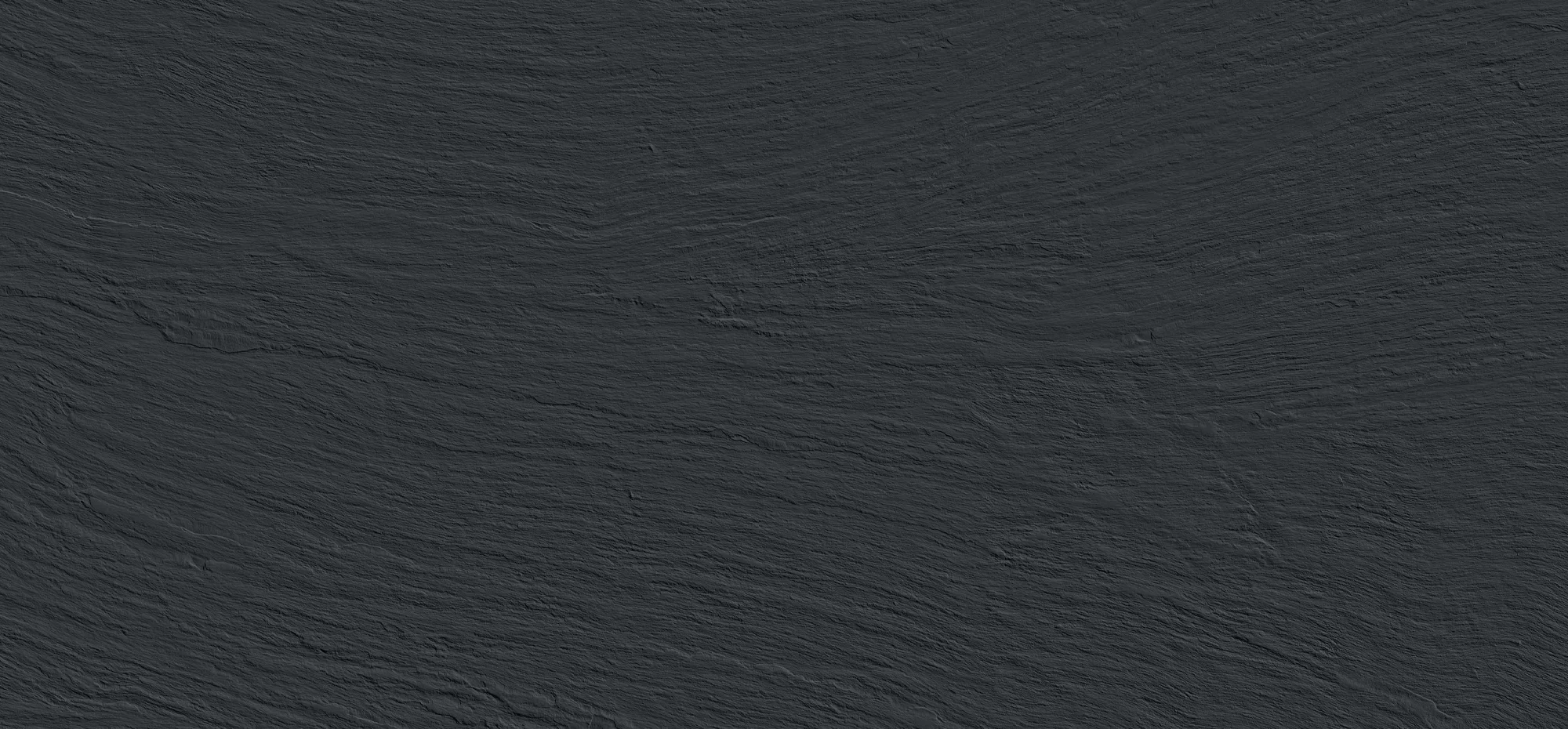

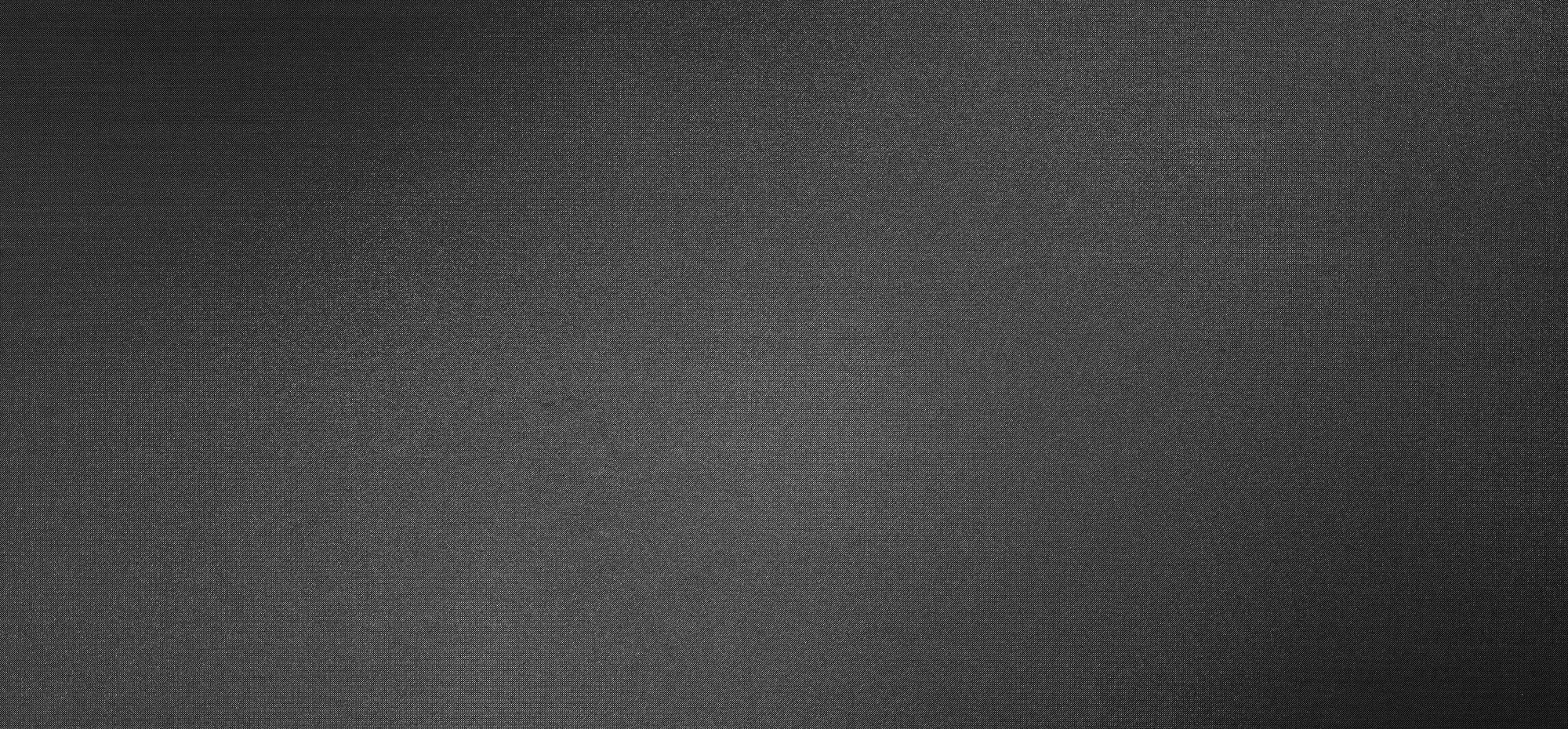

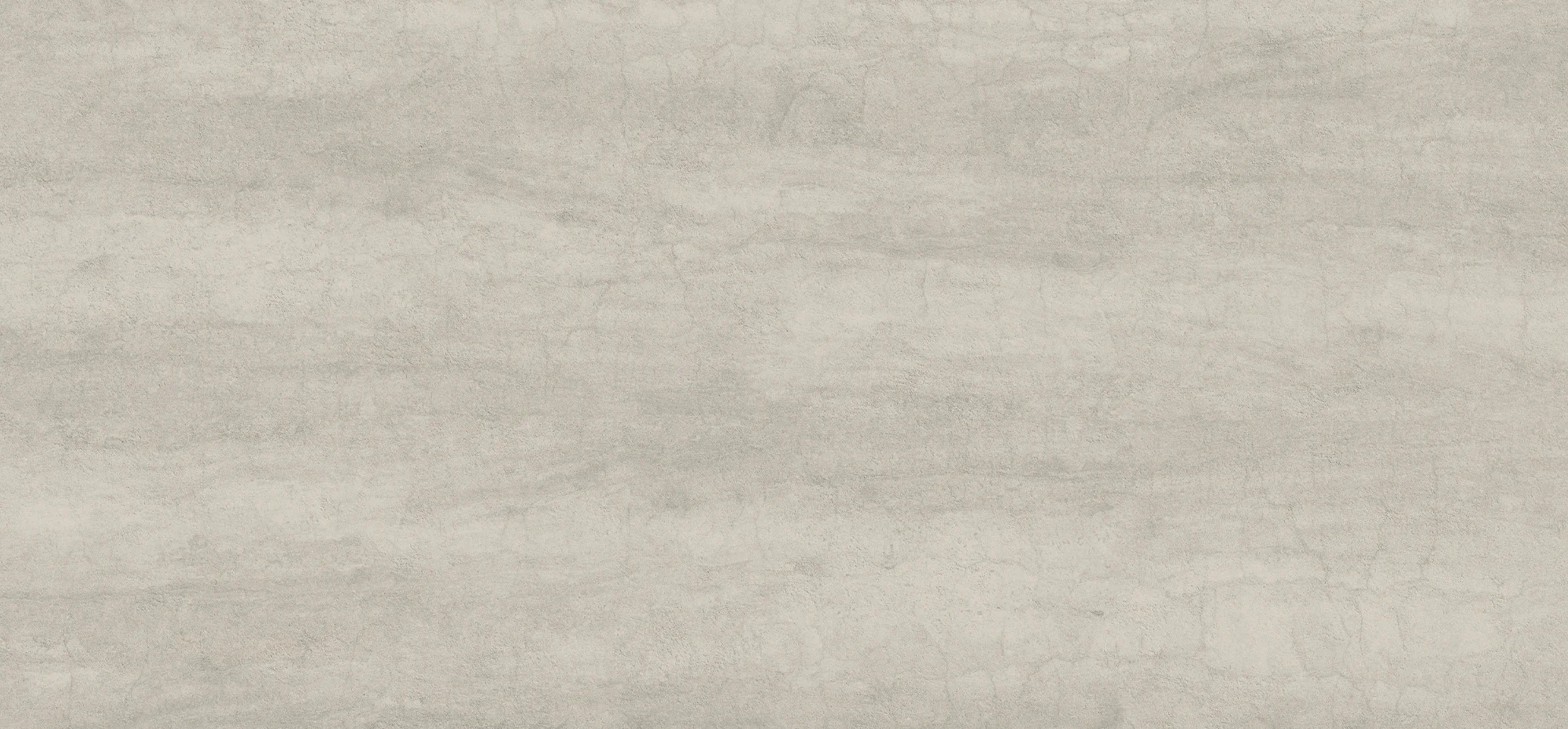

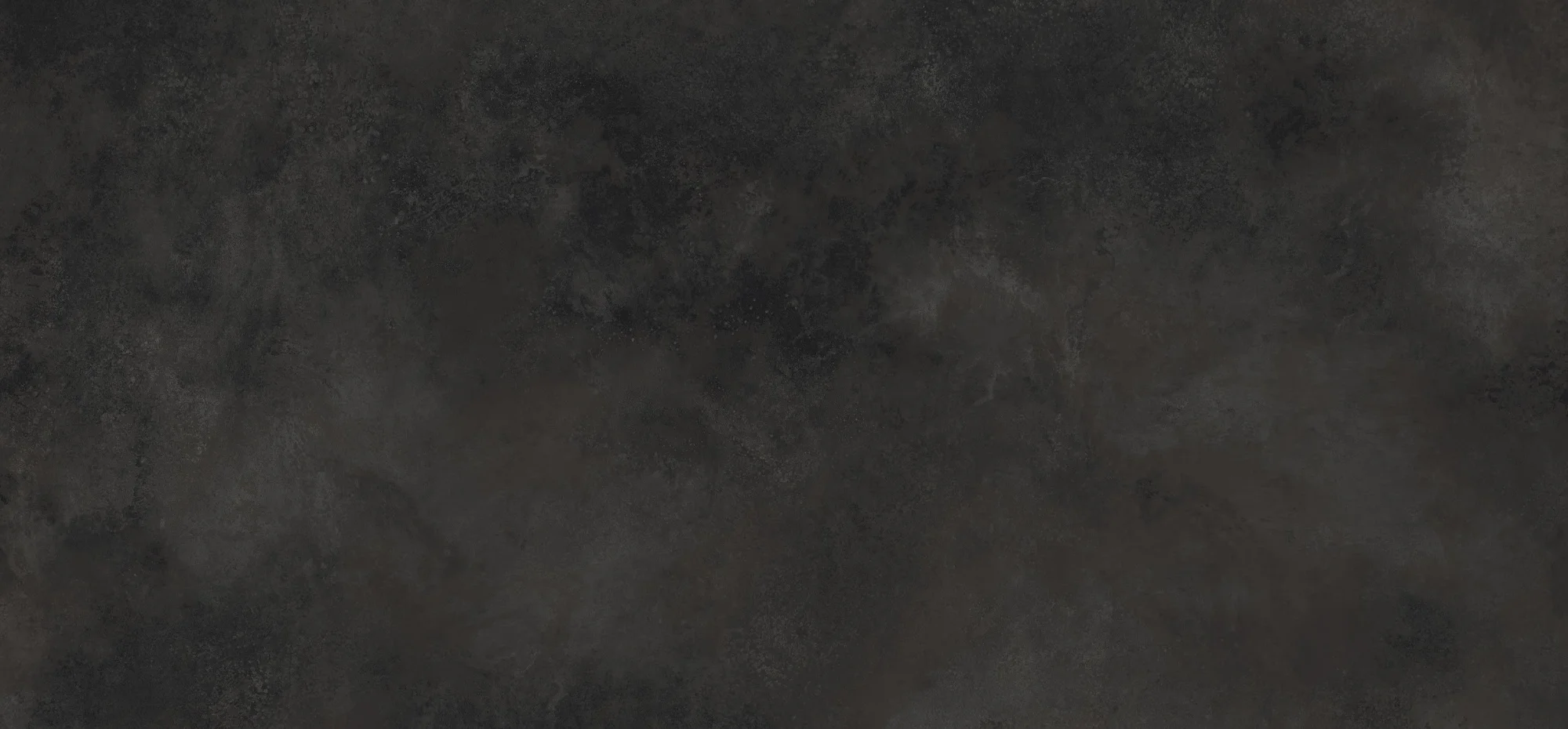

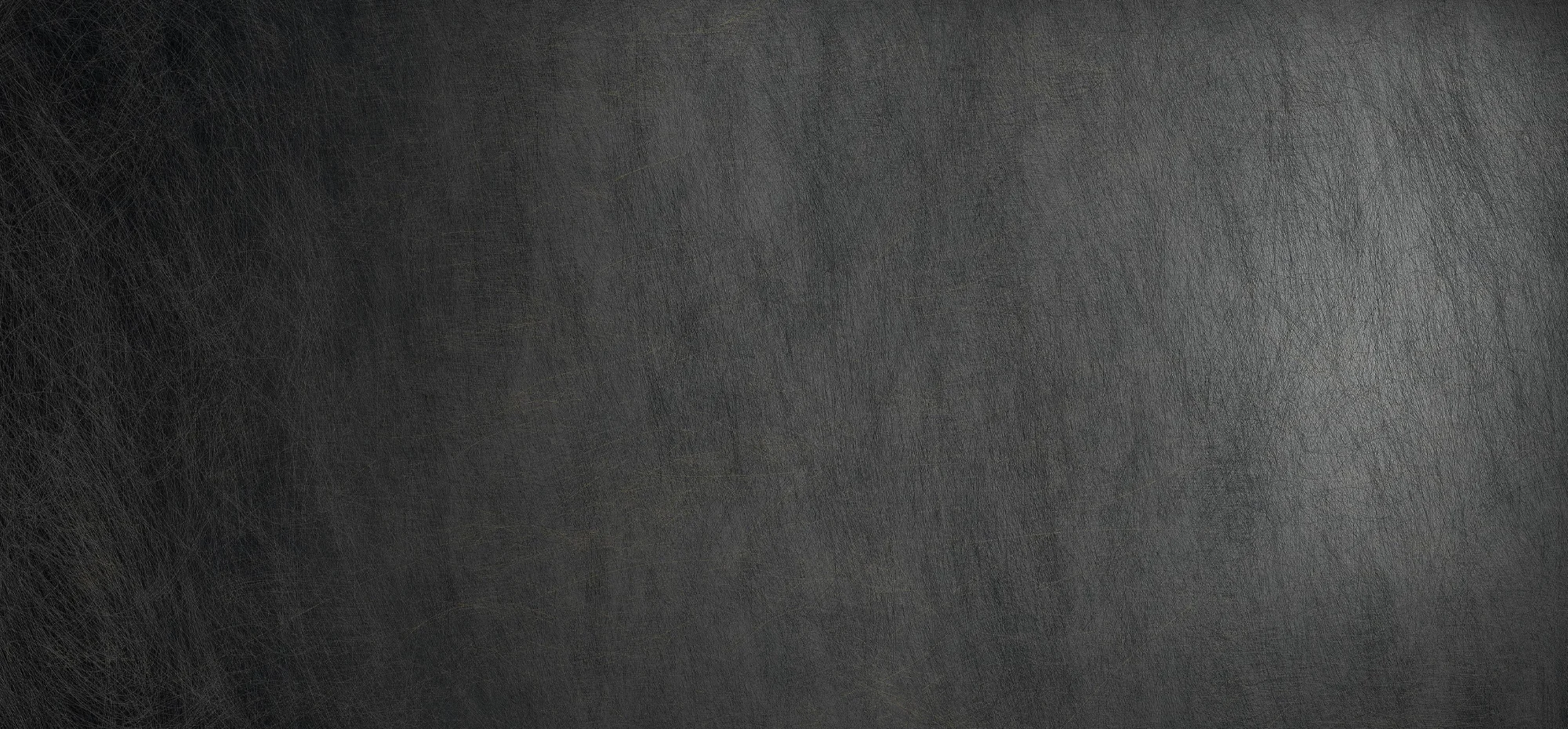

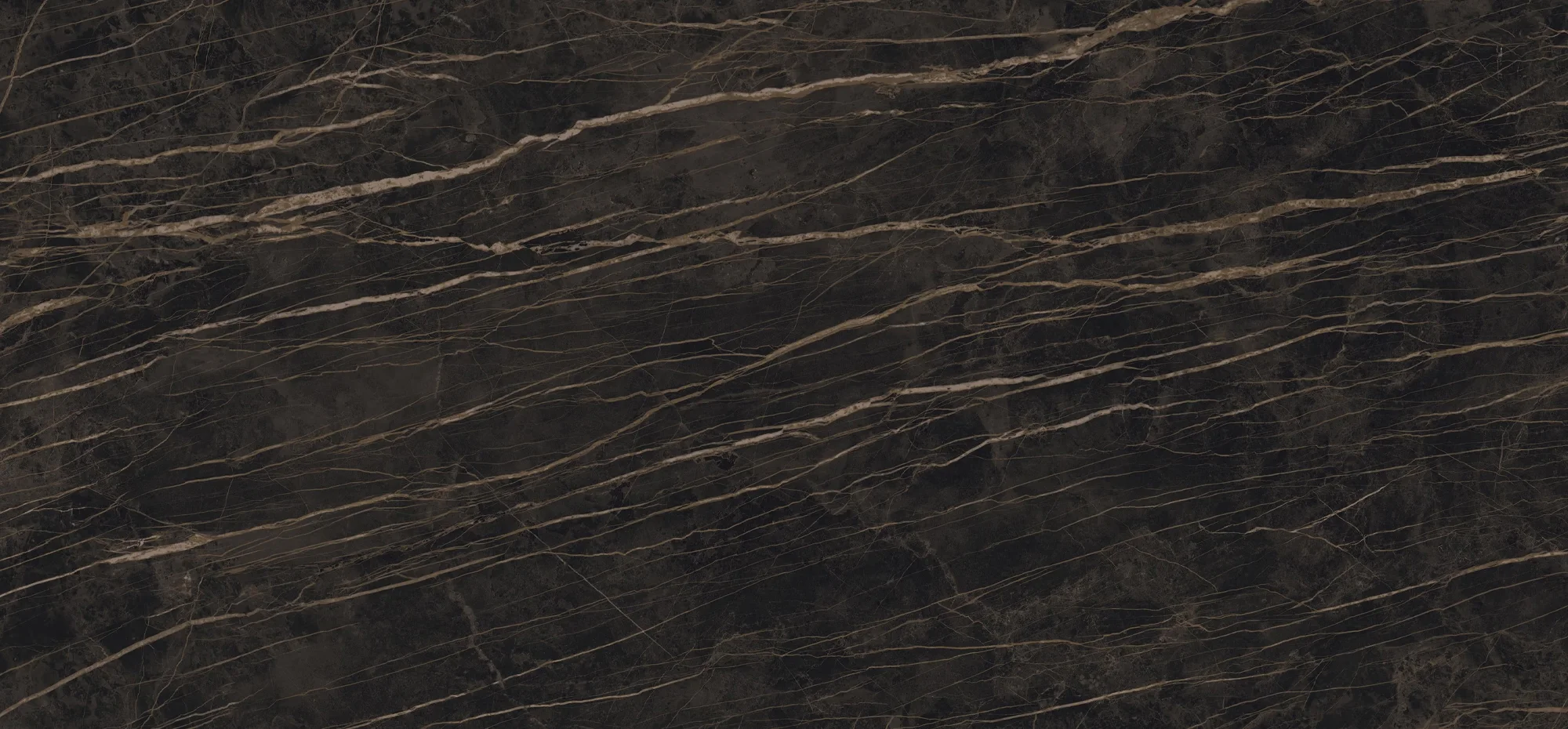

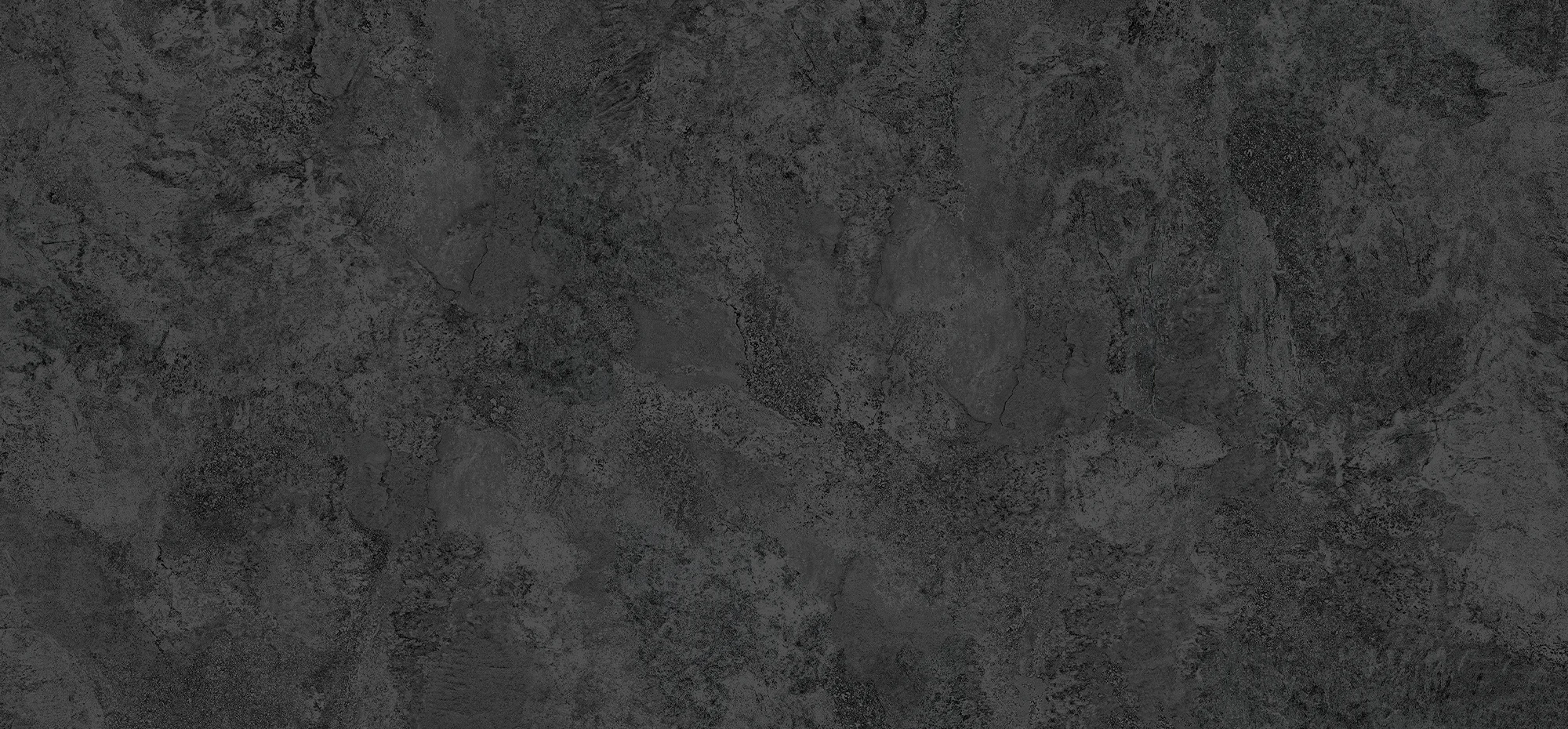

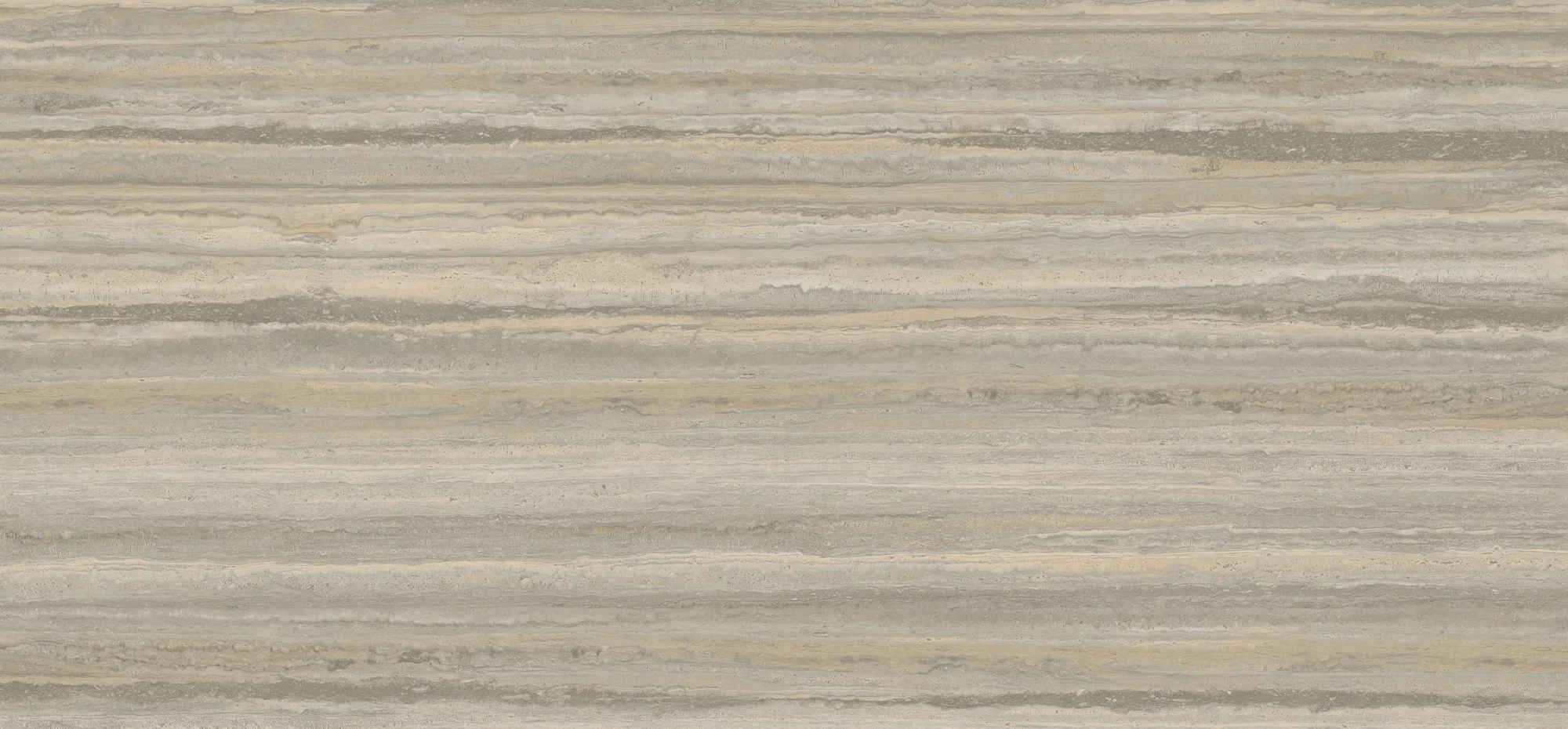

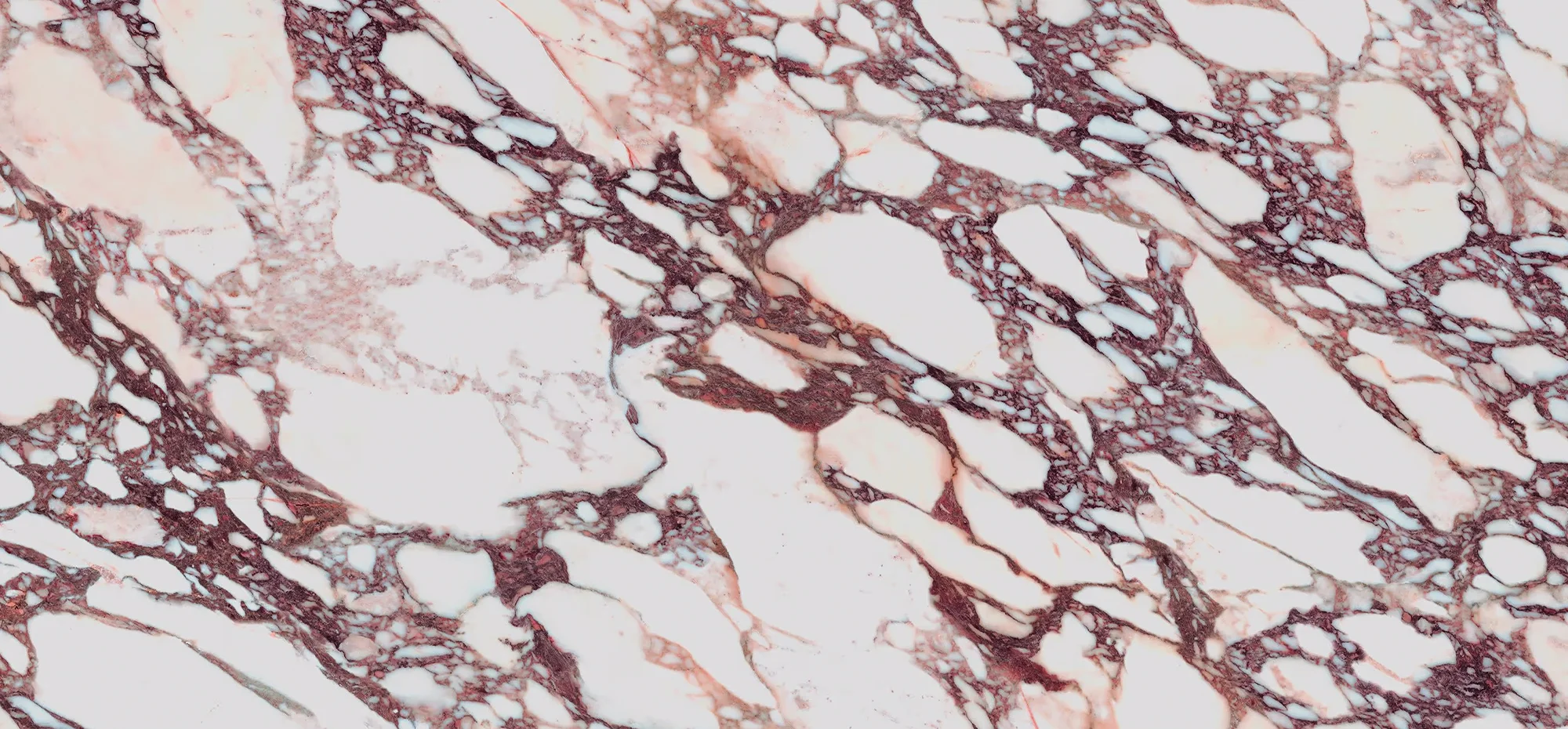

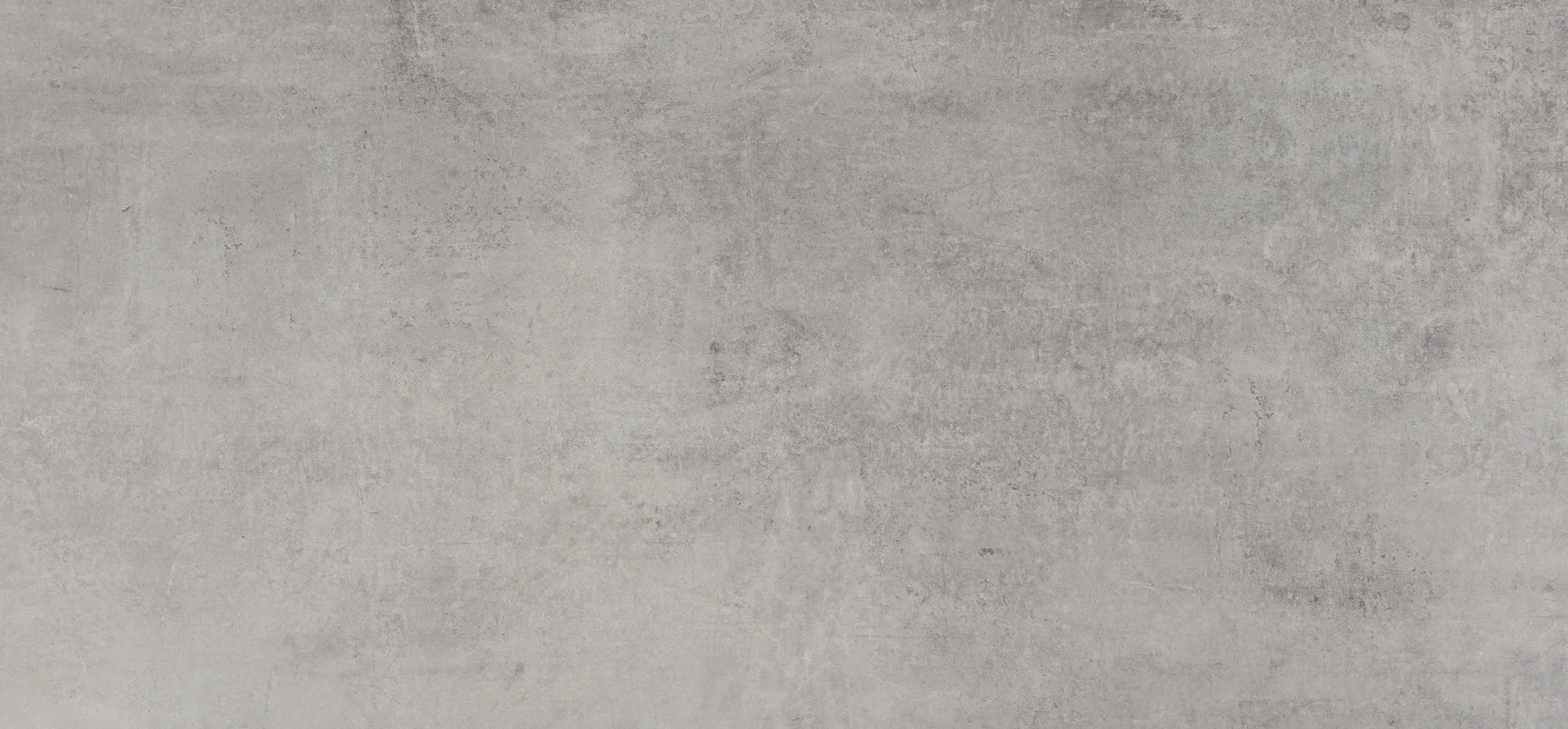

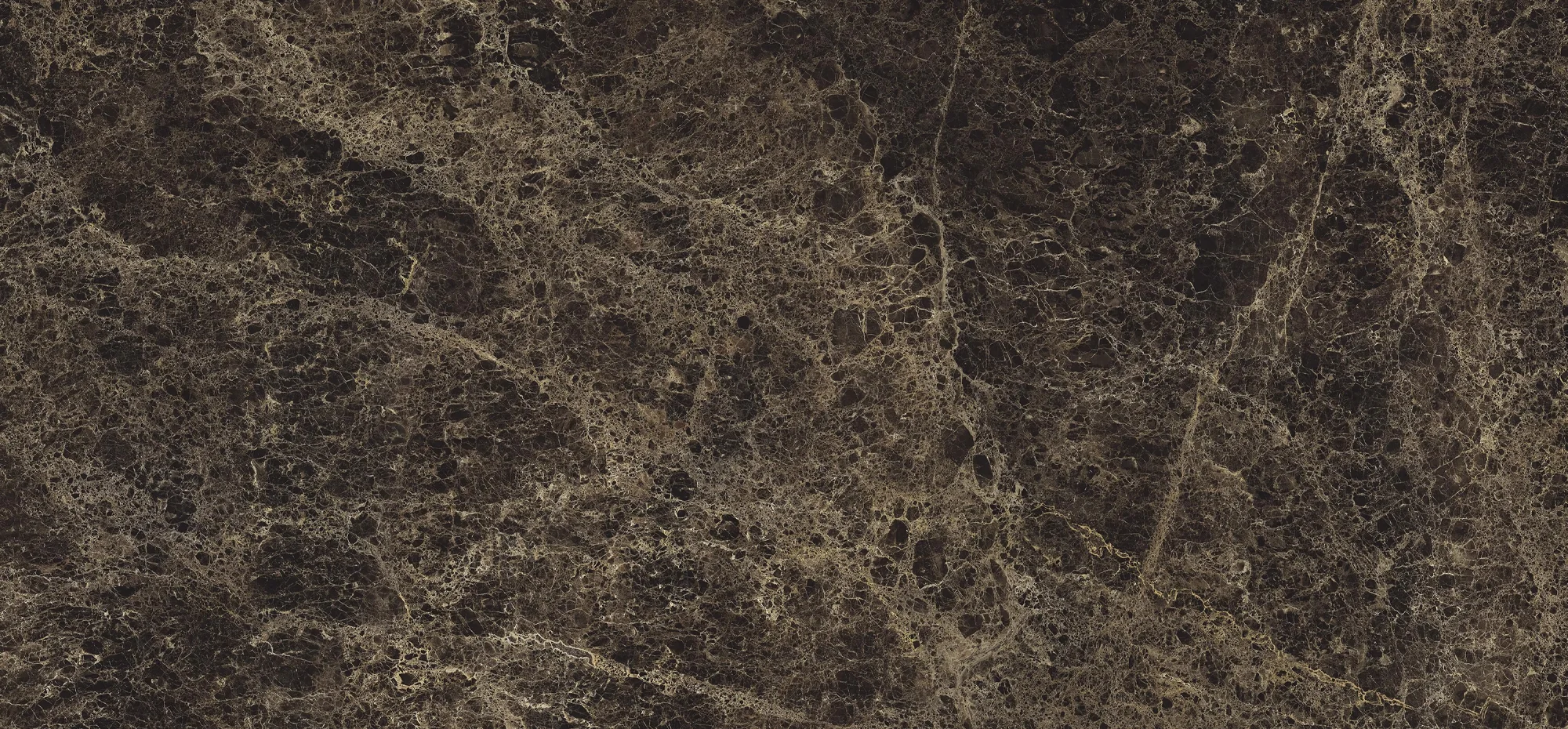

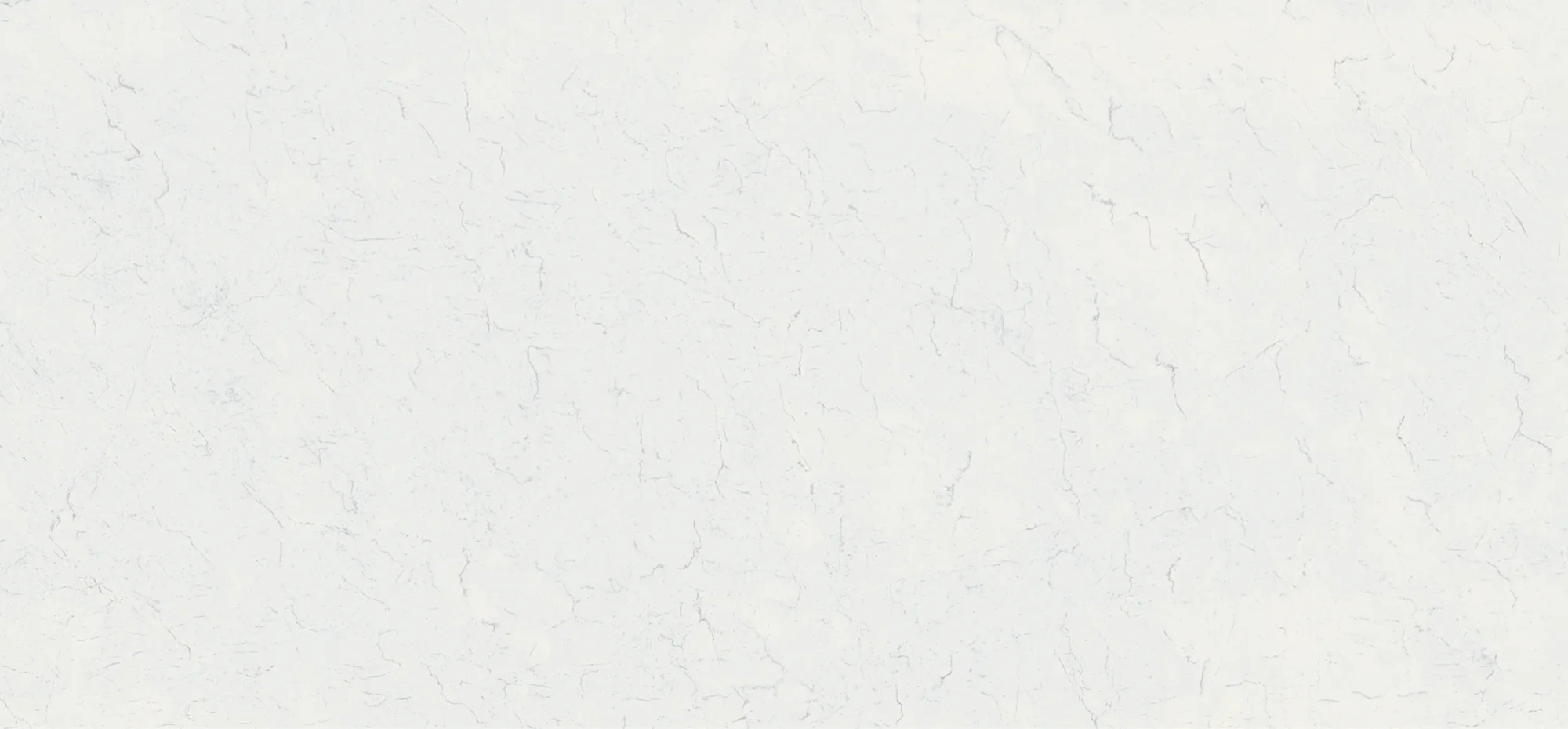

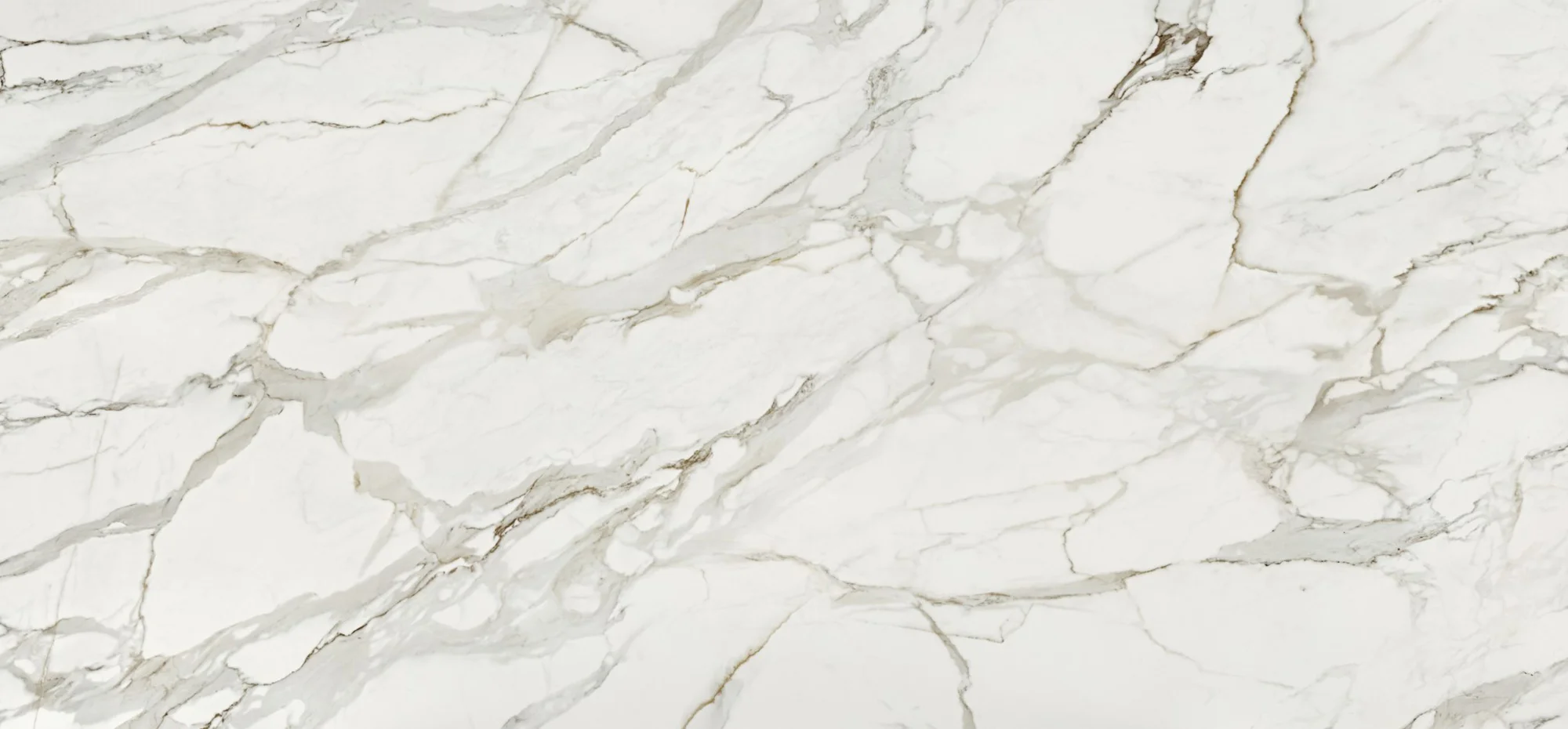

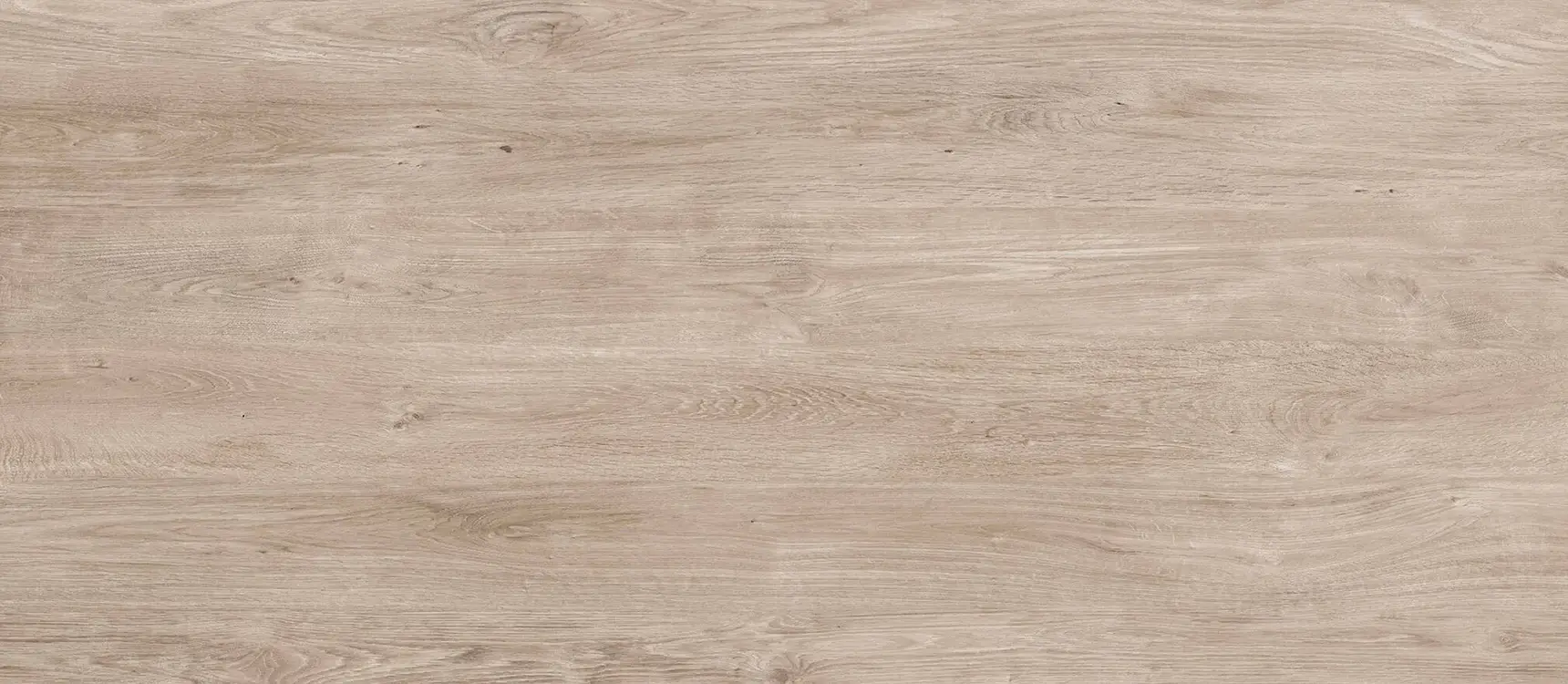

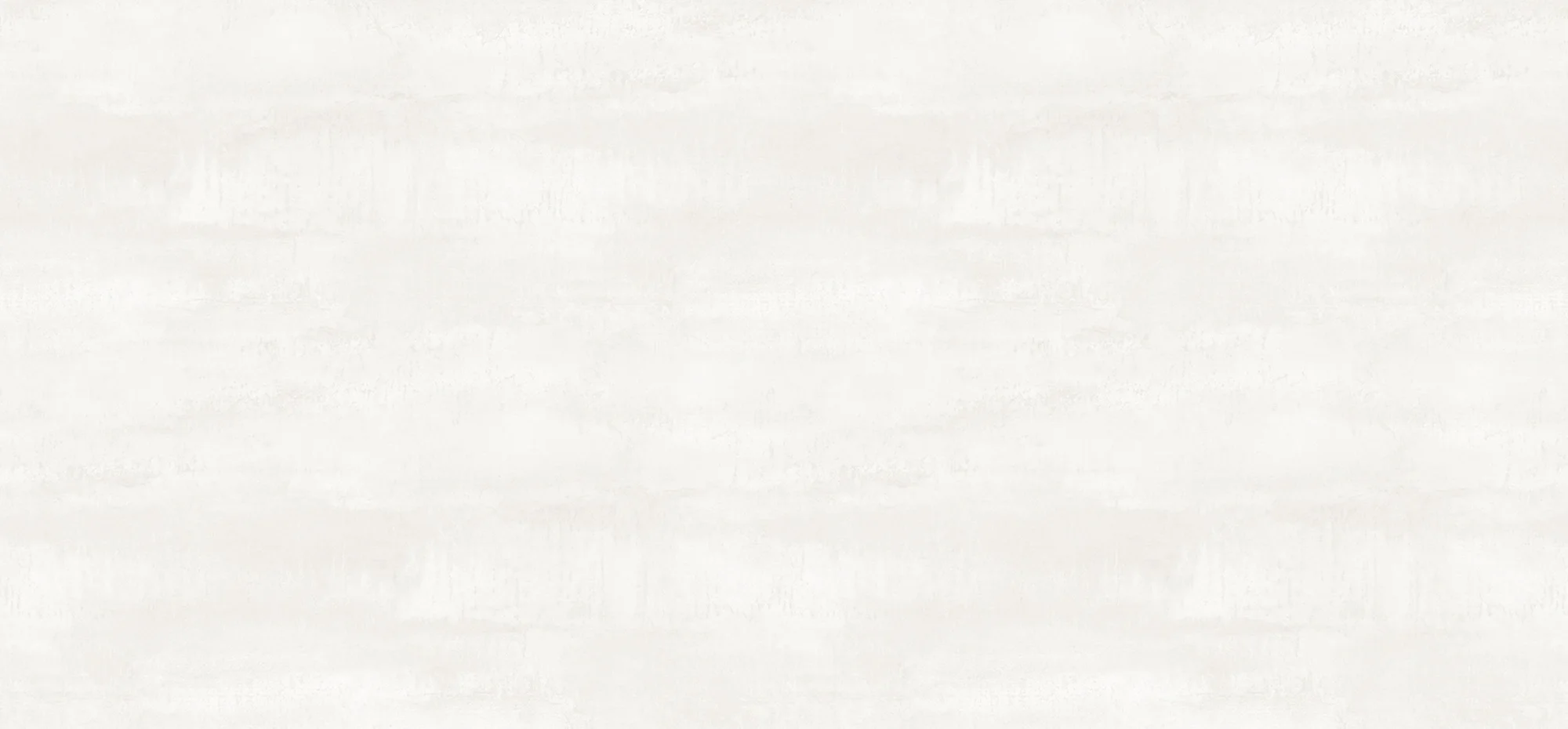

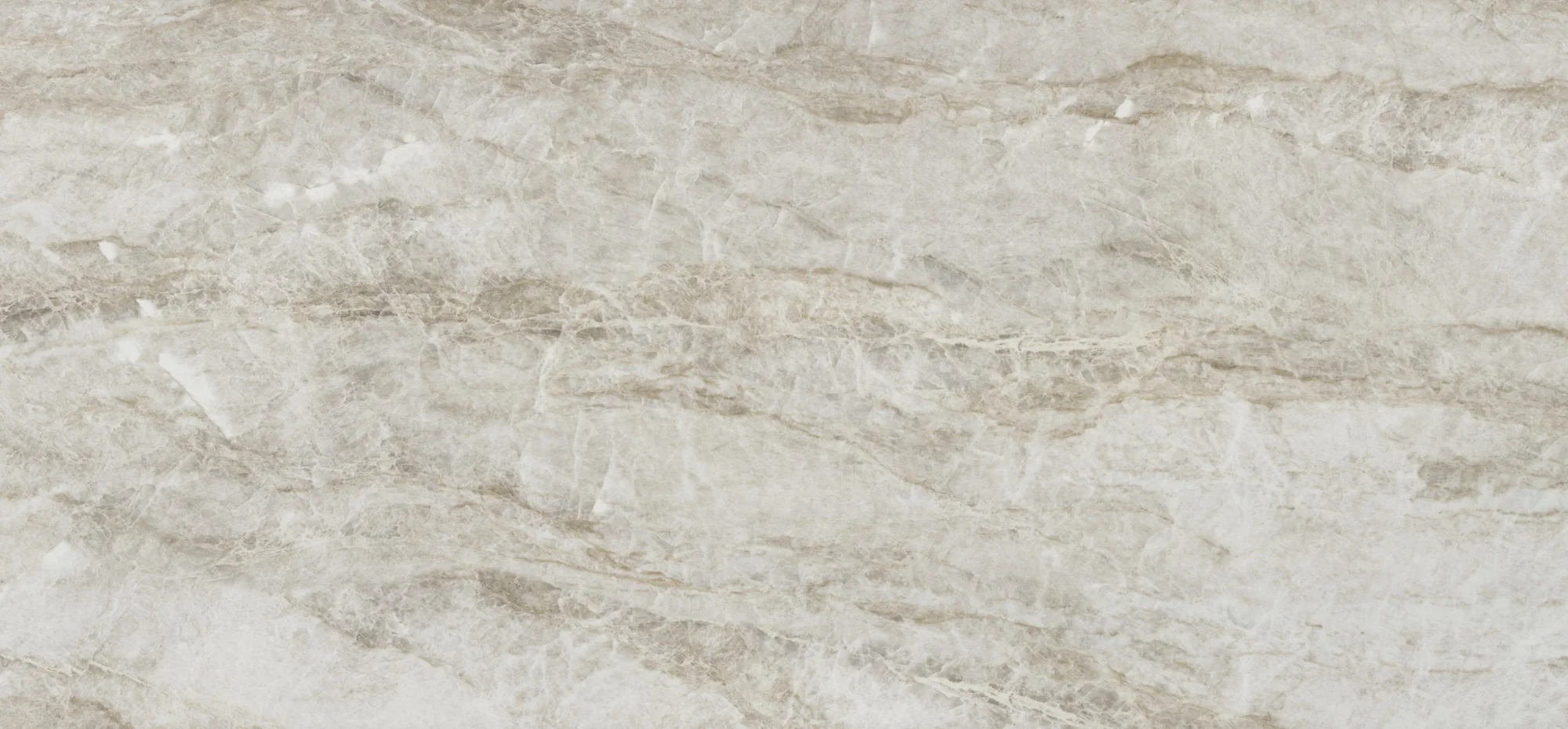

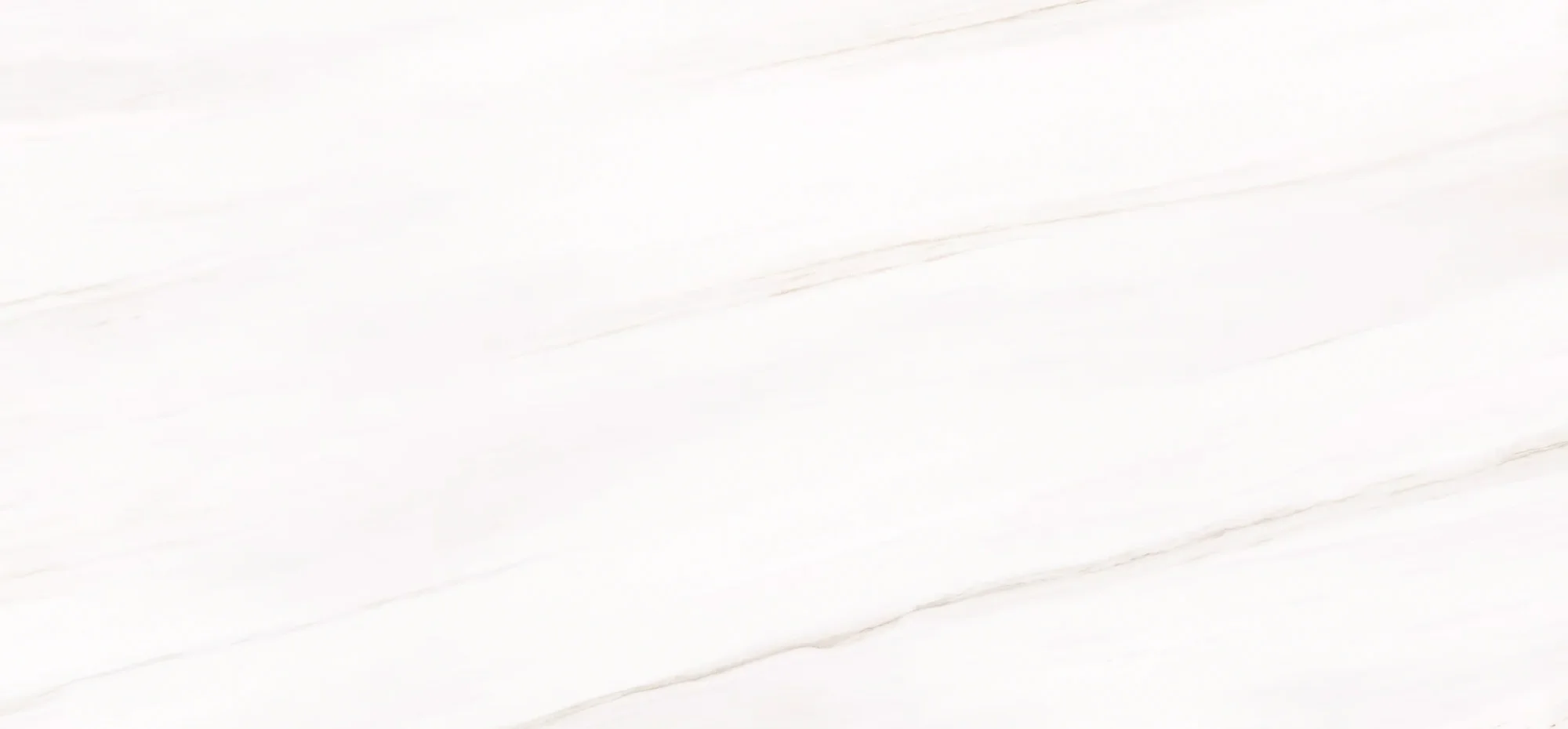

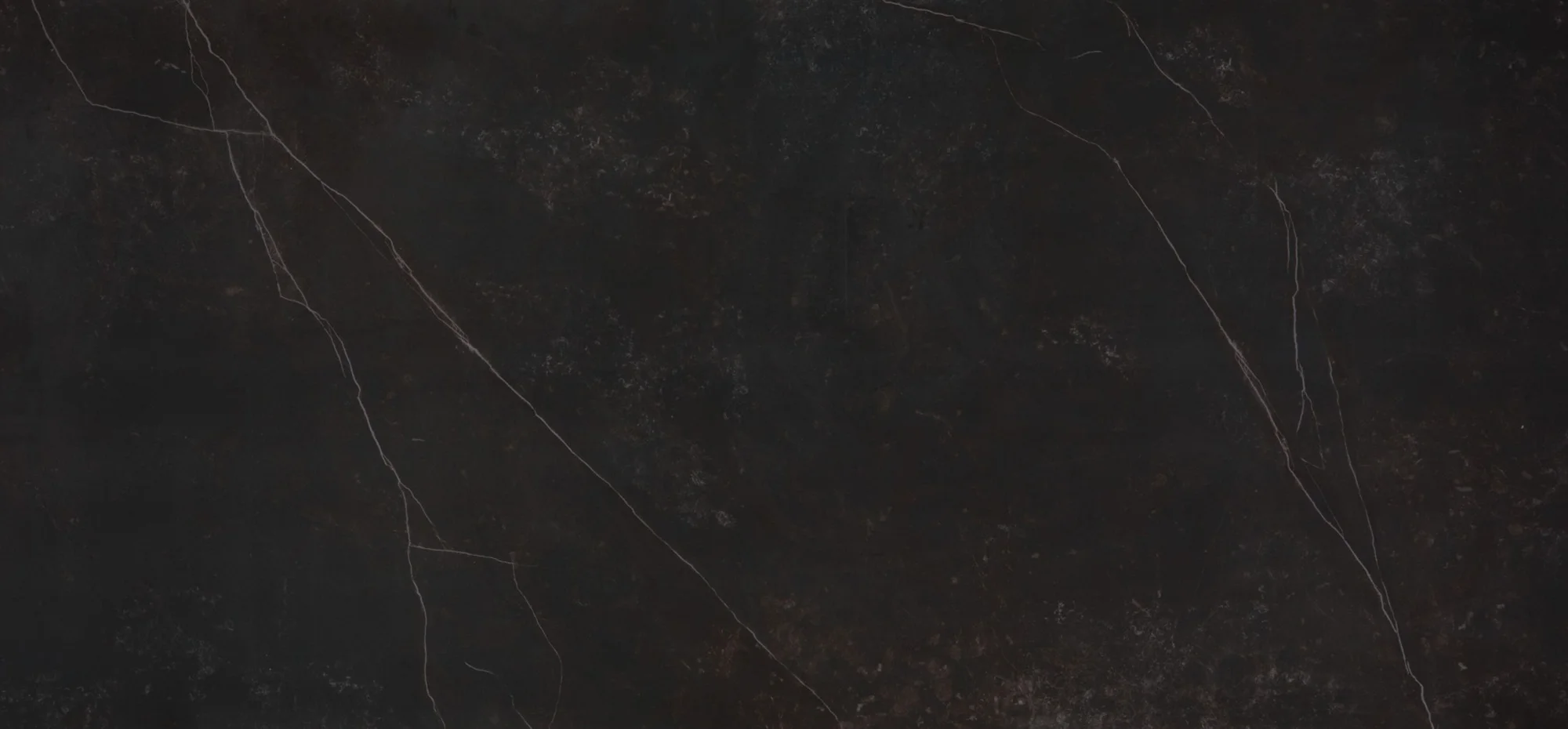

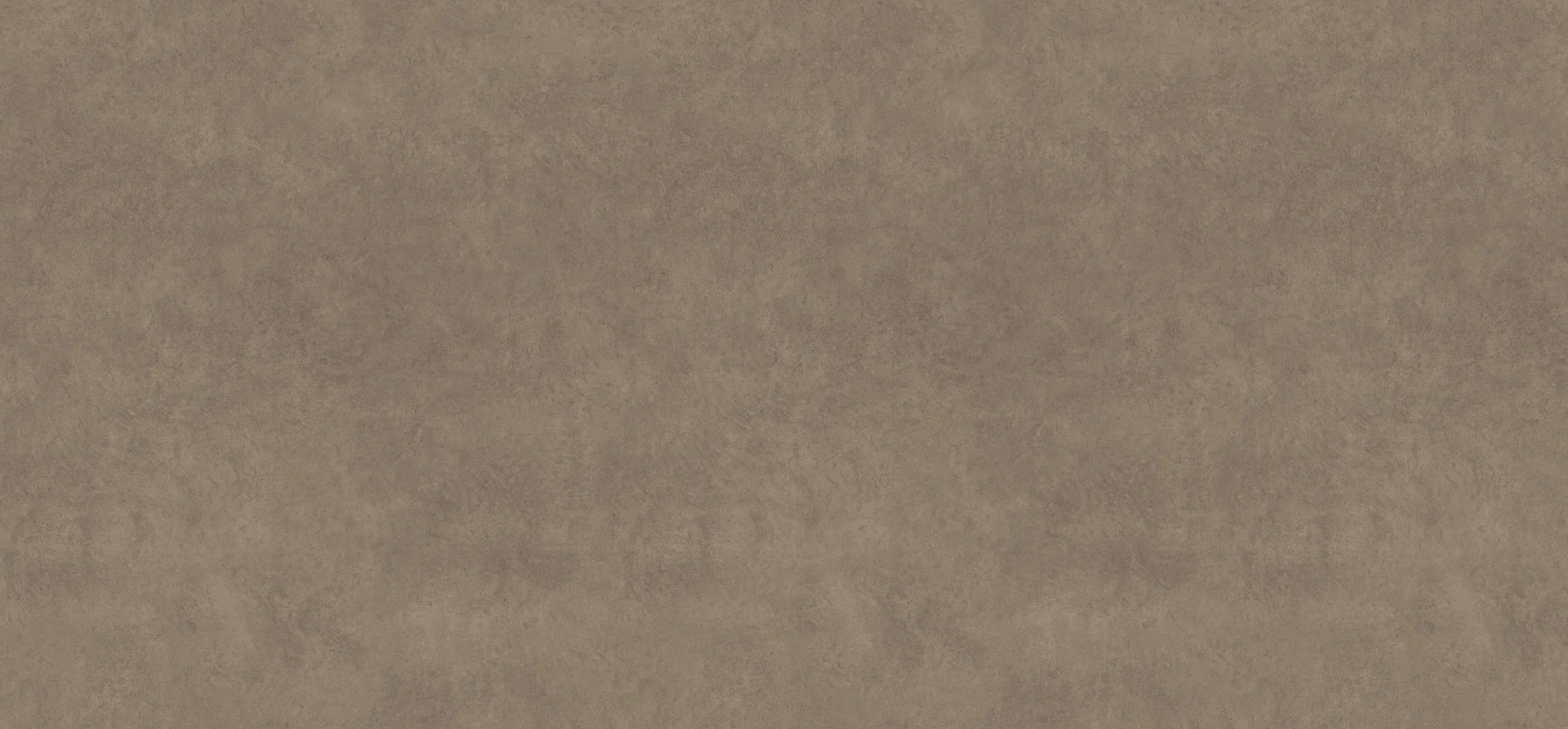

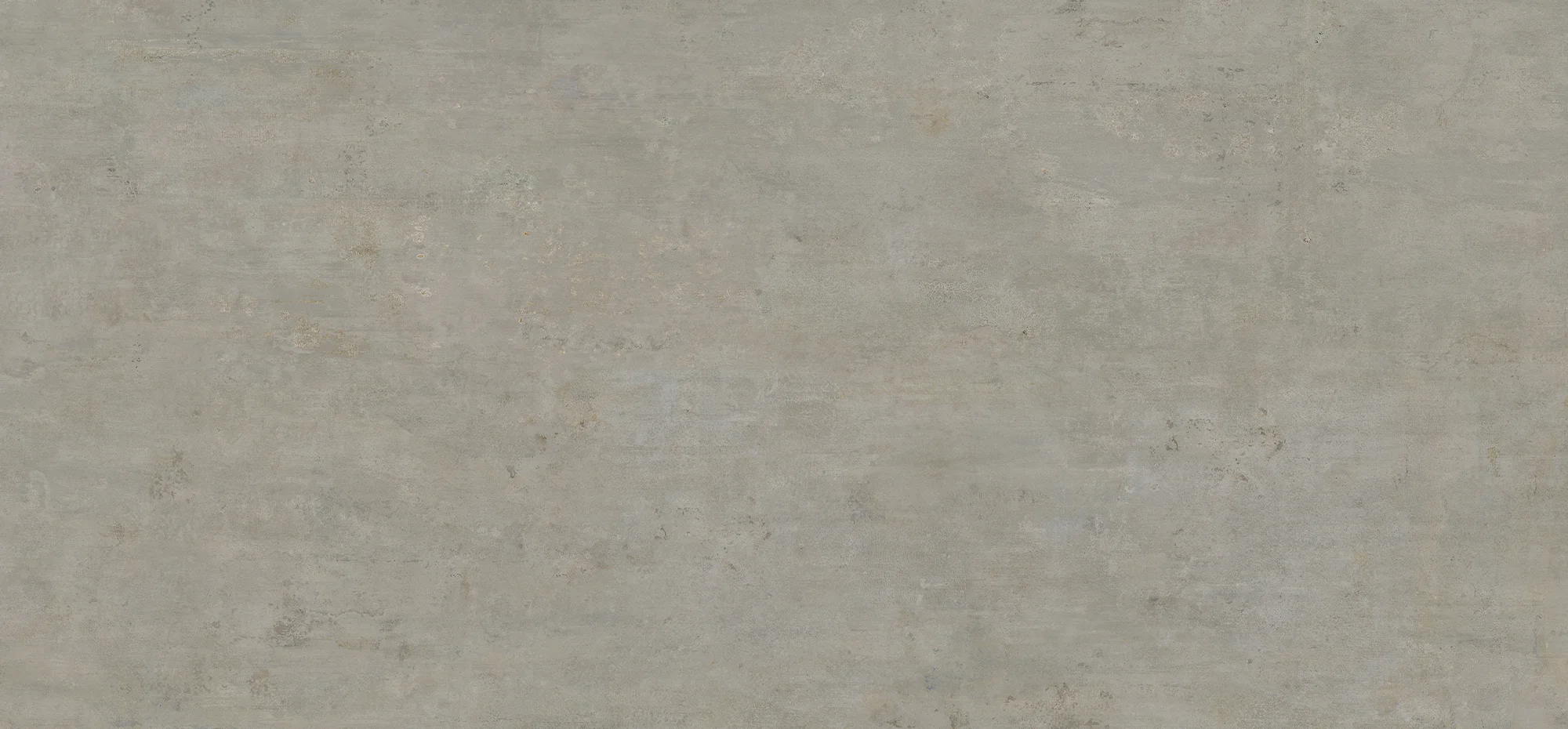

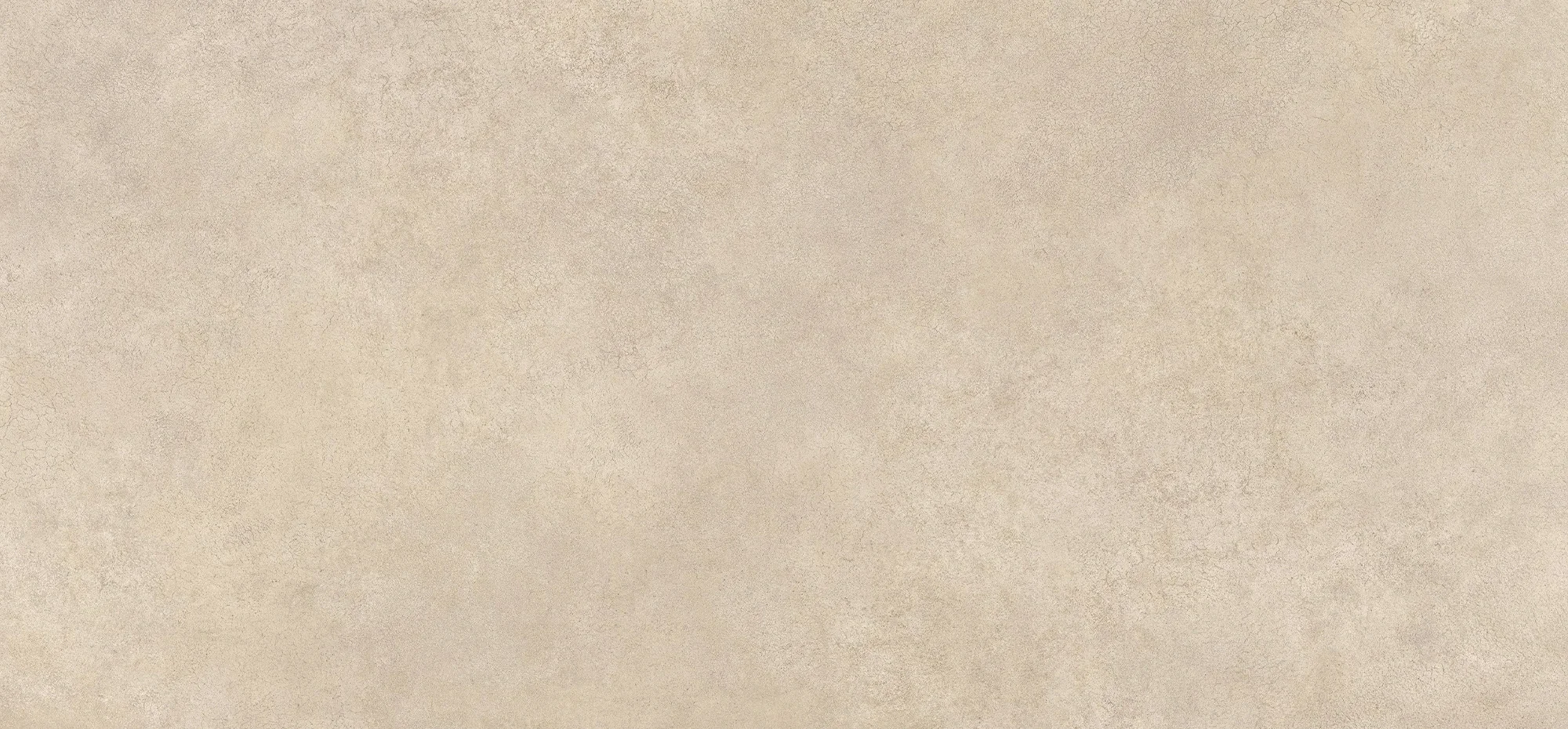

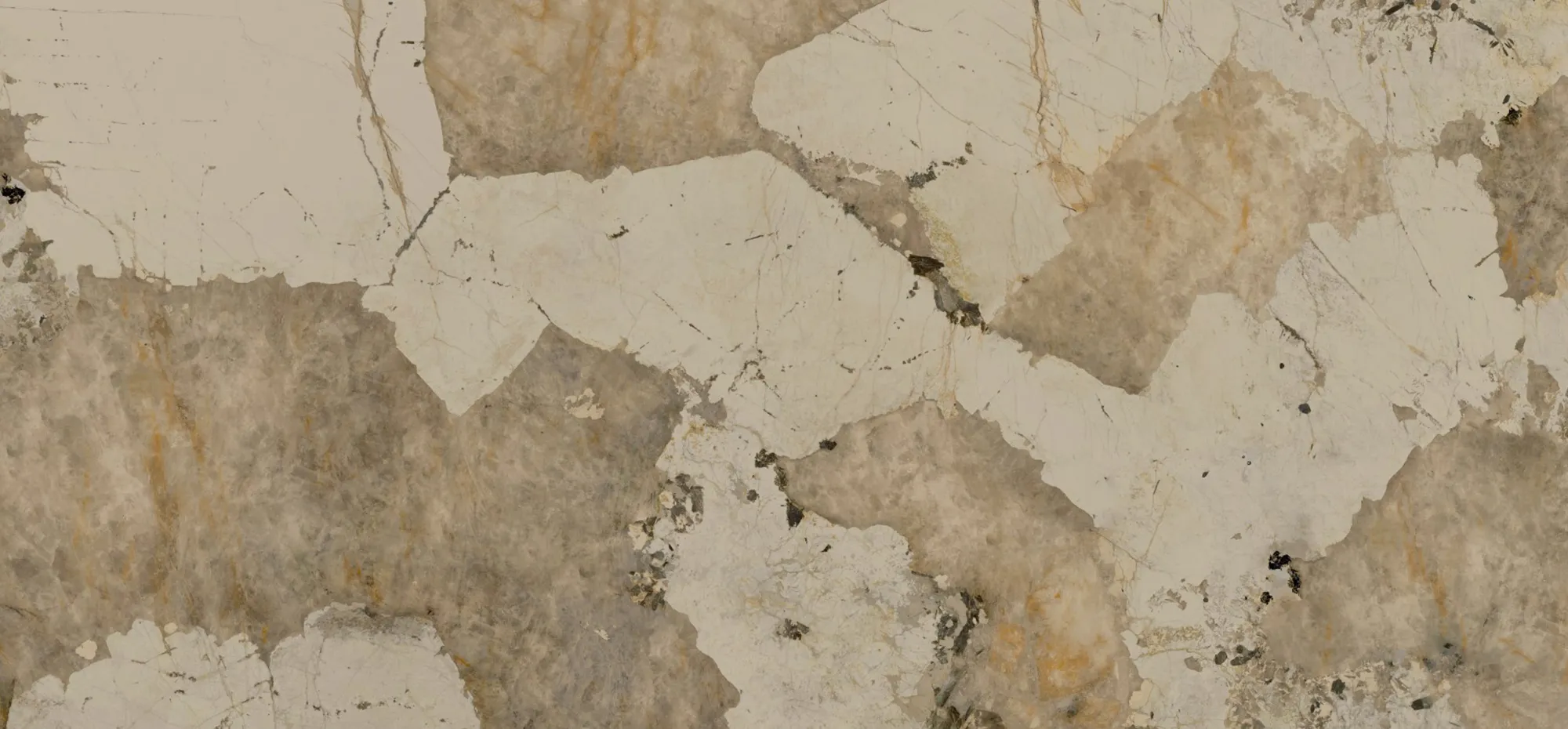

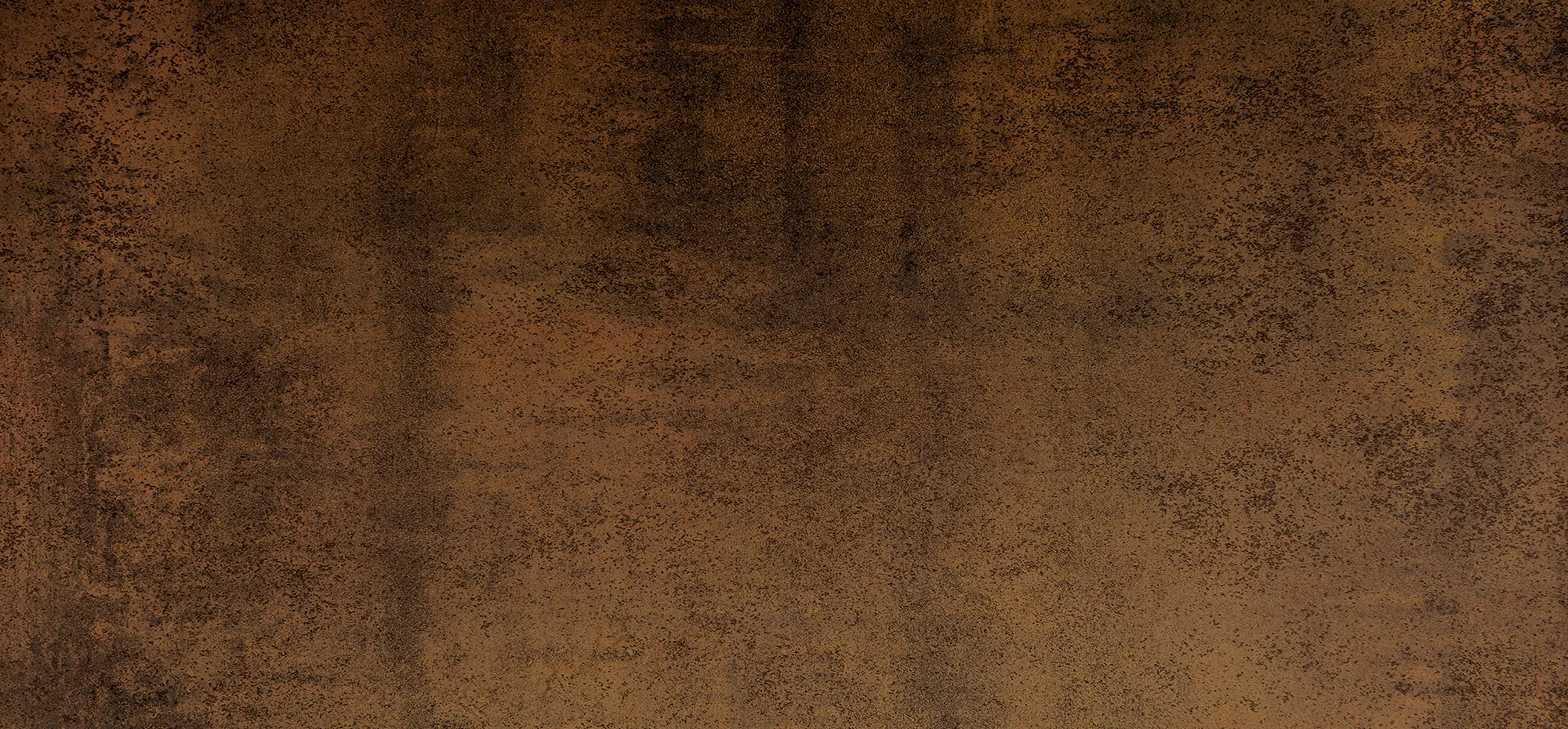

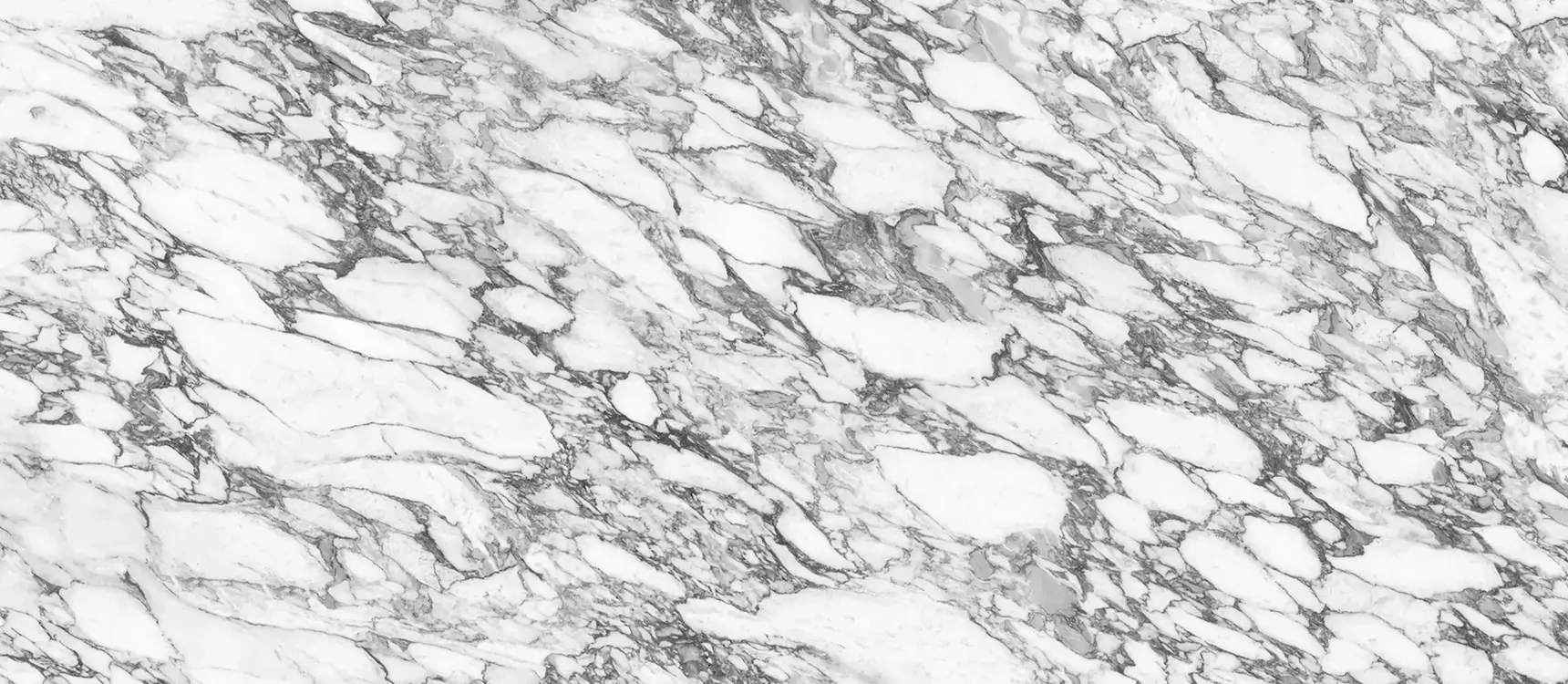

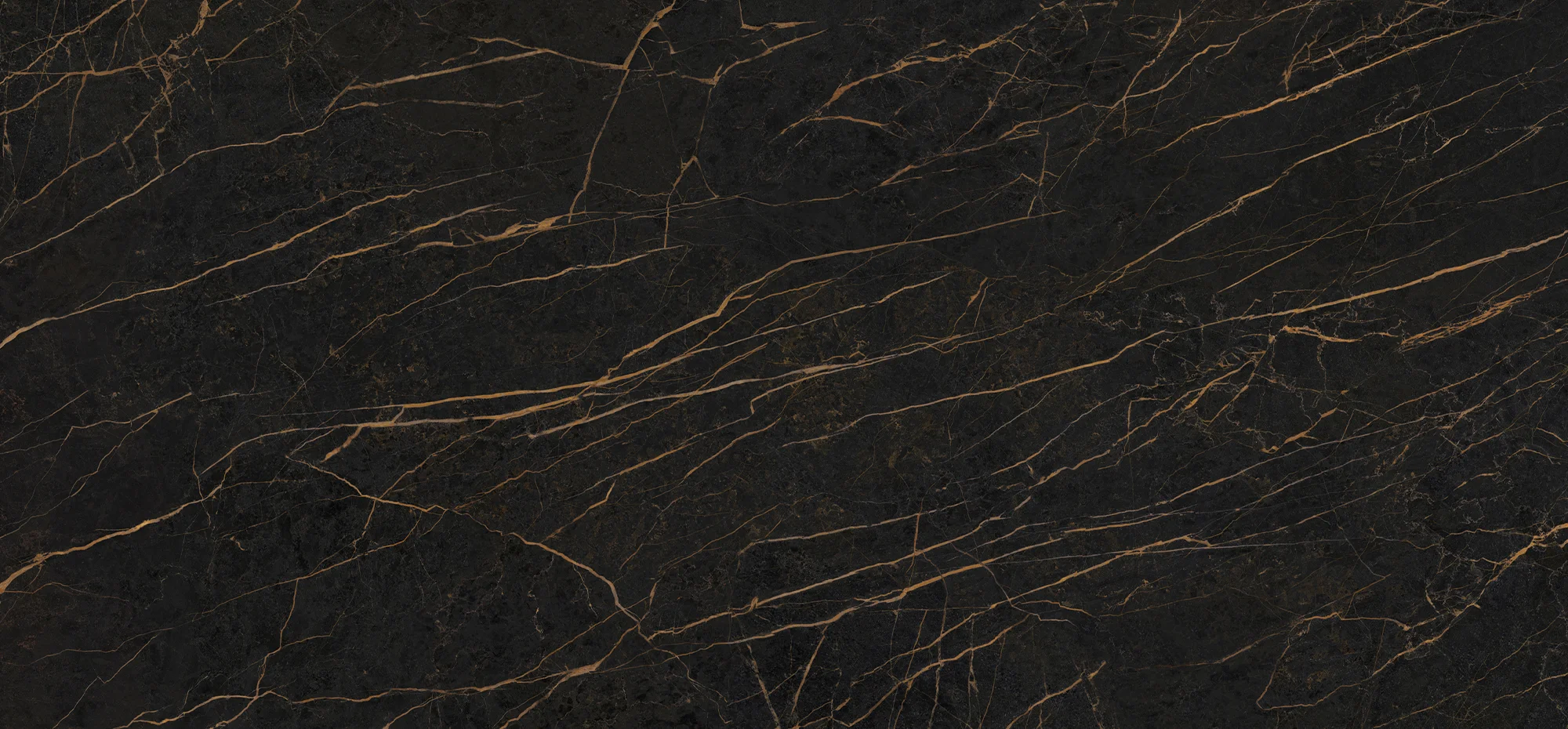

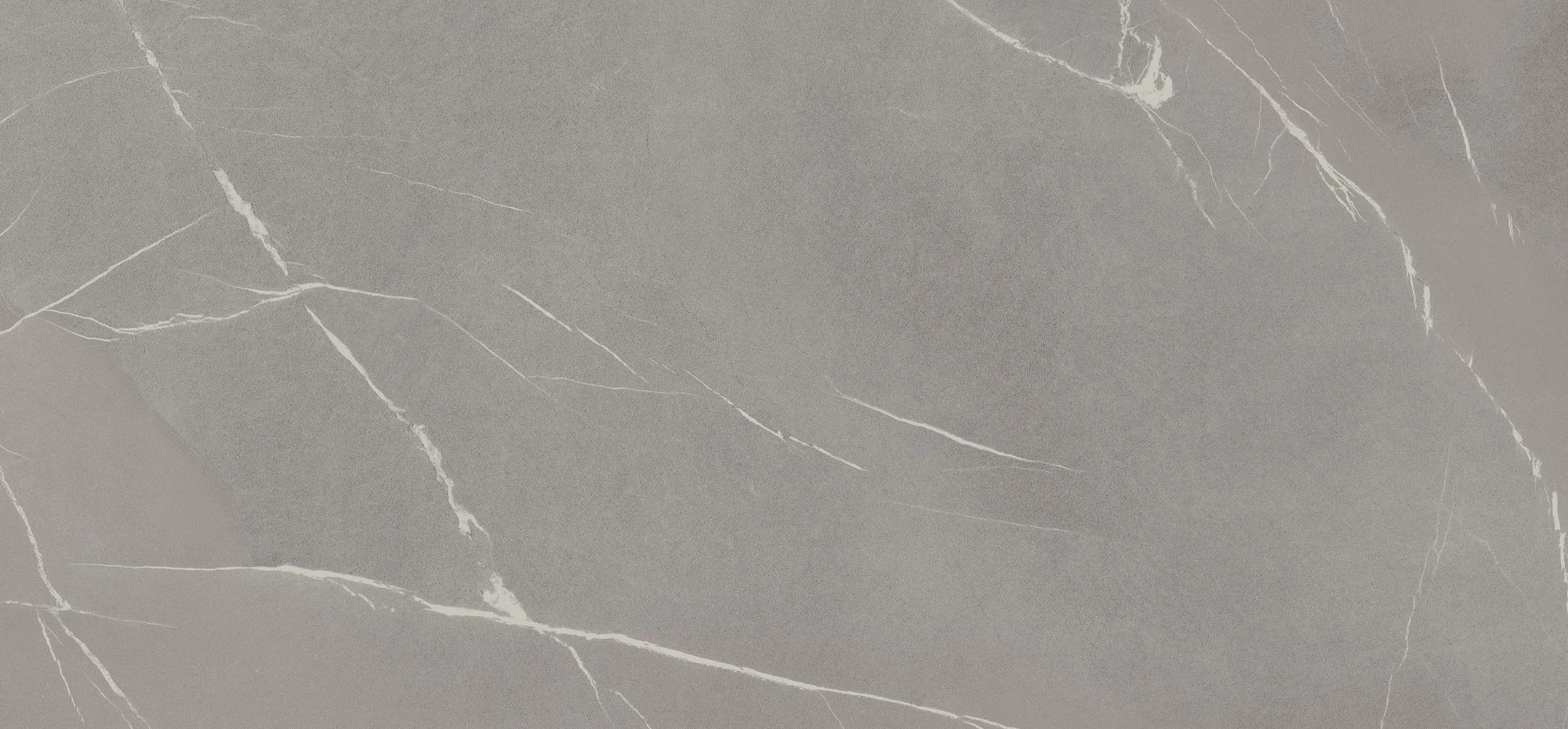

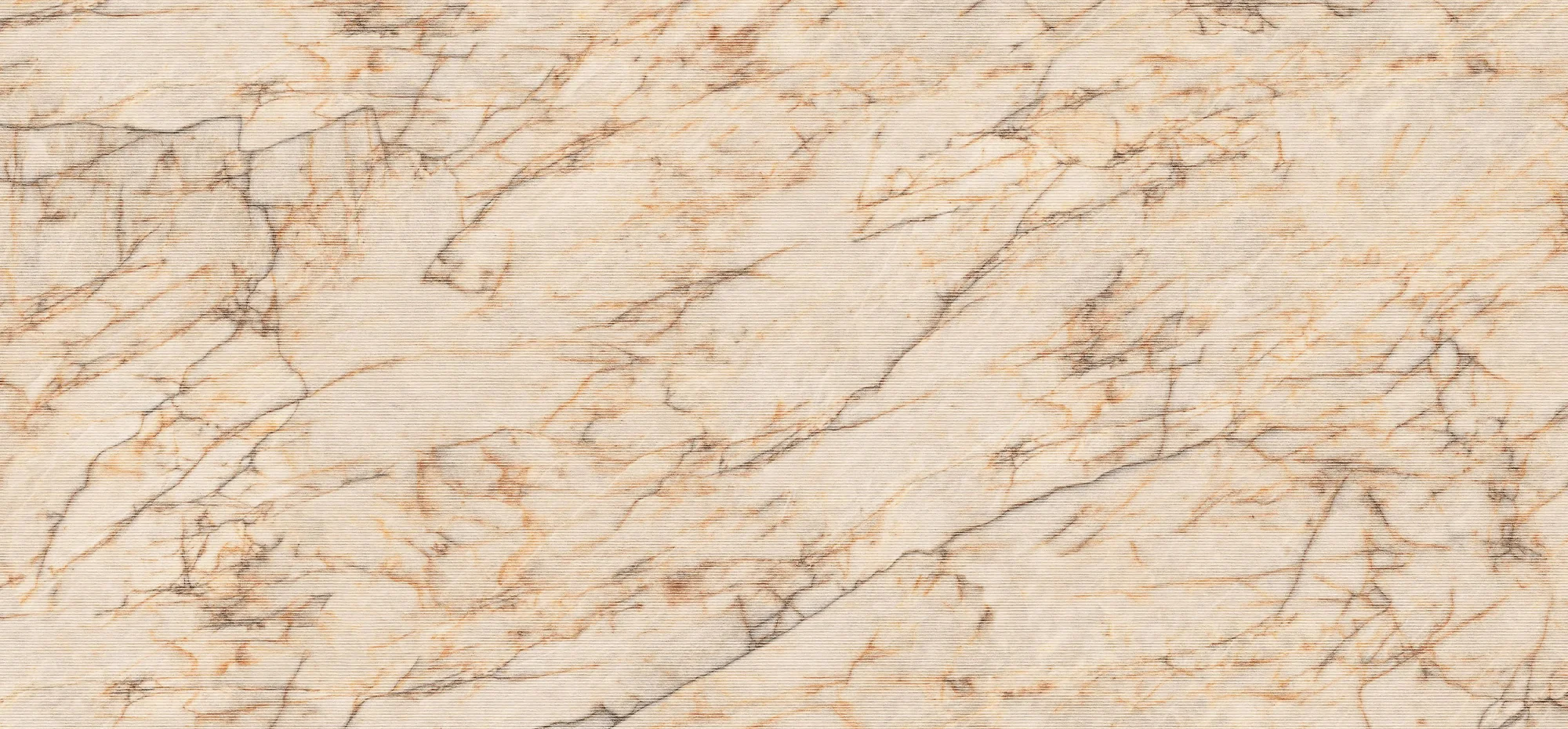

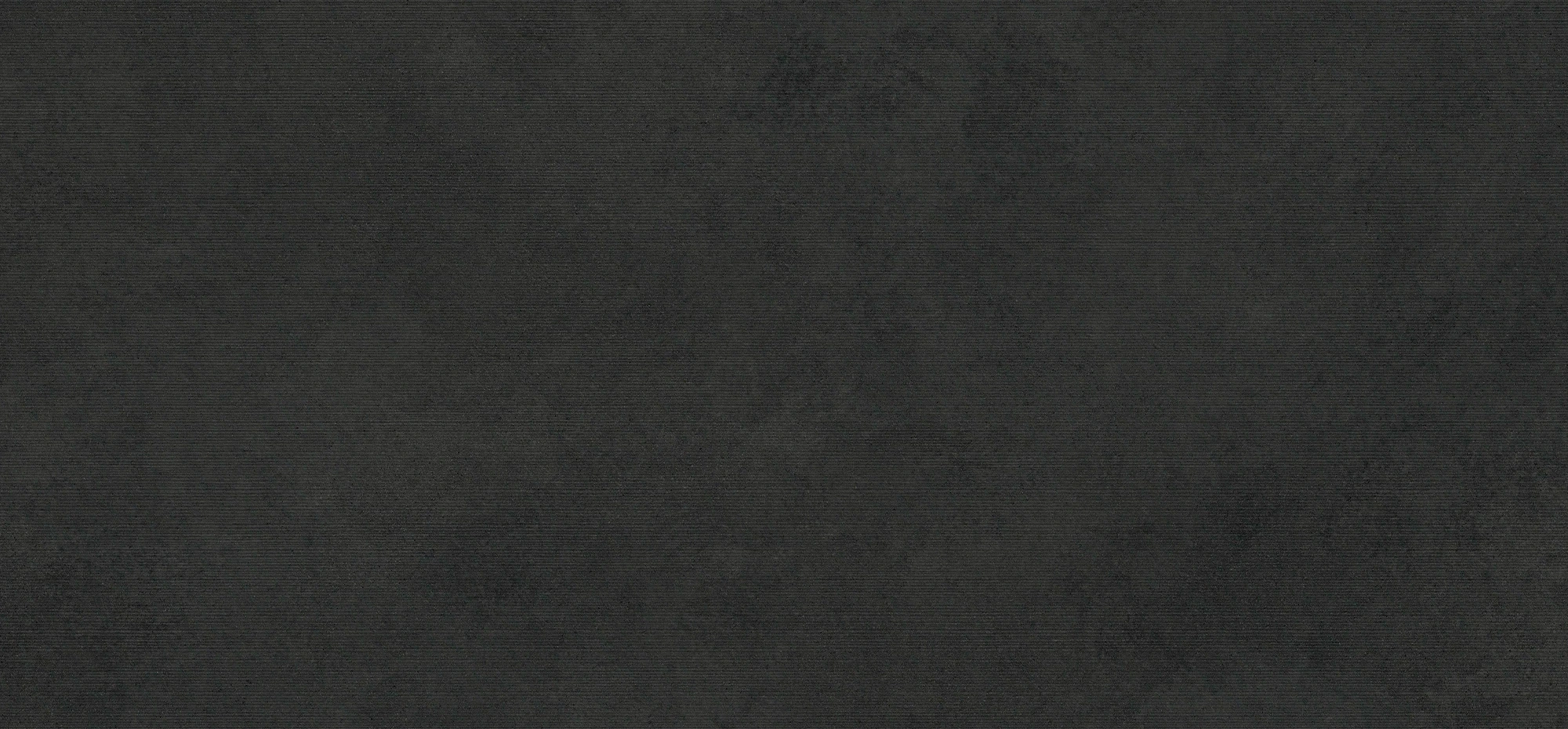

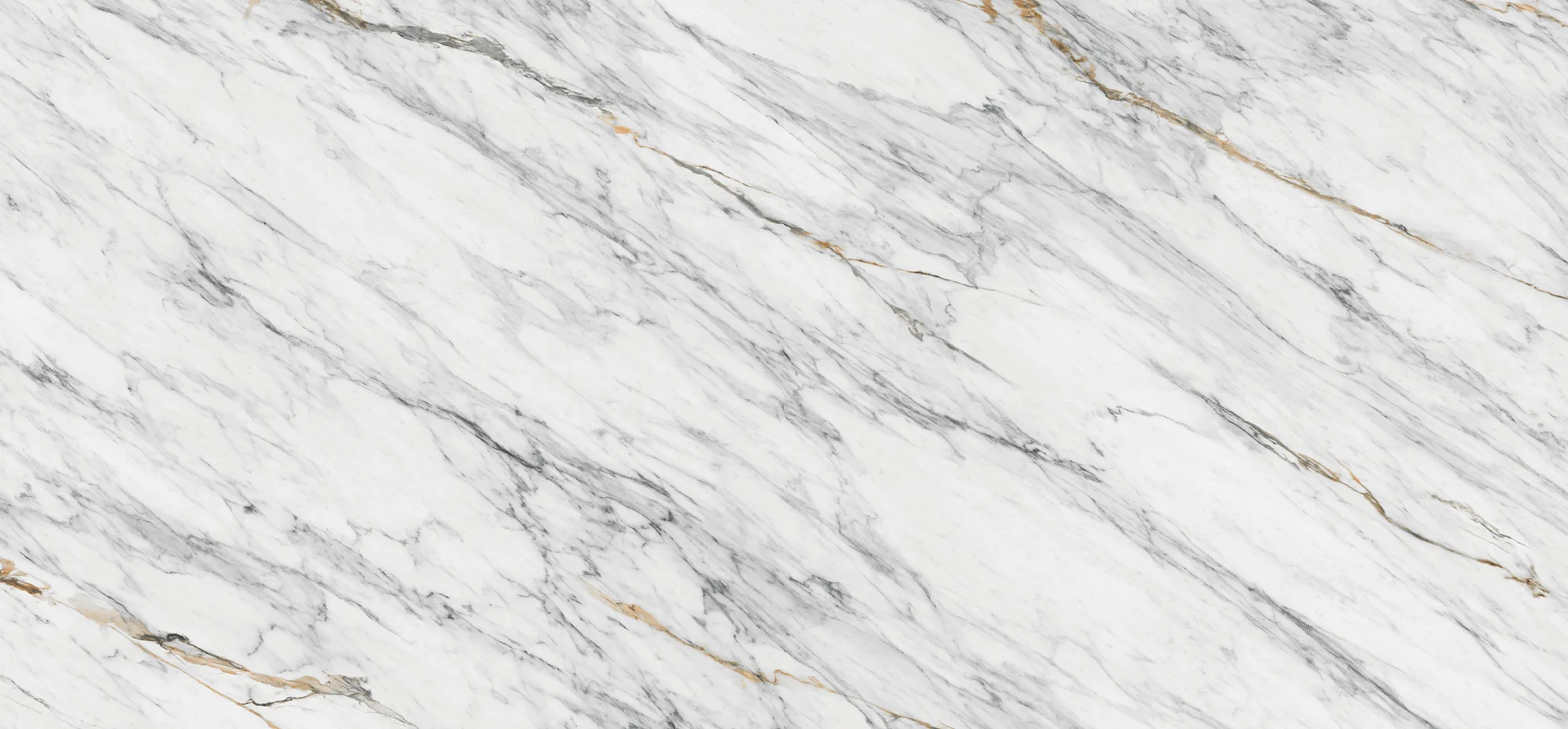

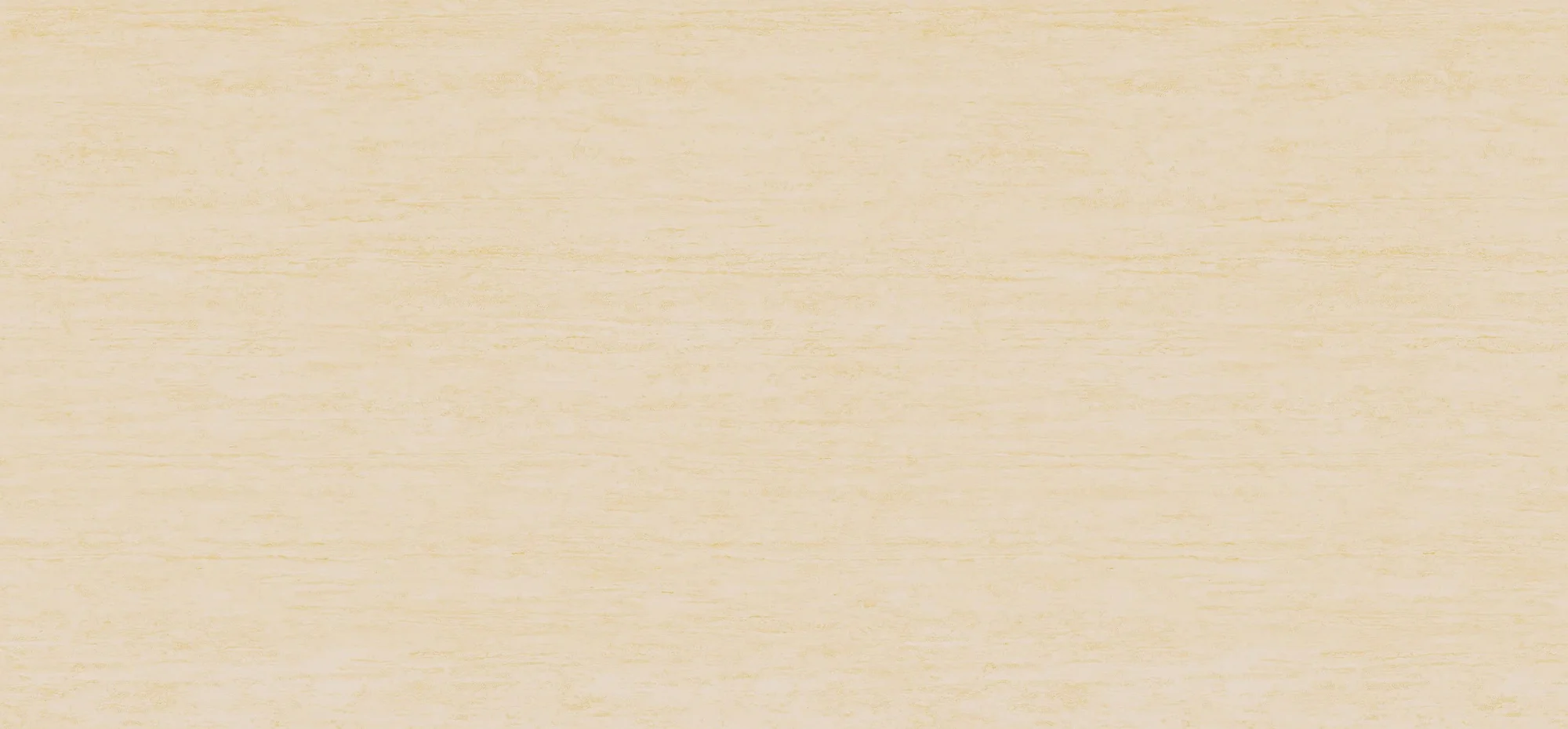

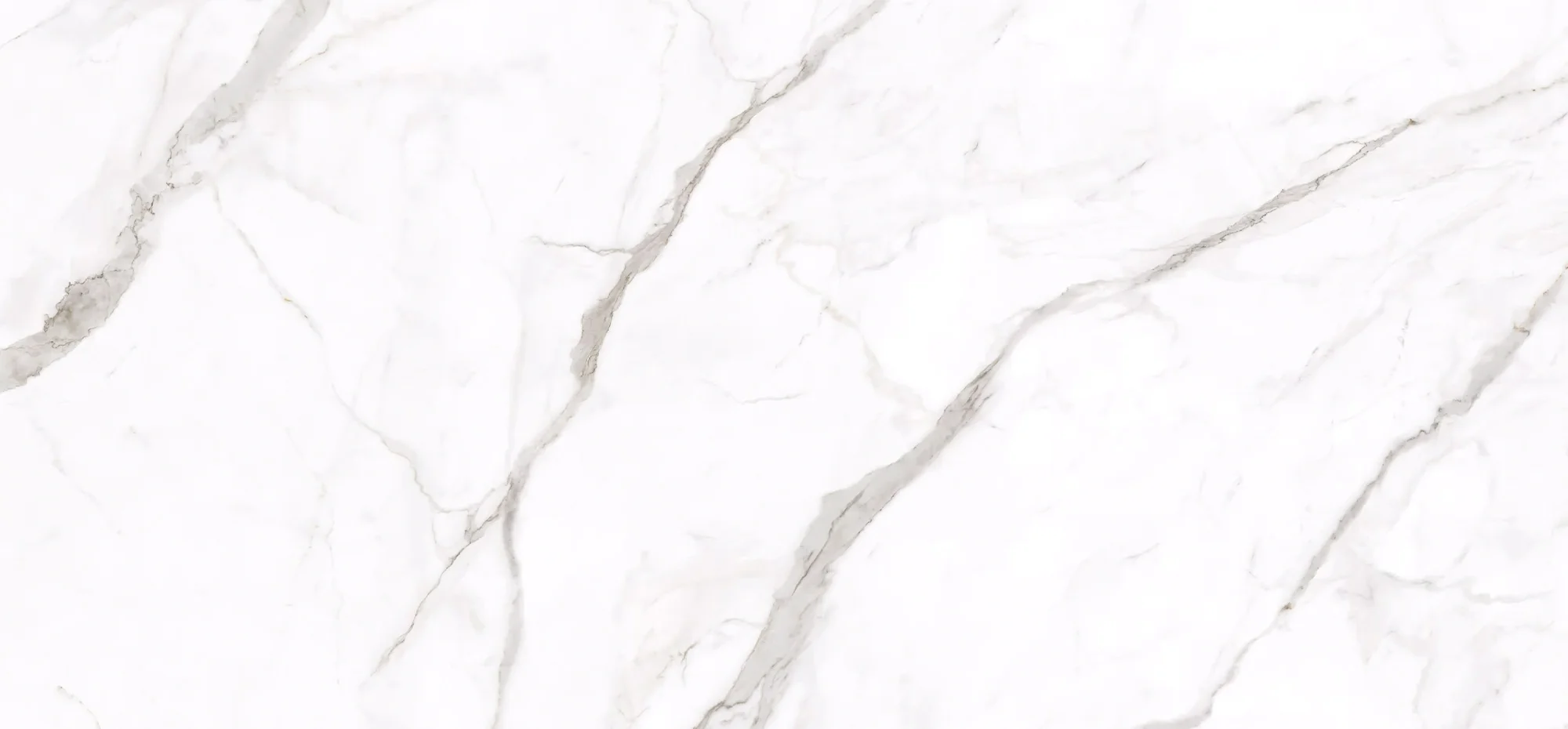

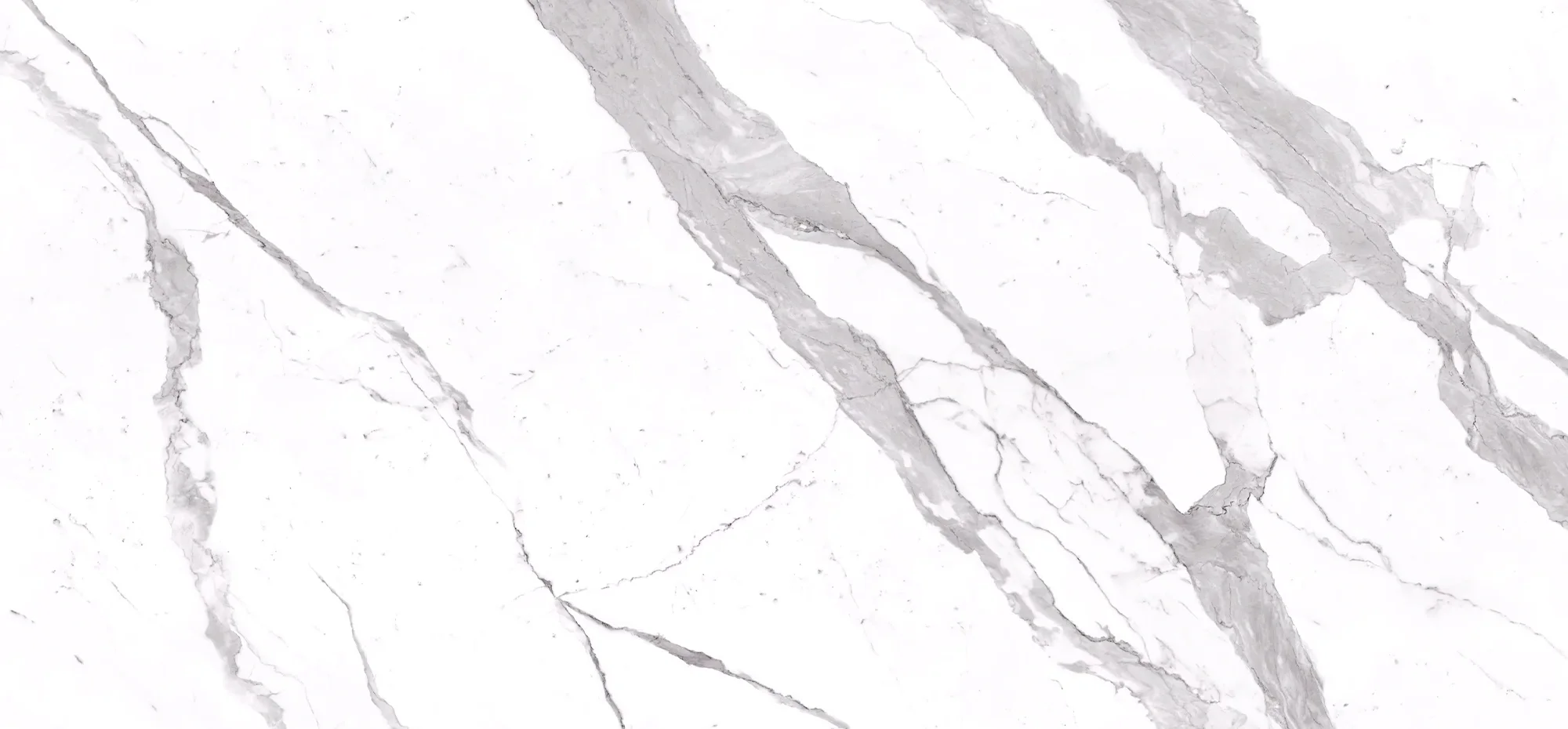

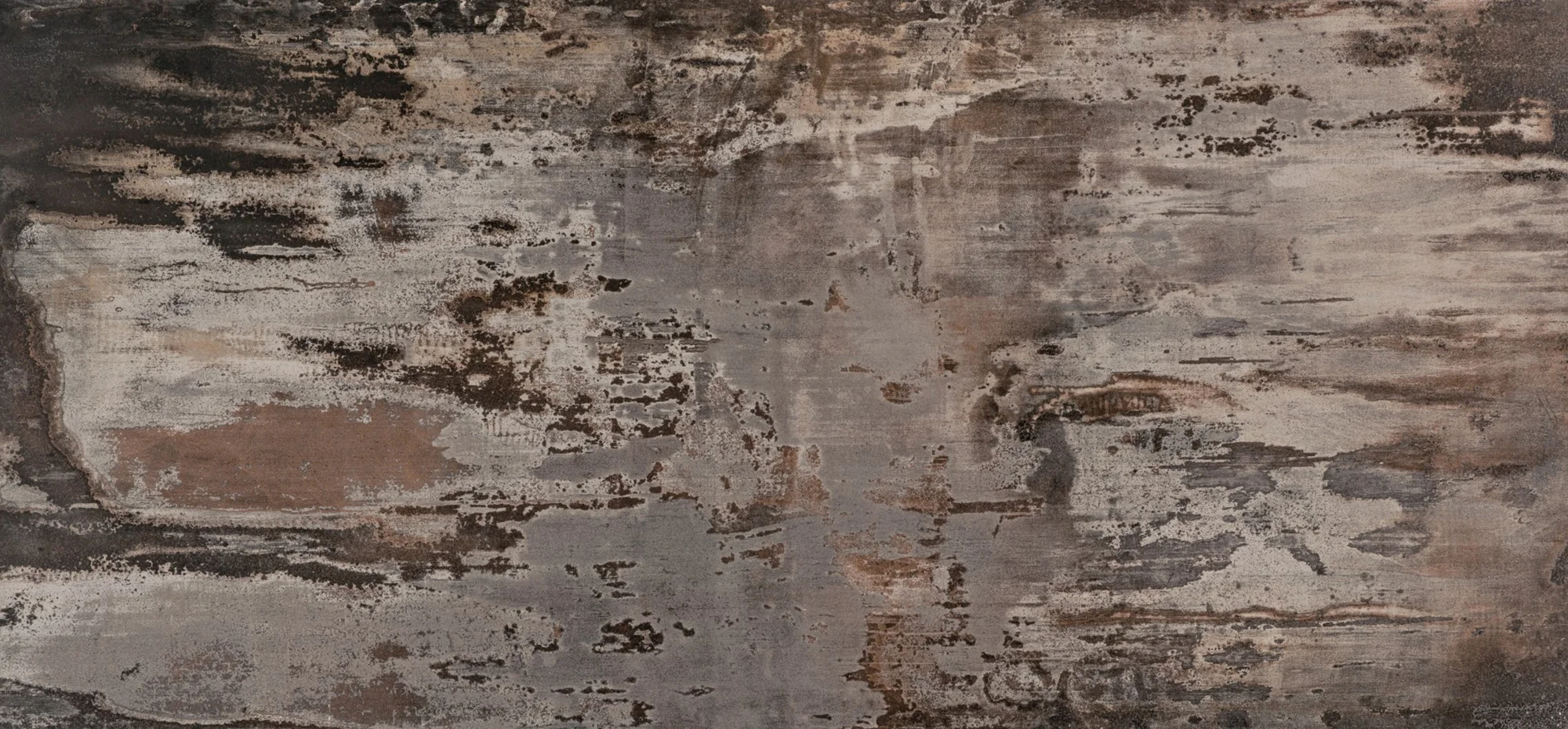

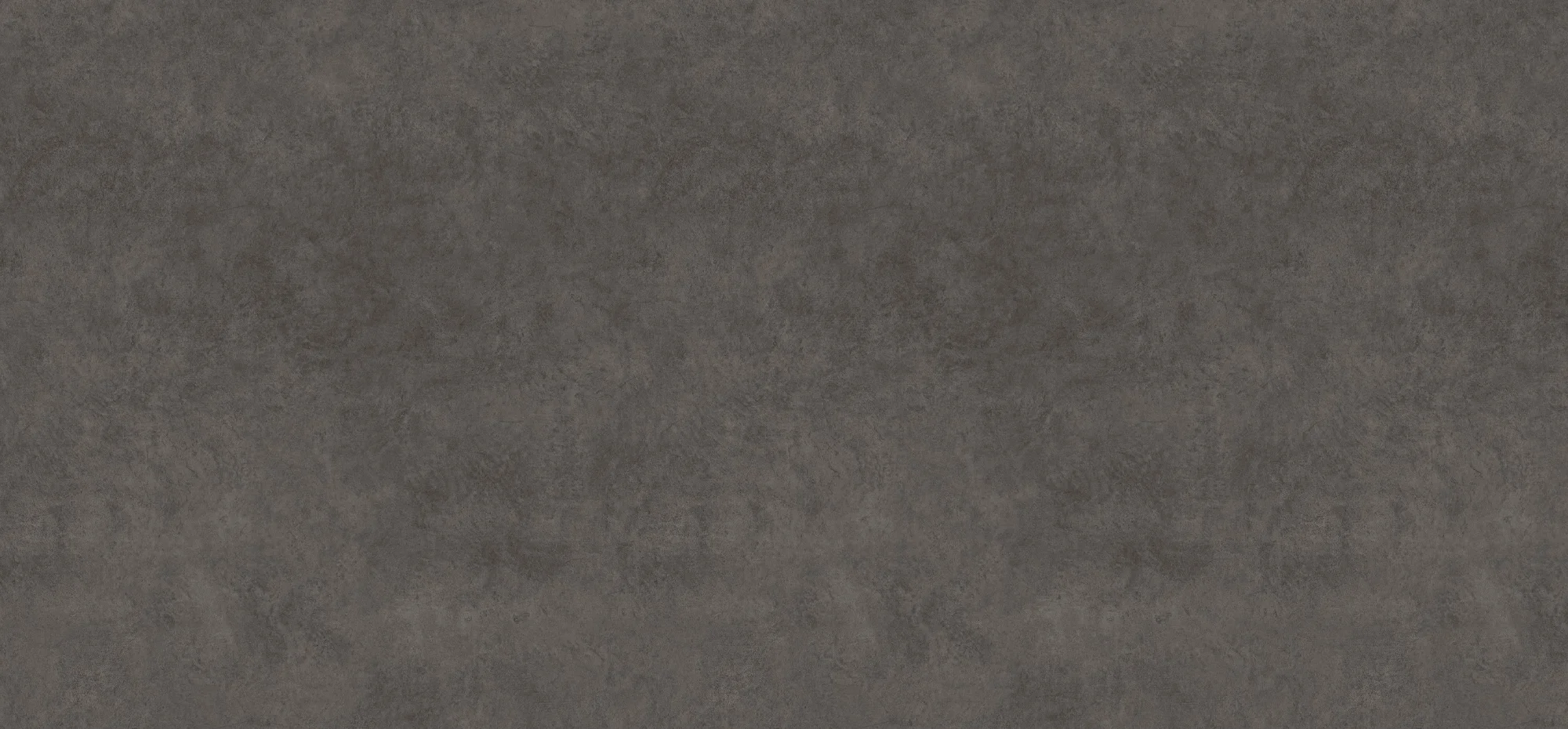

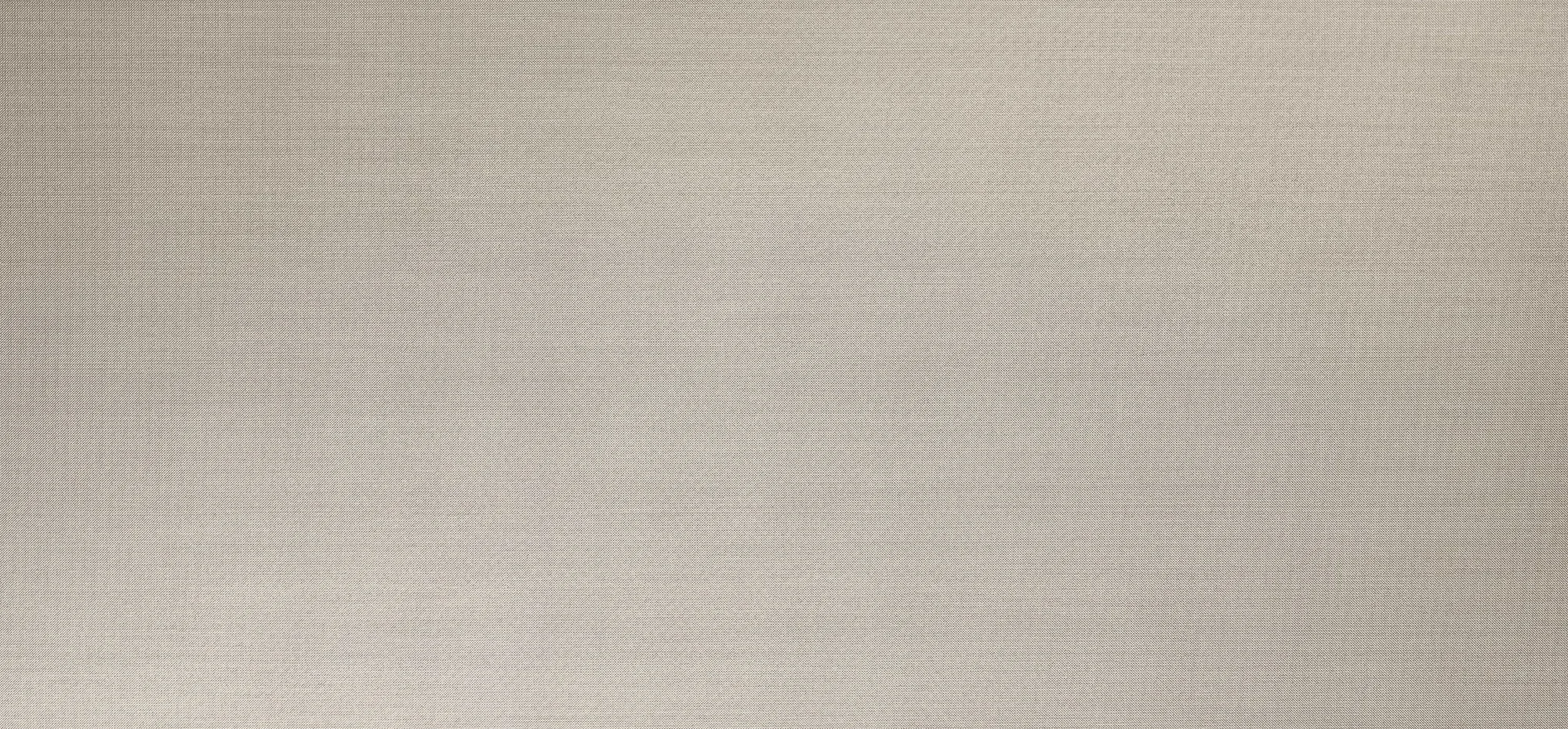

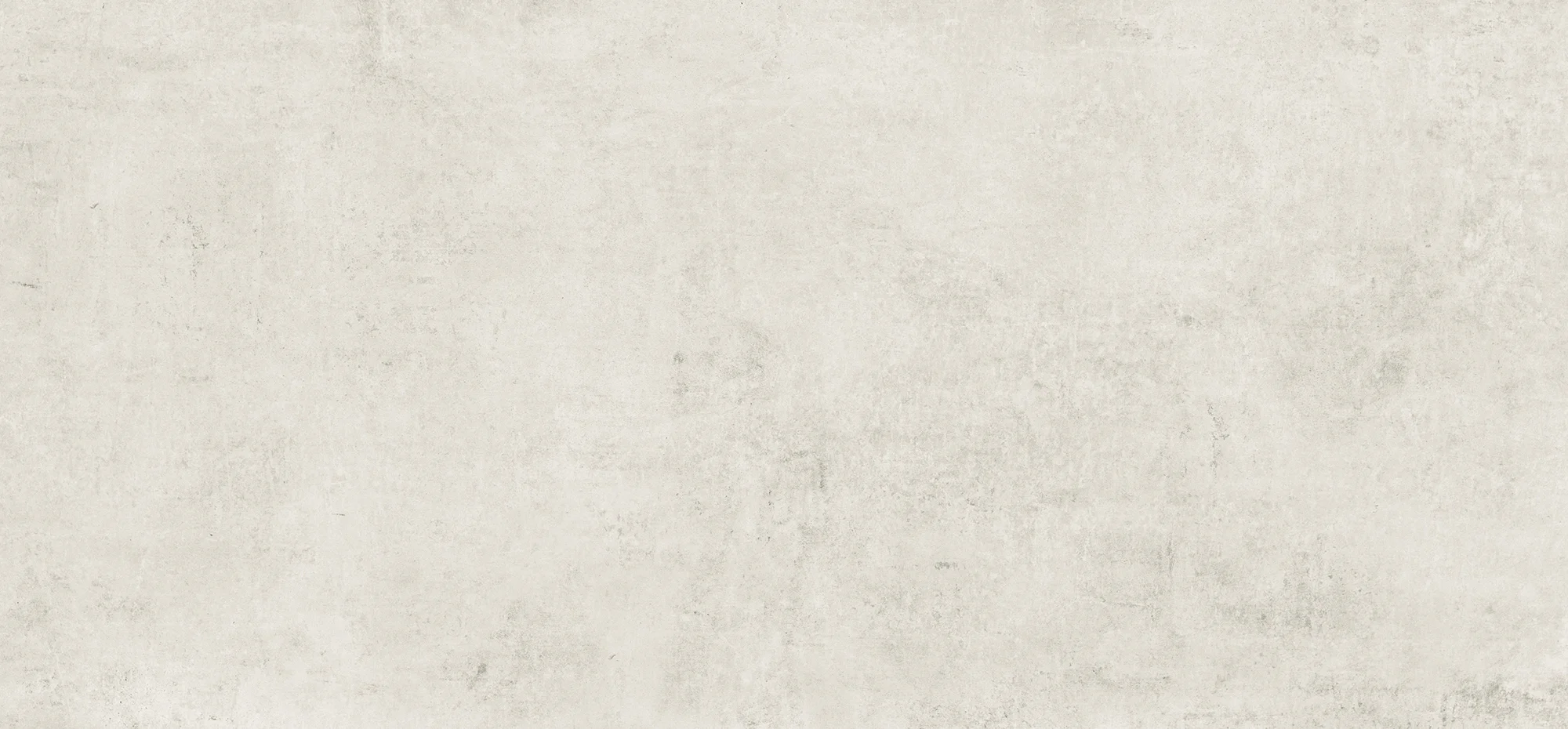

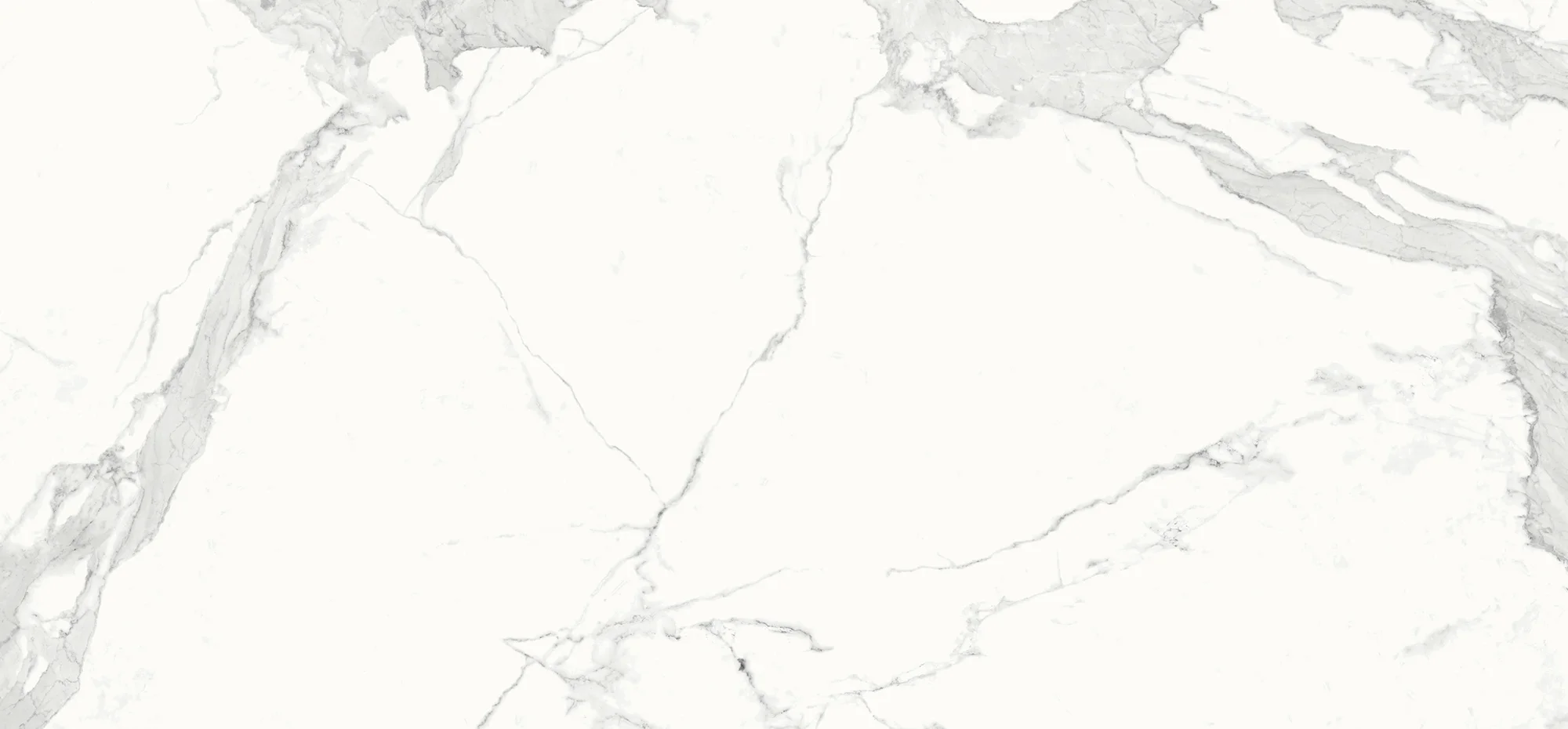

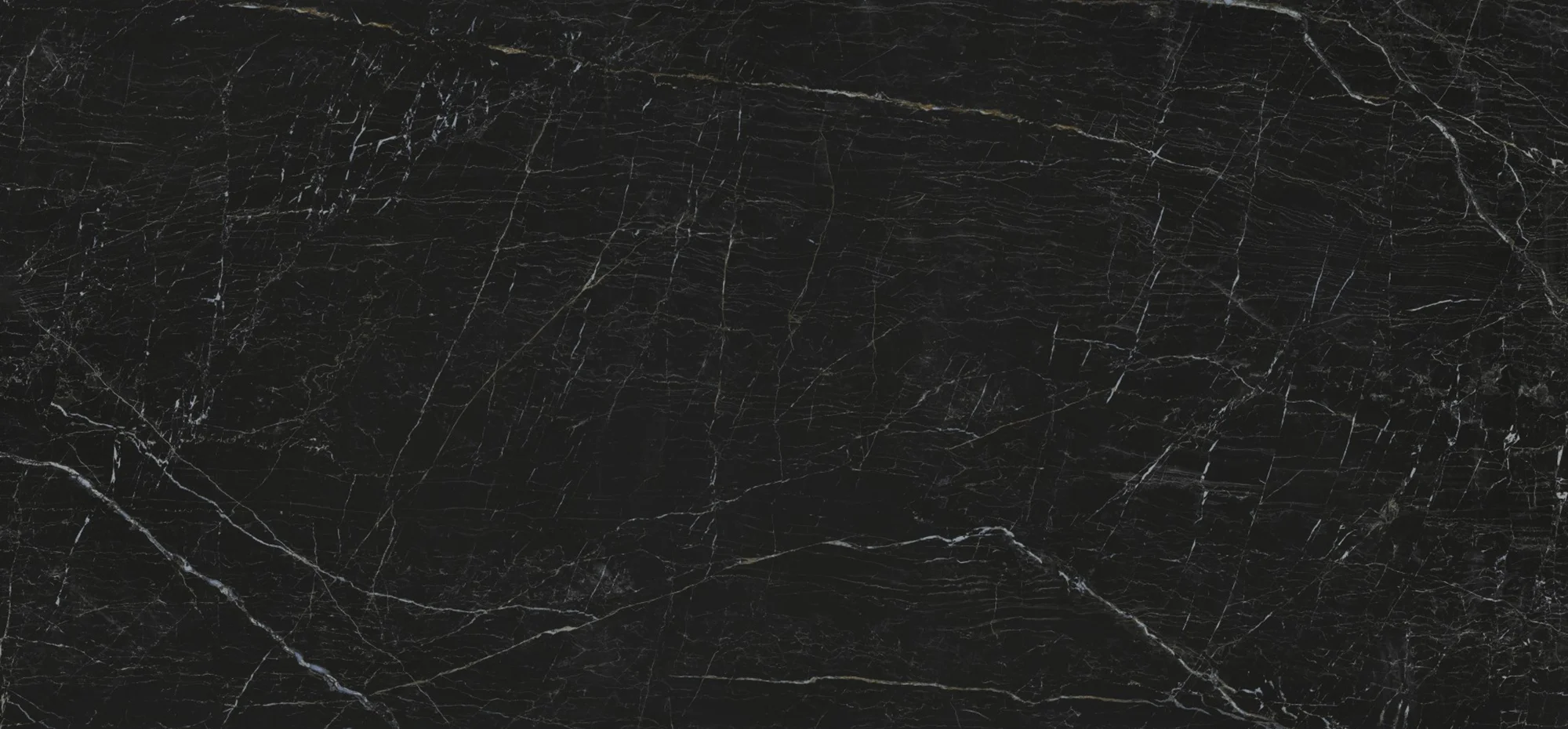

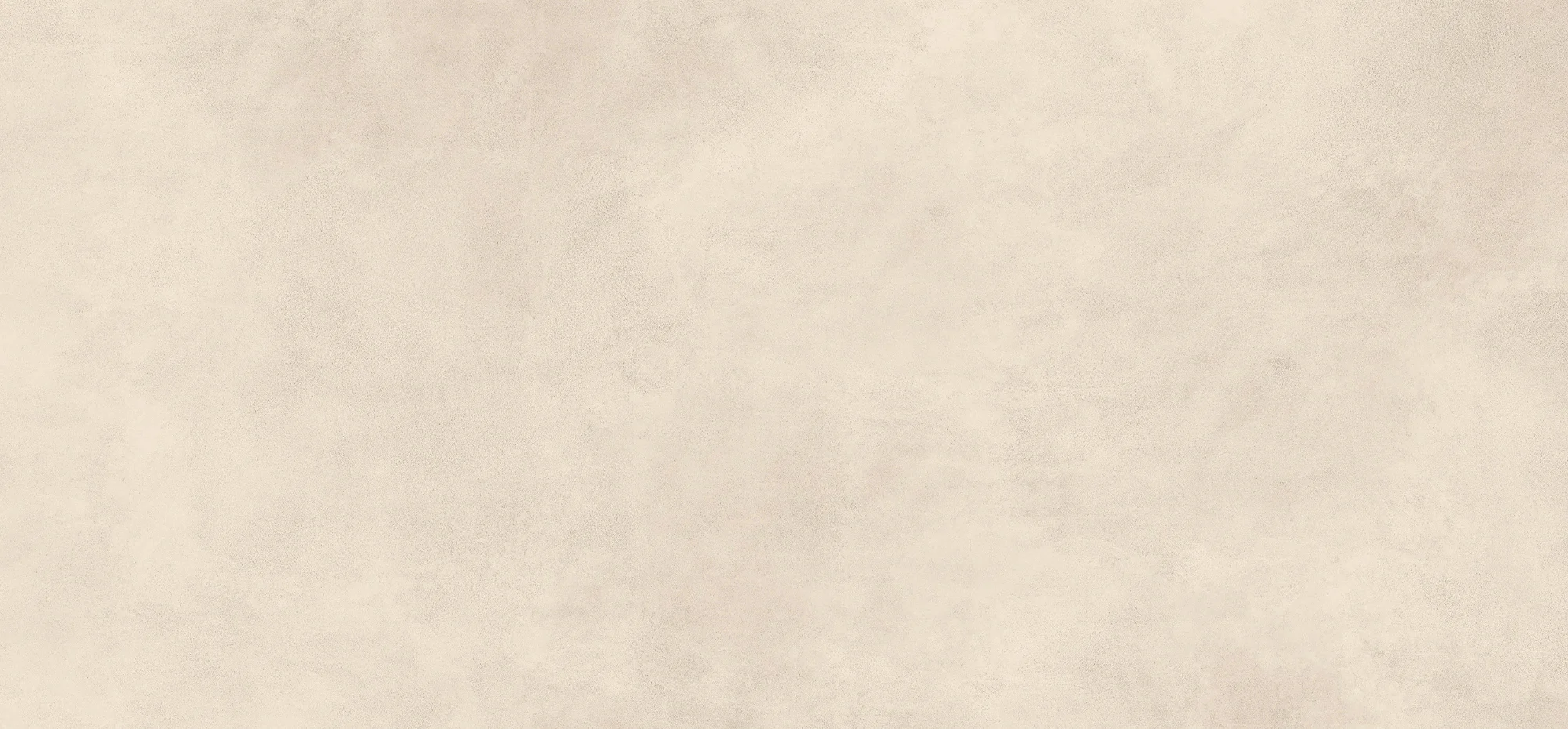

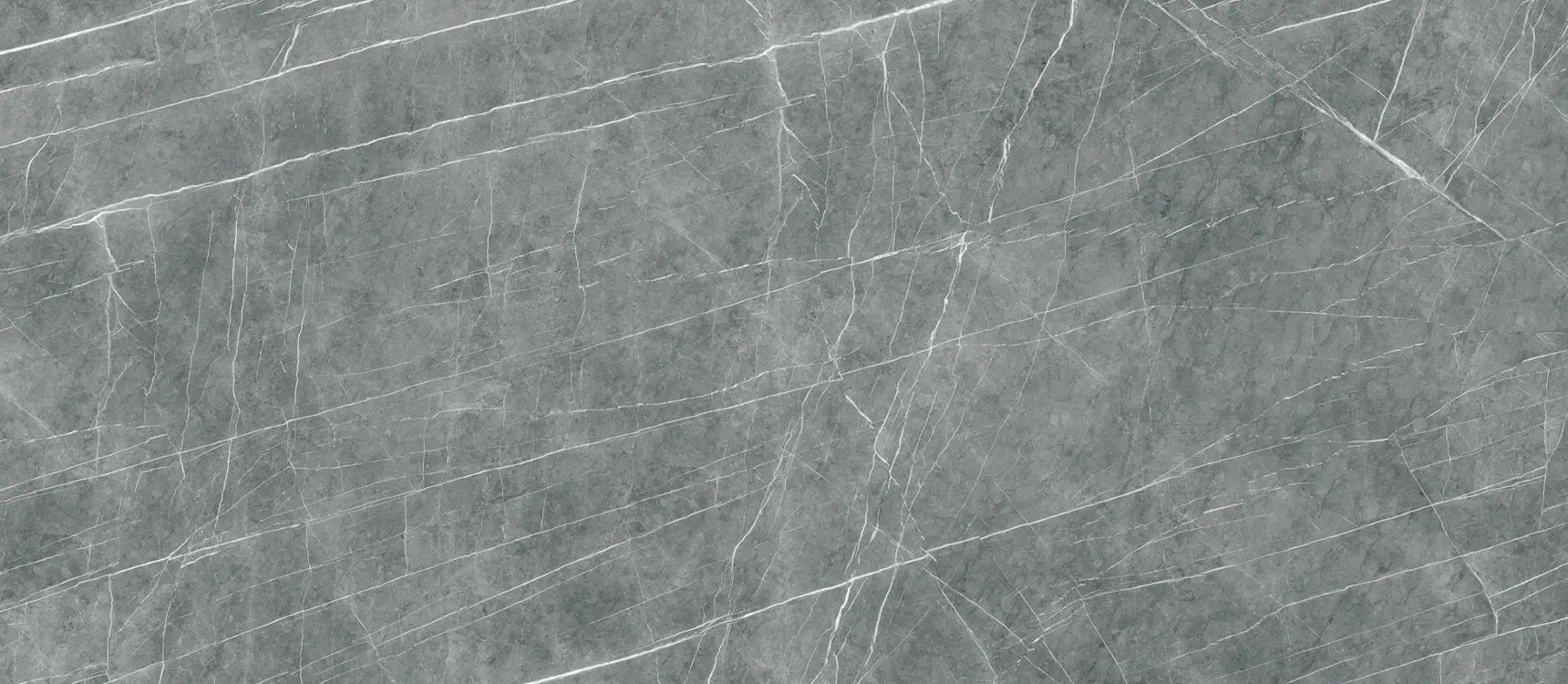

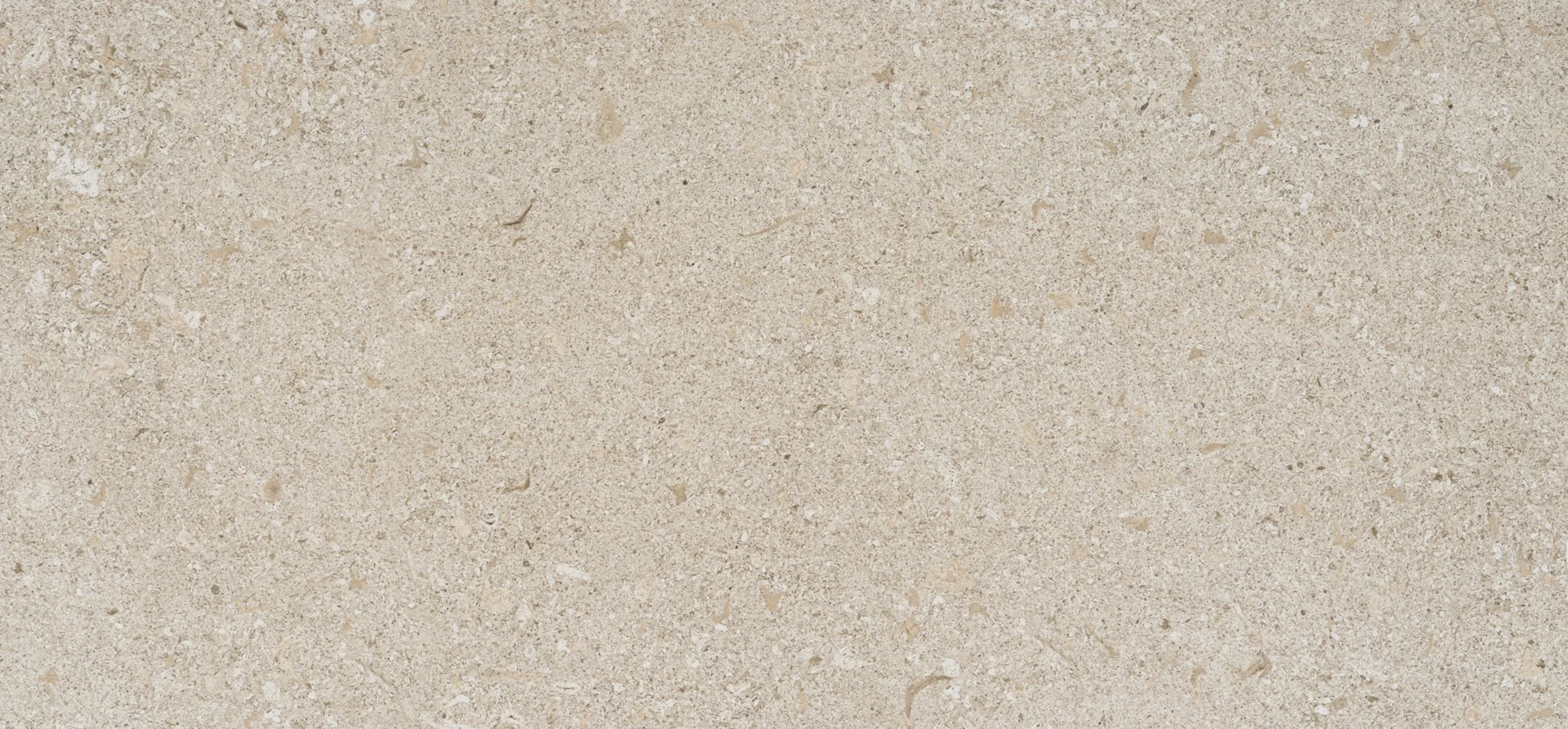

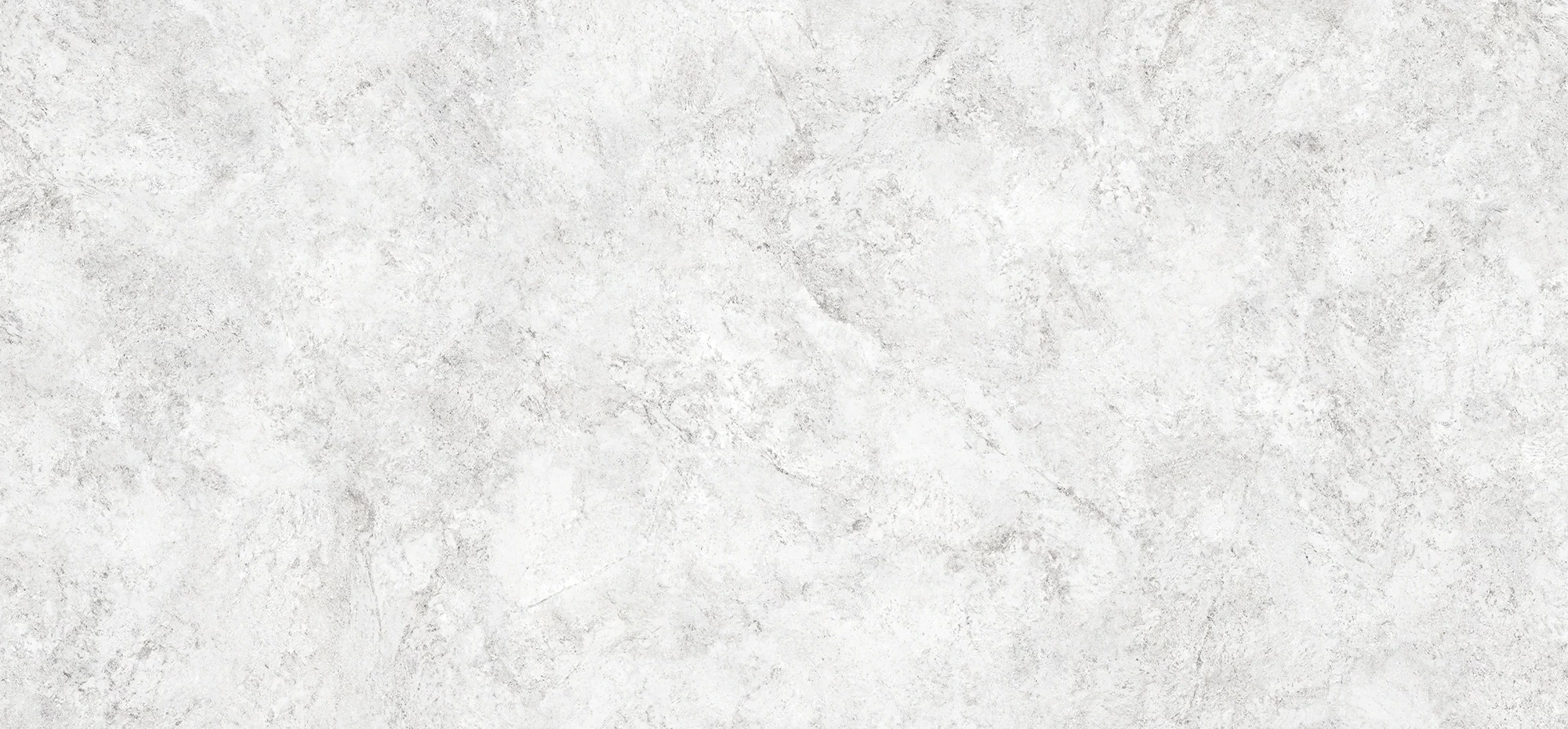

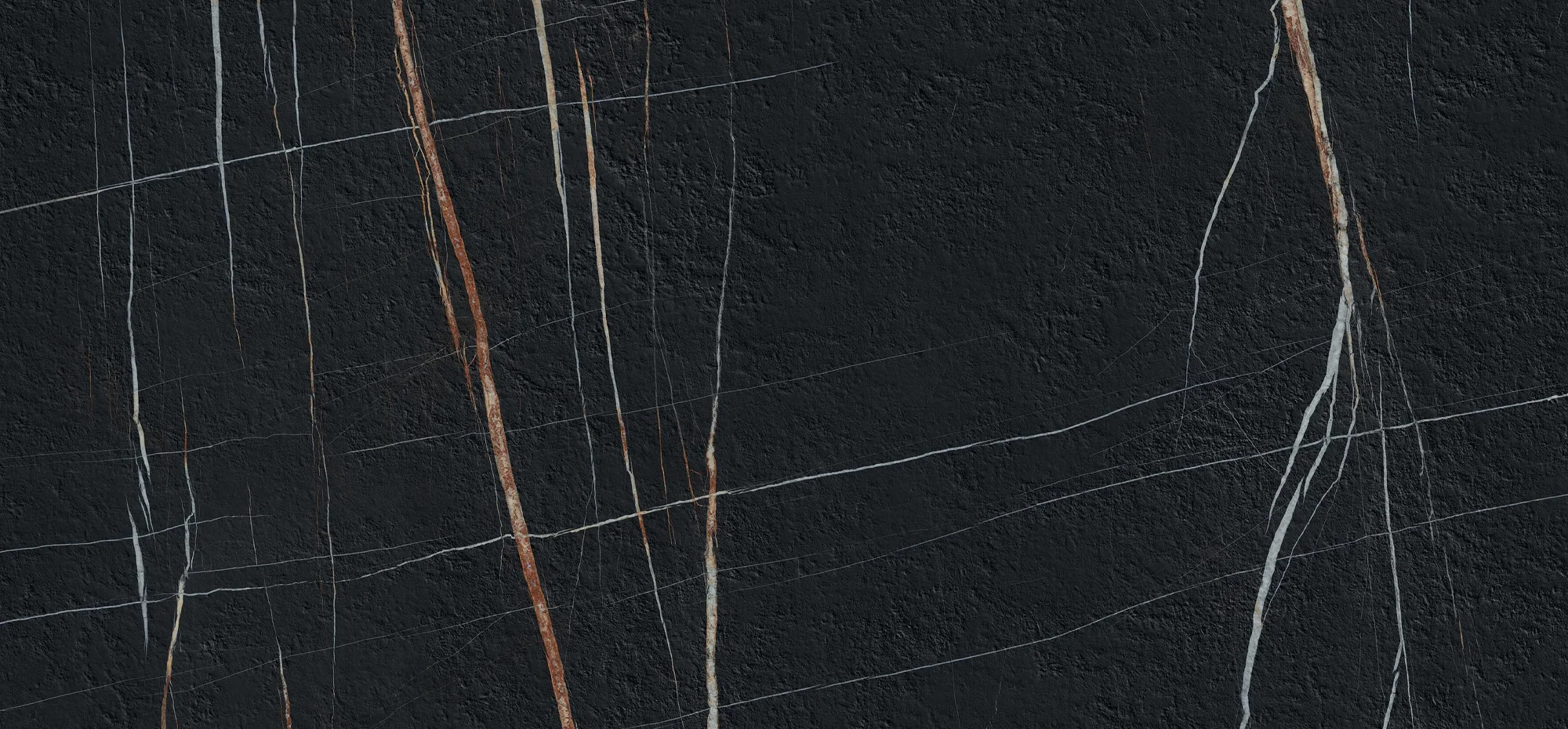

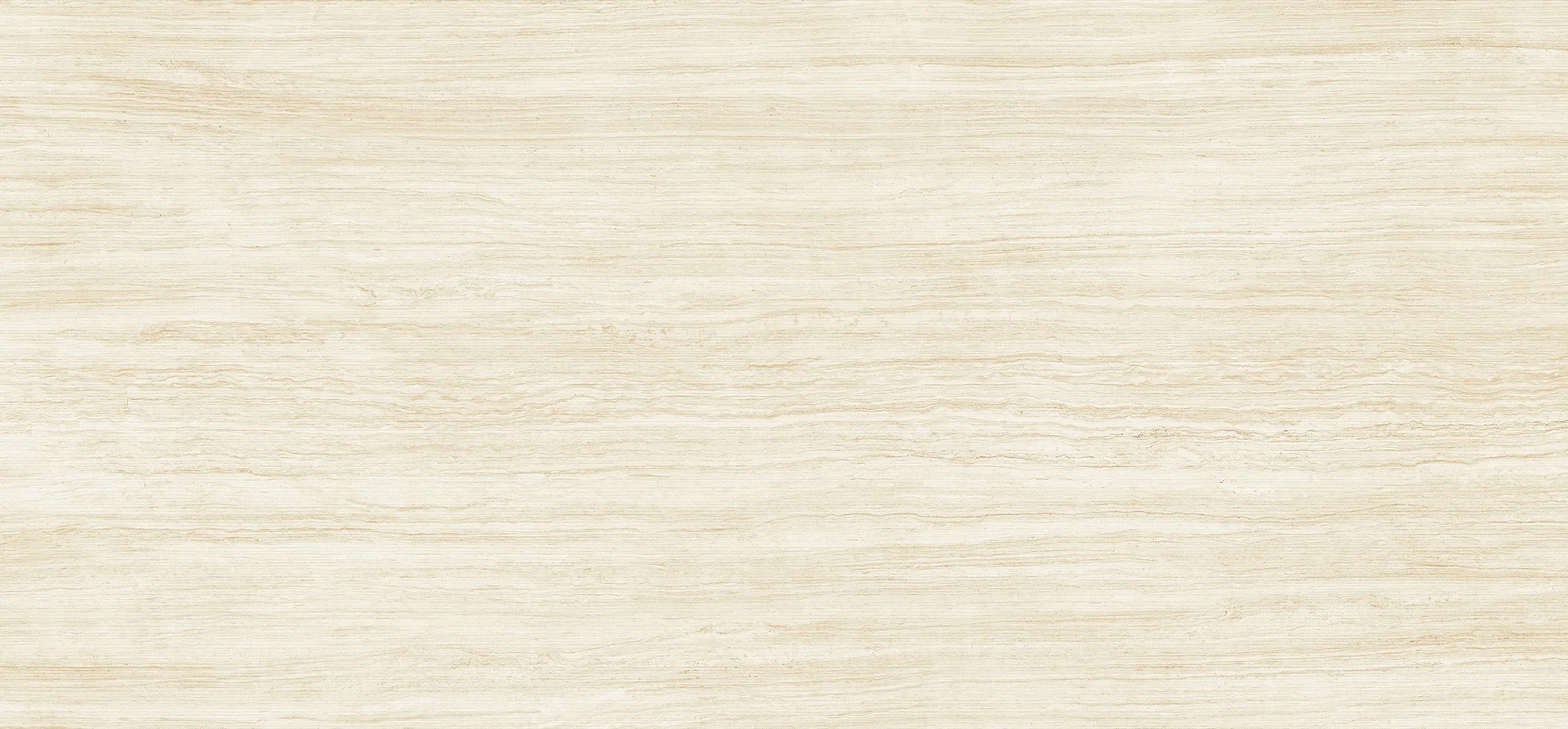

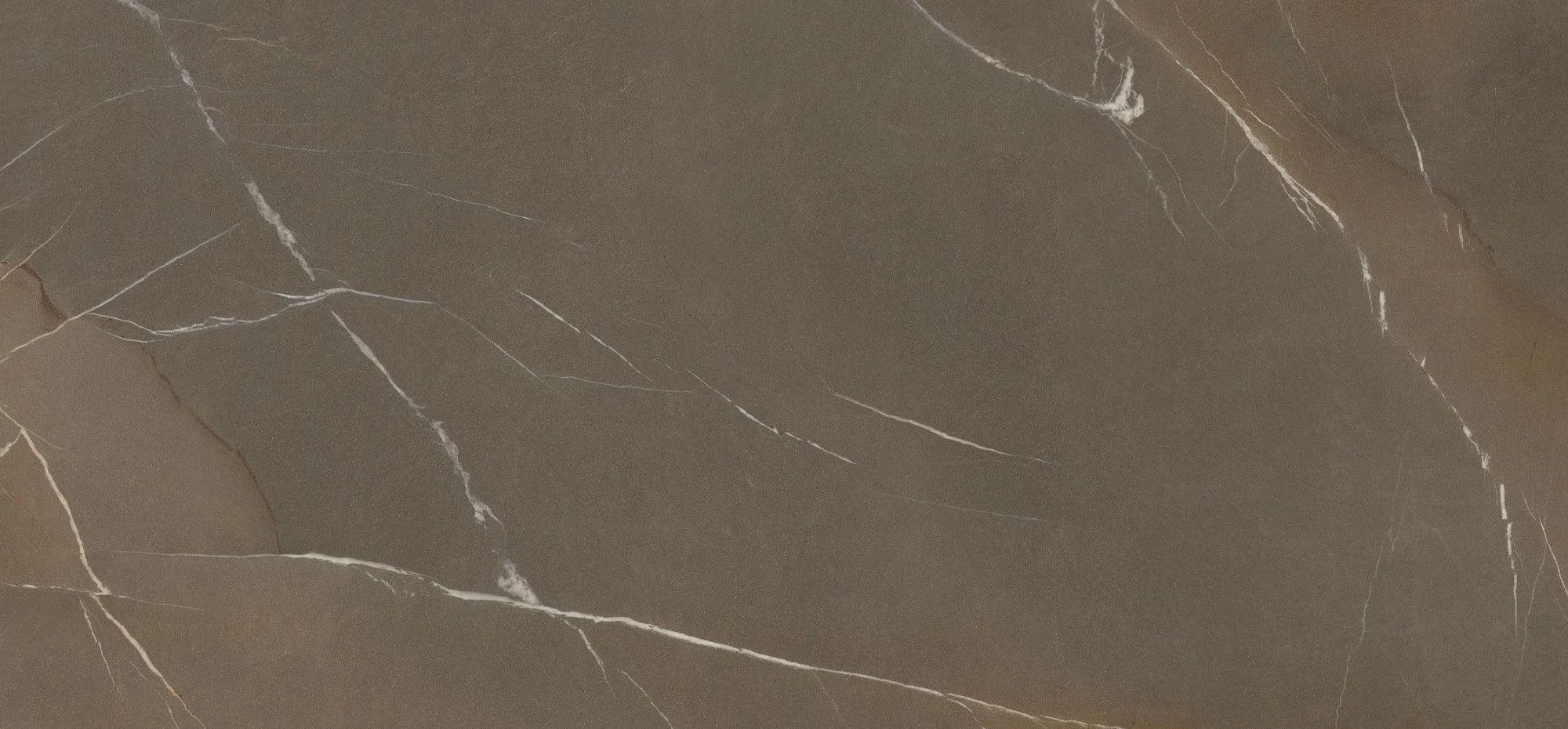

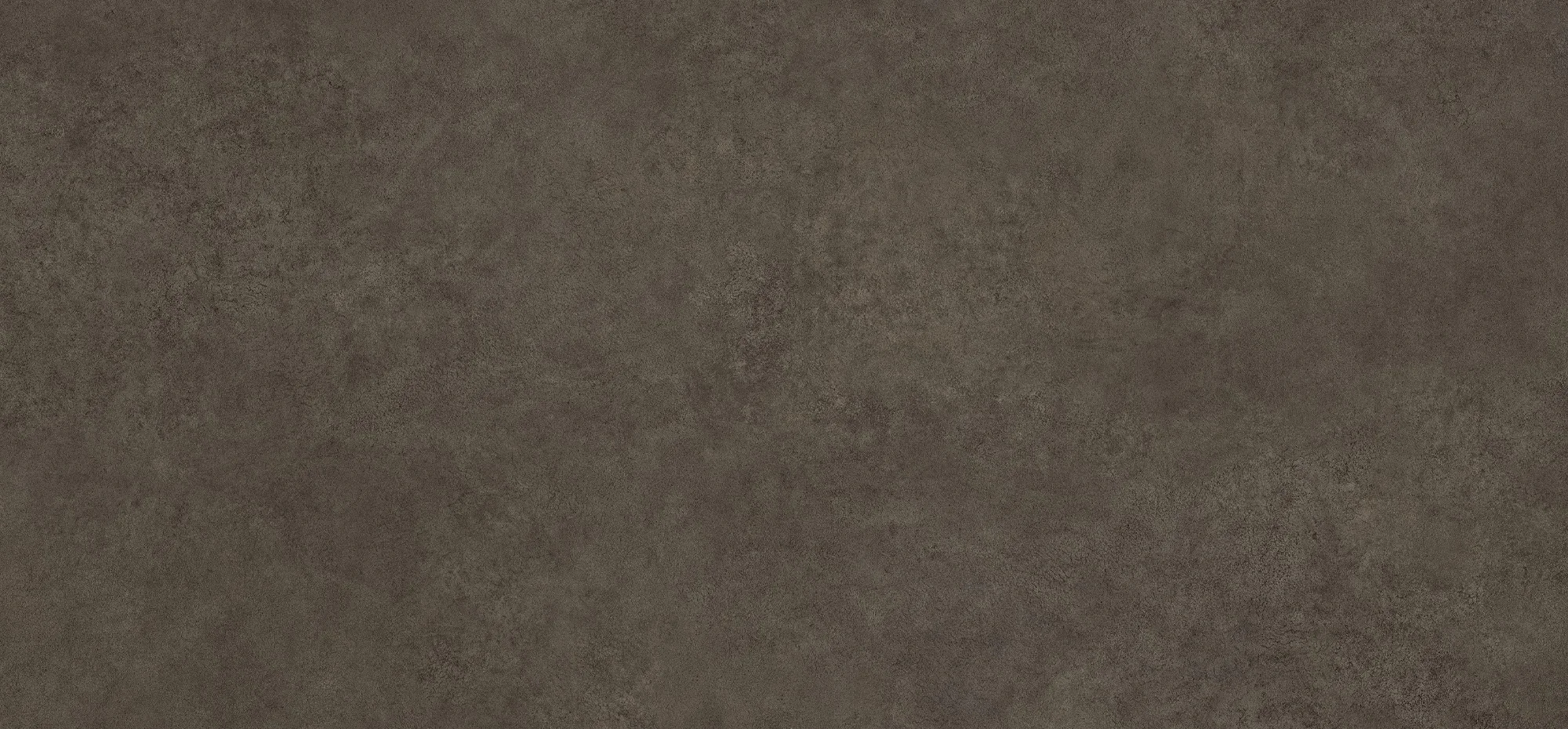

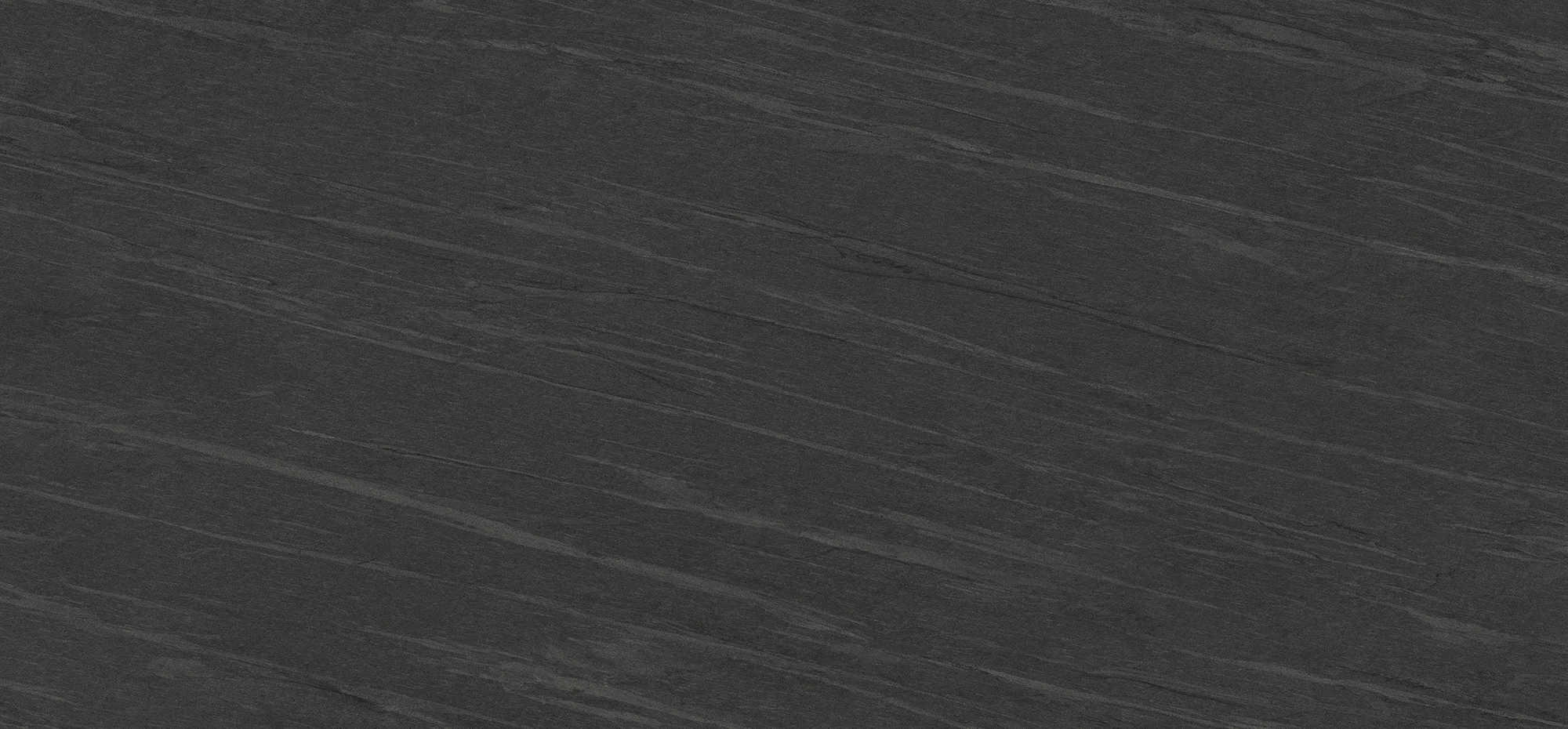

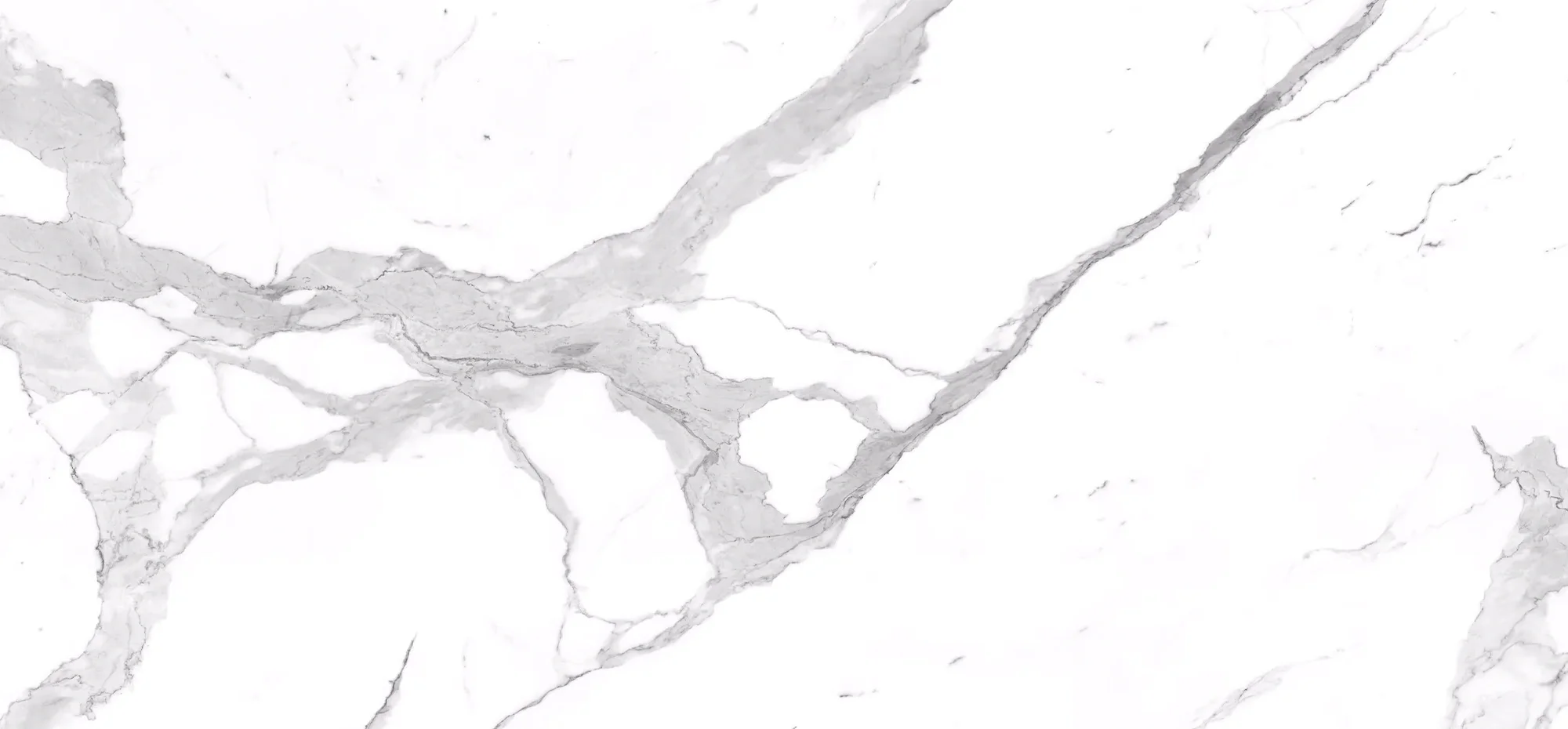

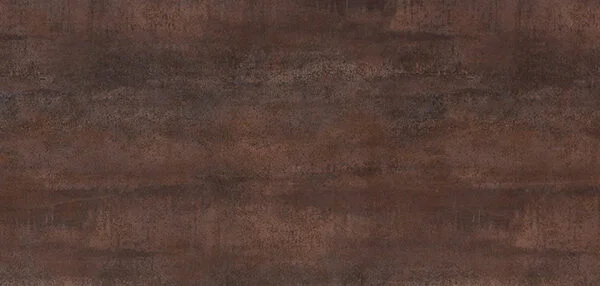

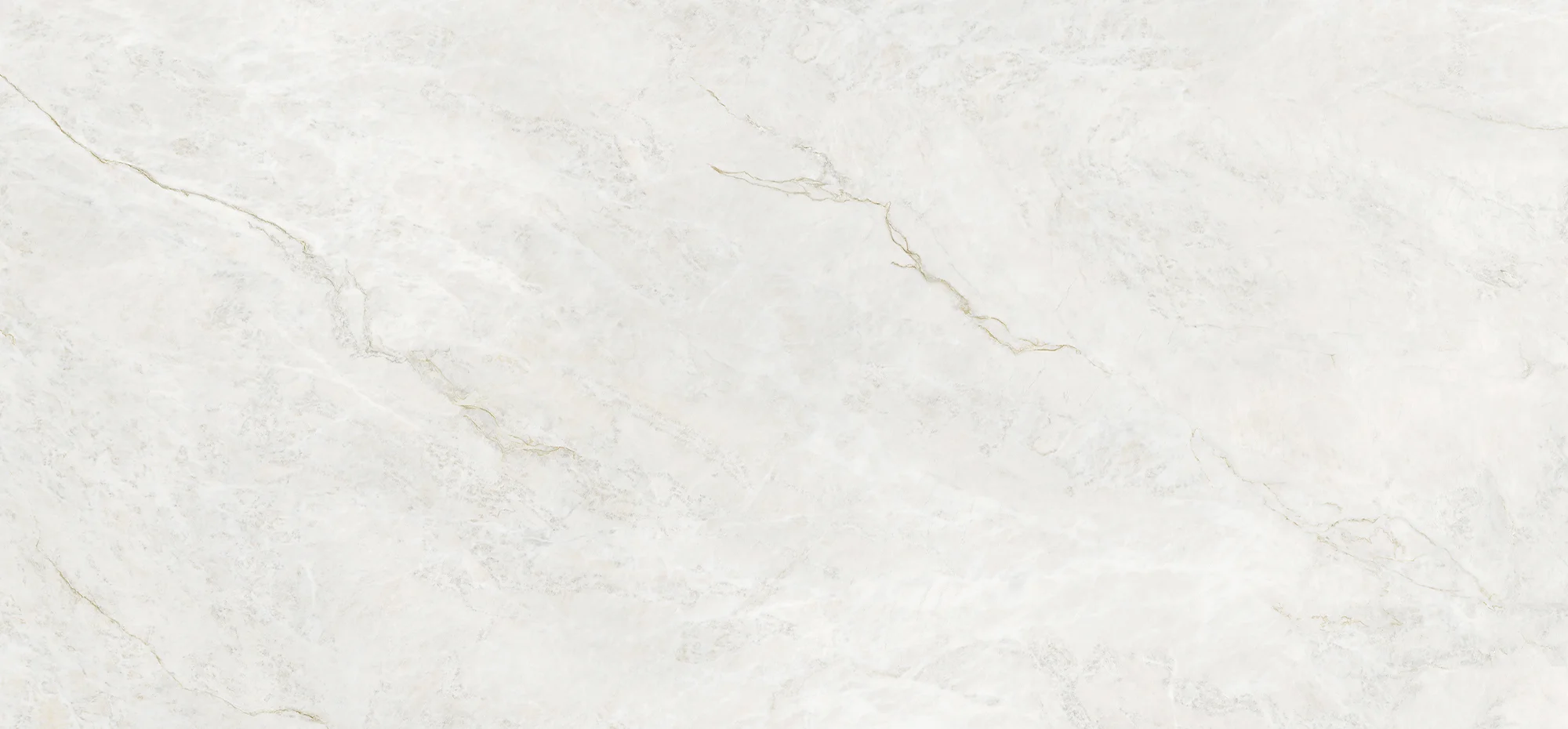

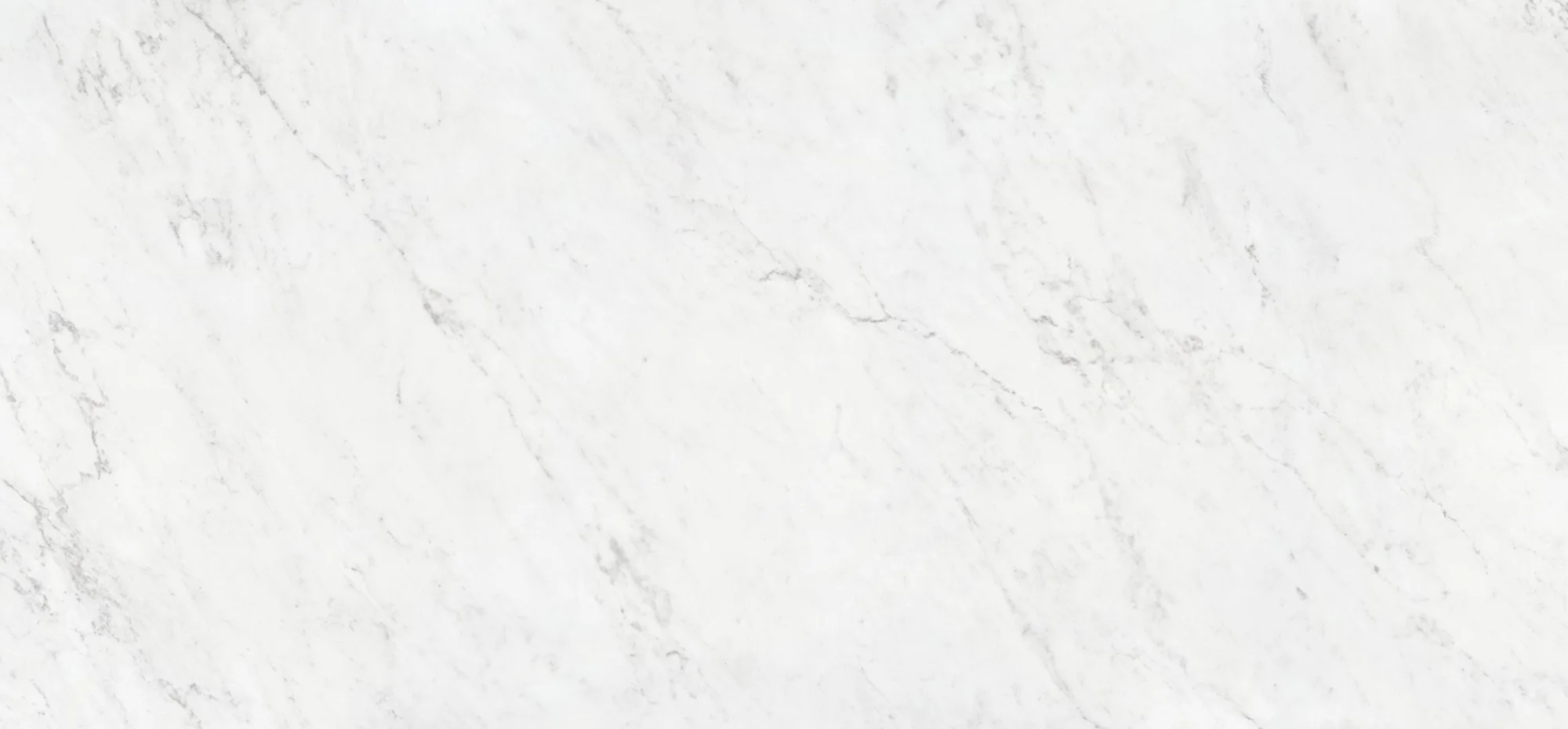

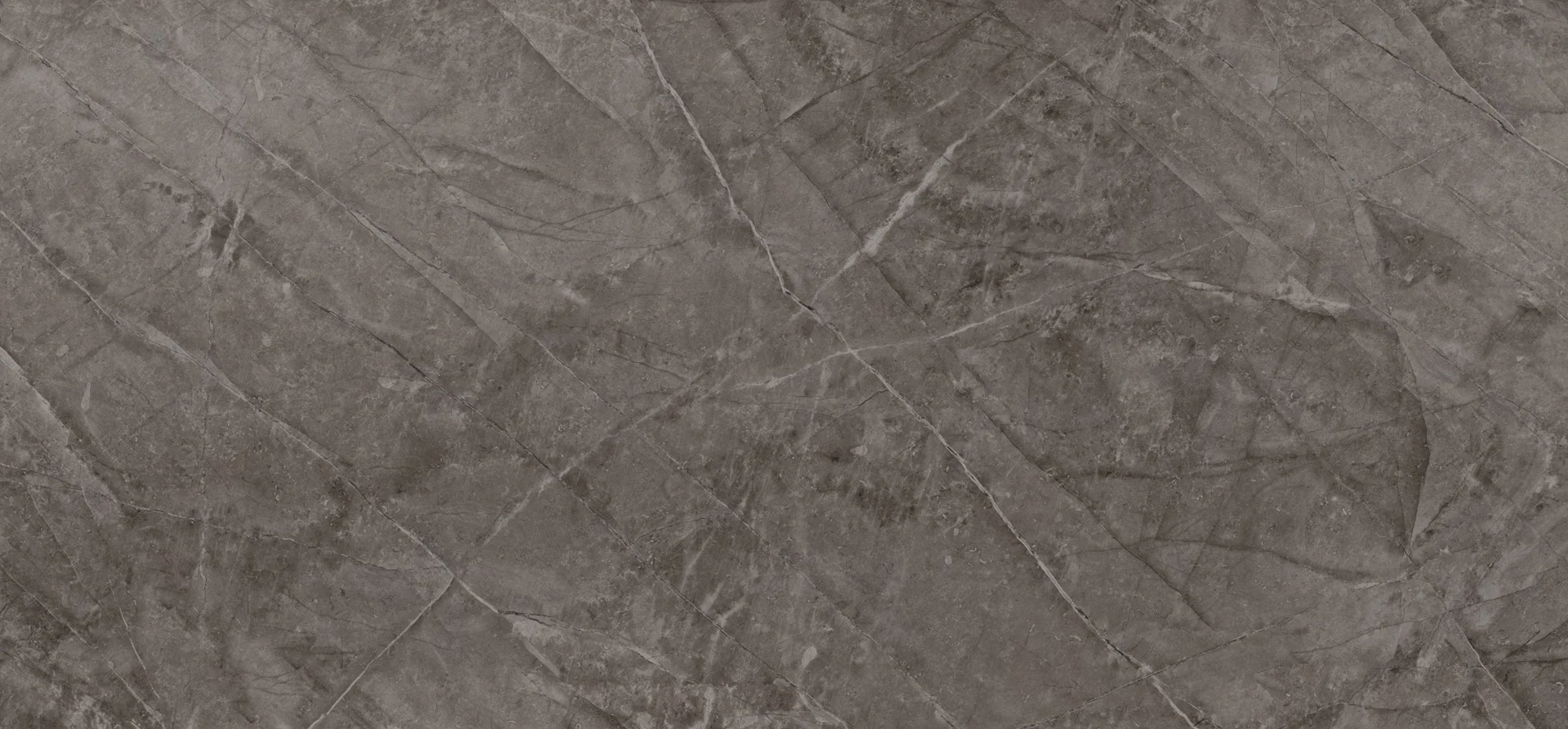

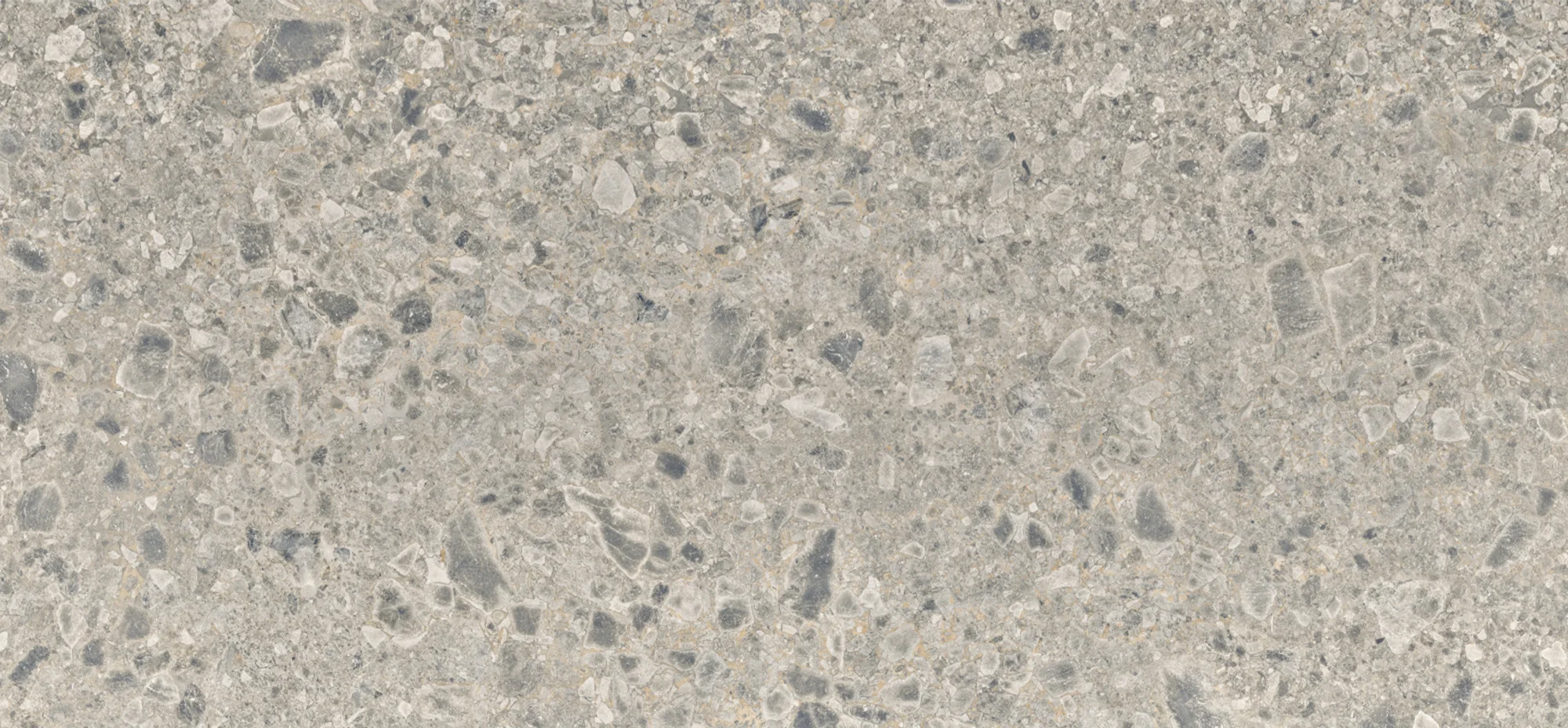

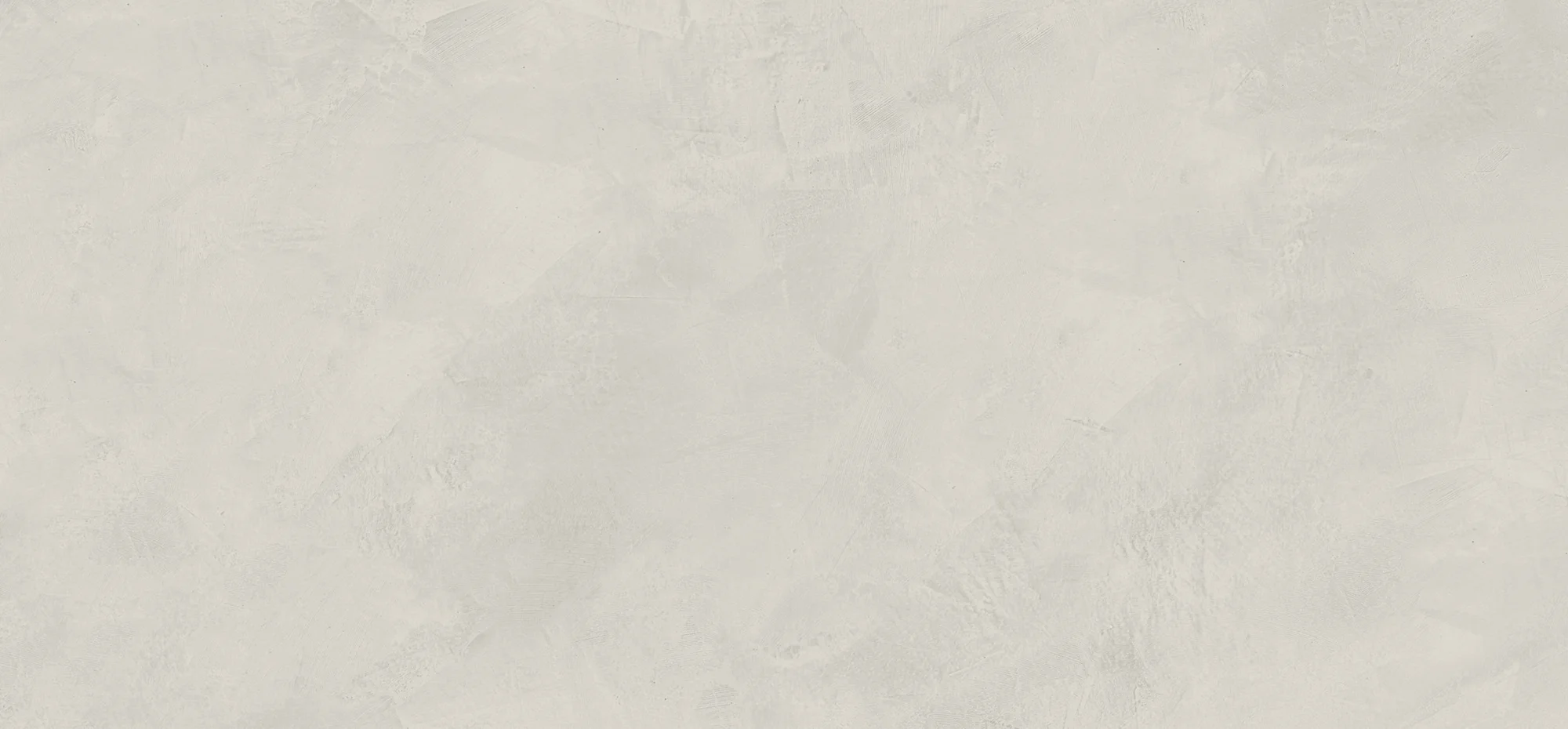

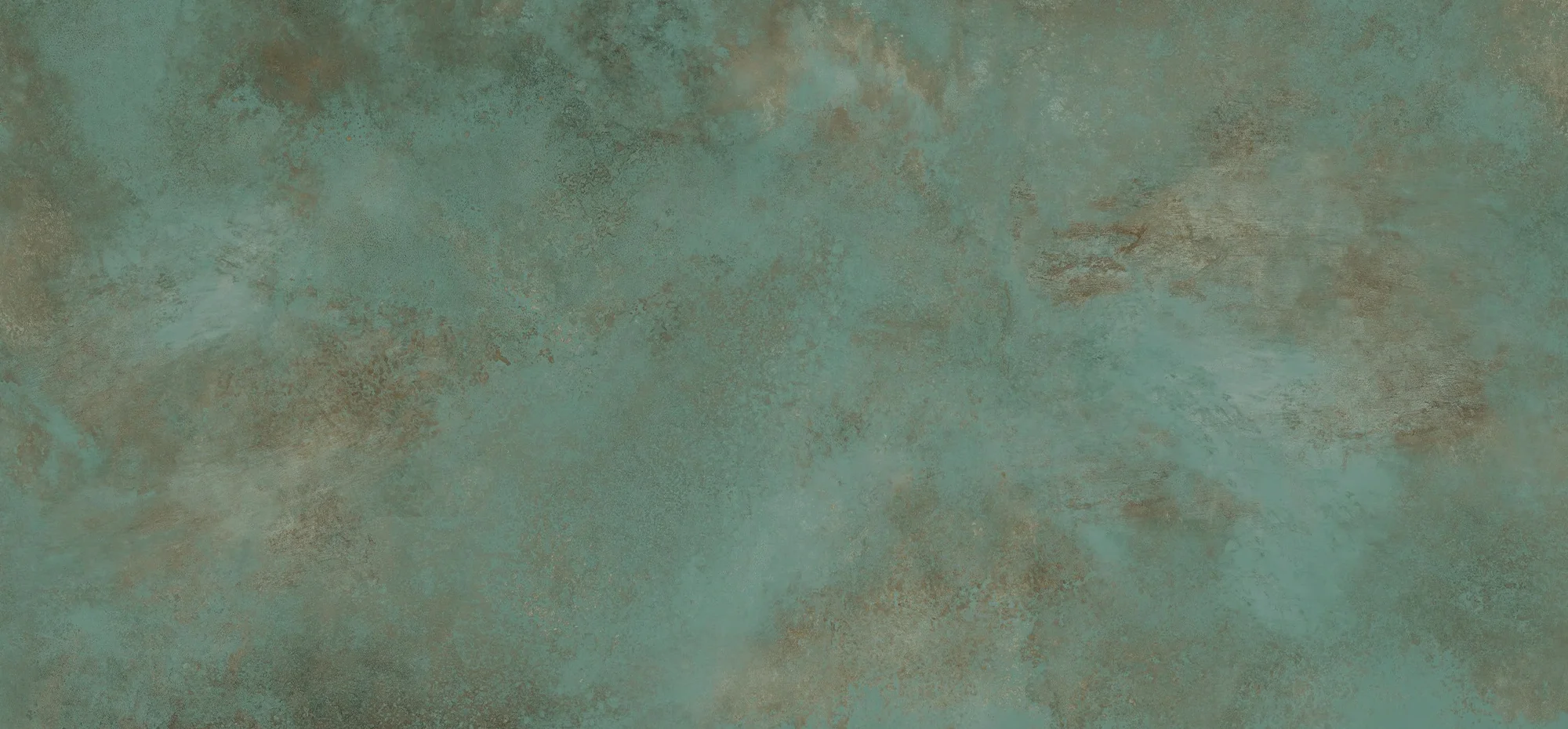

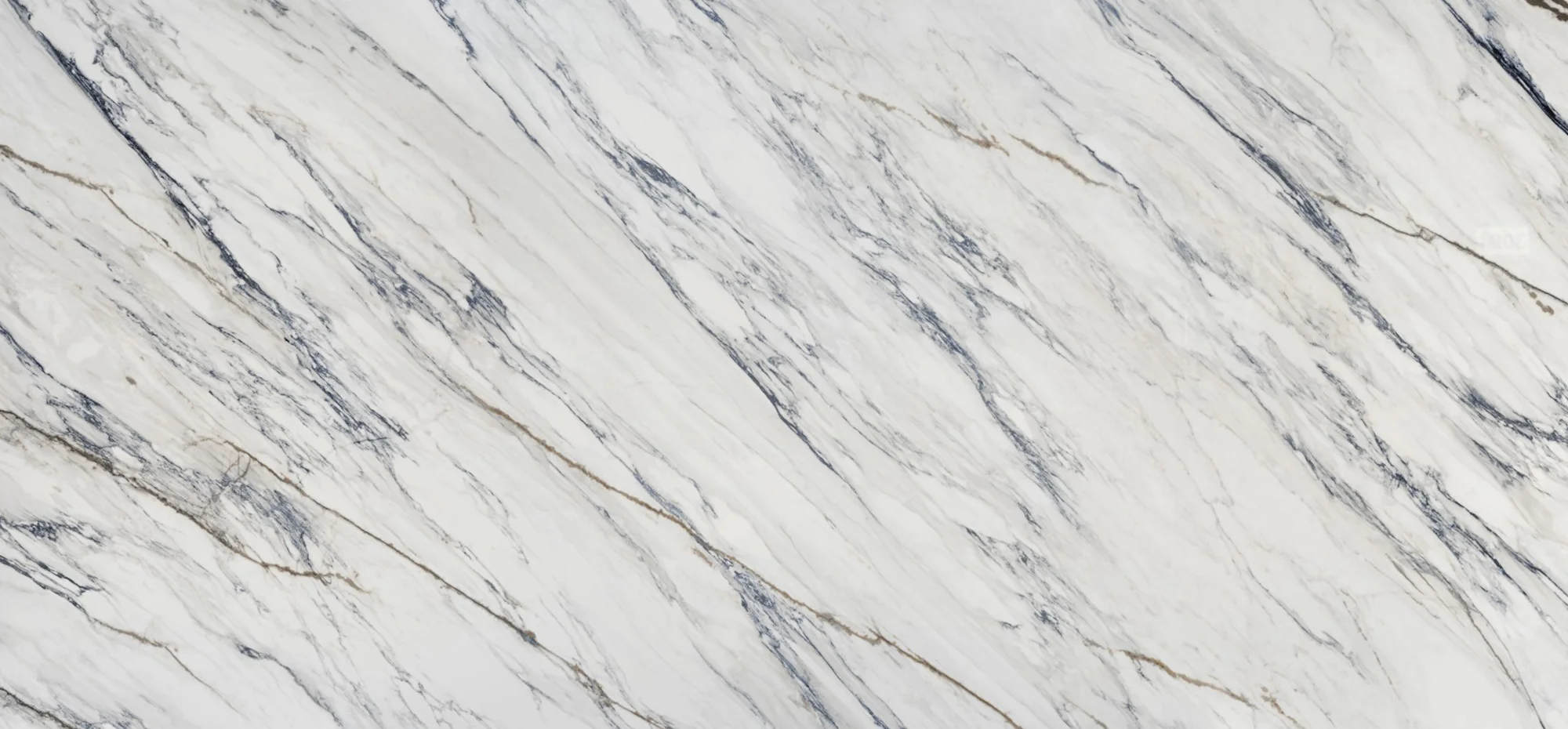

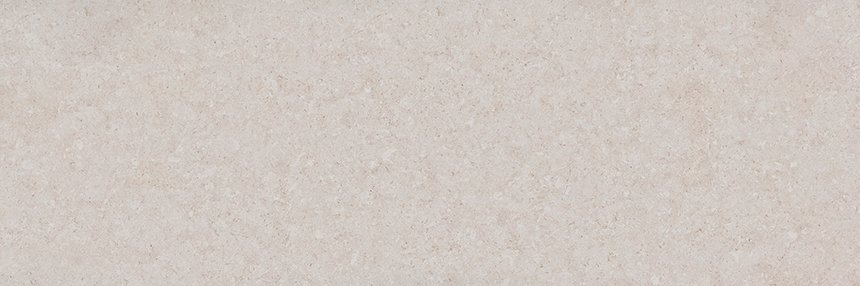

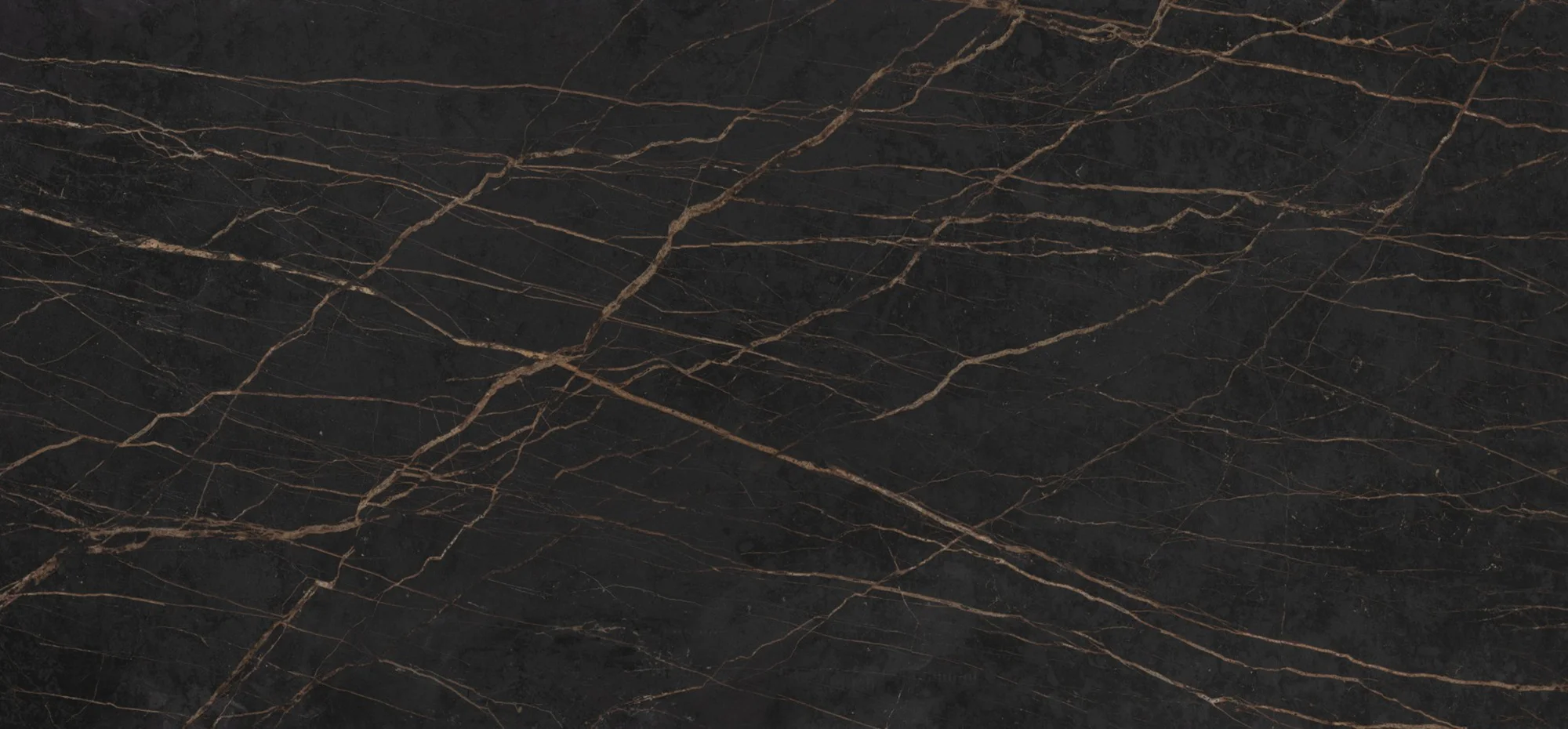

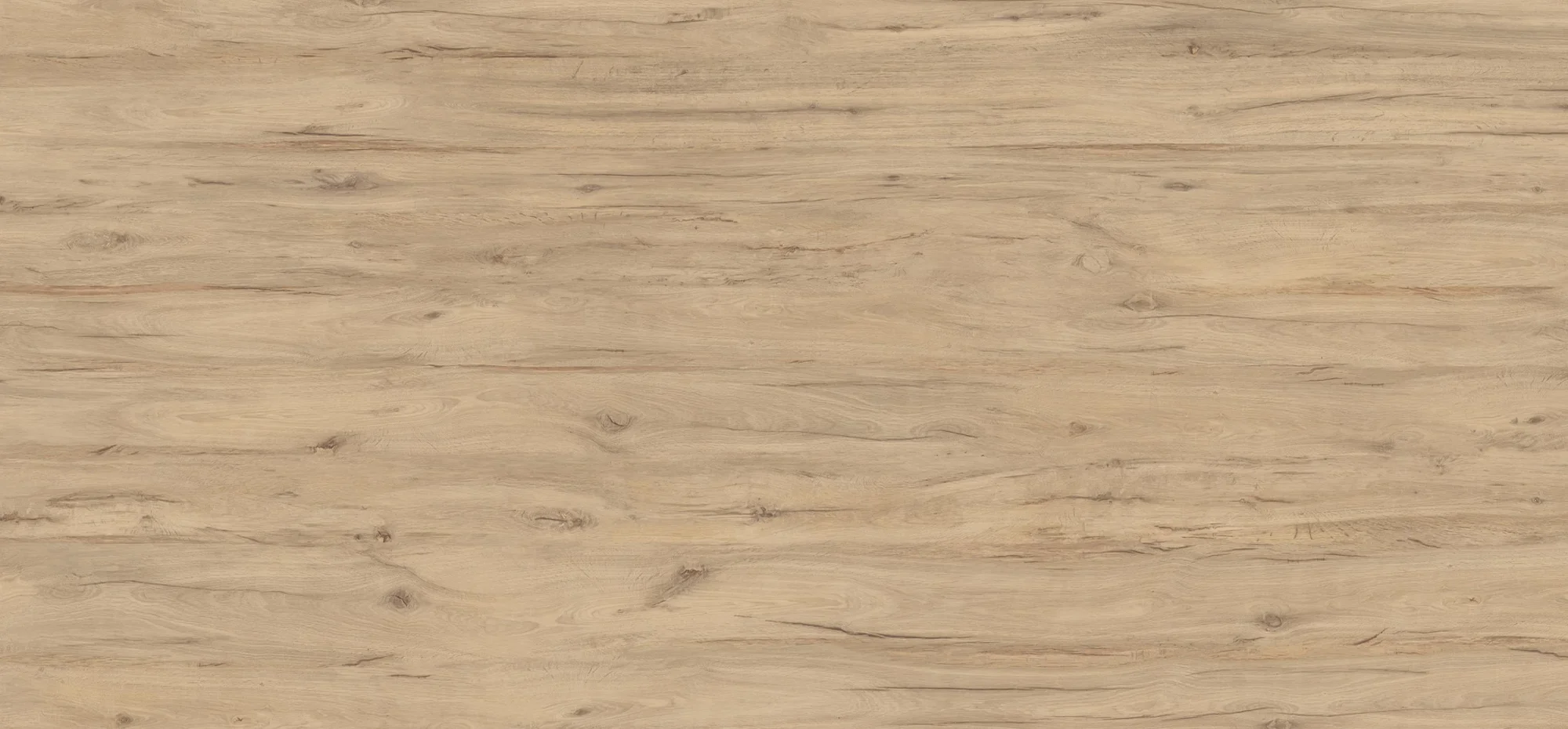

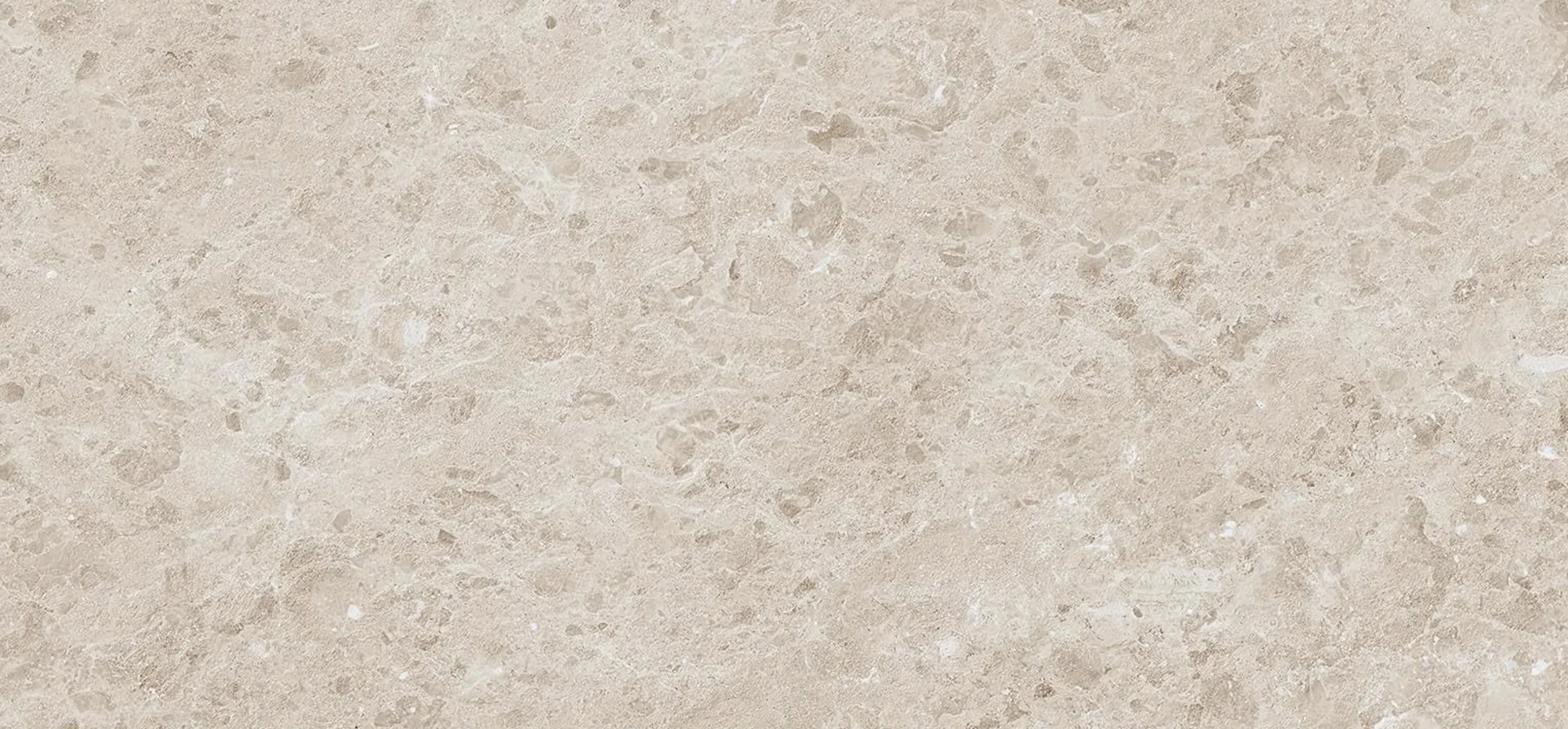

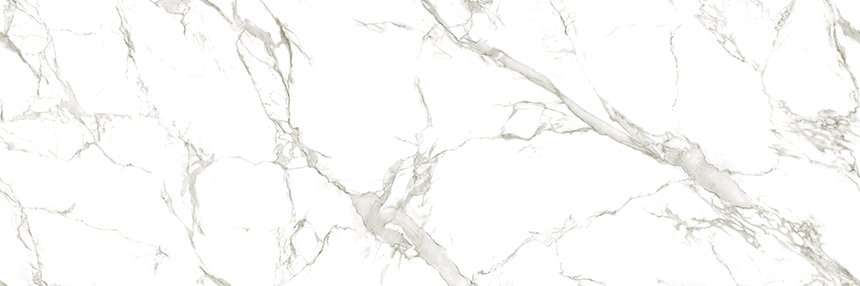

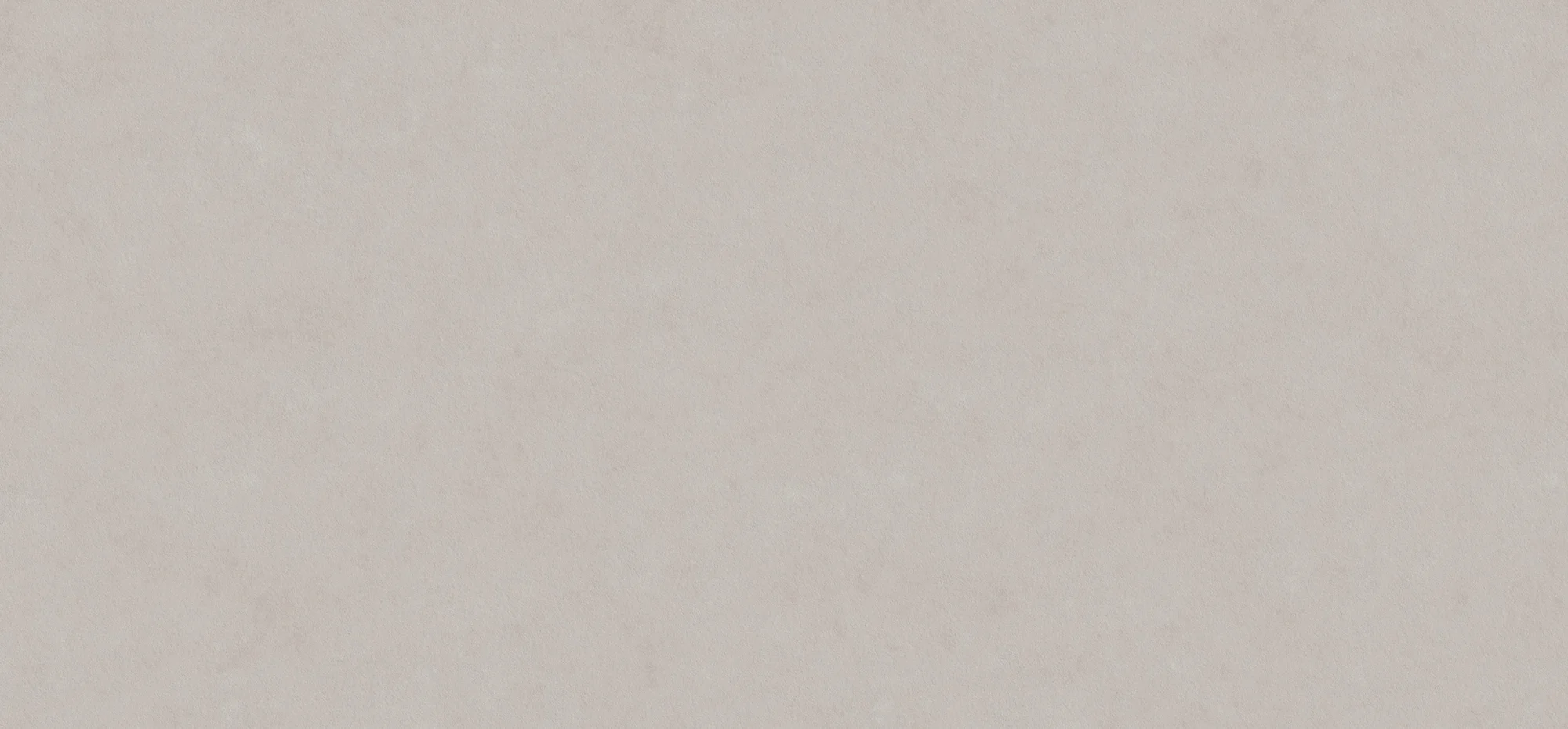

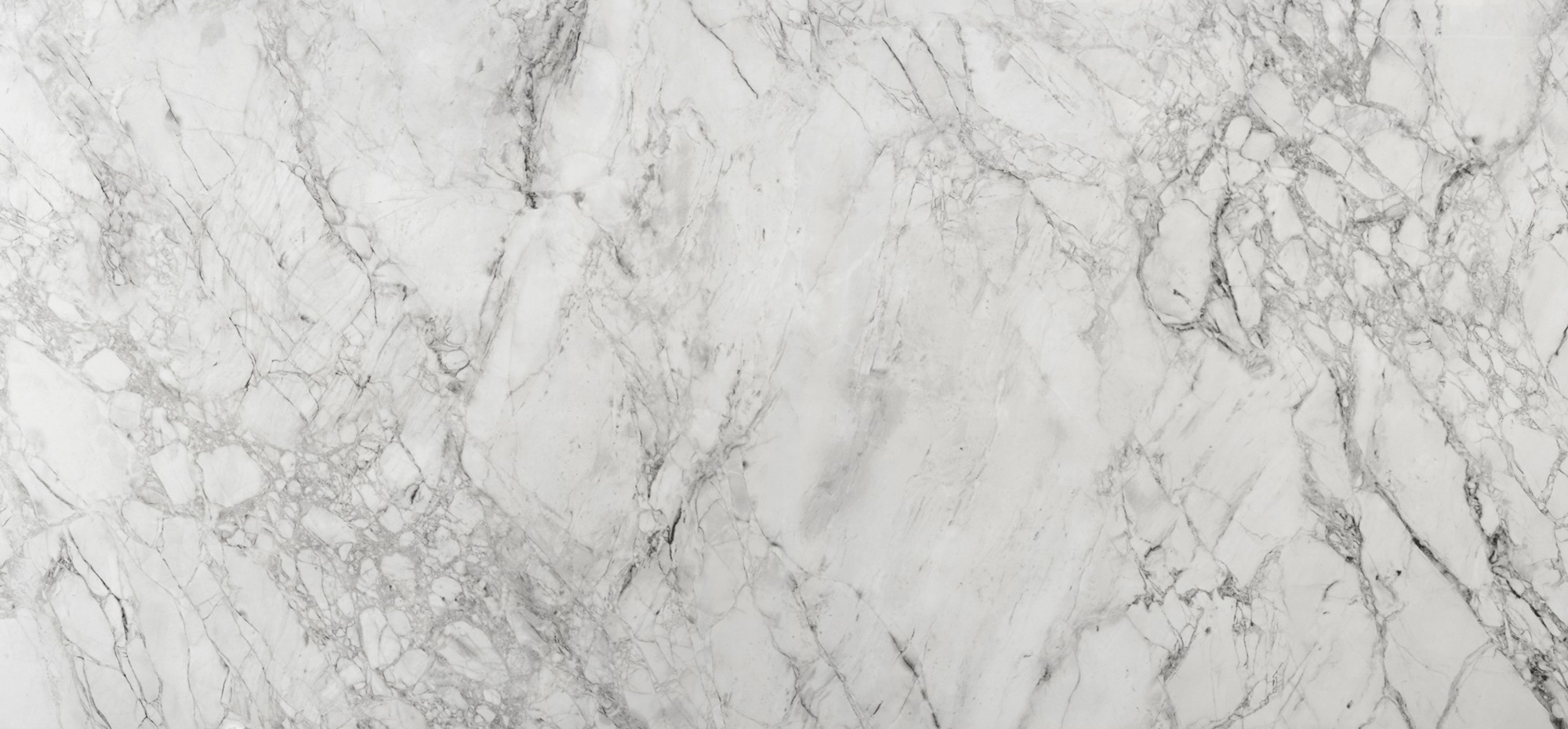

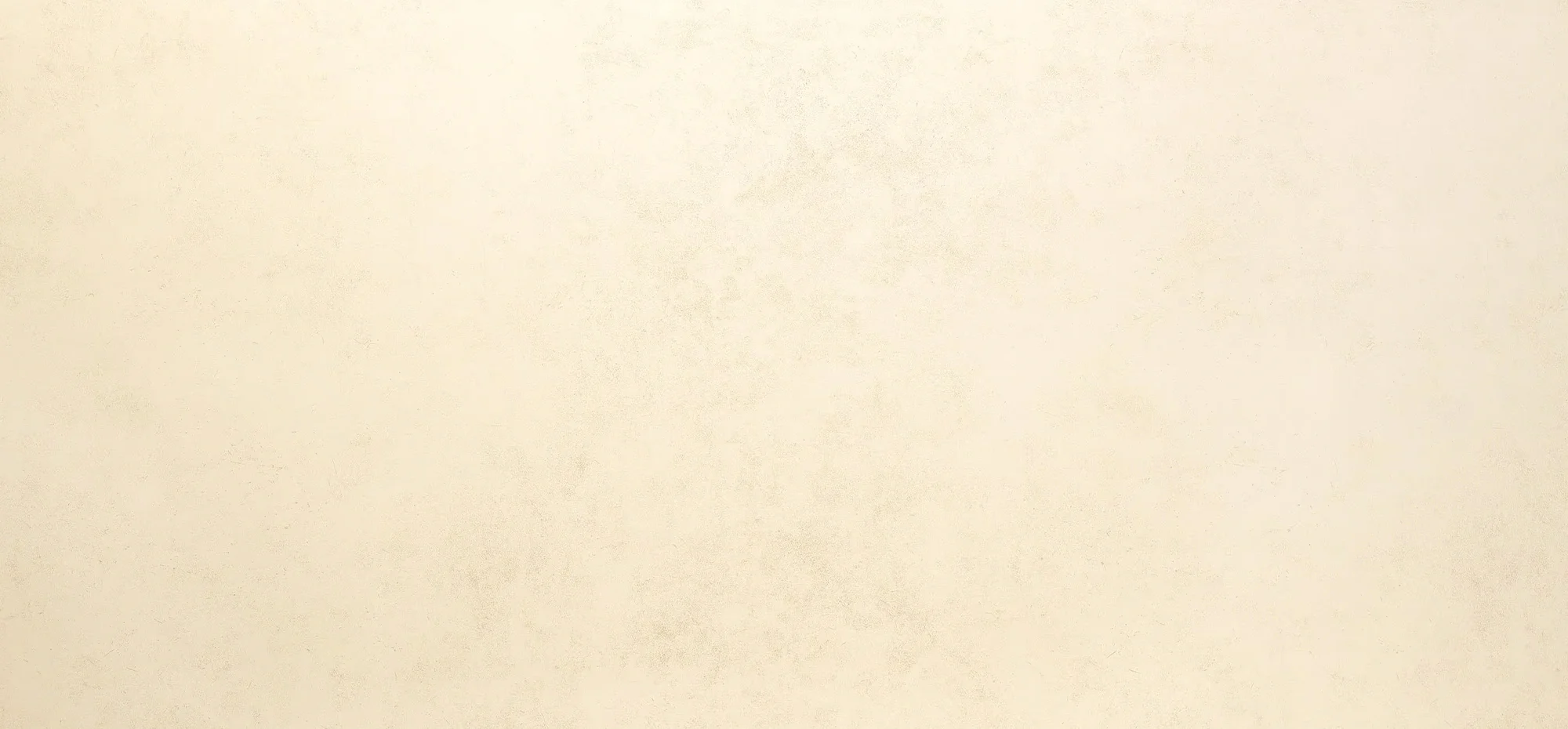

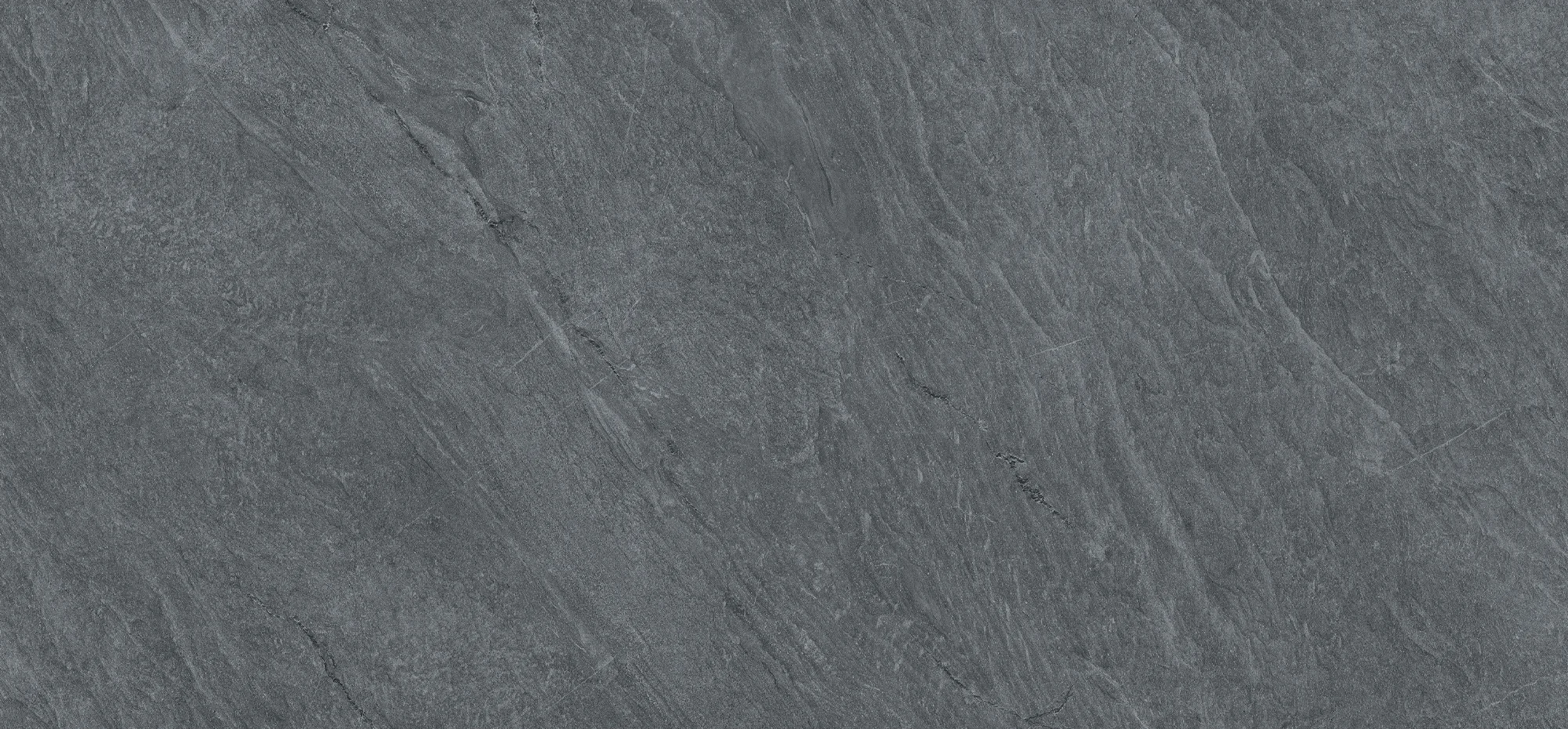

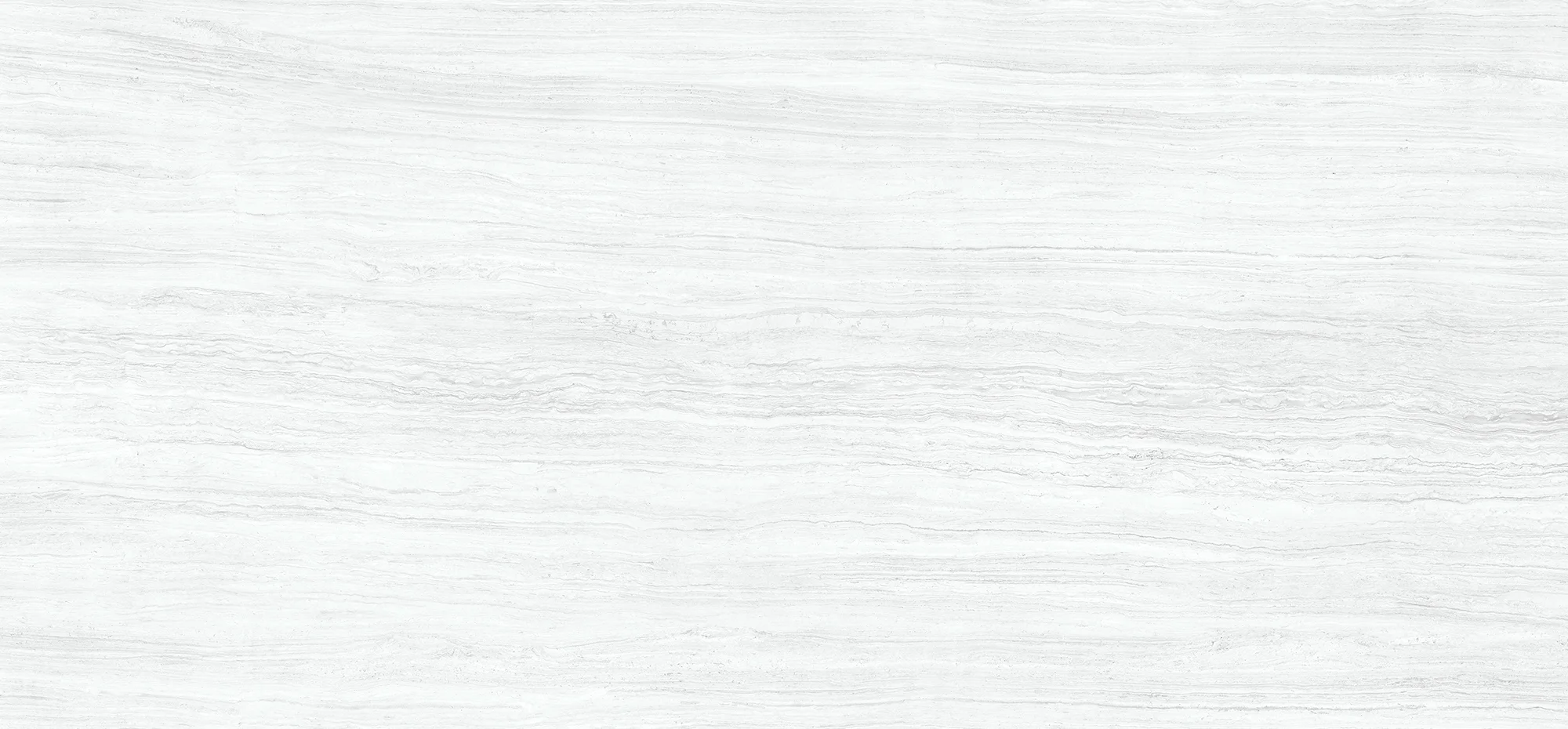

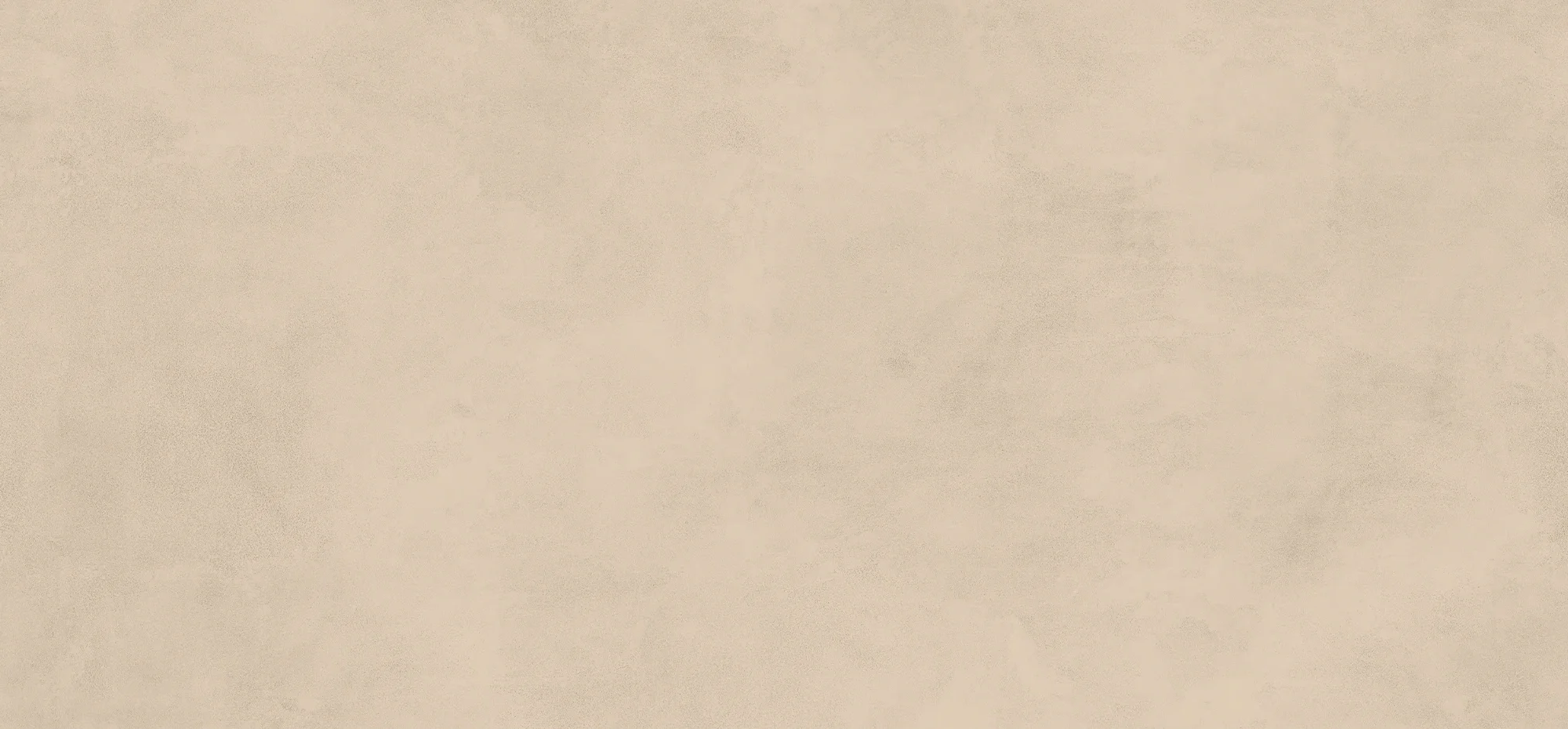

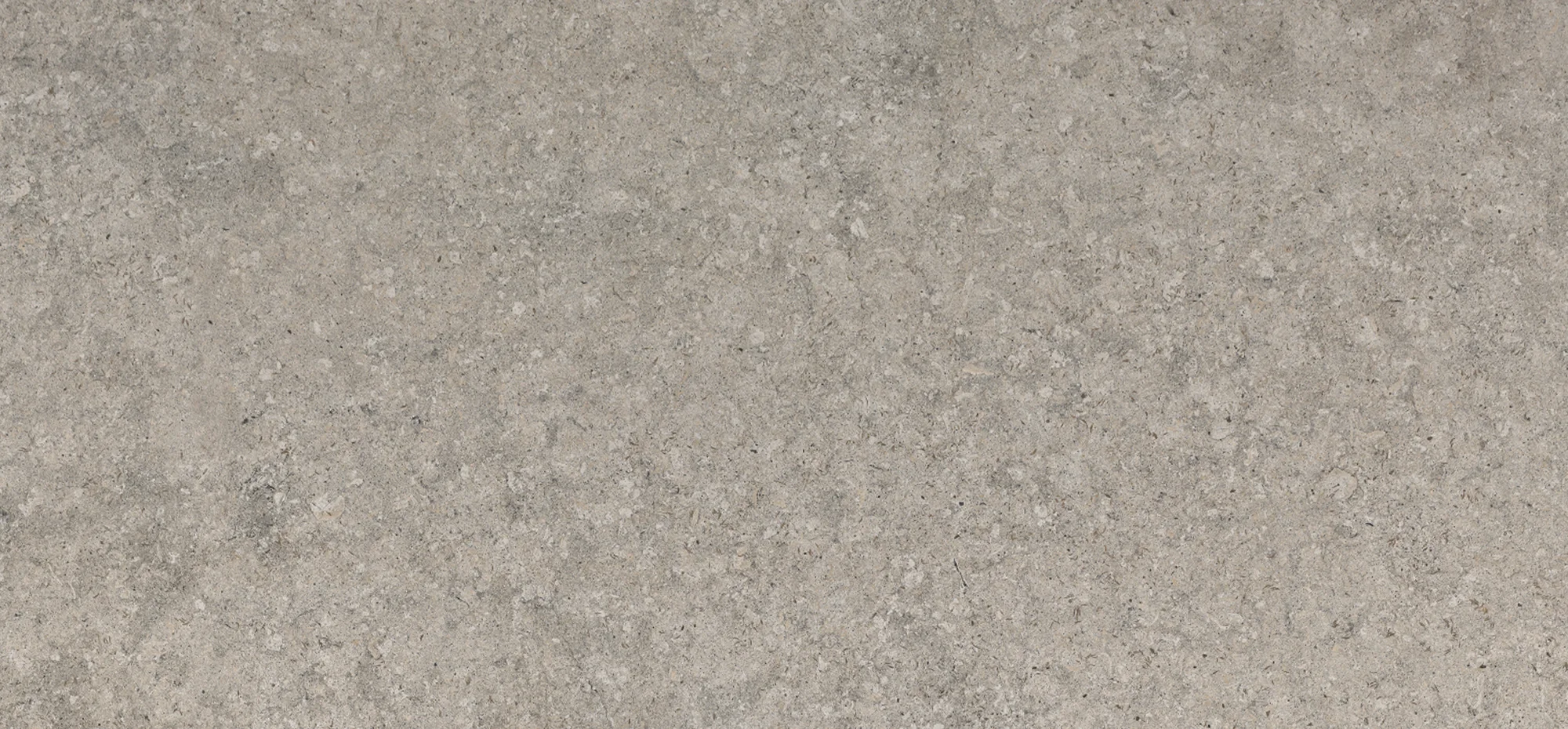

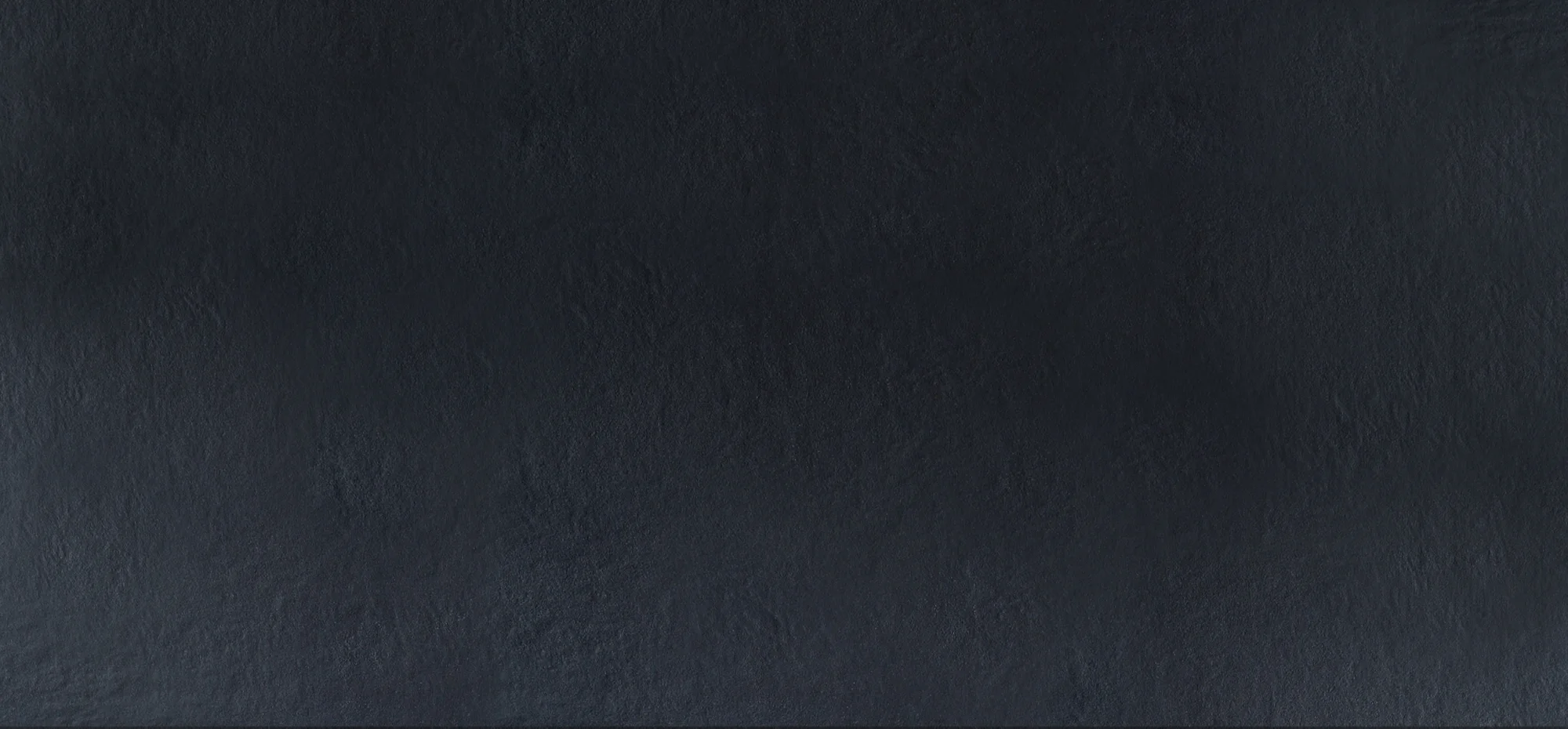

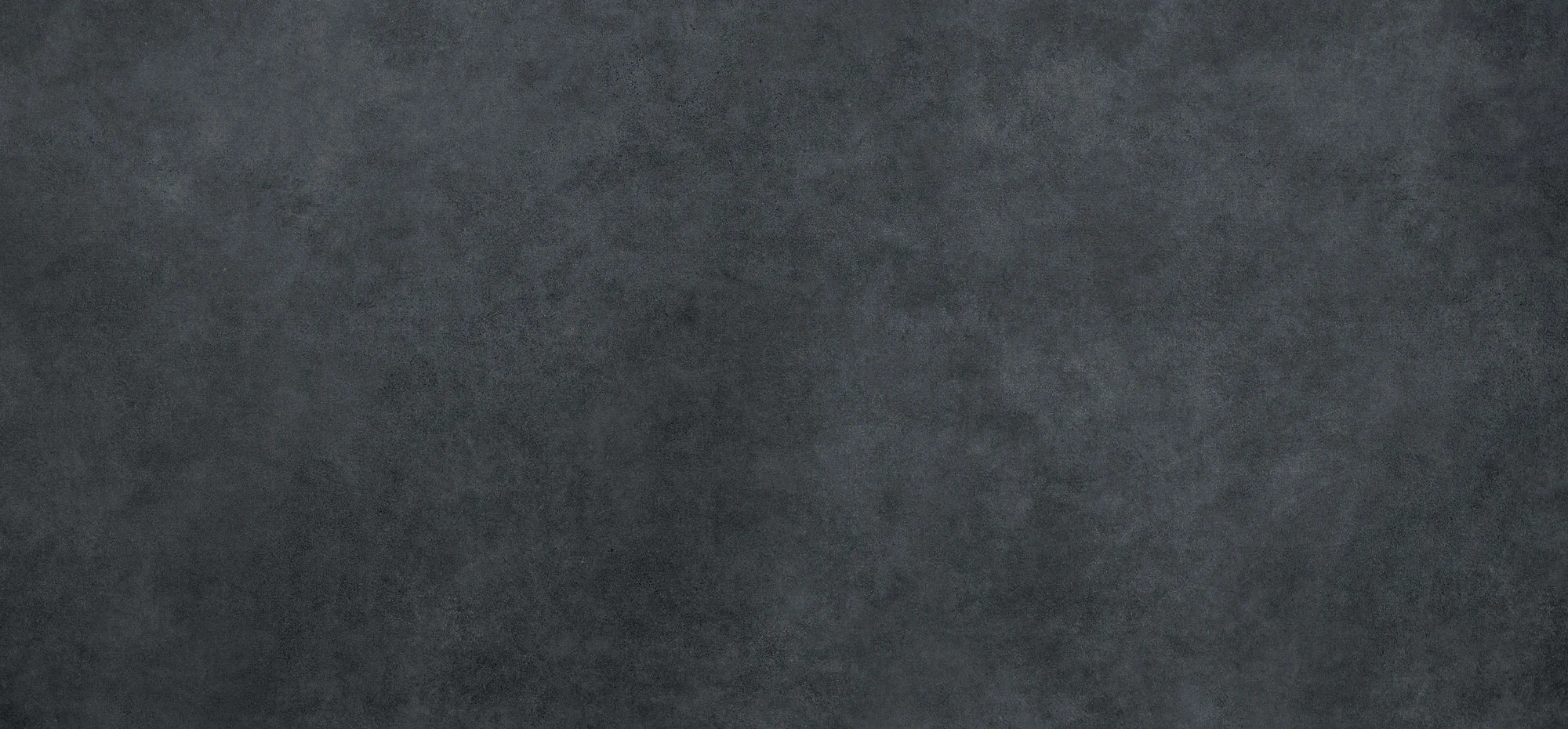

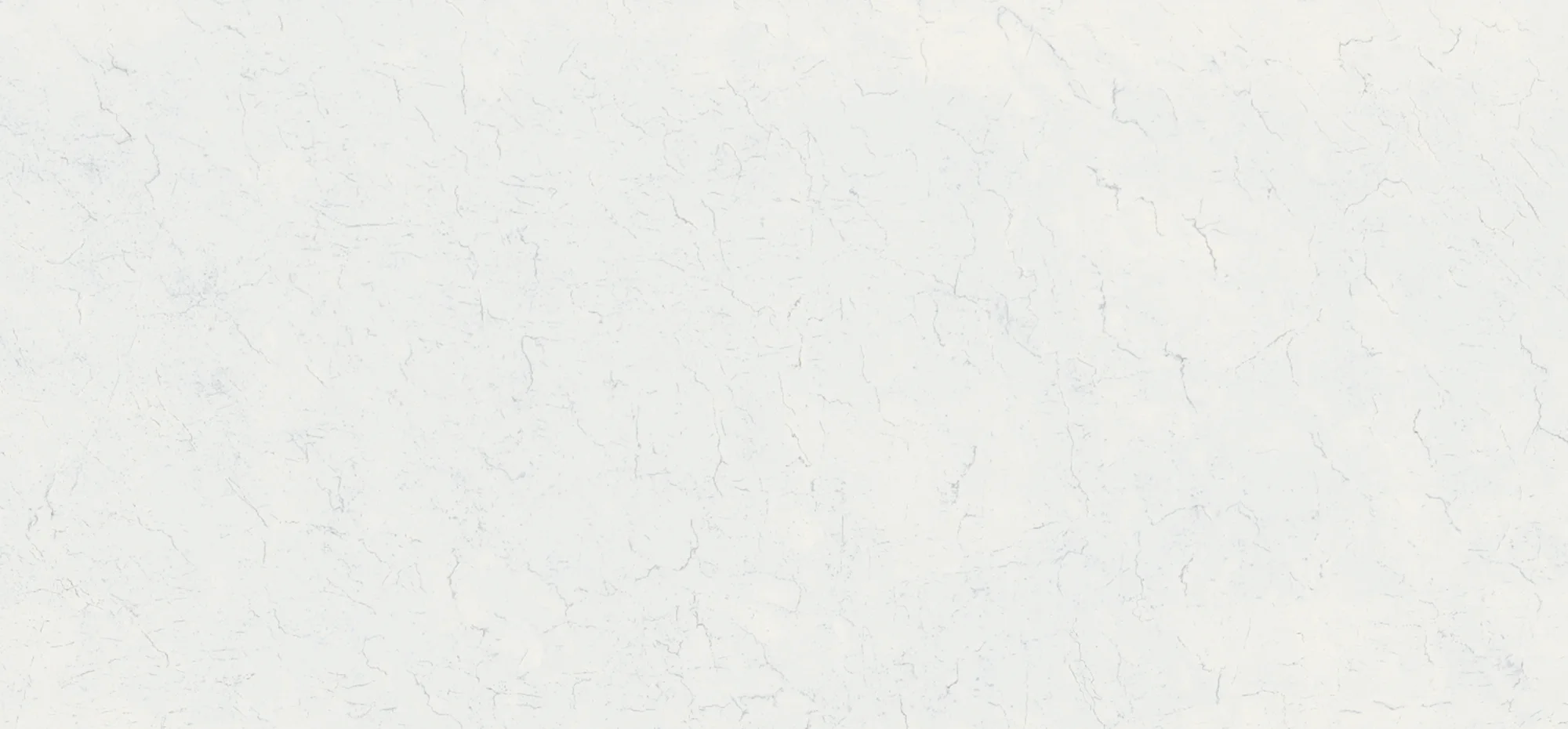

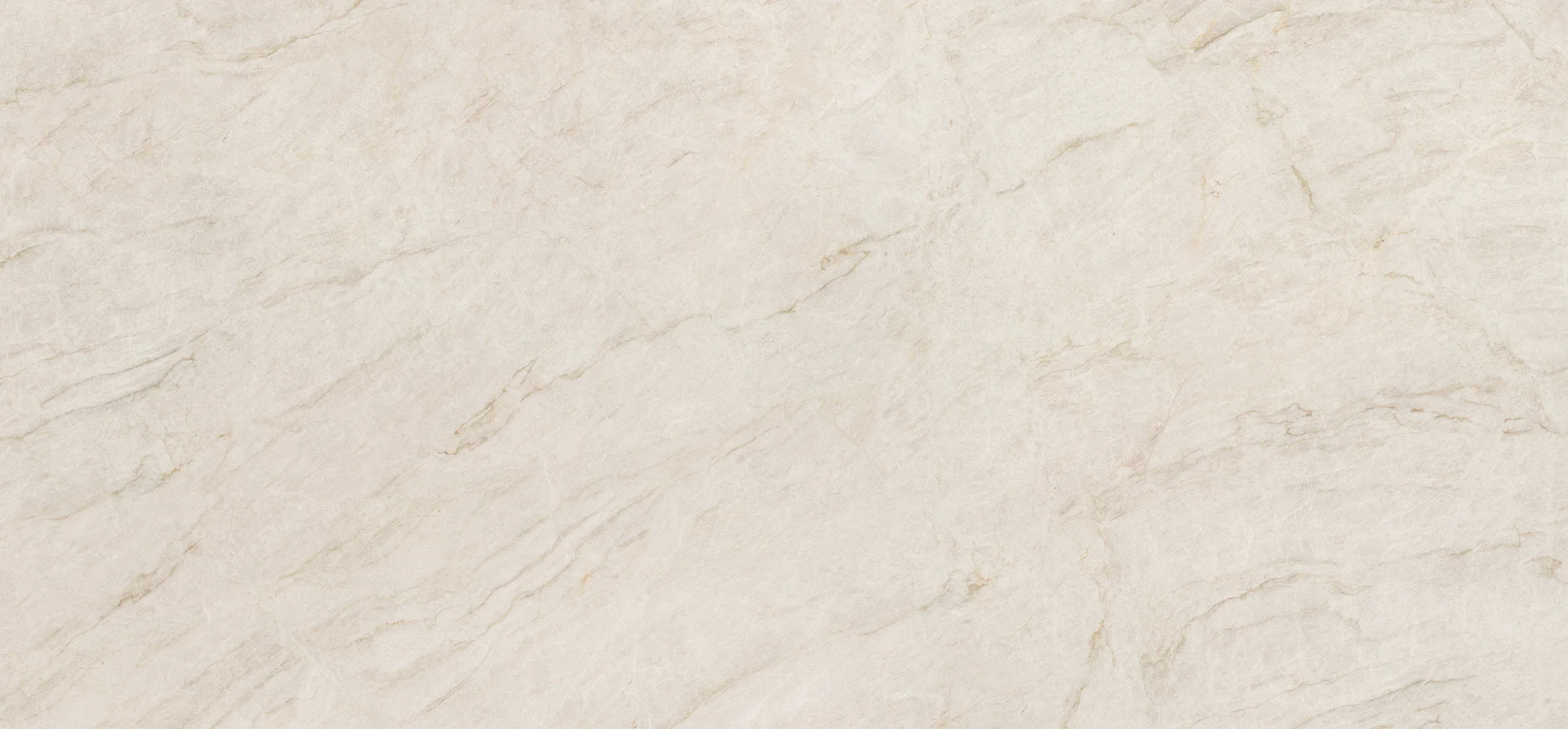

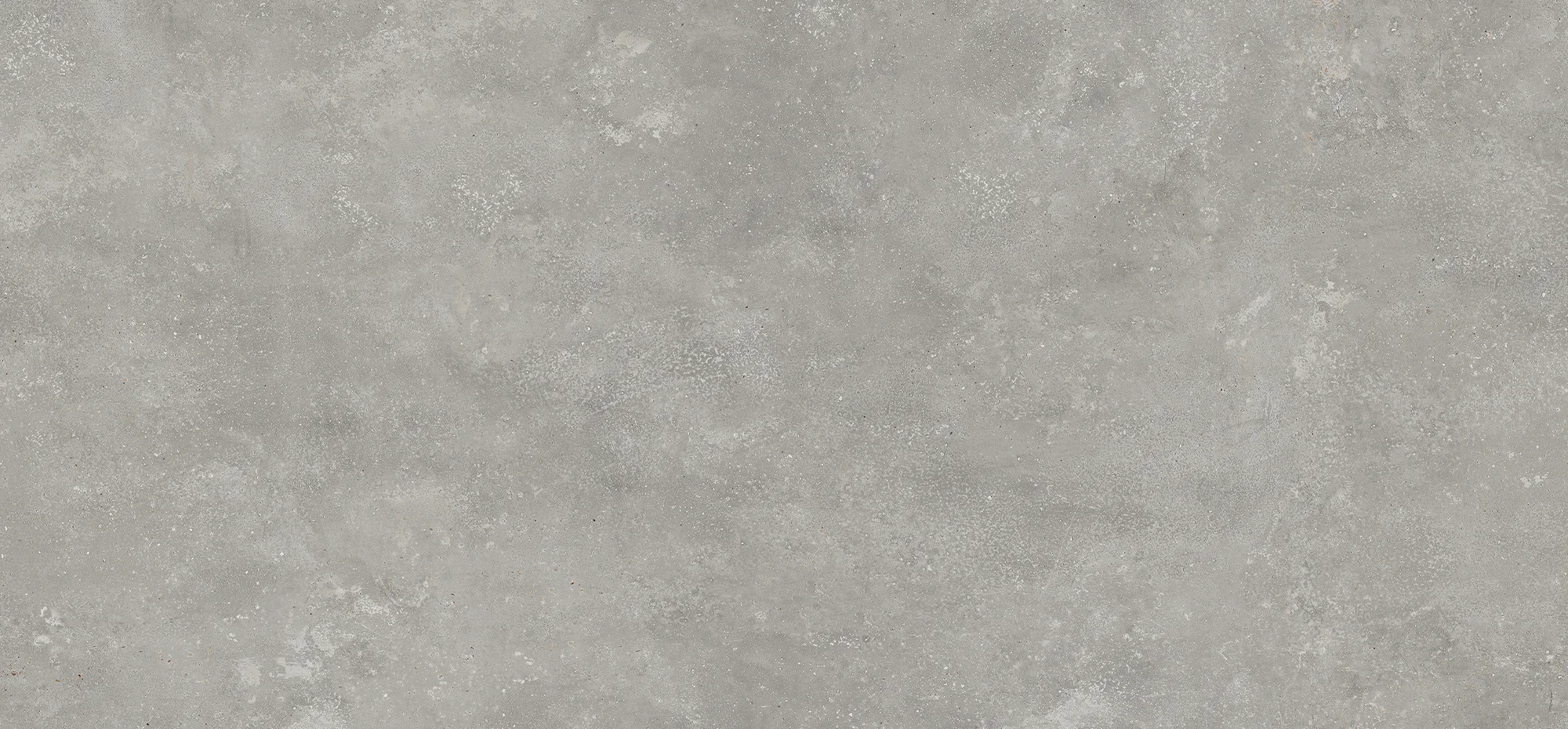

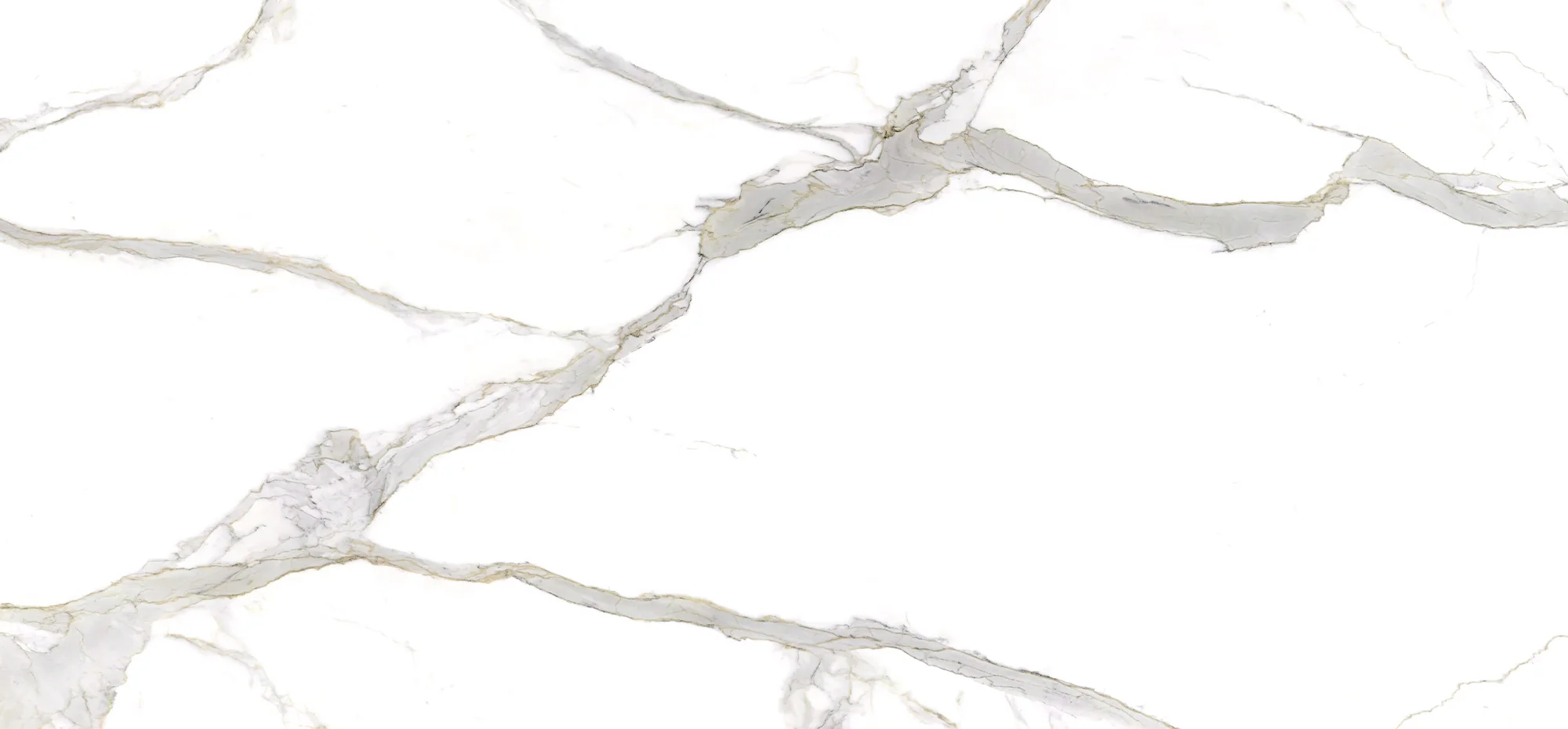

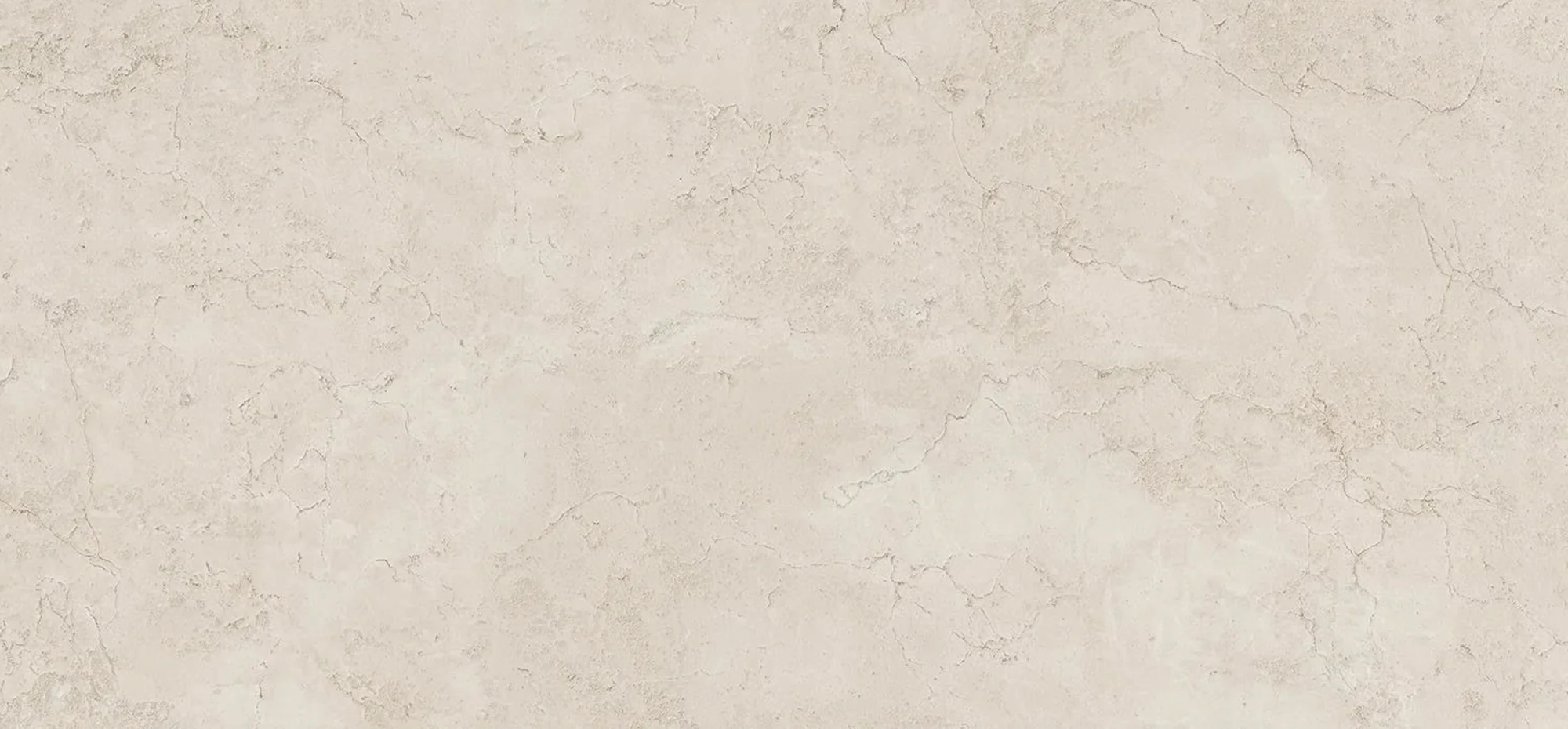

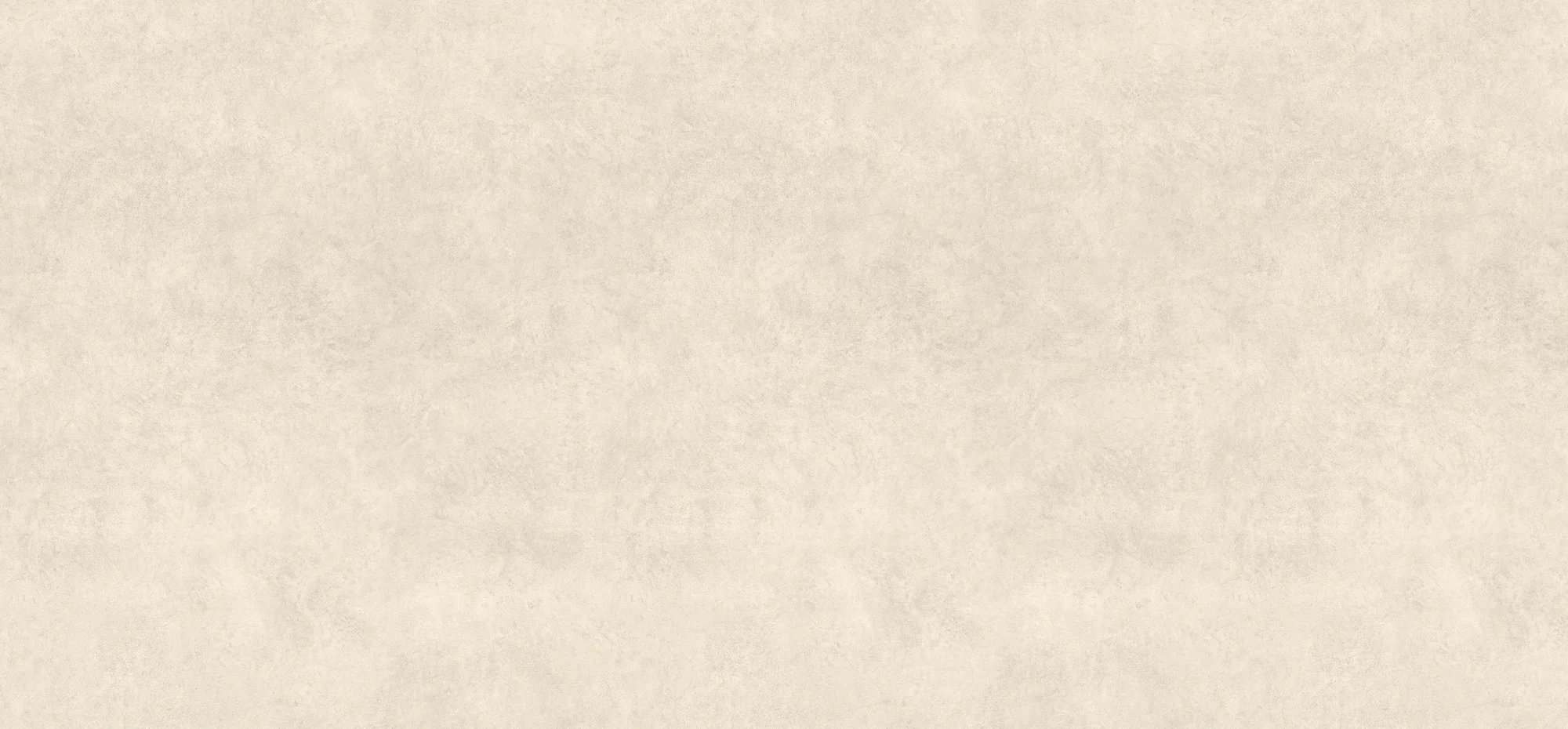

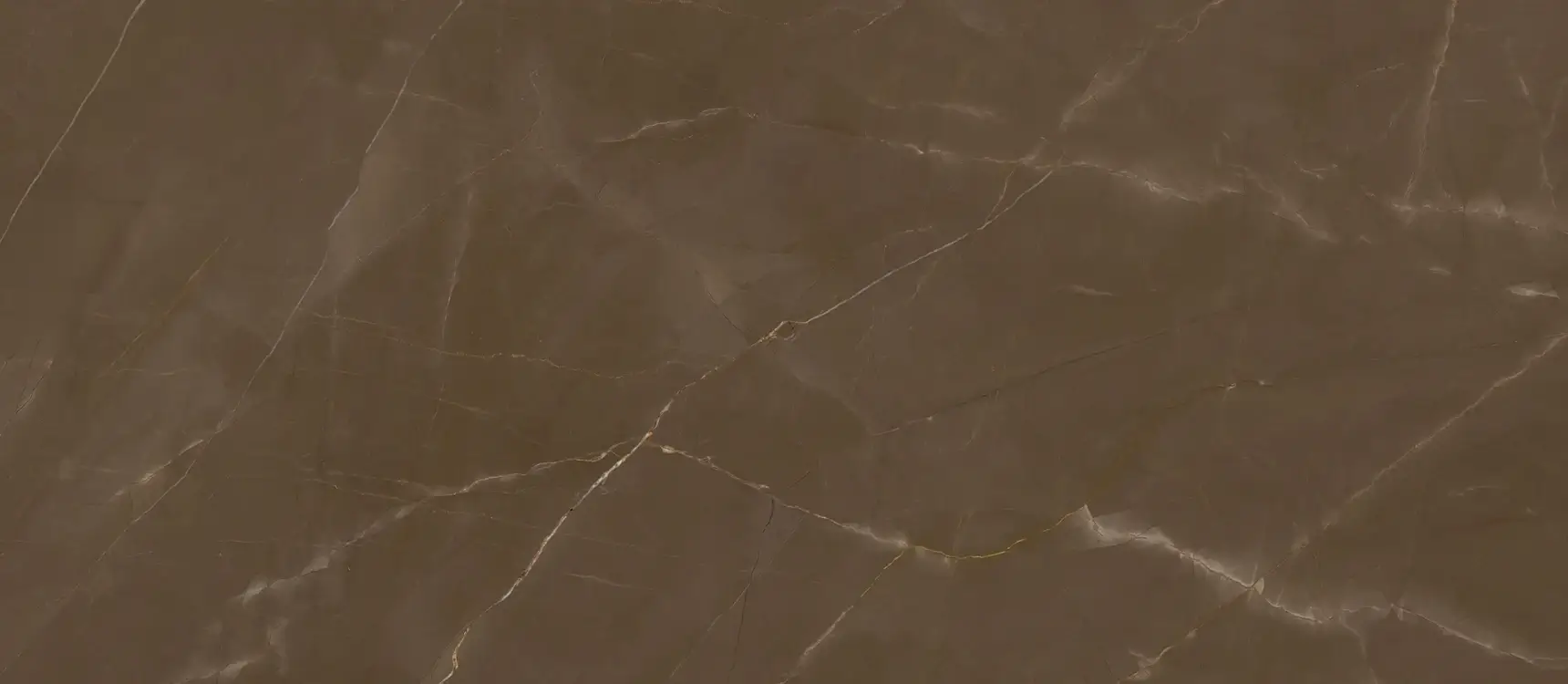

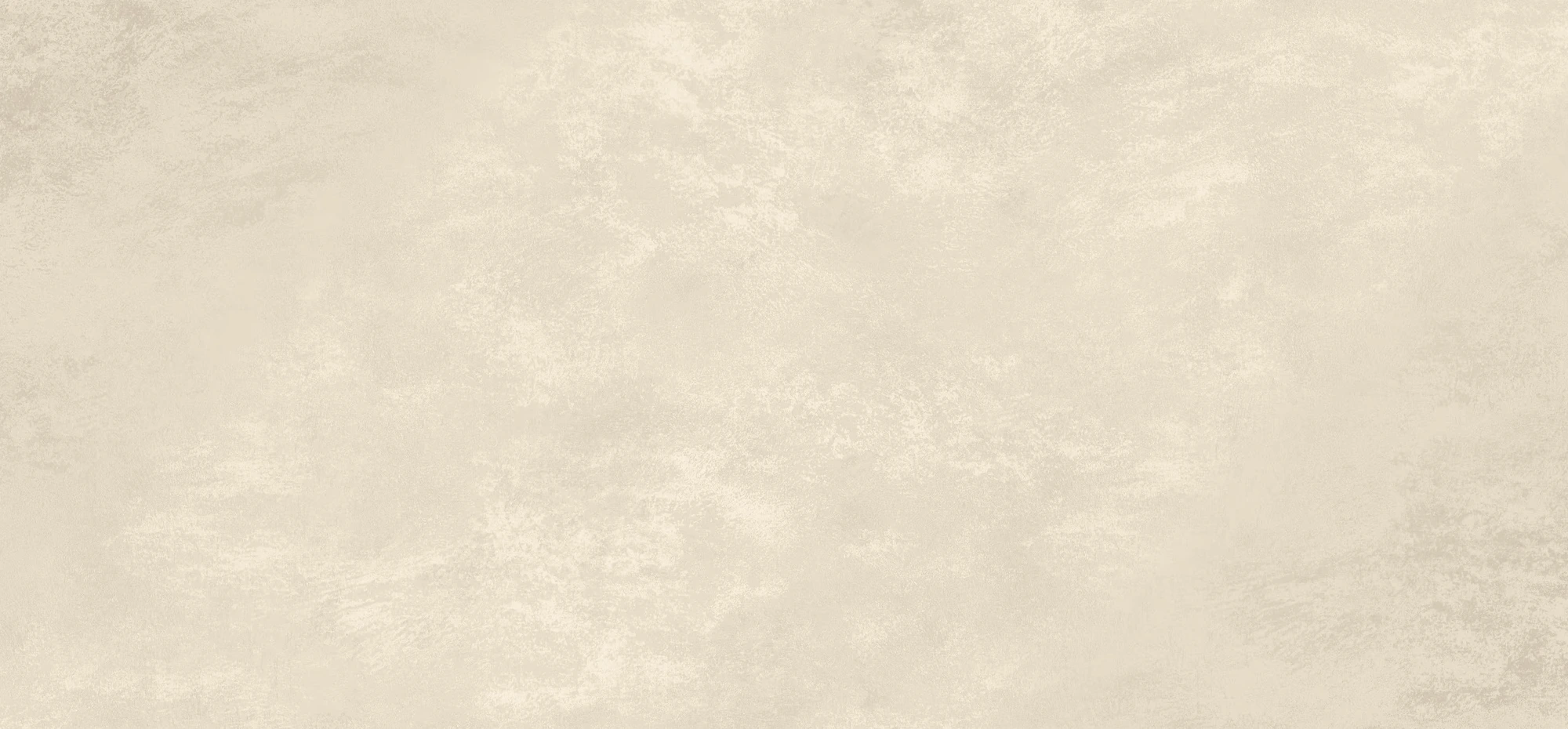

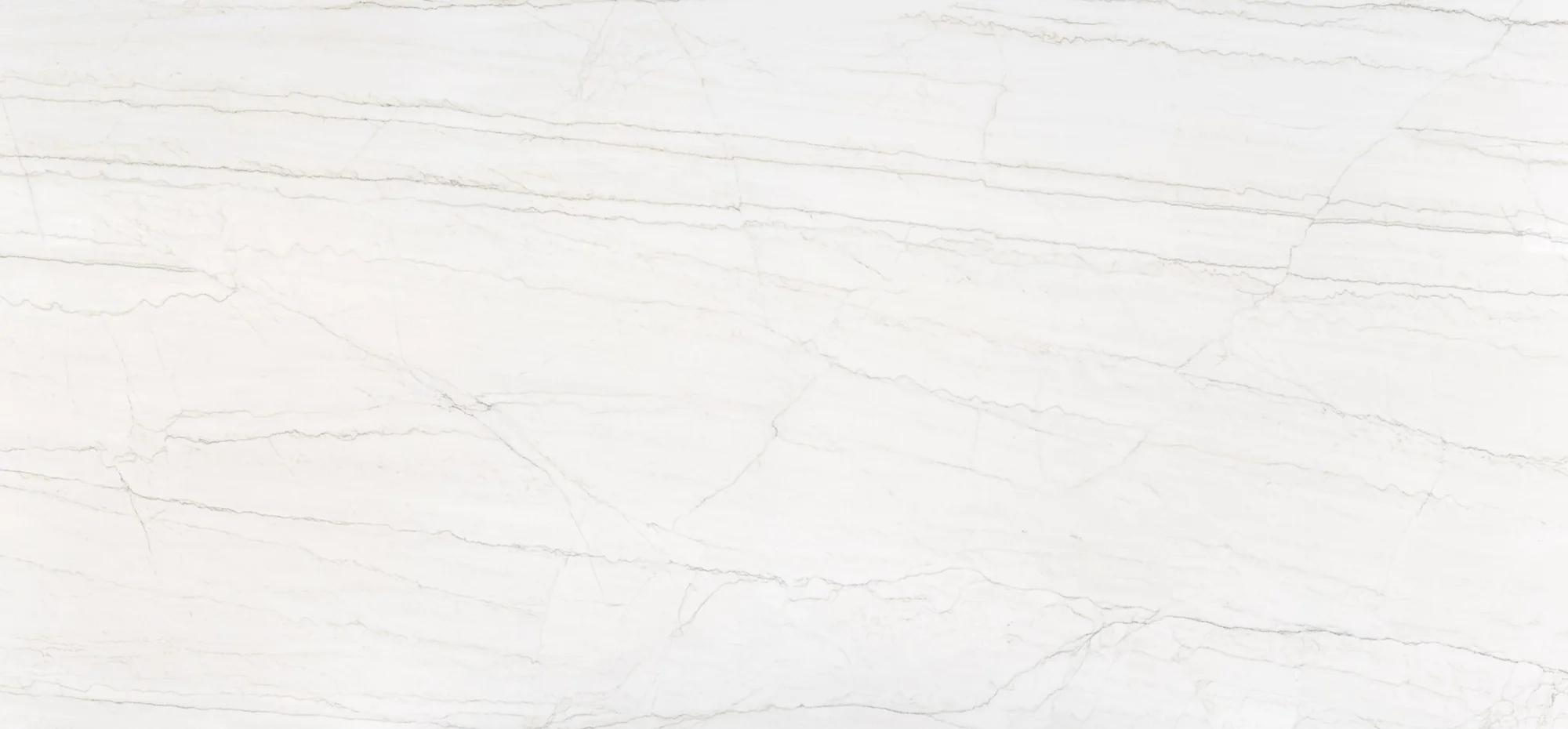

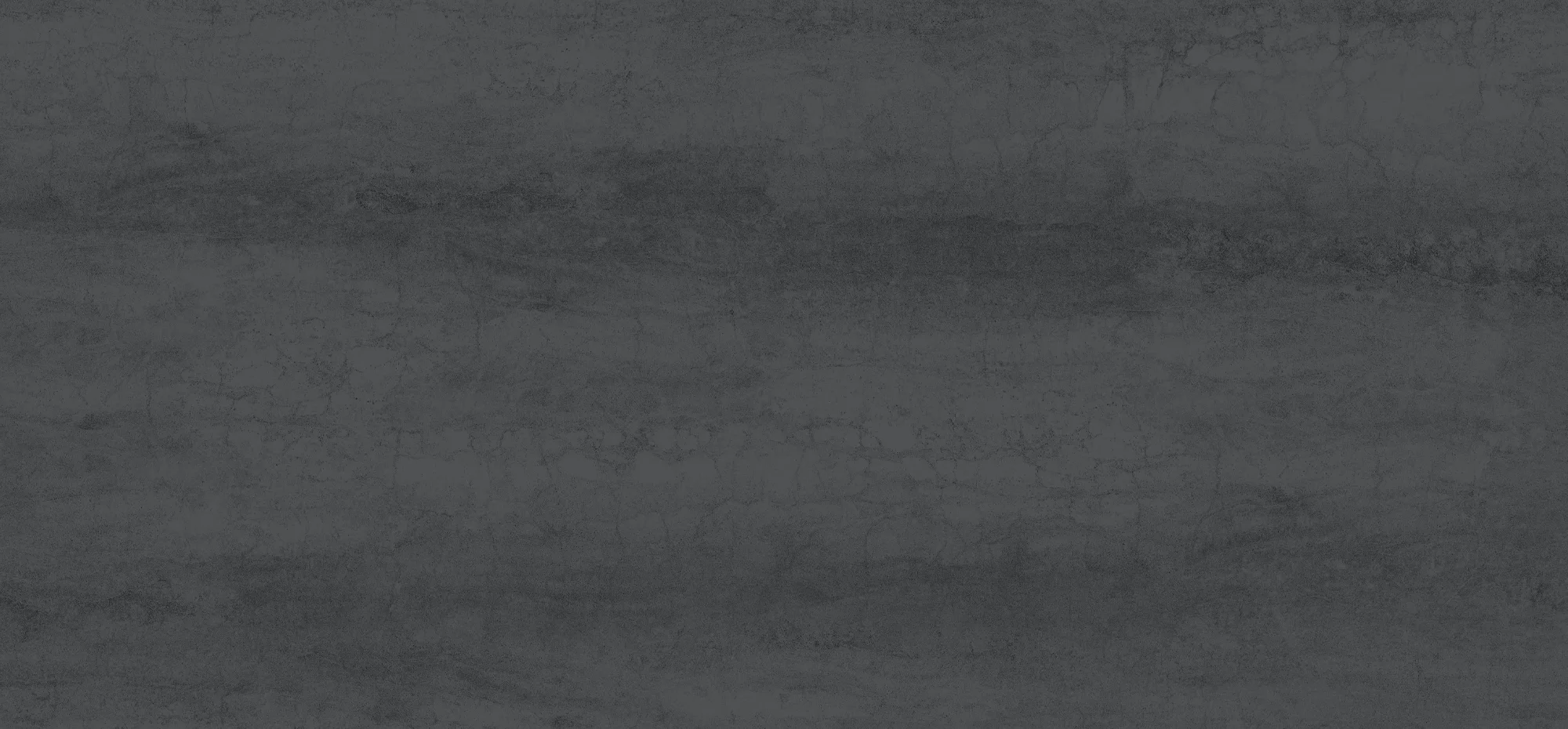

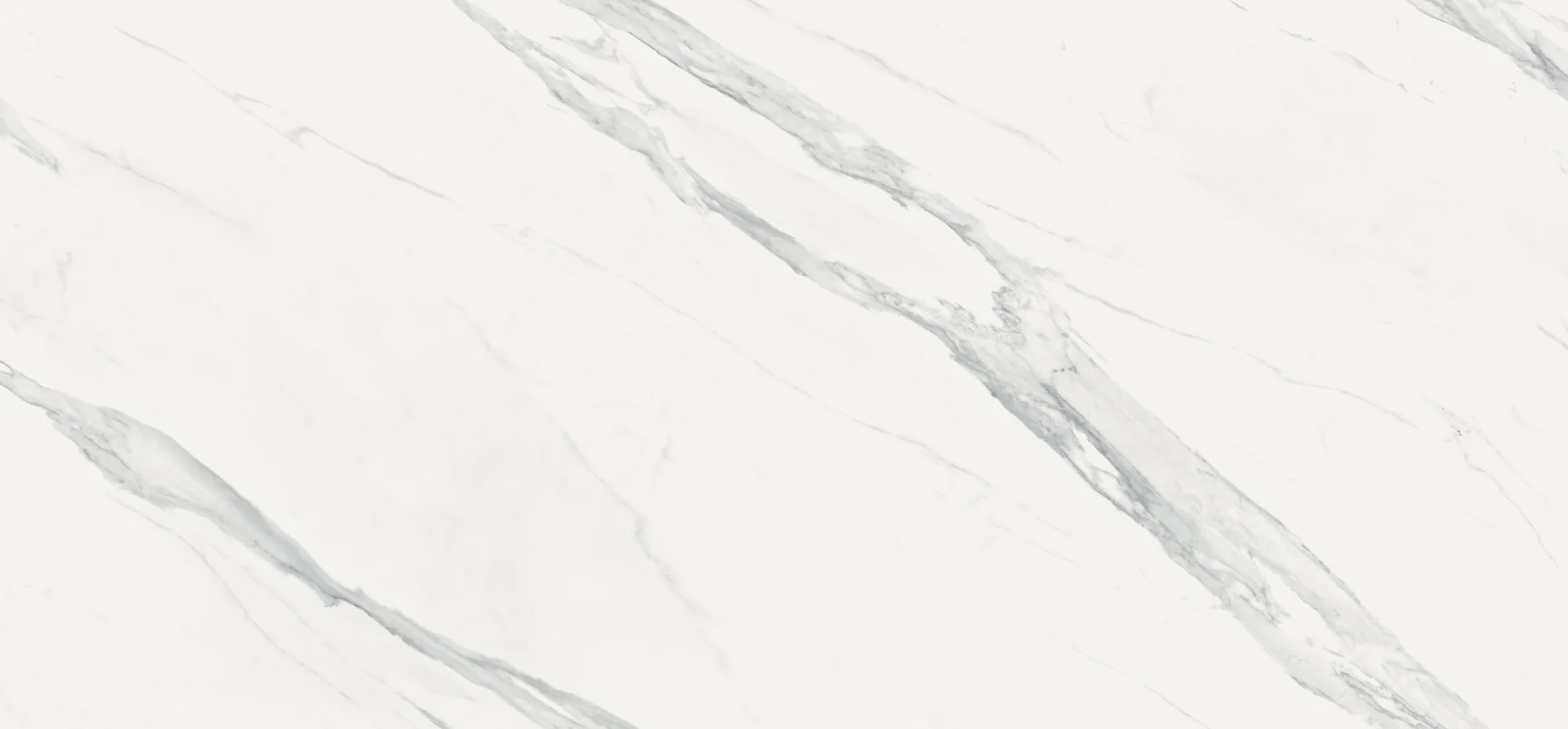

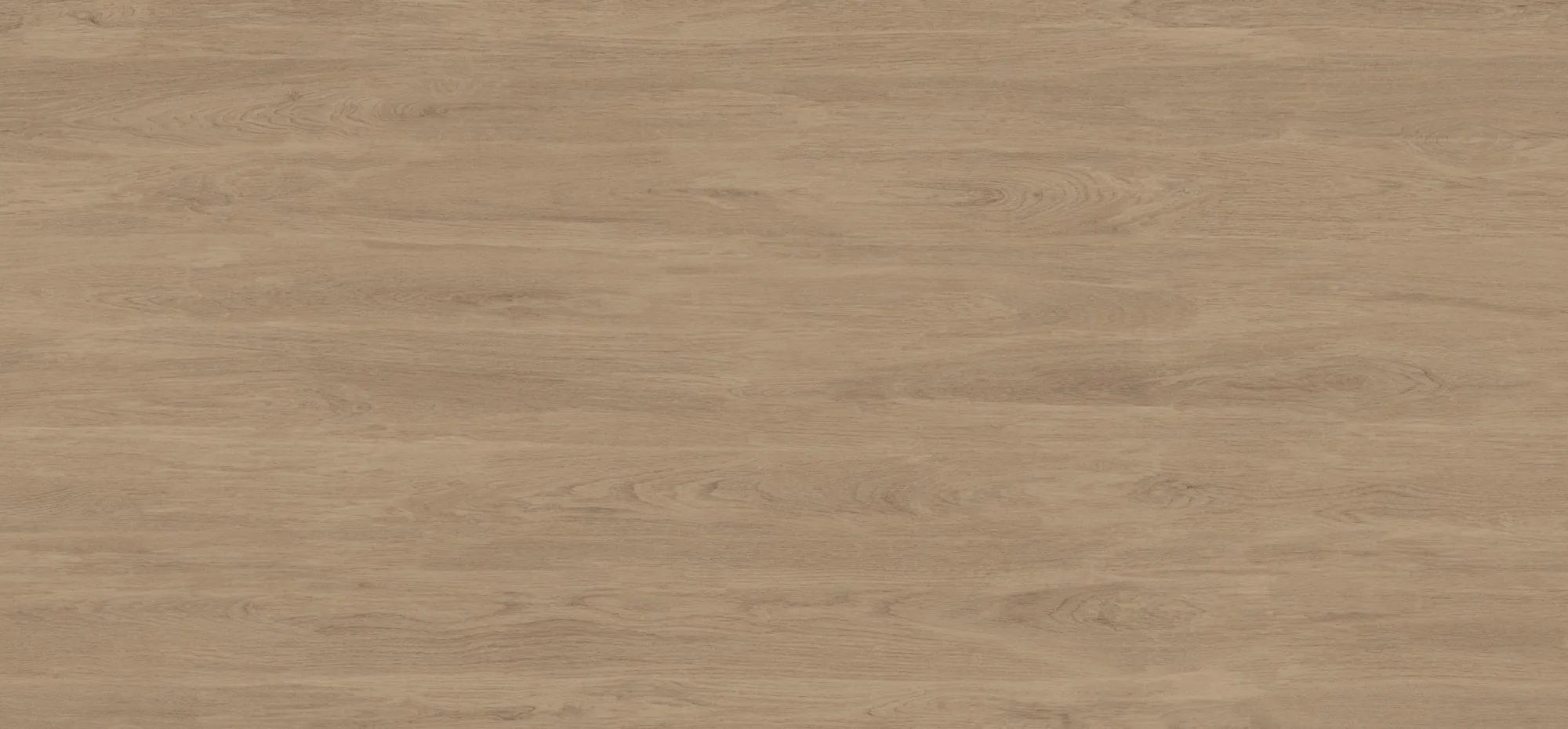

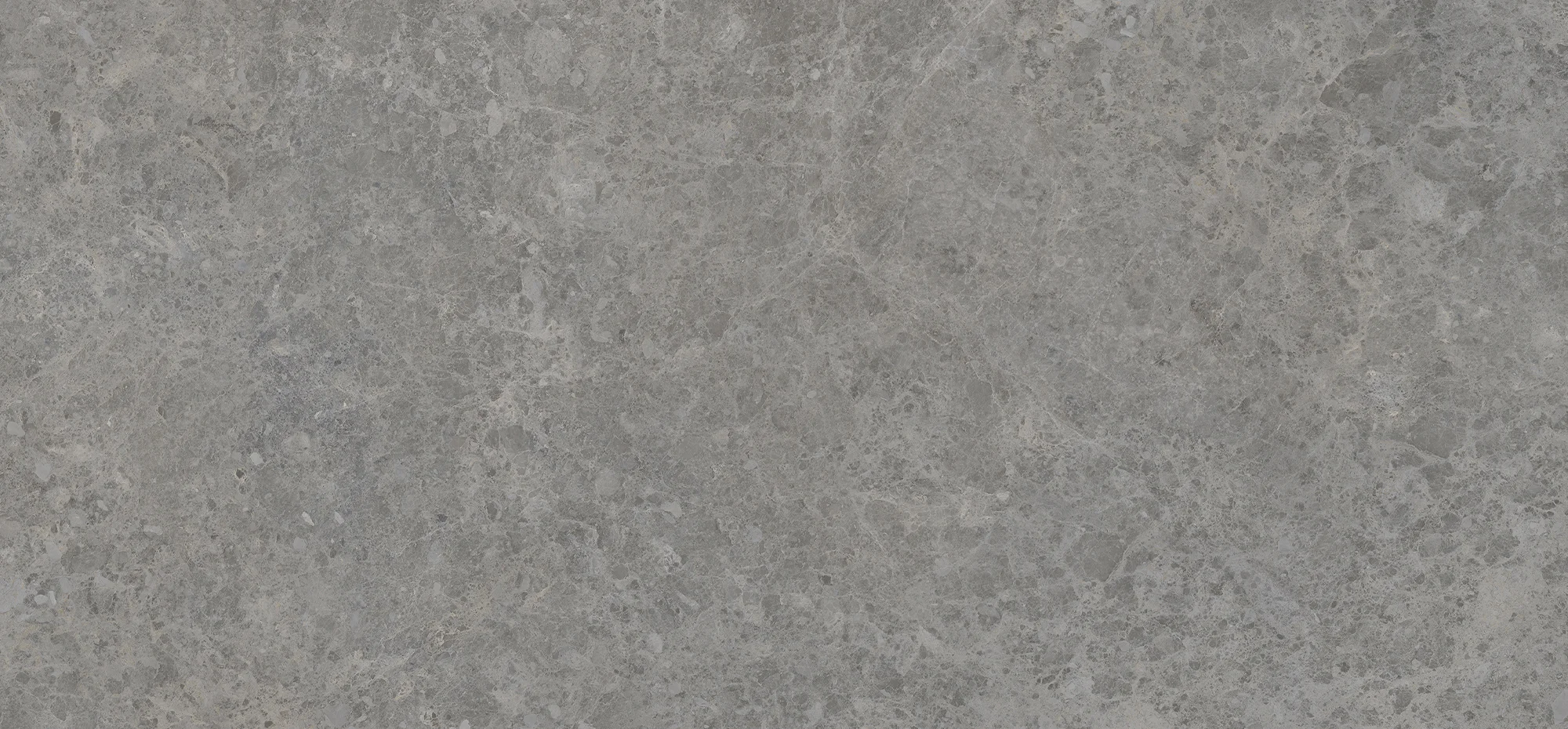

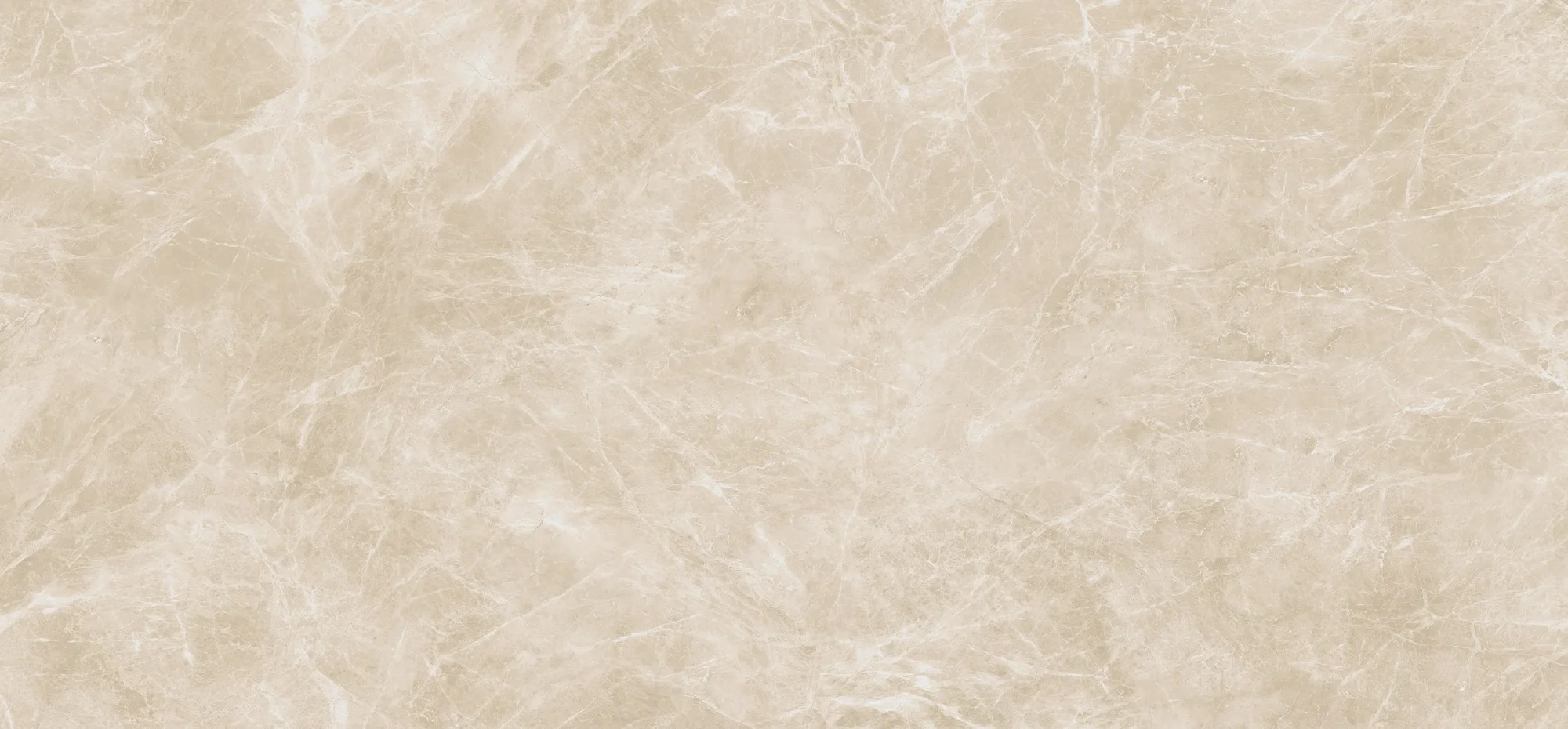

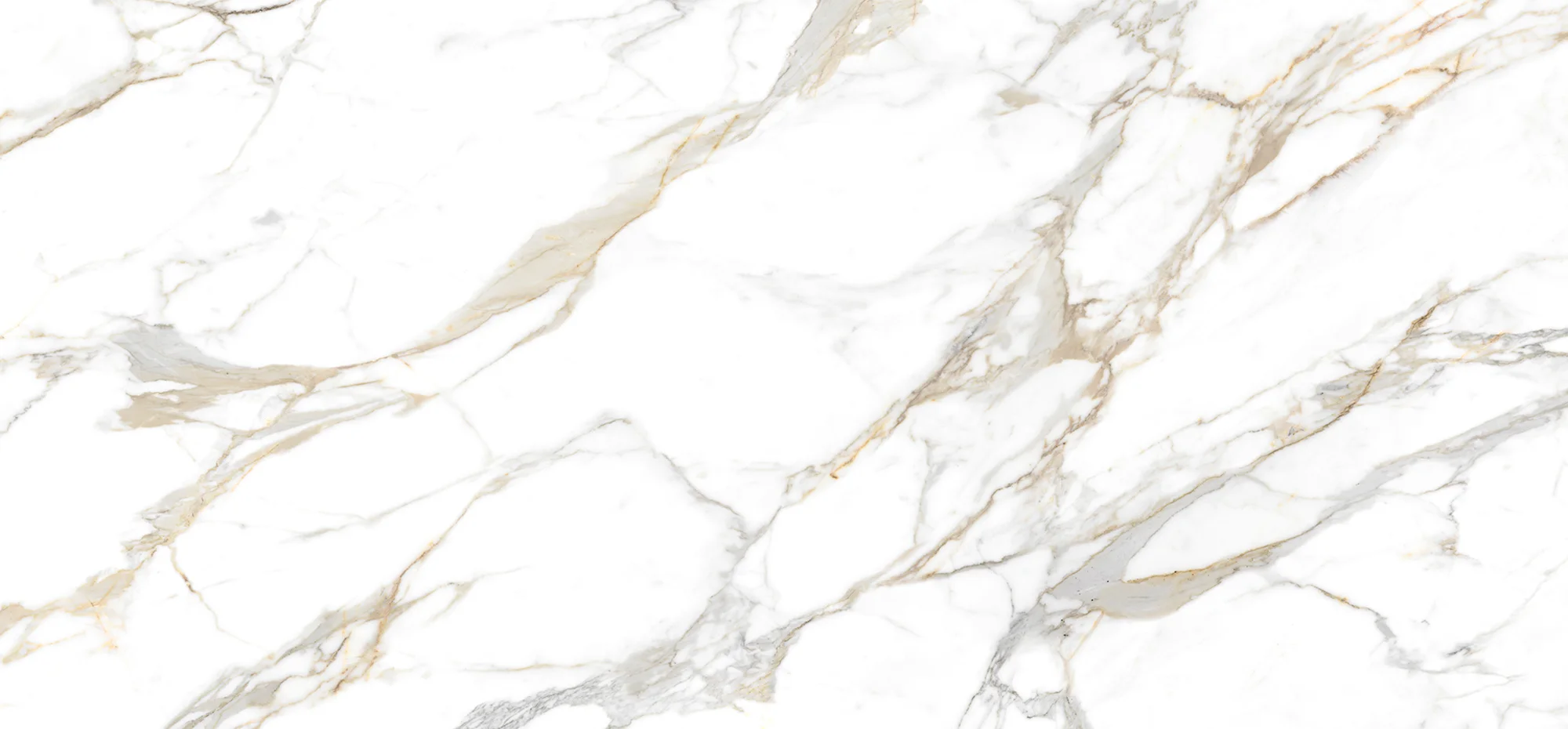

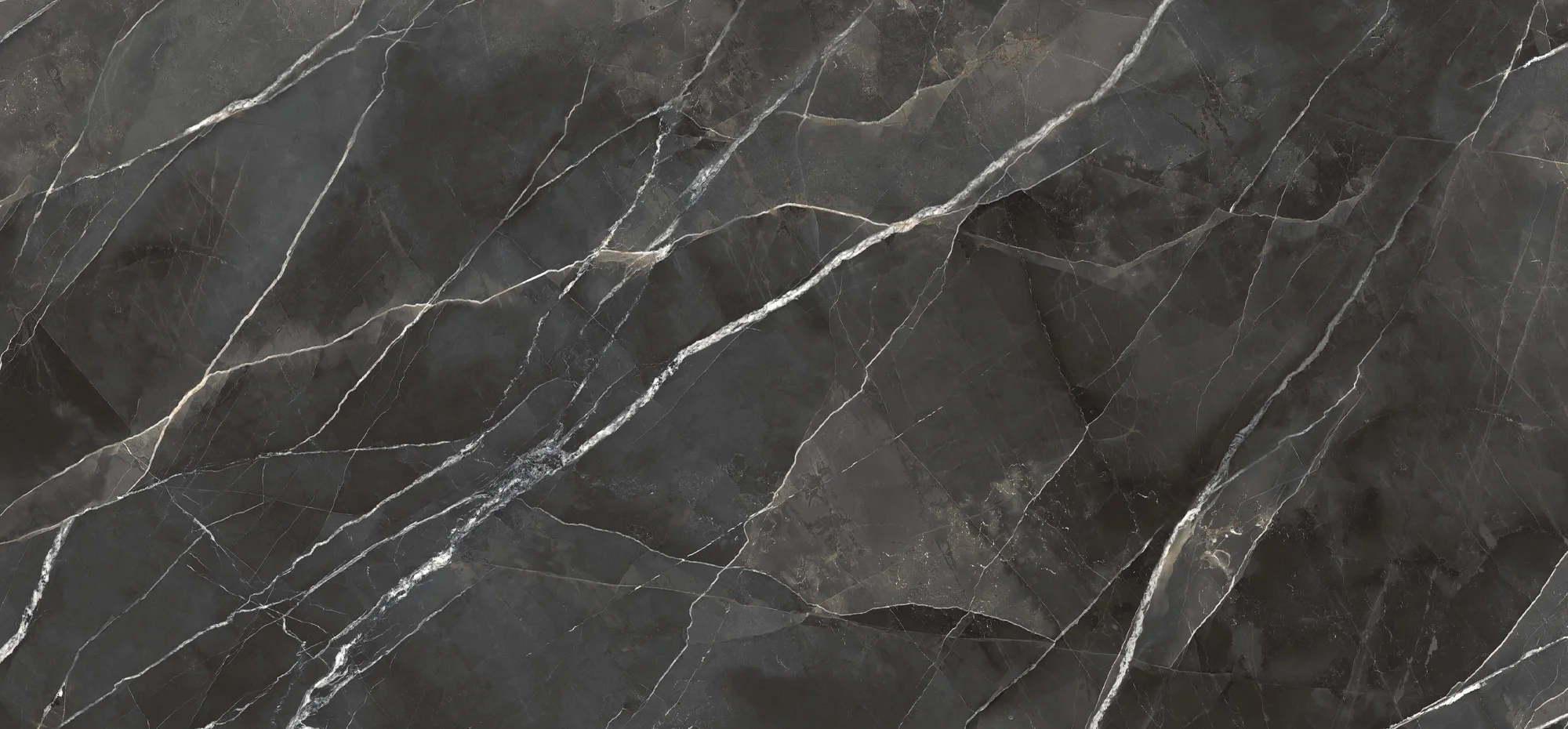

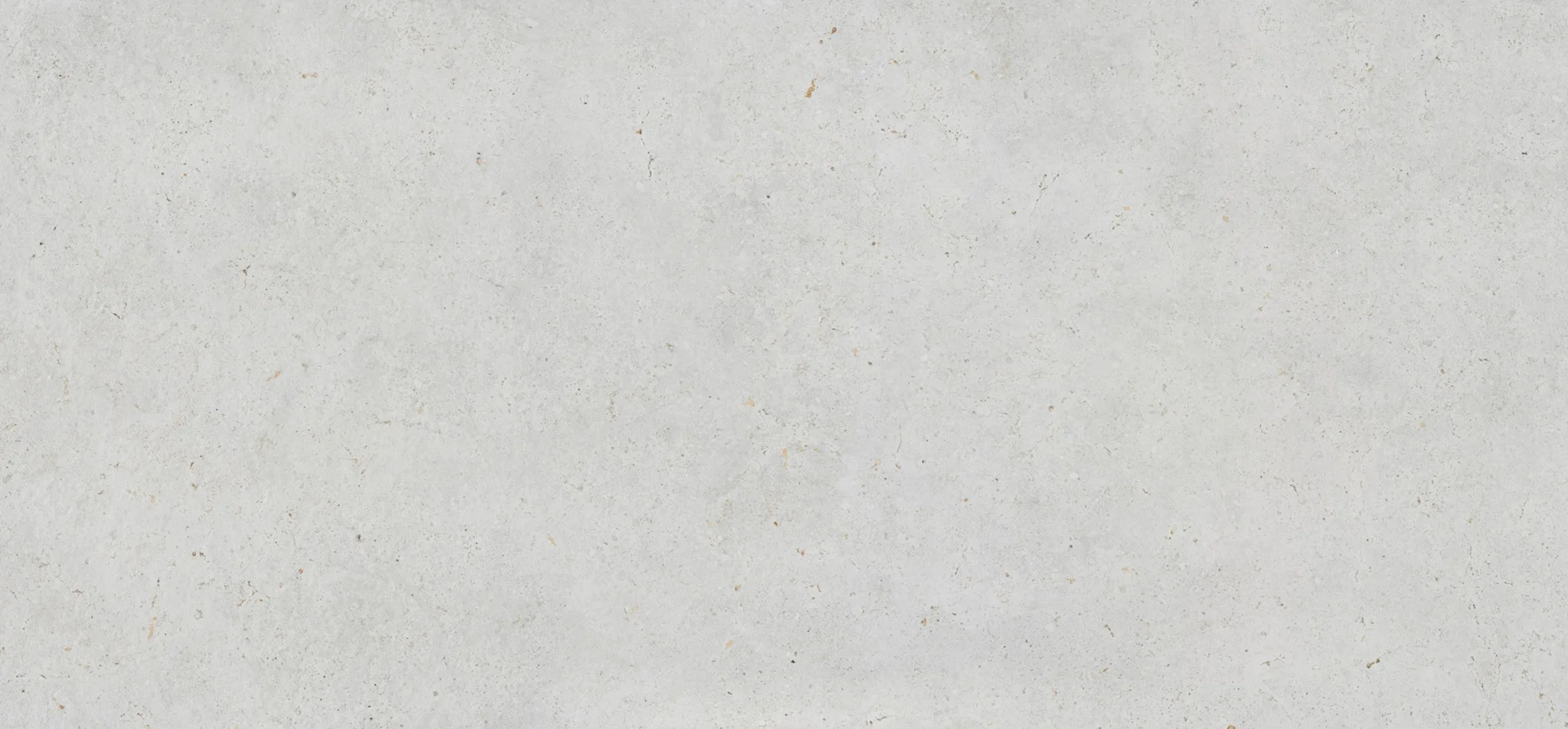

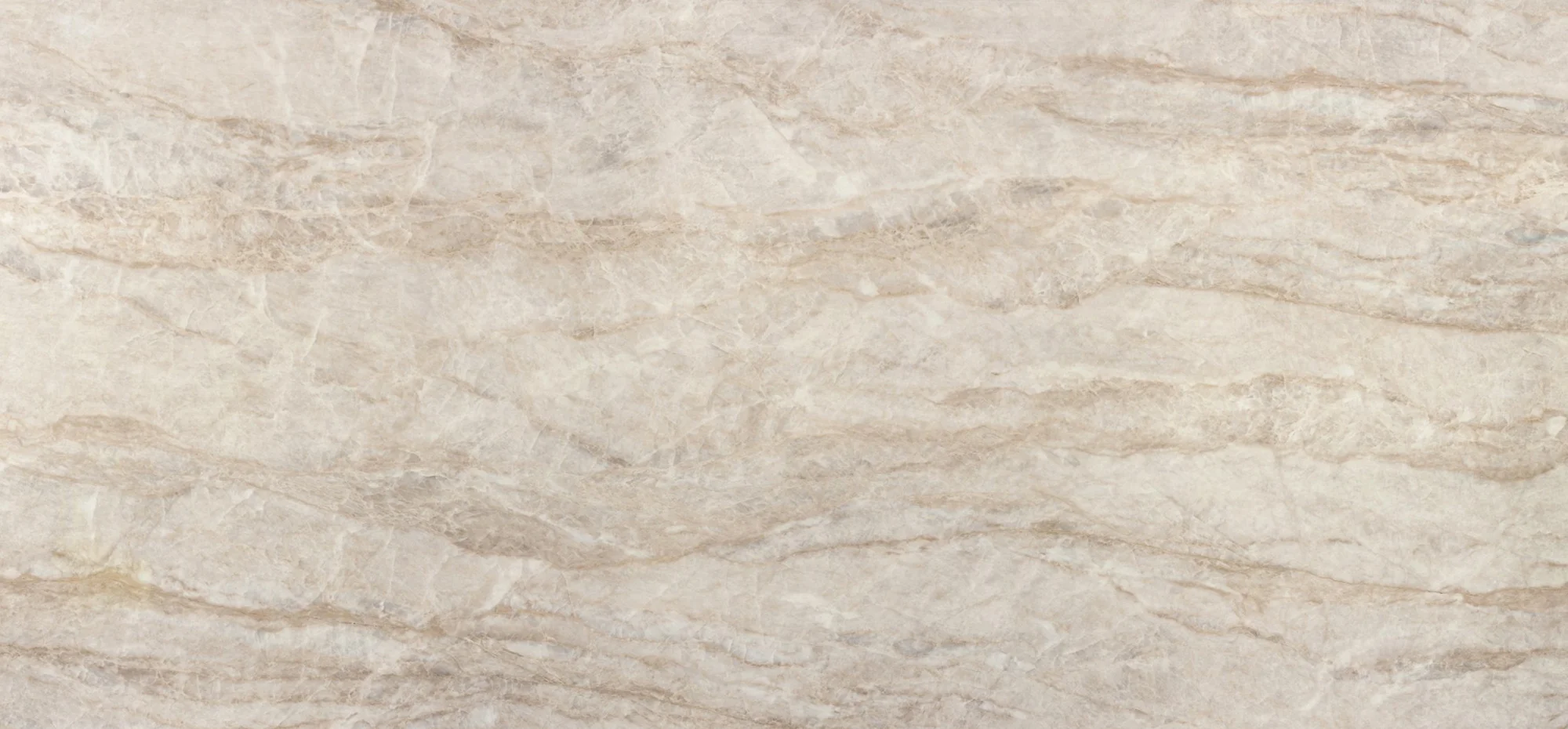

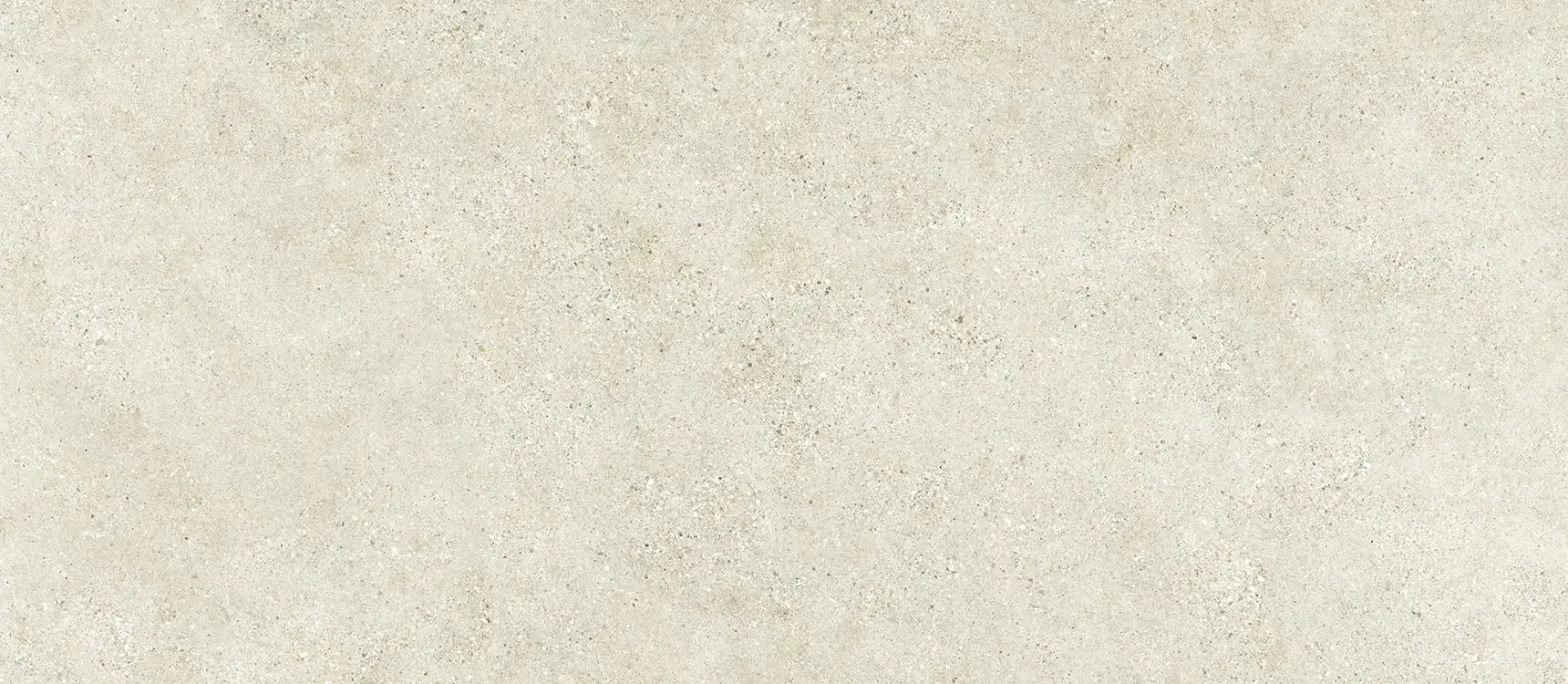

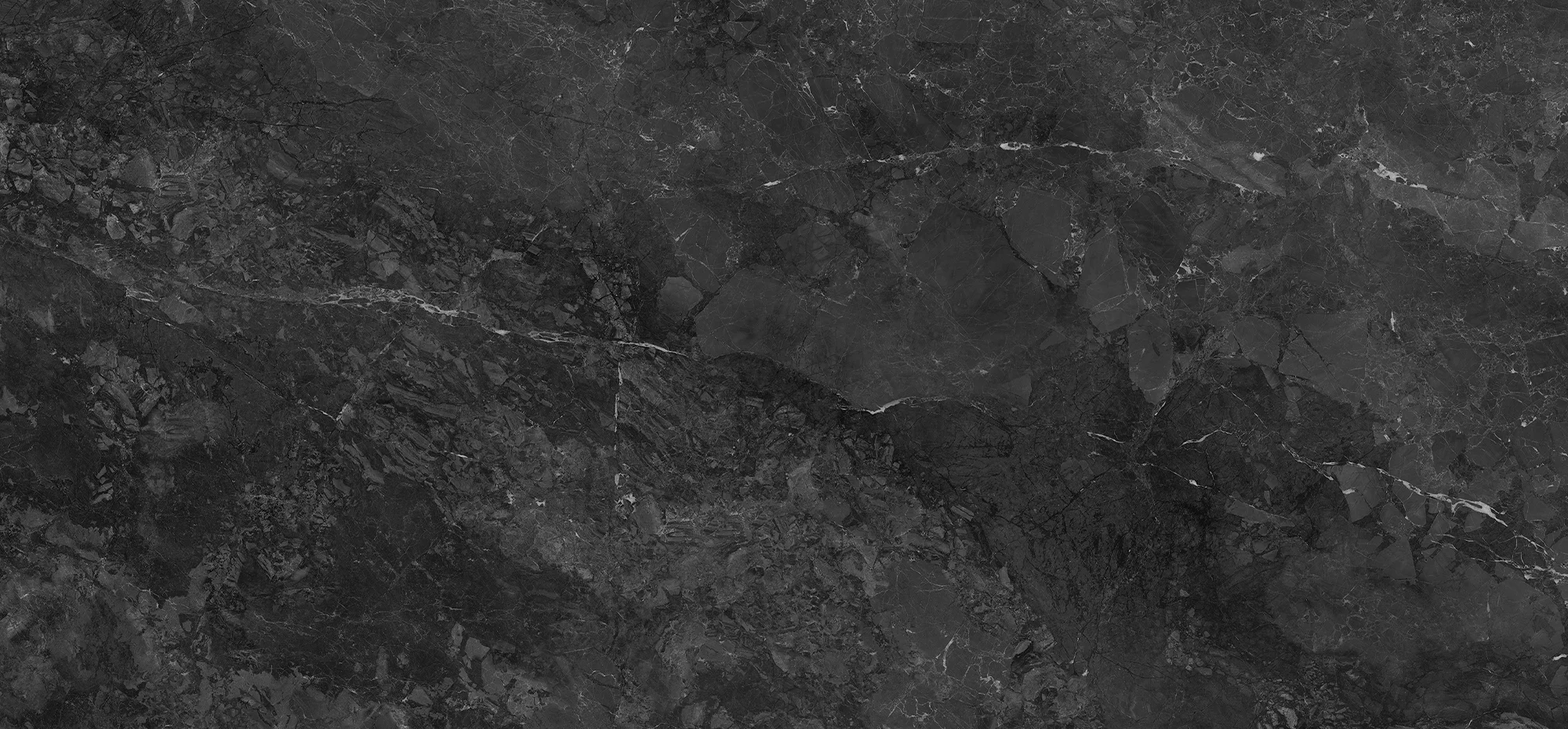

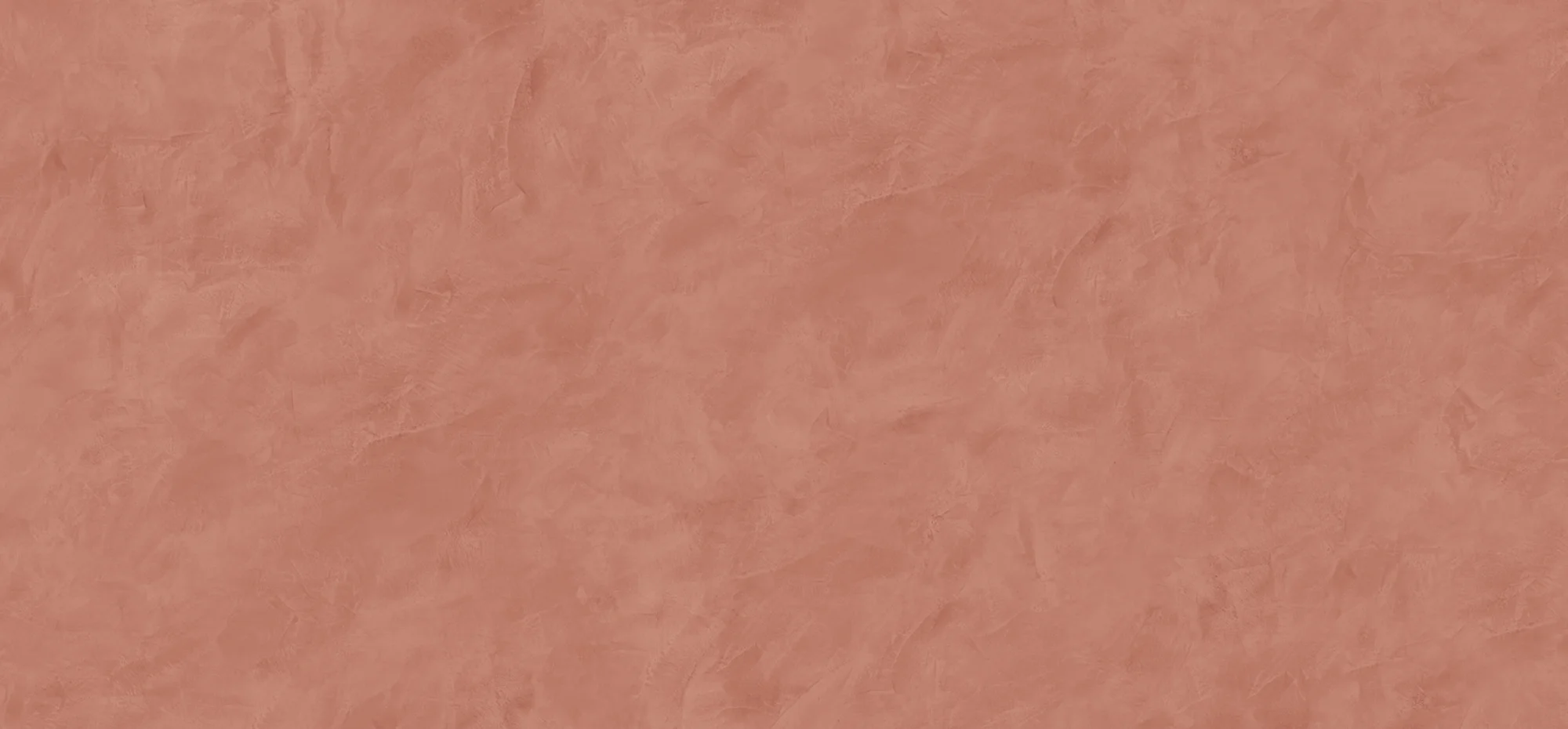

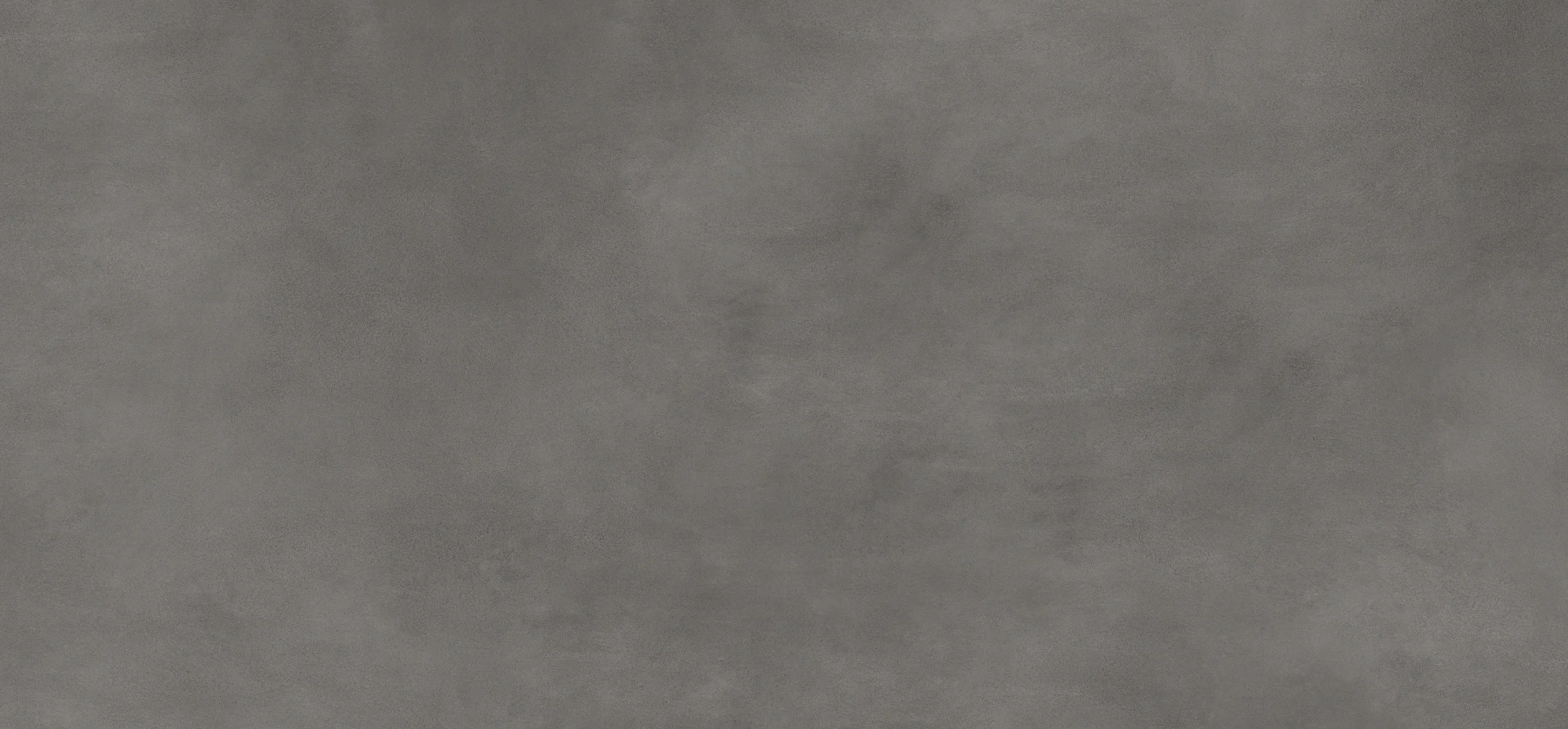

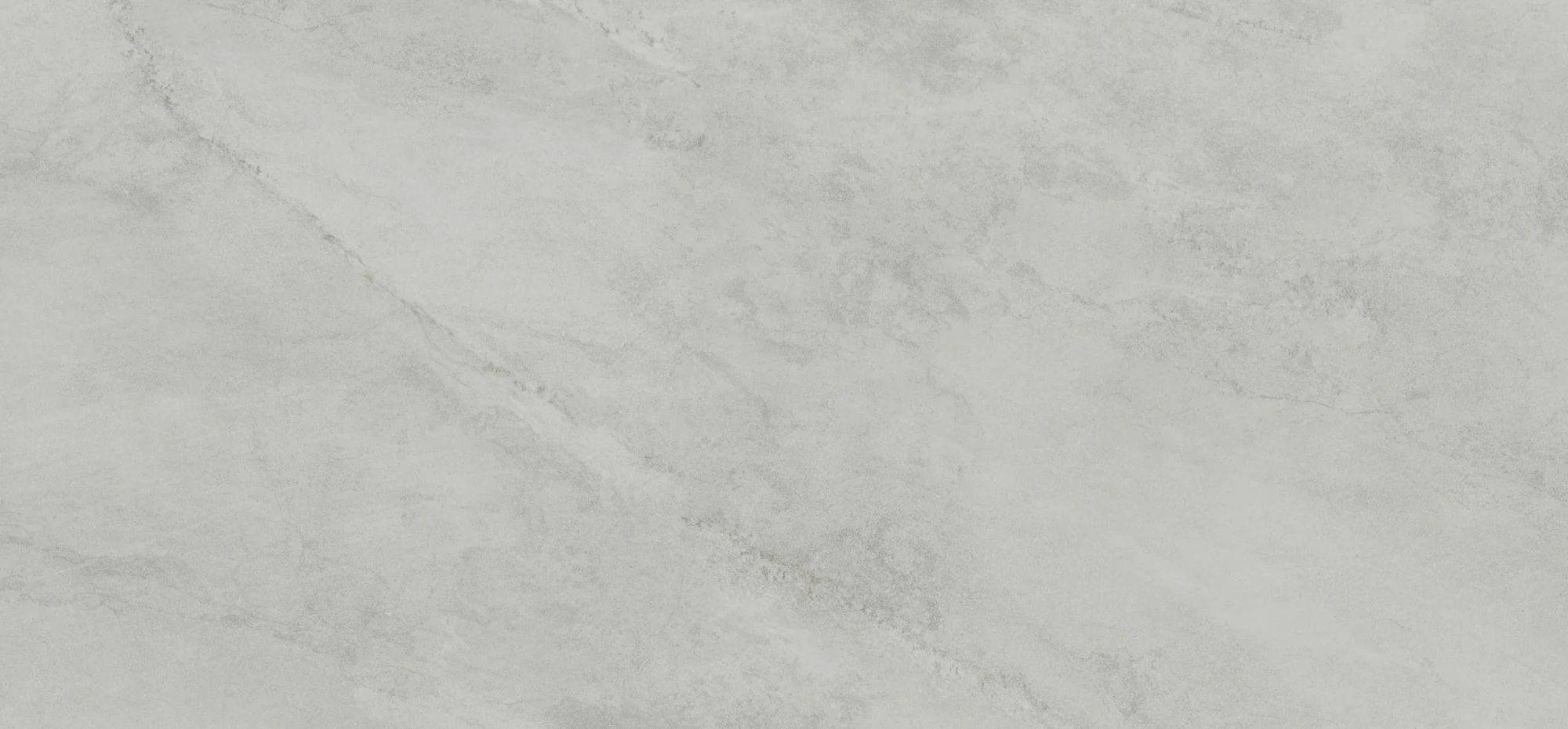

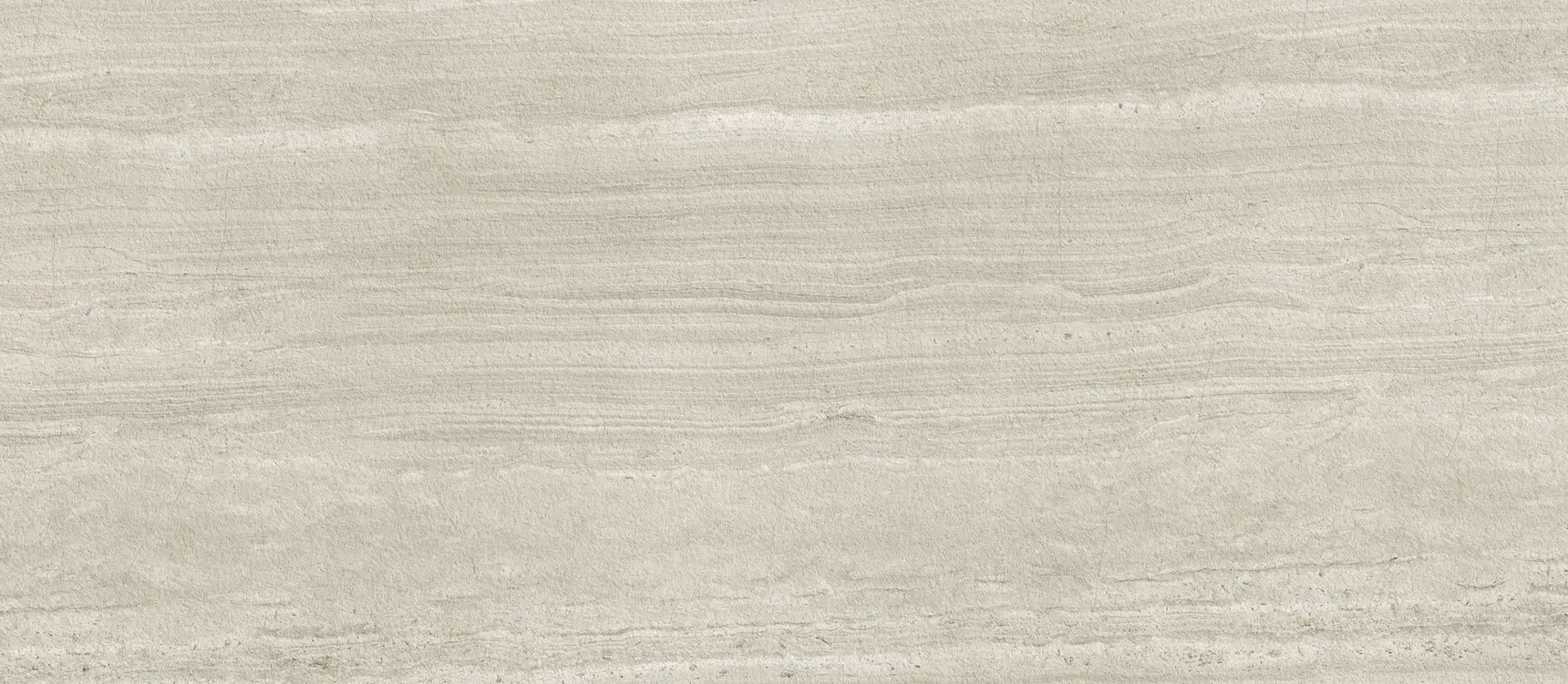

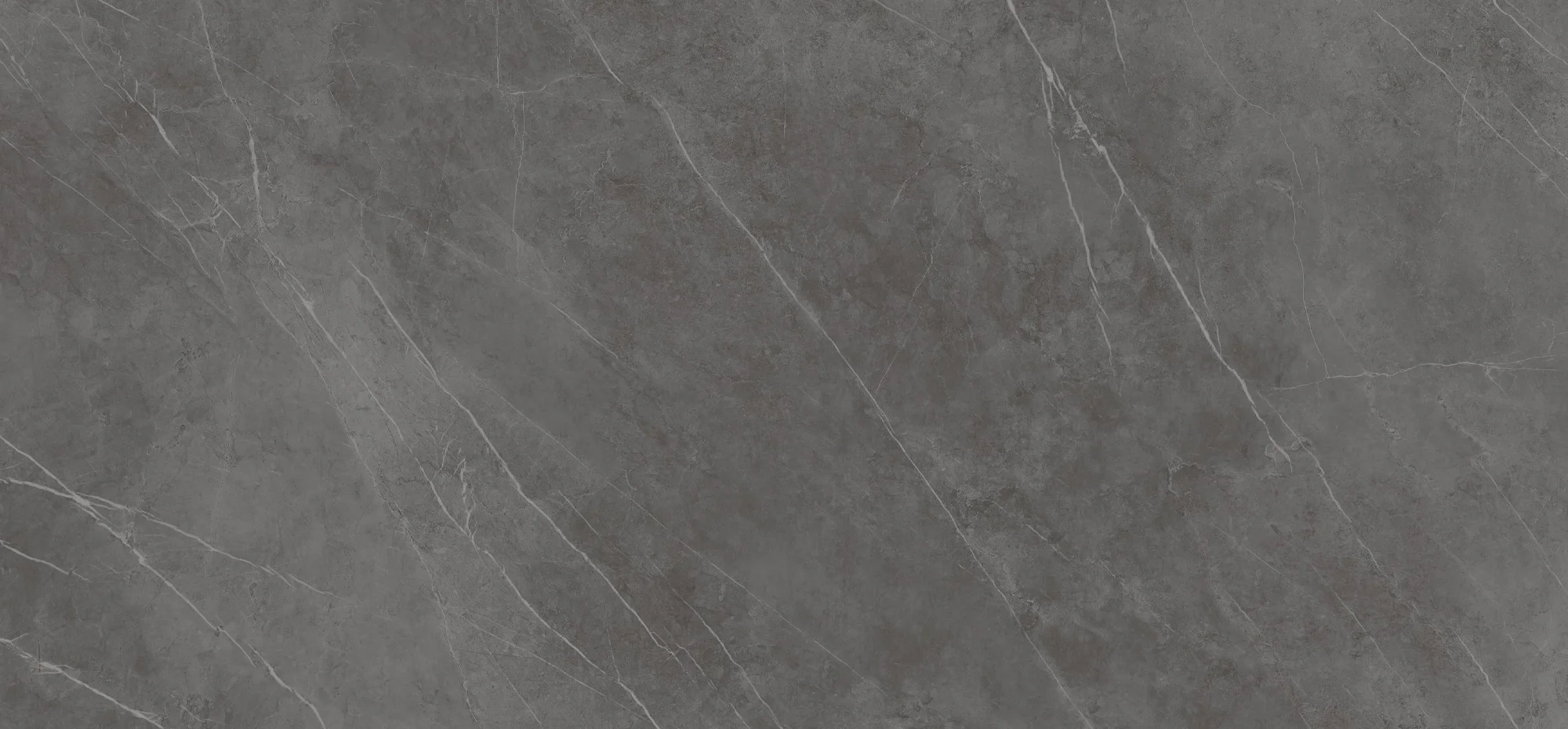

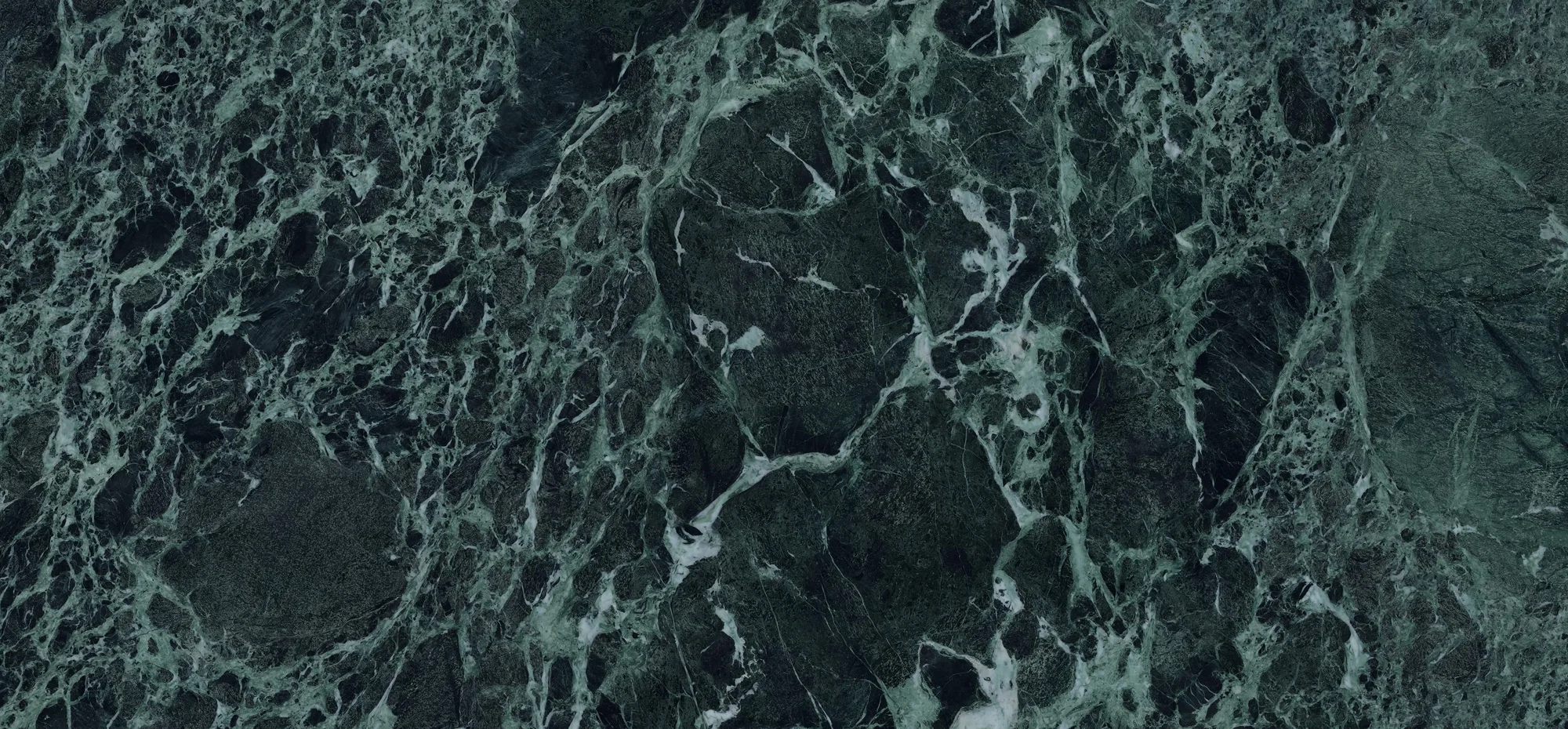

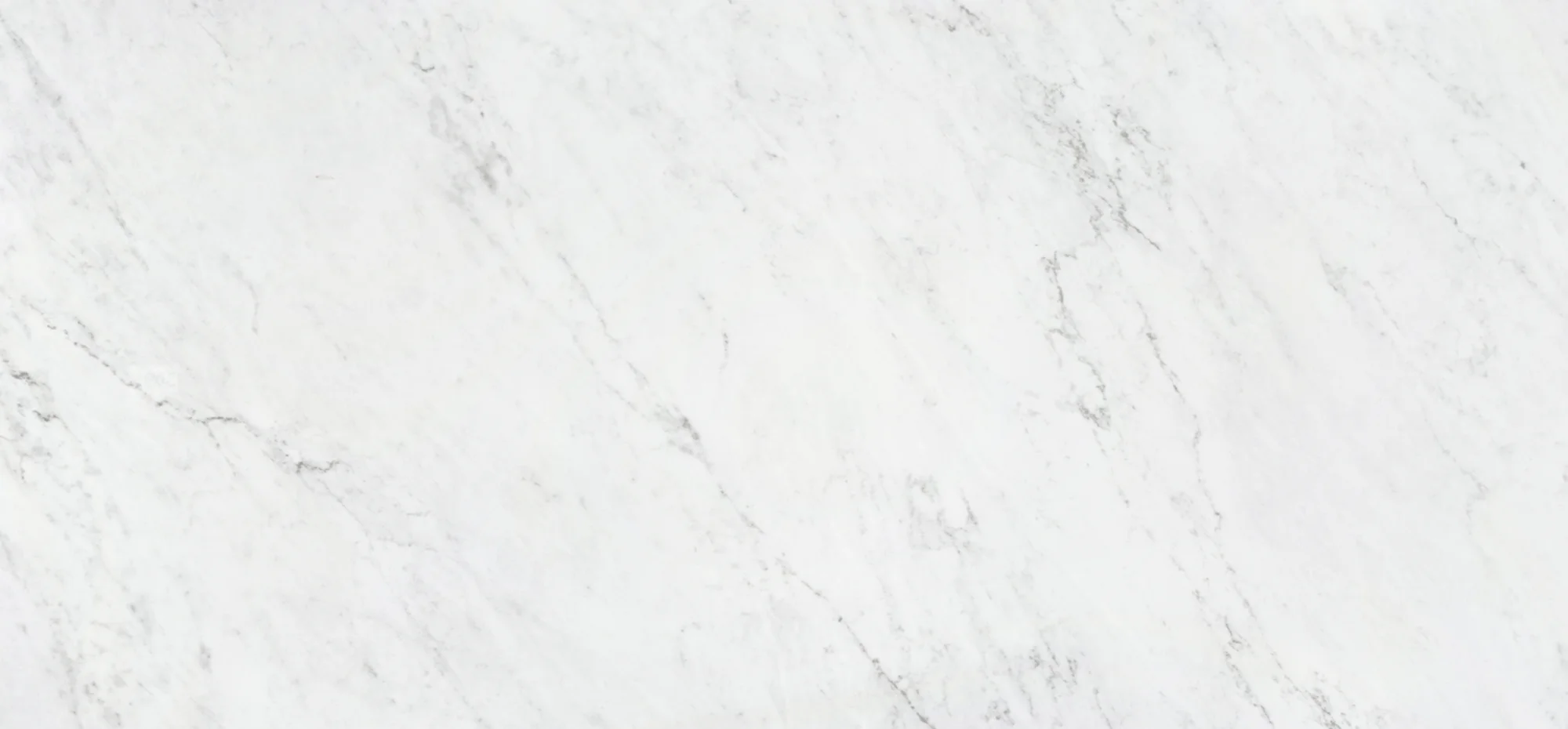

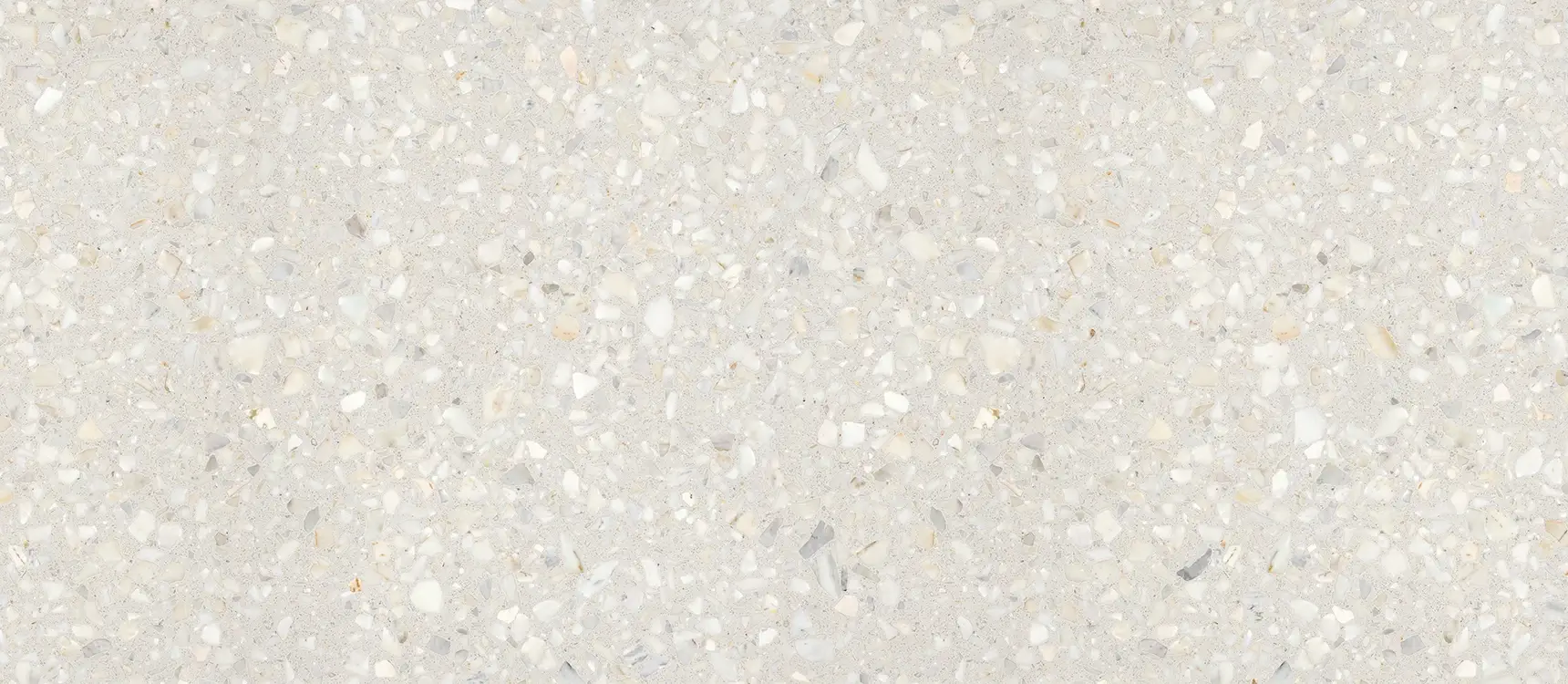

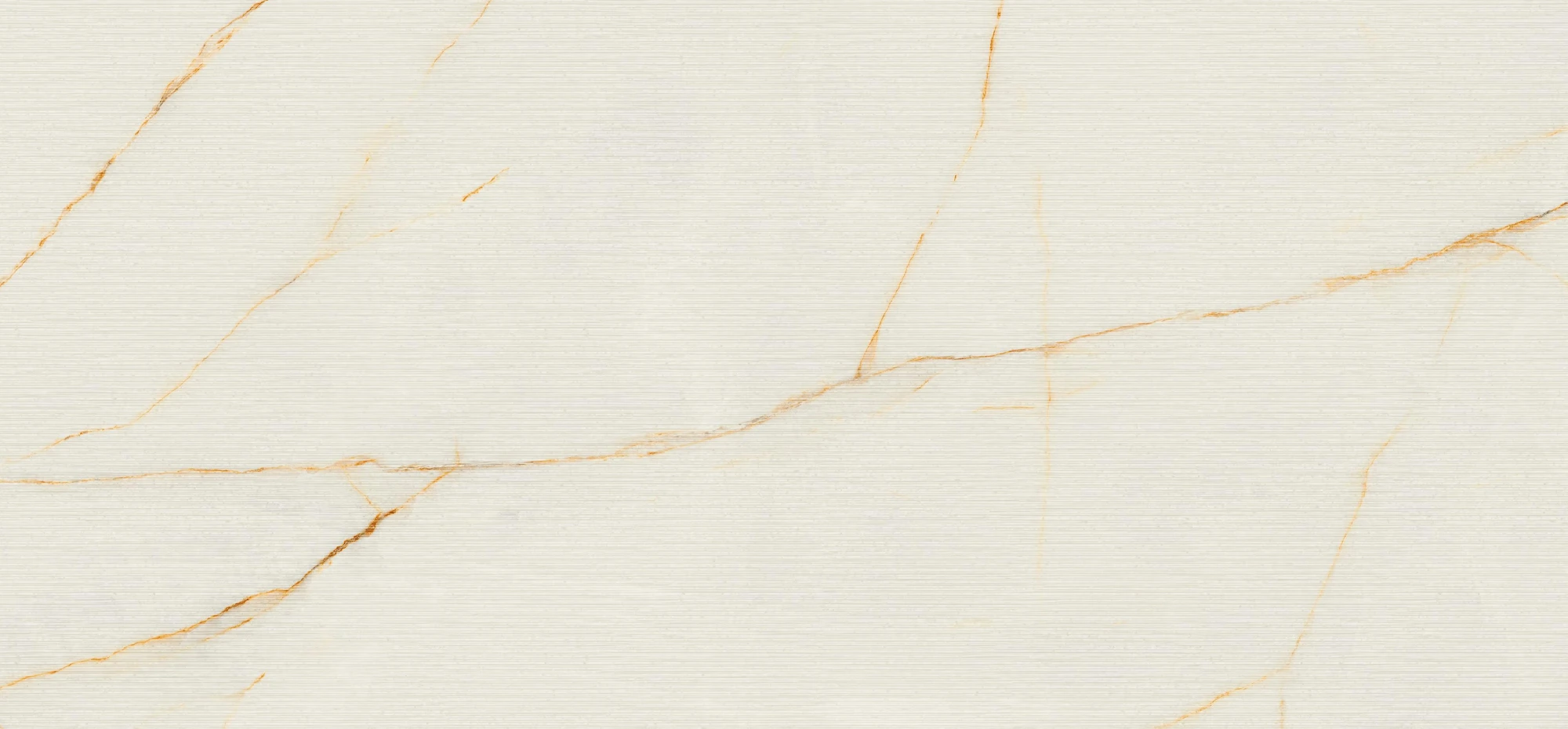

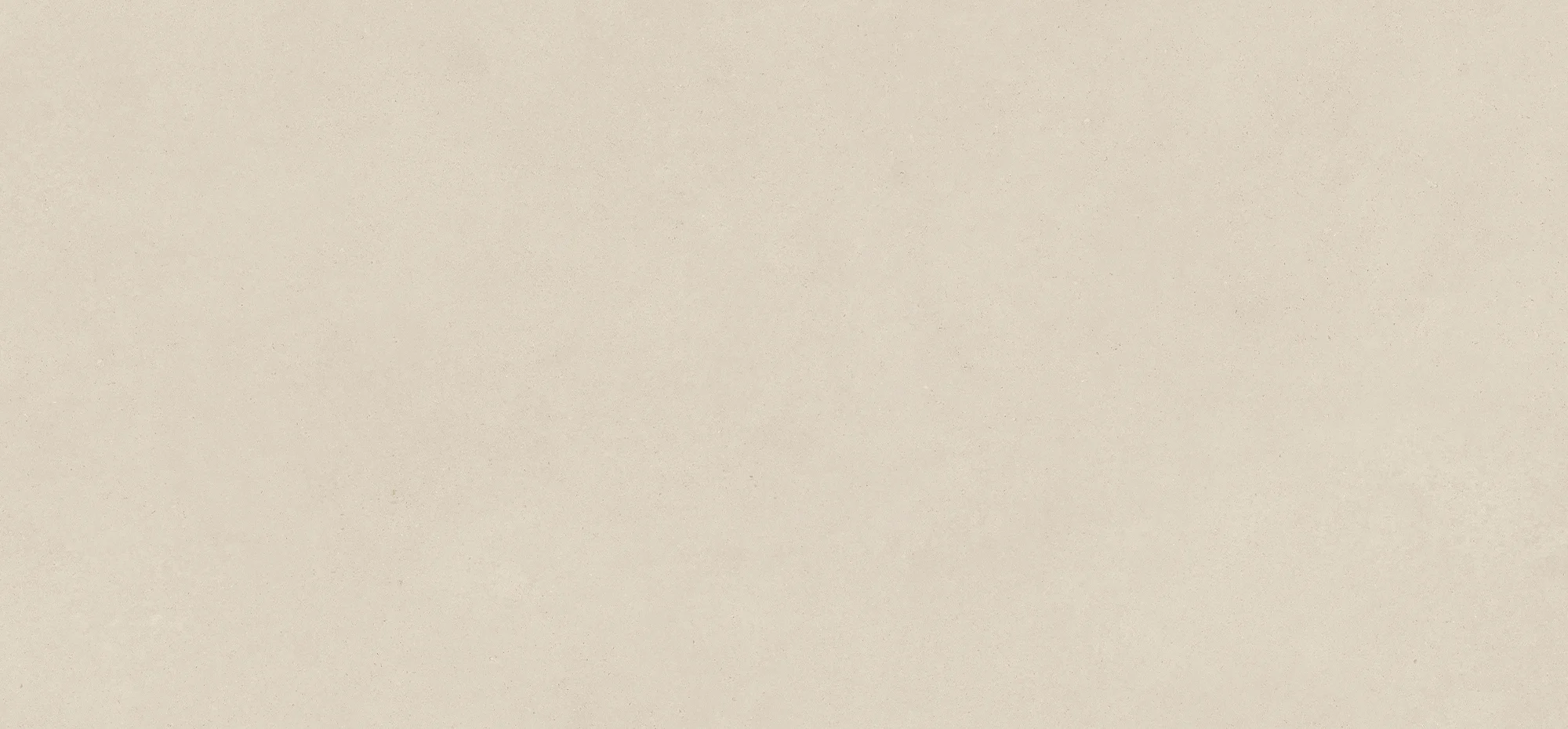

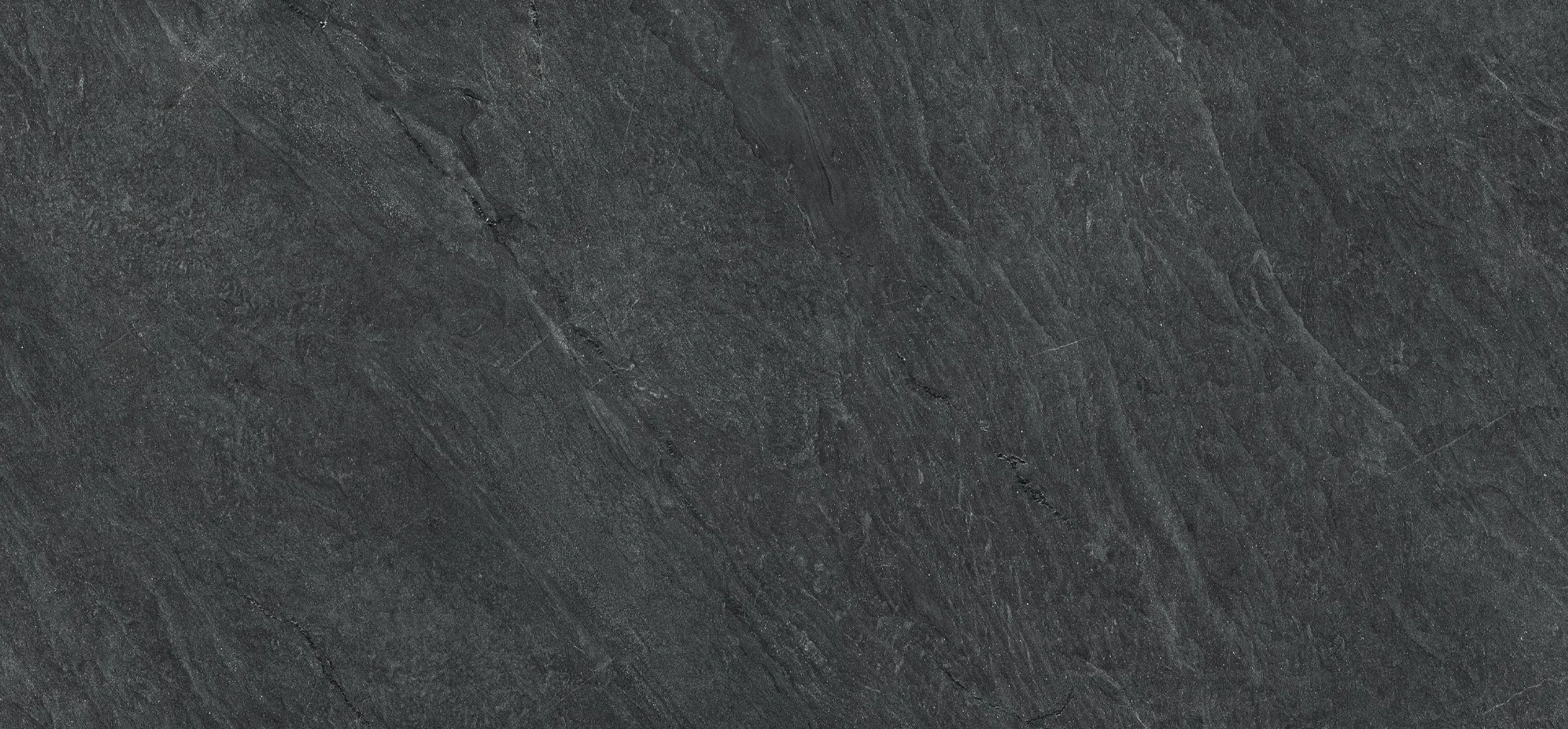

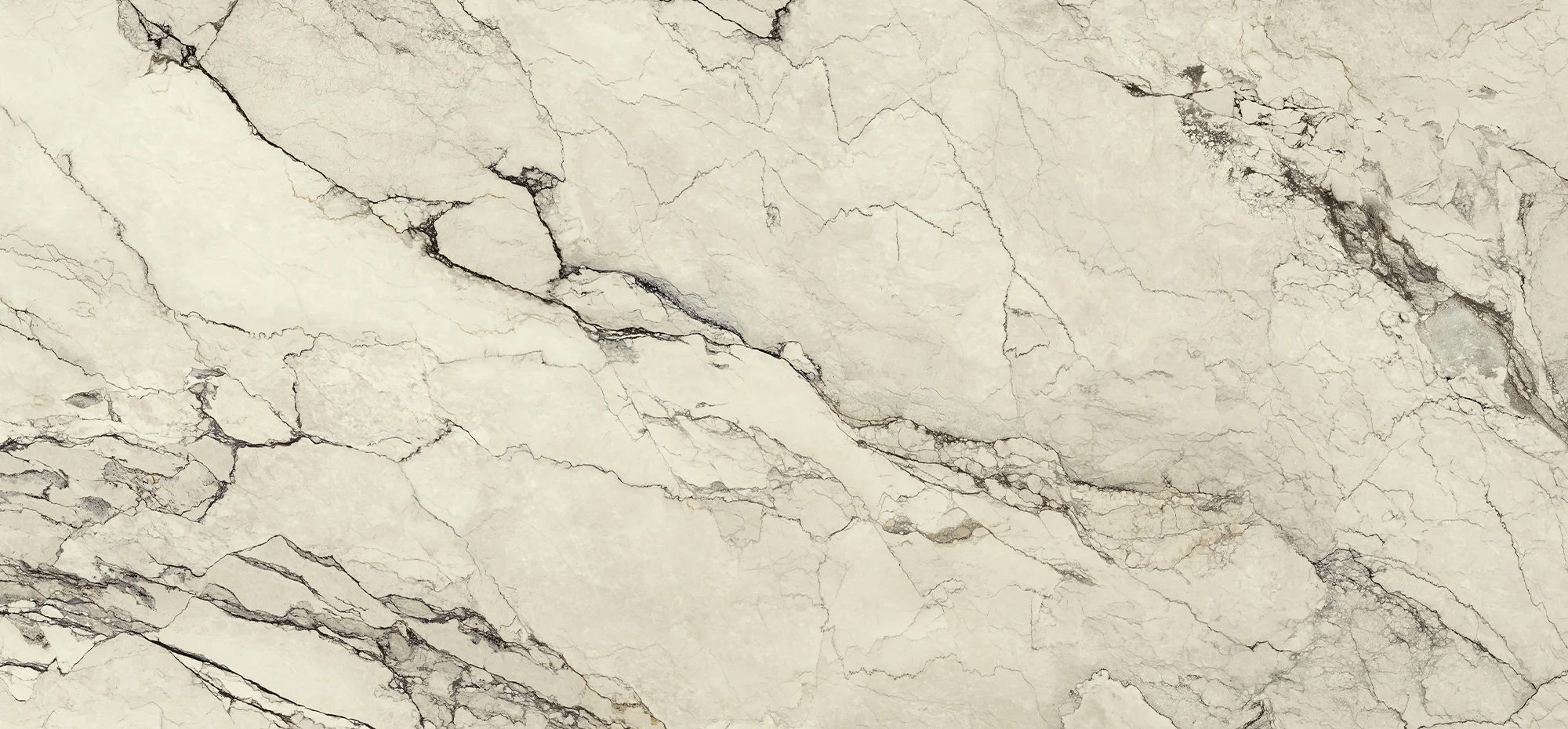

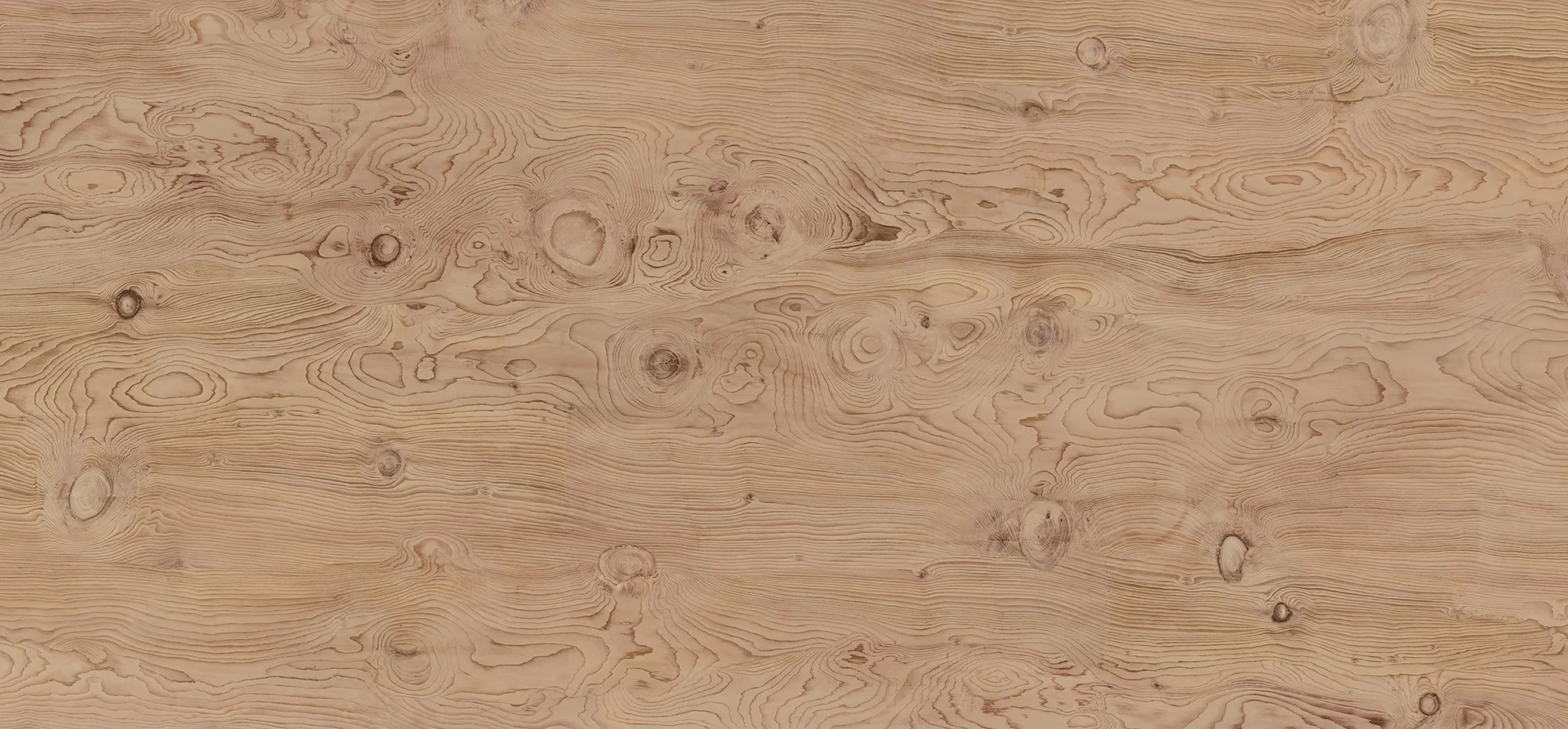

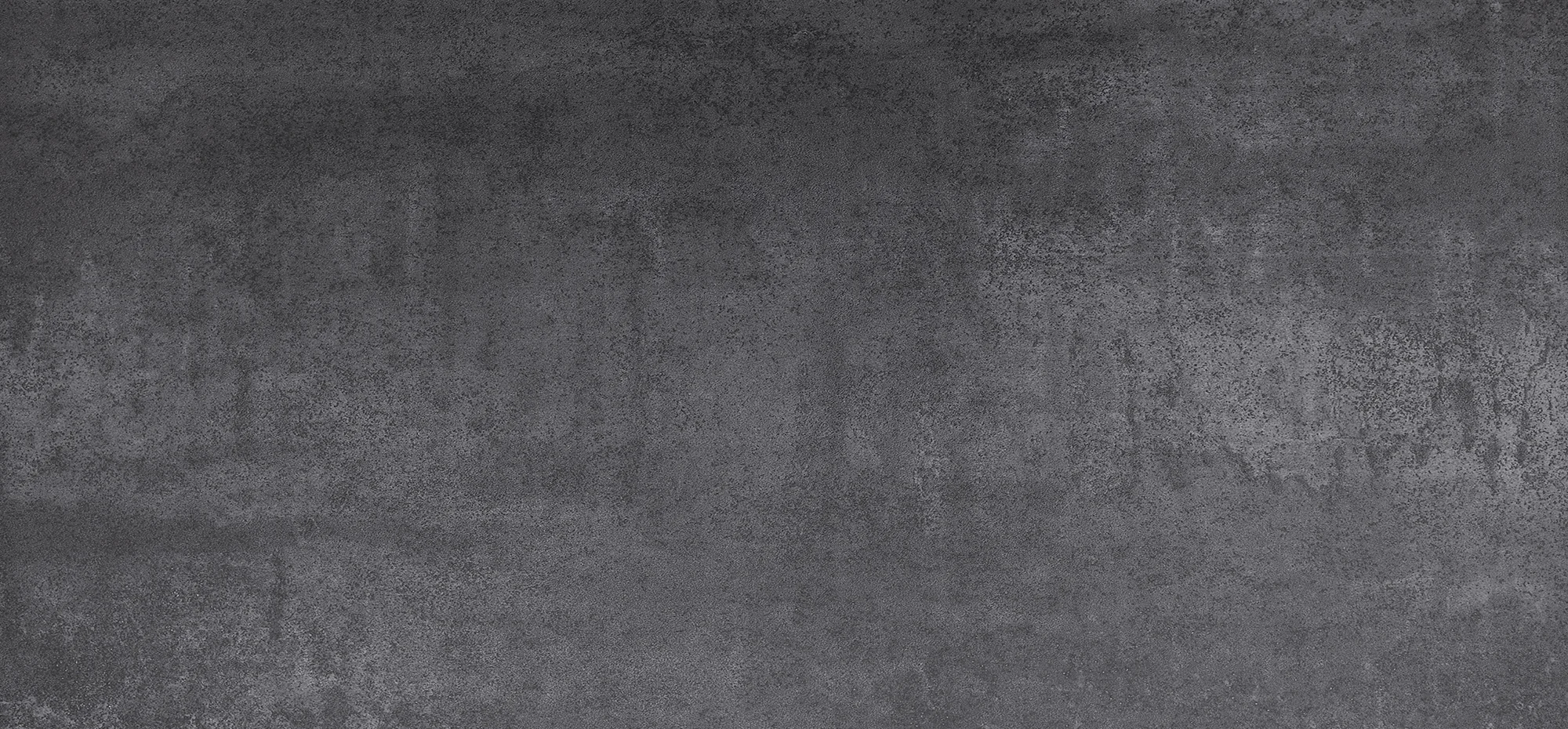

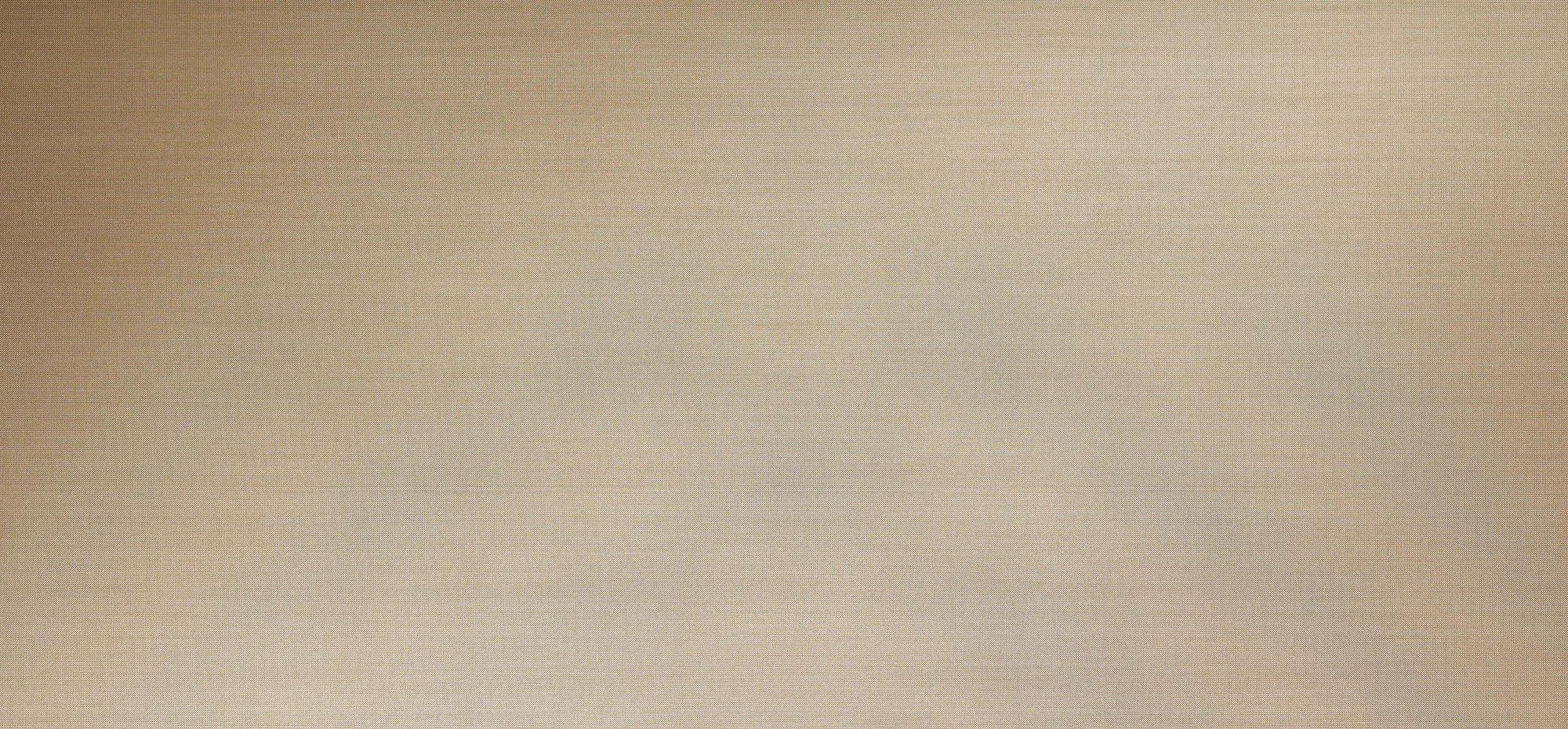

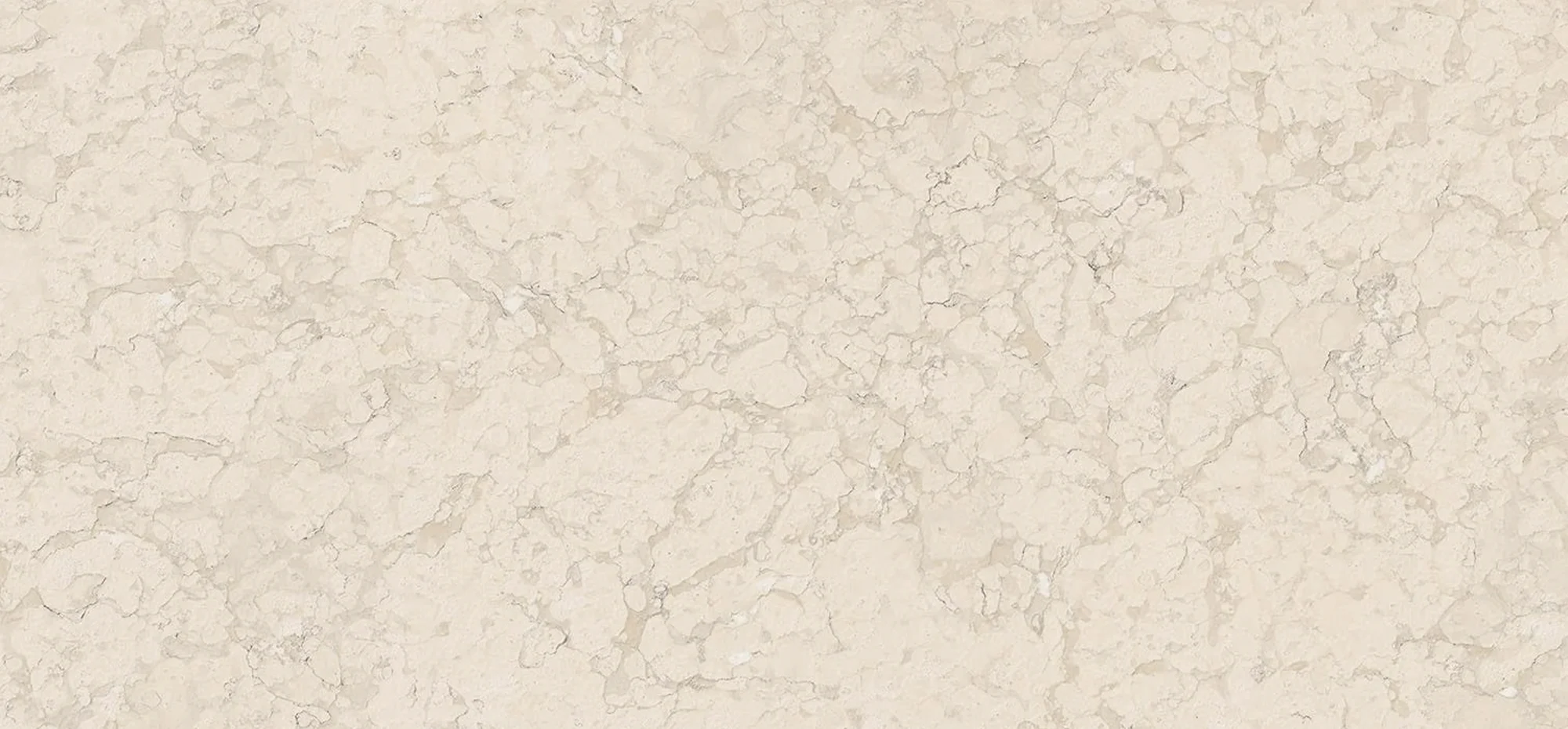

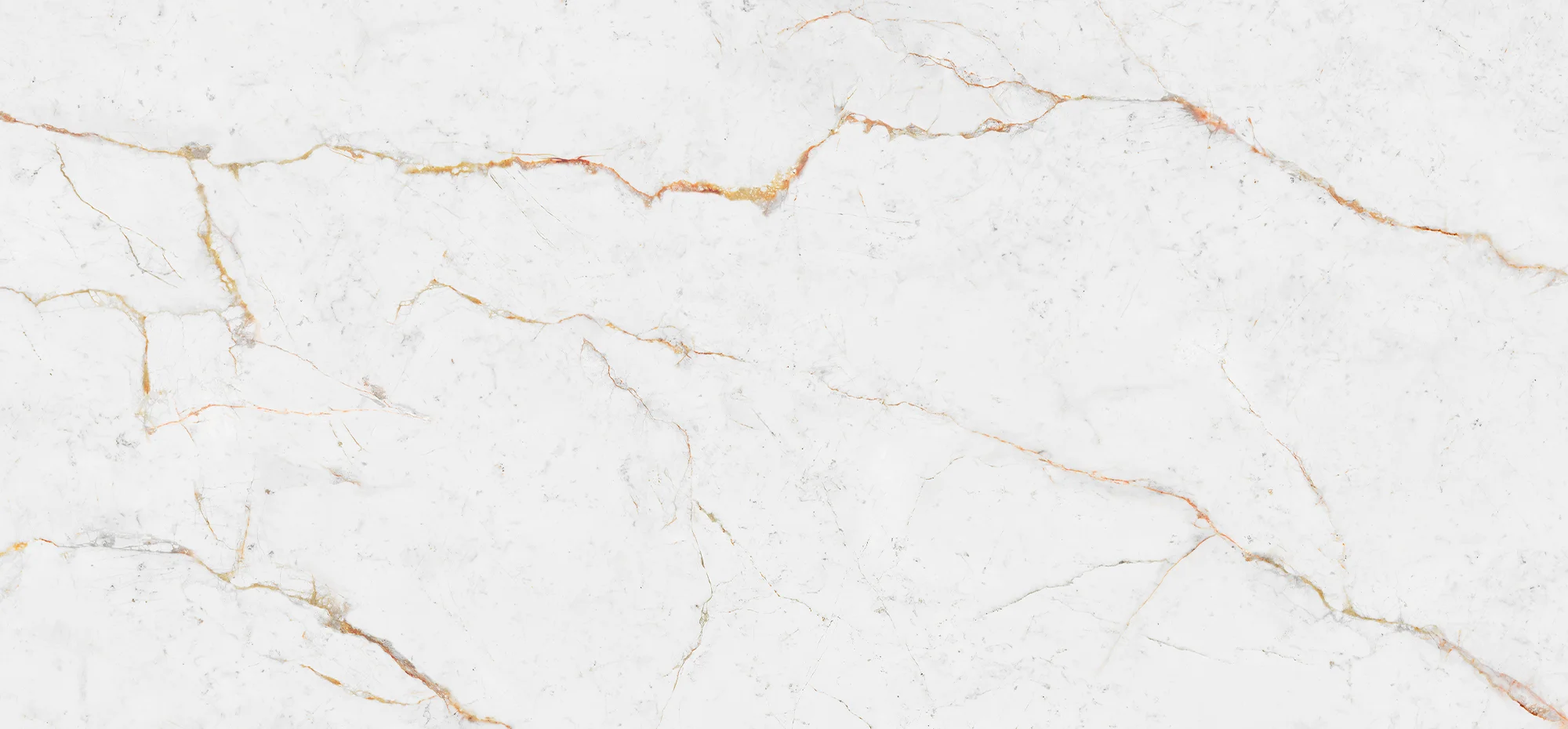

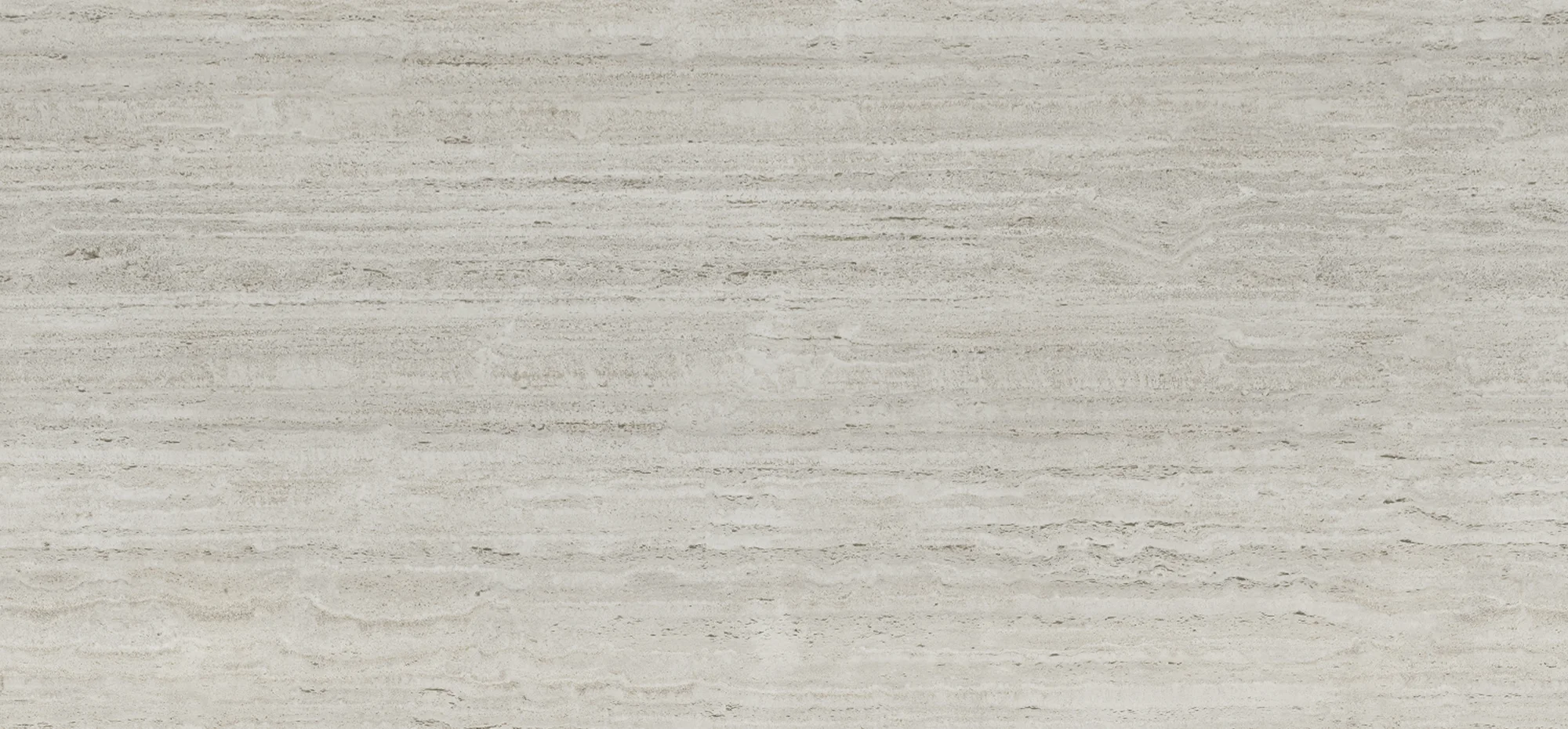

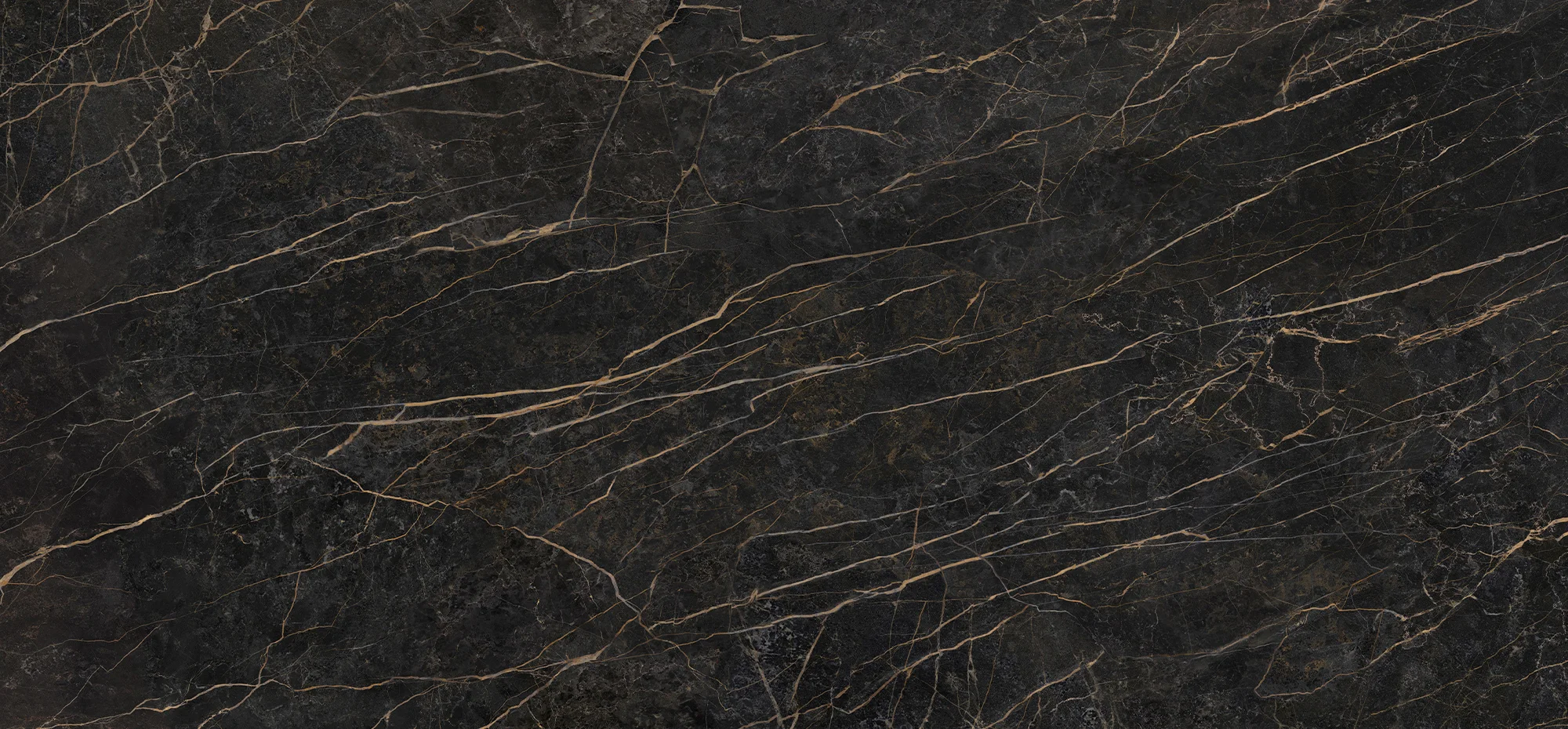

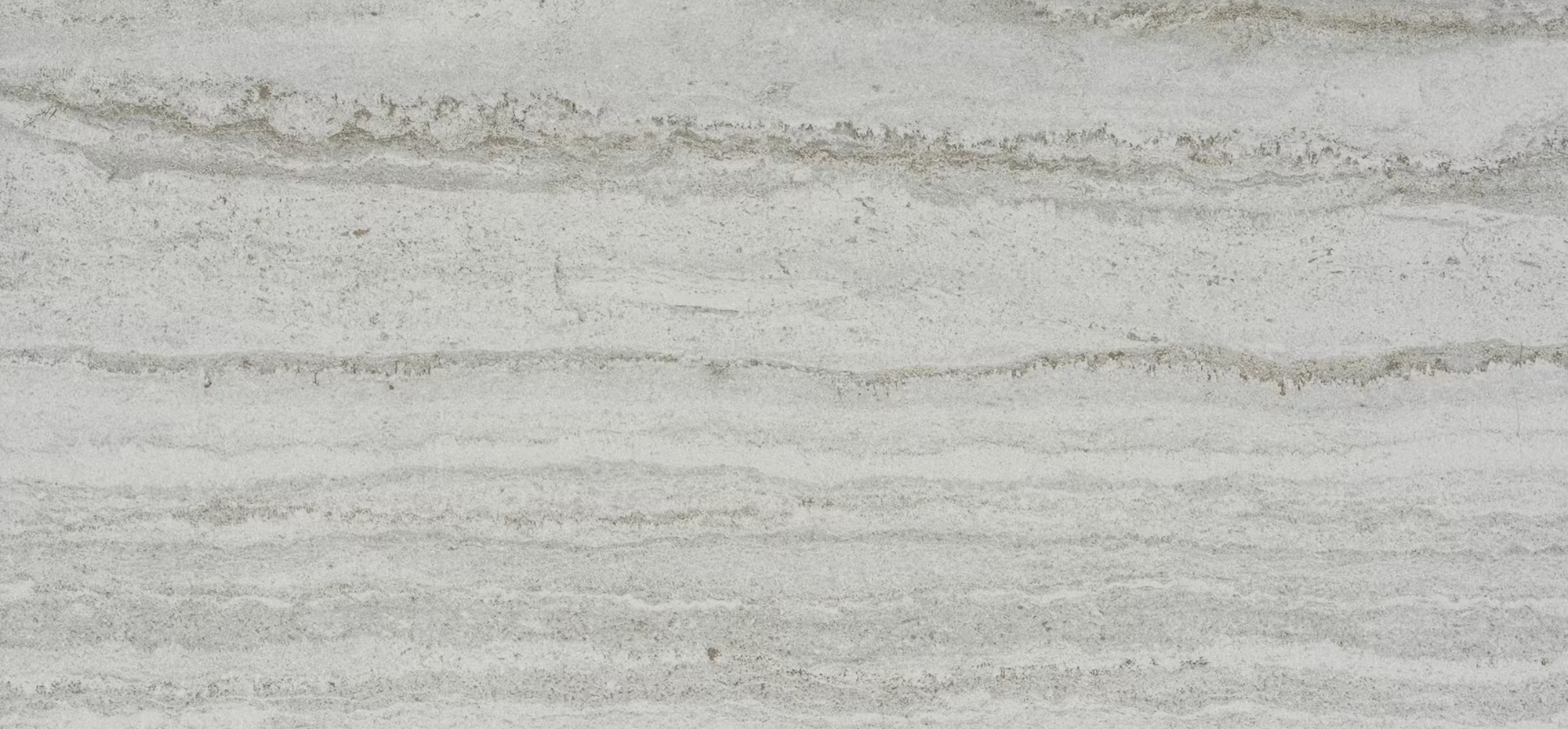

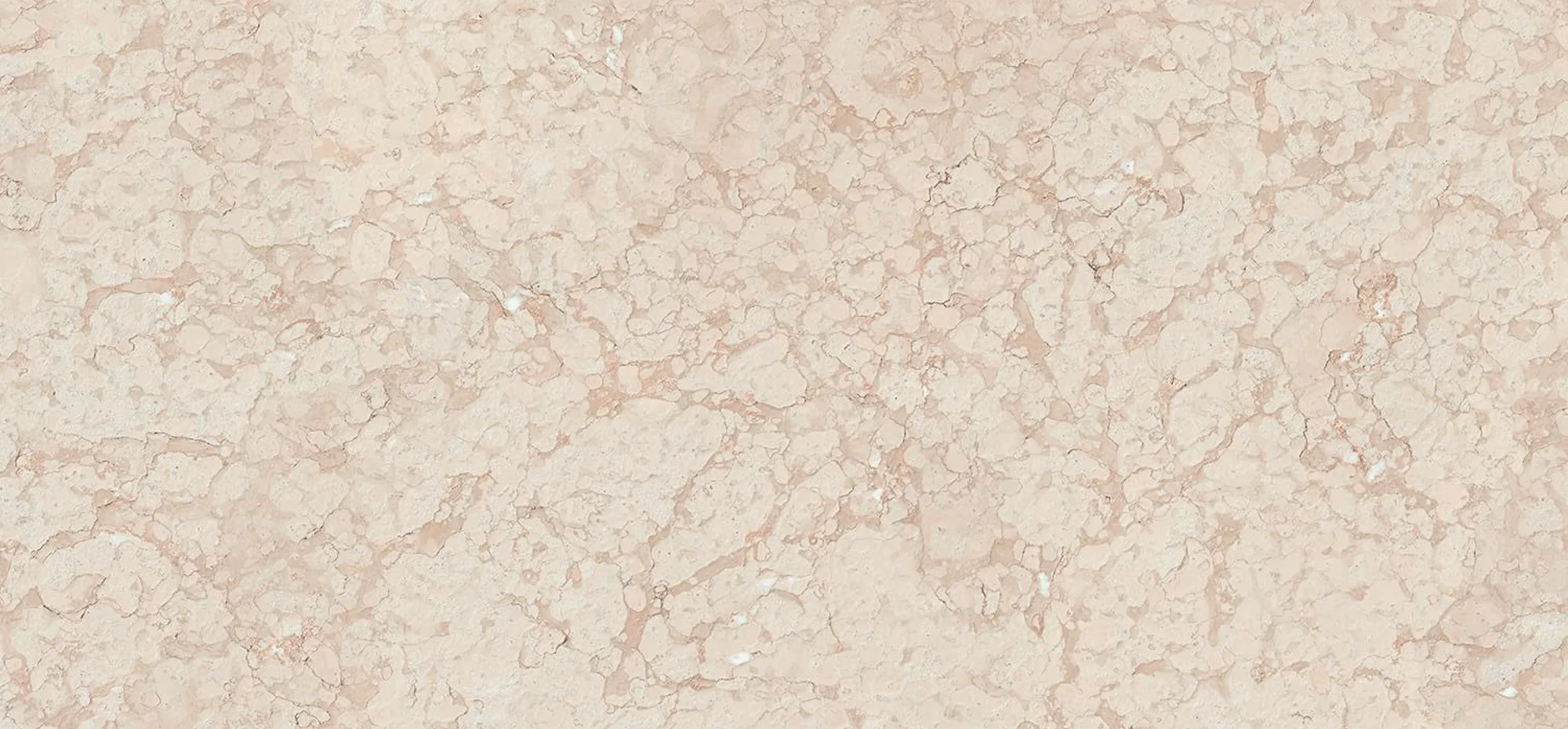

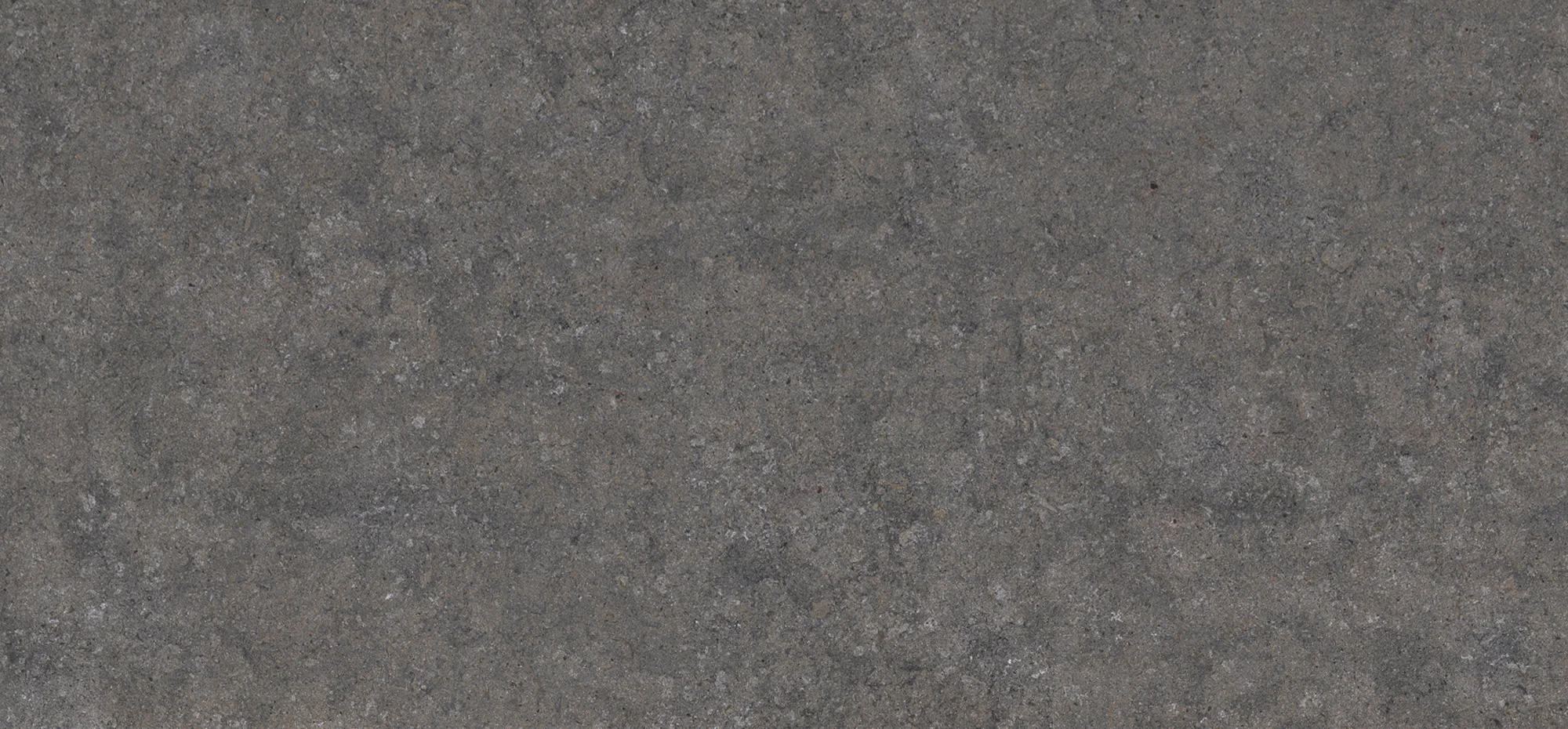

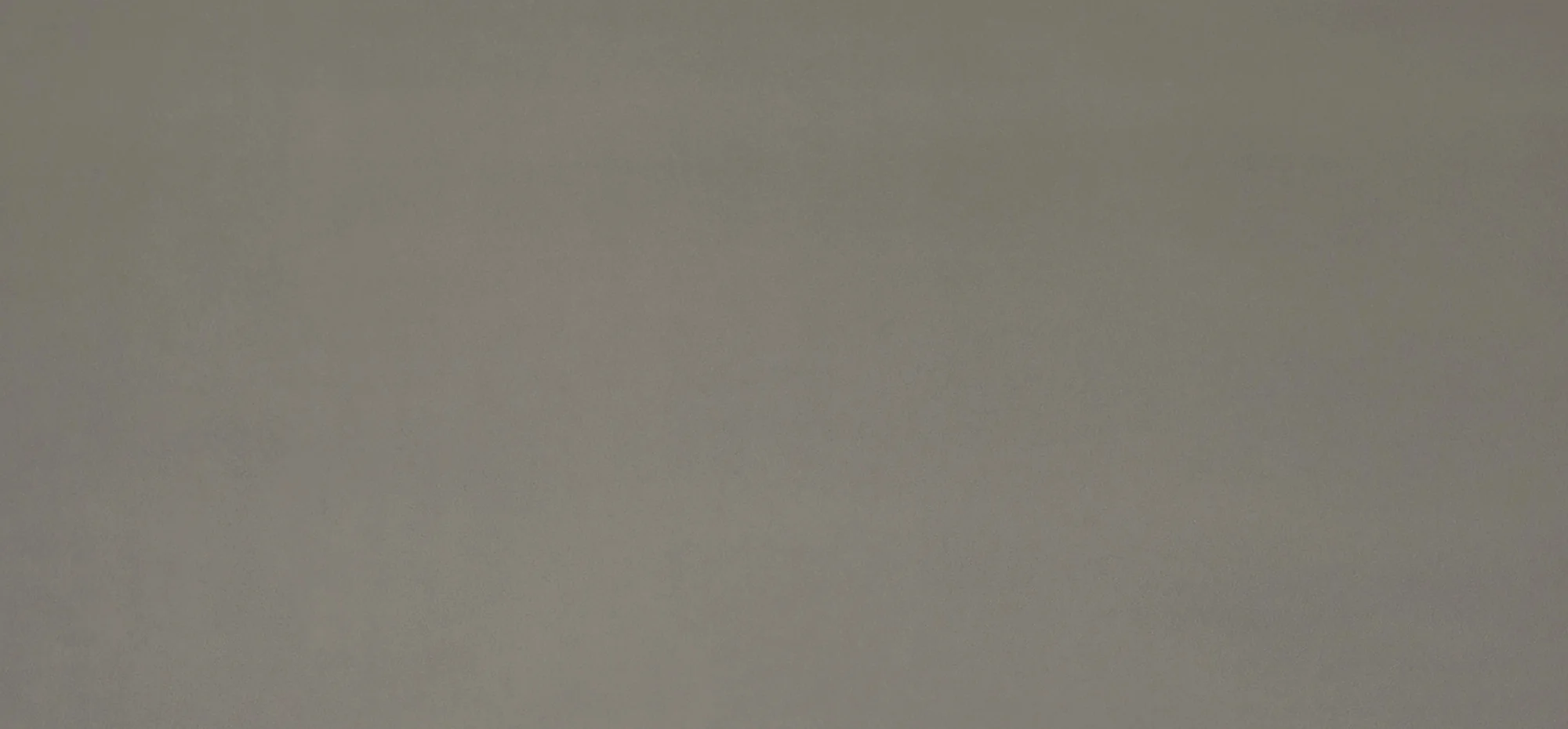

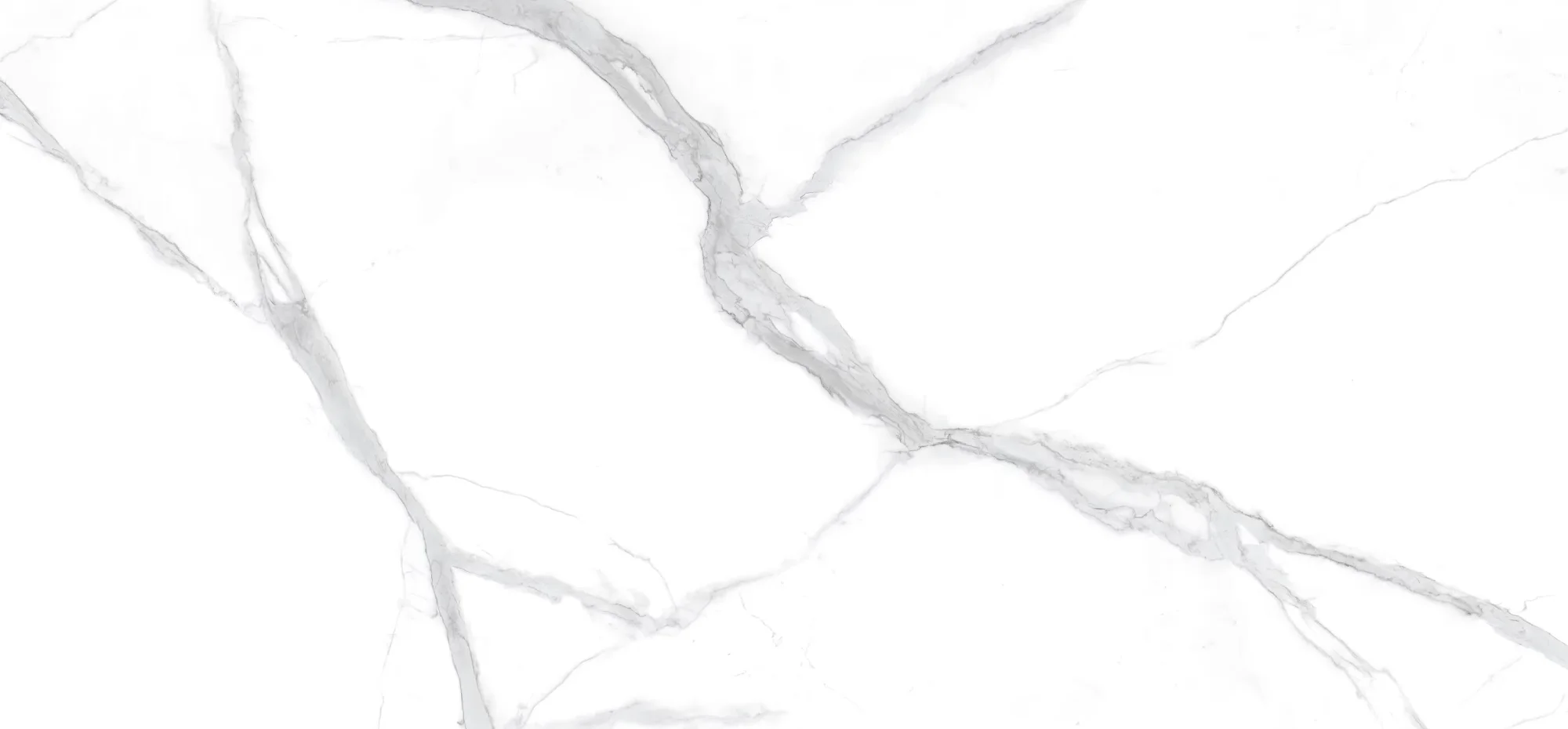

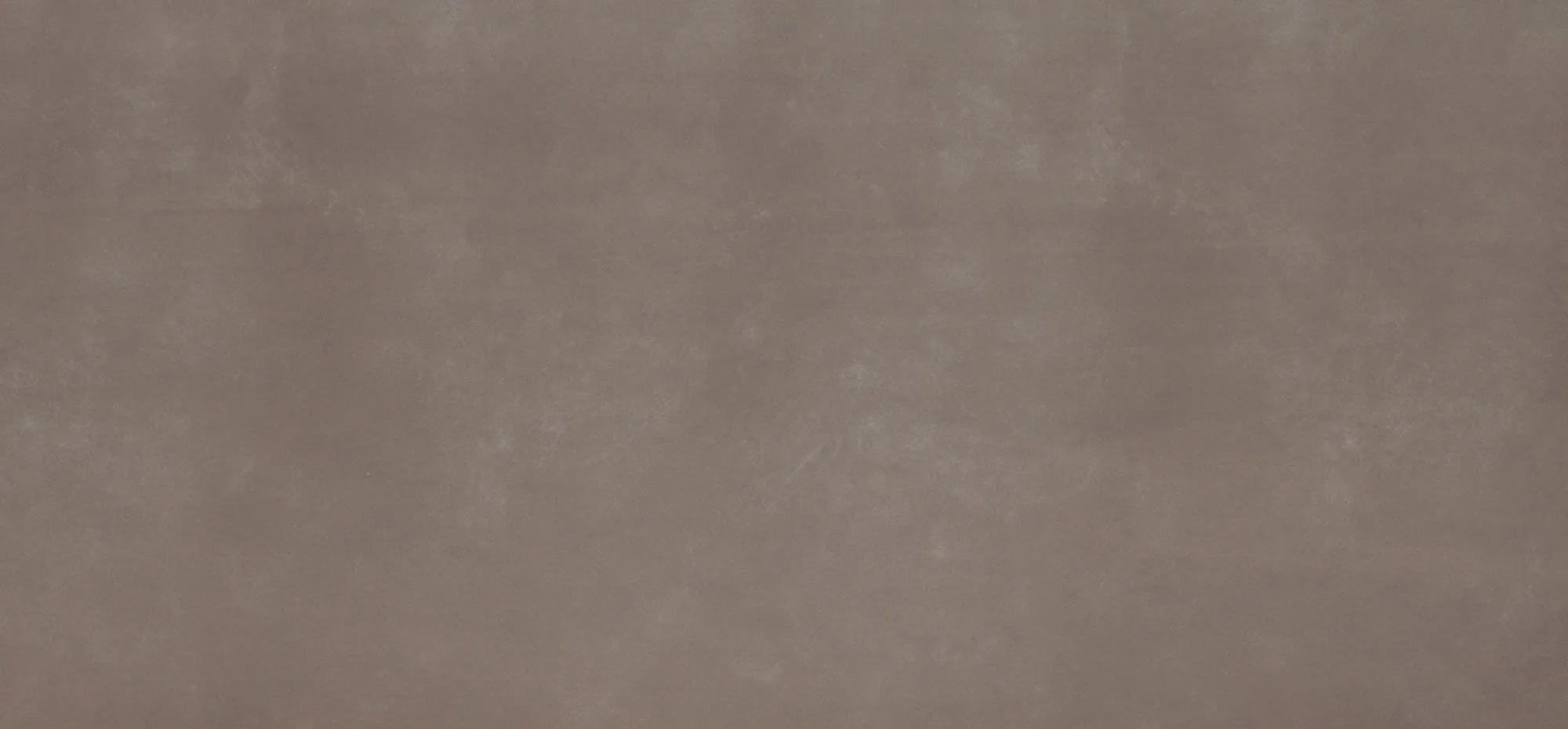

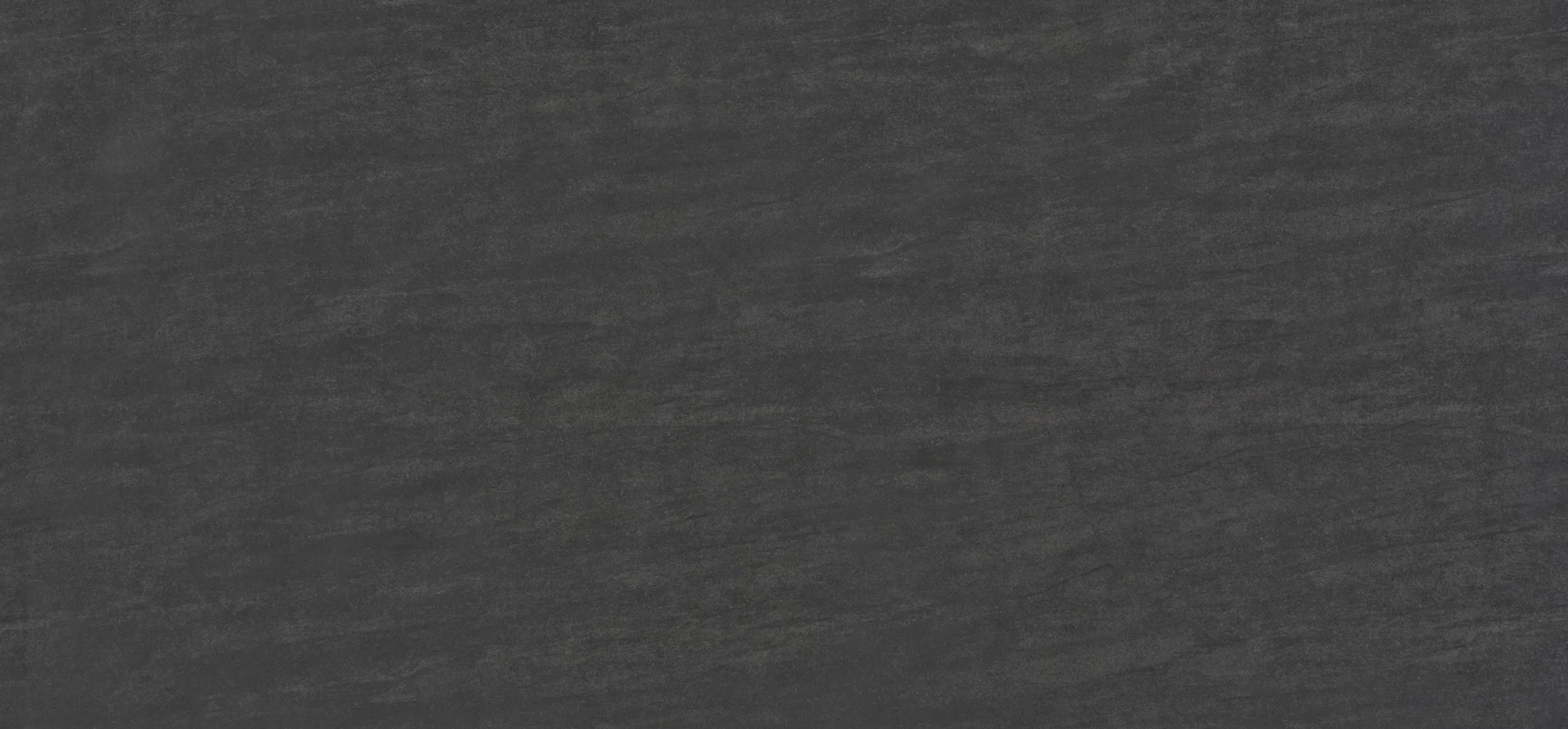

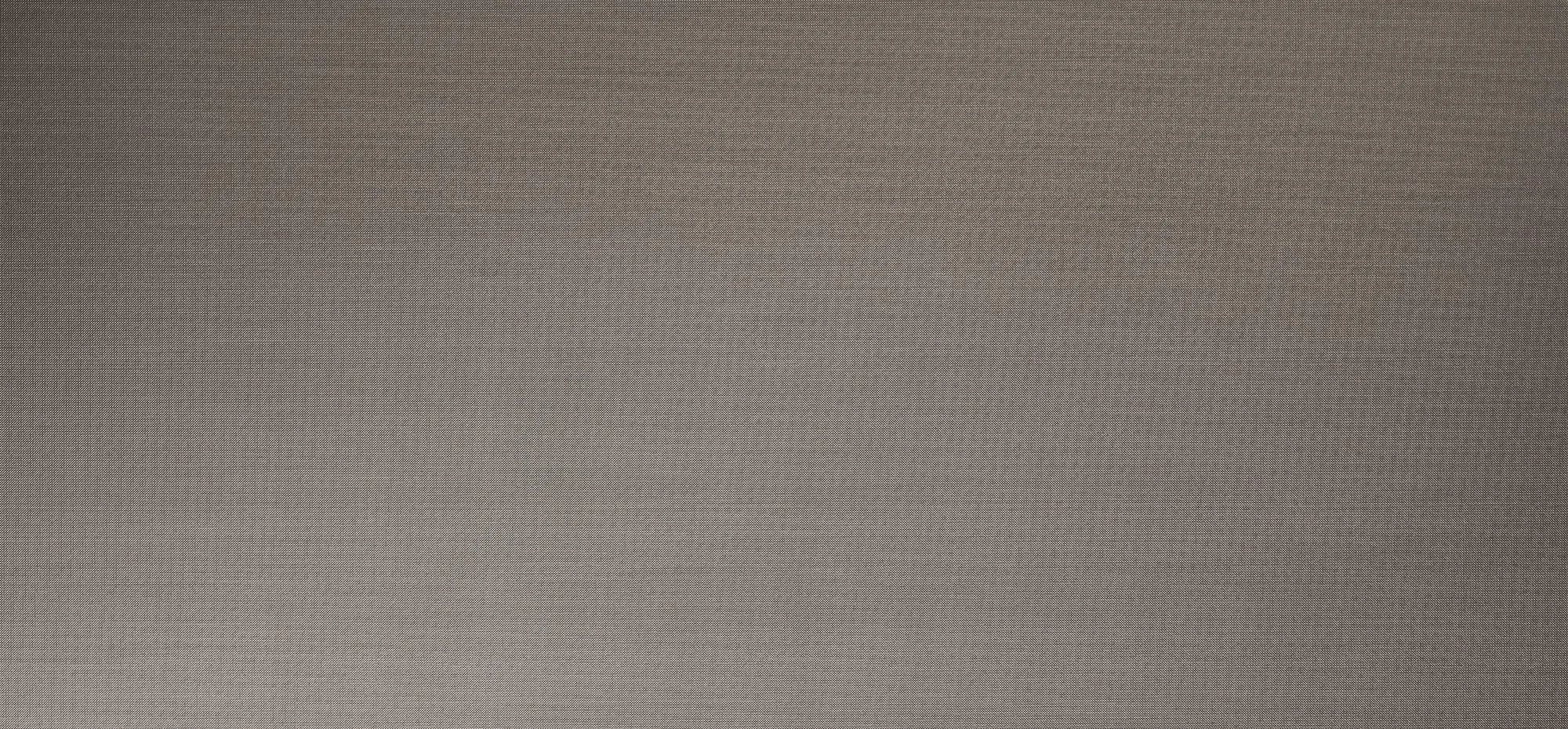

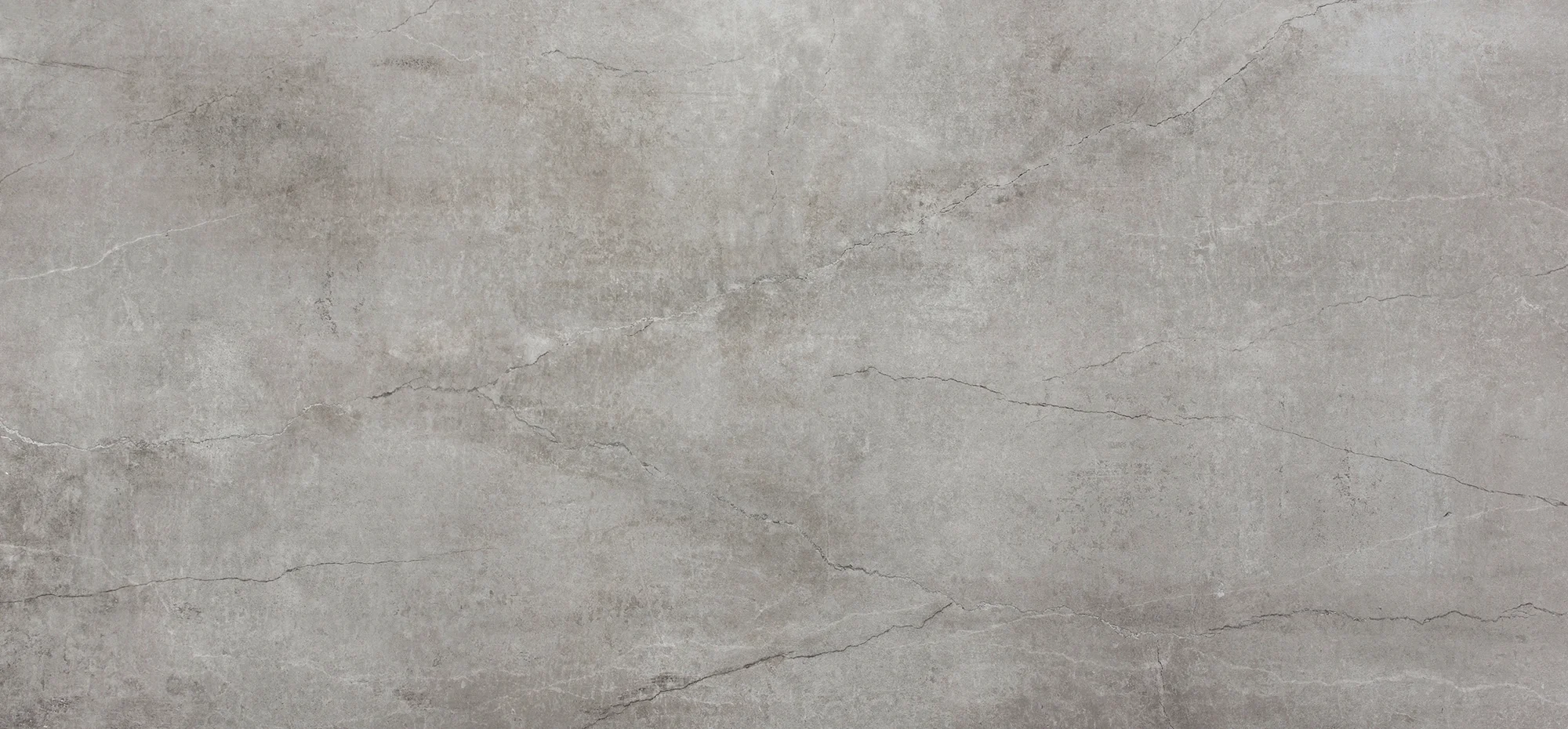

Ceramitex® is available in a wide variety of standard color options.
Please contact a representative to confirm the available finishes for each color.
Minimum order quantity of 20,000 Sq. Ft. may apply for Special Order colors. Samples for Special Order colors may also require additional lead time.
Browse Standard Collections
Product Description + Basic Use
A pressure-equalized Rear Ventilated Rainscreen system for exterior or interior wall panel used in new construction or renovation, commercial and other applications. Some typical uses include; exterior wall panels, fascia panels, ceiling panels, spandrel panels, beam and column covers, wall trim, accent panels and signage. Non-load bearing use only.
Composition + Material
Sizing + Details
Panels are available in sizes up to 5’ x 10.5’ (1500 mm x 3200 mm) with a 6 mm (1/4”) thickness and 4.5’ x 10.5’ (1440 mm x 3200 mm) with an 8 mm (5/16”) thickness. Additional thickness available in 12 mm (1/2”) . Nominal system depth 50 mm (2”).
Finish Options
Satin
Completely matte finish, highly resistant and ideal for commercial applications.
Silk
Matte finish with a thin layer of glaze that provides a subtle shine and a nice soft touch. This surface finish is easy to clean.
Riverwashed
Finish with a rough texture that evokes sensations to the touch.
Polished
Bright finish with a perfectly linear reflection that confers depth and elegance. Ideal for low transit decorative spaces.
Product Description + Basic Use
Building Codes
Maintenance
Warranty
UNITY® Attachment Technology
Product Technical Data
- LEED ISO 14021:1999
- ASTM C1026-10 Measuring Resistance to Freeze-Thaw Cycling
- ASTM E695-2003 (R2009) Standard Test Method of Measuring Relative Resistance of Wall Construction to Impact Loading
- BS EN 14019-2004 Curtain Walling—Impact resistance—Performance requirements standards specification
Fire Test Data
- CAN/ULC S102.2-10 Standard Method of Test for Surface Burning Characteristics
- CAN/ULC S114-05 Standard Method of Test for Determination of Non-combustibility in Building Materials
- NFPA 285 Evaluation of Fire Propagation Characteristics of Exterior Non-Load Bearing Wall Assemblies
- CAN/ULC S134-92 Standard Method of Fire Test of Exterior Wall Assemblies
- ASTM E84-16a Standard Test Method for Surface Burning Characteristics of Materials
System Technical Data
- ASTM C794 Adhesion-in-Peel of Elastomeric Structural Silicone
- AAMA 508-07 Voluntary Test Method and Specification for Pressure Equalized Rain Screen Wall Cladding Systems: Pressure Equalized Behavior and Water Penetration Resistance
- ASTM E1233 Structural Performance by Cyclic Static Air Pressure Differential
- ASTM E283-04(2012) (TAS 202-94) Rate of Air Leakage Under Specified Pressure Difference Across the Specimen
- ASTM E331-00(2009) (TAS 202-94) Water Penetration by Uniform Static Air Pressure Difference
- ASTM E330/E330M-14 (TAS 202-94) Structural Performance by Uniform Static Air Pressure Difference
- ASTM E1886-13a (TAS 203-94) Performance by Missile(s) and Exposed to Cyclic Pressure Differentials
- Florida Product Approval FL26341-R3 Approved for use inside HVHZ (High Velocity Hurricane Zone)
- Miami-Dade County, Florida NOA No. 23-0901.2, exp September 6, 2028
- ICC-ES Evaluated, ESR-4169
General Acceptance
- OTCR – Office of Technical Certification and Research (NYC Department of Buildings) – Approved
It’s Easy to Get in Touch.
Interested in learning more about how Ceramitex® could be the right choice for your project? Call us, email us, or fill out the form.
Curious How Elemex® Can Elevate Your Next Project?
Frequently Asked Questions
What is sintered ceramic?
Sintered ceramic can be thought of as nature and technology in collaboration. It is pressed out of natural minerals in high temperatures, making its surface very dense and resistant. It will not absorb water, easily scratch, or fade in the sun like regular tiles, so it is ideal to use as a long-lasting facade.
Why are sintered ceramic panels the best choice as a building facade?
Sintered ceramic panels are hard to beat, look great, and hold up over time. They are lightweight and durable, resist graffiti and weather, and are available in large sizes that allow a designer to have a lot of freedom. It is a good combination of beauty and functionality.
How does a sintered ceramic cladding system actually work?
A sintered ceramic cladding system has a ventilated rainscreen. This simply implies that there is an airflow behind the panels, which helps regulate moisture and temperature. Your building not only appears sleek but also remains better shielded against the elements.
Will sintered ceramic facades withstand harsh climates?
Yes, absolutely. Sintered ceramic facades are designed to resist almost everything: cold winters, hot summers, rain, and even wind. They don’t expand, warp or fade colour, therefore your construction can have a sharp appearance no matter the location.
Do sintered ceramic panels need a lot of upkeep?
Not at all, and that is one of their greatest advantages. Sintered ceramic panels are naturally dirt, graffiti, and chemical resistant. On most occasions, you only require soap and water to clean them. It is a time and effort-saving low-maintenance option.
Are sintered ceramic facades customizable to various designs?
Definitely, the variety of sintered ceramic facades is one of the fun parts of this material. They are available in various finishes, including polished, matte, and textured, and in large formats, enabling bold designs. Whether your project is modern or traditional, you will find options that align with your vision.
How long do sintered ceramic cladding systems last?
A sintered ceramic cladding system can last decades when installed correctly. These panels are not prone to fading, cracking or weakening like other materials are prone to over time. To the majority of architects and building owners, it is a long-term investment that is worth it in terms of durability and appearance.
