25+ Years. 500+ Projects. A Powerful Partnership.
Elemex is proud to partner with Onyx Solar, a global leader in photovoltaic glass technology with over 25 years of experience and 500+ projects worldwide. This collaboration enhances Solstex®, our cutting-edge building-integrated photovoltaic (BIPV) facade system, designed to harness the power of the sun while offering unmatched design flexibility.
Efficient. Powerful. Reliable. Solstex® features lightweight, large-format panels for easier installation and works effortlessly with the Elemex® facade family, offering architects a sleek, energy-generating solution.
Together, Elemex and Onyx Solar are redefining the future of sustainable architecture—where aesthetics and performance go hand in hand.
Introducing Solstex®. A building-integrated photovoltaic (BIPV) facade system designed to harness the power of the sun, stand up to the harshest of climates, and bring unparalleled design flexibility to your building. Its lightweight, large-format design is easier to install compared to leading competitors, and works seamlessly with the entire family of Elemex® facade systems.
Features and Benefits of a BIPV Solar Facade
Leed Compliance
Use of the Solstex Facade System lessens a building’s dependence on energy generated by fossil fuels and can earn up to five LEED credits.
Reliable Return/High Return
The Solstex Facade System generates energy savings that will have covered the cost of installation after 10-12 years.
Design Flexibility
Leveraging Elemex’s proprietary Unity® technology, Solstex can be seamlessly integrated with other Elemex® facade systems to provide flush planes and unparalleled design flexibility.
Eco-Efficient
With the smallest carbon footprint and lowest water usage during manufacturing, Solstex panels are the photovoltaic (PV) industry’s most eco-efficient.
High-Efficiency
Solstex panels deliver significantly more energy than other PV panels, at up to 17.6 W/sq. ft.
Weather Resistant
Solstex panels have been independently tested and certified to provide reliable performance that exceeds IEC standards in high temperature, high humidity, and extreme weather, including rain and snow.
Large Format
Solstex large format panels maximize facade coverage and energy production.
Lightweight
At a standard weight of less than 3.5 lbs per square foot, the Solstex Facade system is designed to make the installation as easy as possible.
Want to know more about Solstex® Solar Facade System features & benefits?
Solstex® is Available in a Variety of Standard Colors.
Please contact a representative for availability.
Solstex – 8mm
Browse Standard Collections
Product Description + Basic Use
Composition + Materials
Solstex® Solar Panels consist of thin-film CdTe technology or crystalline silicone technology encapsulated between 2 sheets of heat-strengthened glass, adhered to our proprietary Unity® attachment technology.
Sizing + Details
- Solstex® F-Series – 48.5” x 79” (1232mm x 2009mm)
- Solstex® K-Series – 39.56” x 66.14” (1005mm x 1680mm)
Watts/Panel
- Solstex® F-Series – 440-470 W
- Solstex® K-Series – 263-289 W
- Standard Thicknesses 1/4" (6mm), 5/16” (8mm)
Finish
- F-Series - 1/8" (2.8 mm) heat-strengthened glass that presents as a gloss black.
- K-Series - Made with 5/32" (4mm) Kromatix™ colored front glass with an opaque back glass.
Pre-Fabricated System
Installation
Building Codes
Maintenance
Warranty
Unity® Attachment Technology
Product Technical Data
- NFPA 285 Certified
- Other Testing in Progress
Did You Know Solstex® Qualifies for a 30% Tax Credit?
Solstex Pricing Guide
Contact Details
Awards
Architectural Record 2020 Product of the Year – Best Building Envelopes

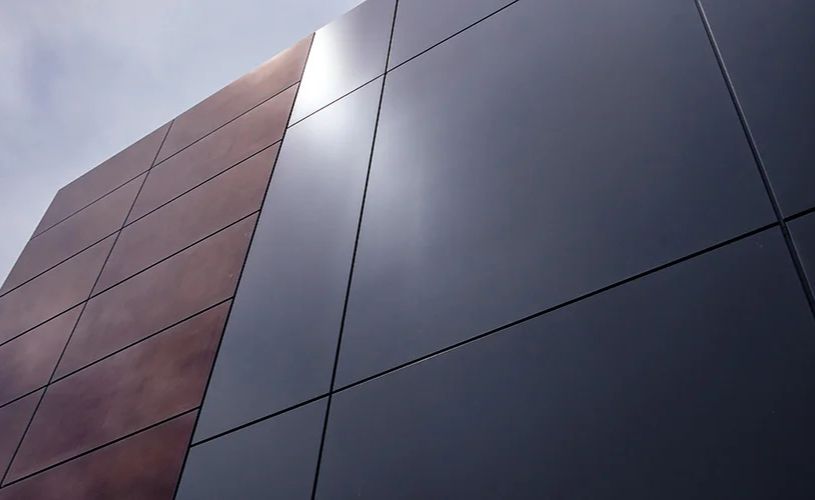

Architecture Masterprize 2020 - Best of Best Product of the Year – EllisDon project
It’s Easy to Get in Touch.
Interested in learning more about how Solstex® could be the right choice for your project? Call us, email us, or fill out the form.
