Solstex® Finish Specifications
Product Description + Basic Use
Composition + Materials
Solstex® Solar Panels consist ofcrystalline silicone technology encapsulated between 2 sheets of heat-strengthened glass, adhered to our proprietary Unity® attachment technology.
Sizing + Details
- Solstex® O-Series – 39 3/8” x 67” (1000 mm x 1700 mm)
- Solstex® O-Series – 39 3/8” x 78 3/4” (1000 mm x 2000 mm)
Watts/Panel
- Solstex® O-Series – 97-303 W
- Solstex® O-Series – 113-354 W
- Standard Thicknesses 10/32" (8 mm)
- System depth - 31/32" (50 mm)
Finish
- O-Series - 5/32” (4 mm) Tempered Low-Iron Glass with a Tempered Glass back.
Pre-Fabricated System

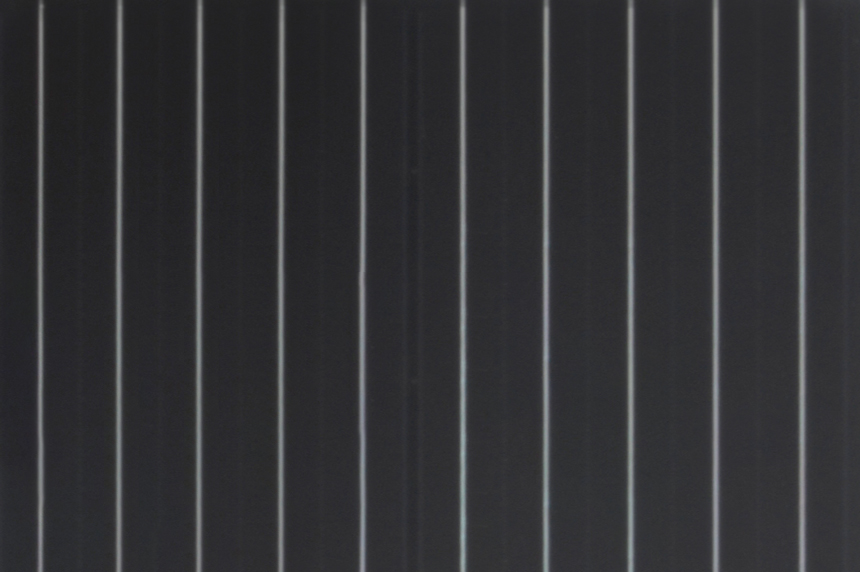

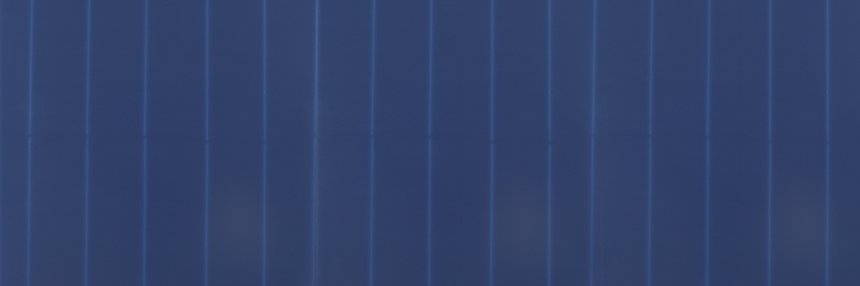

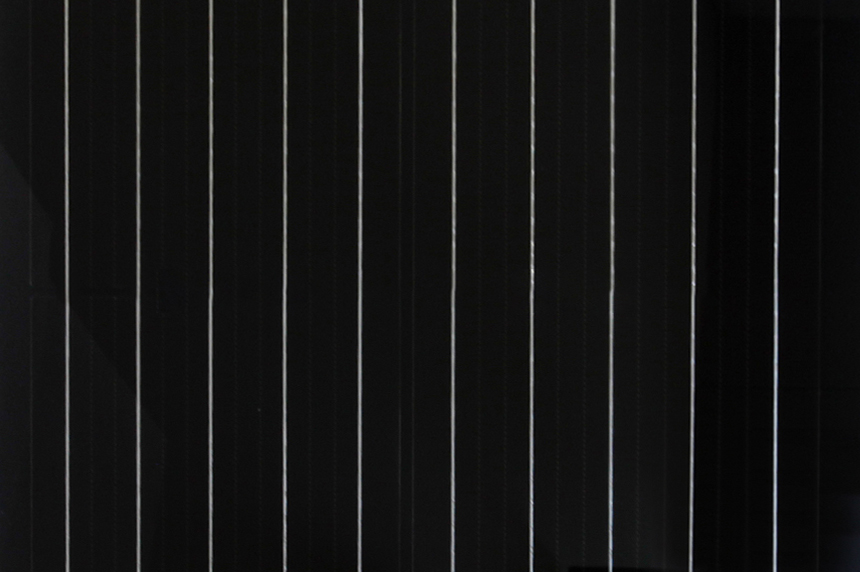

Solstex® is available in a wide range of standard colors.
Please contact a representative for availability.
Solstex – 9mm
Browse Standard Collections
Filter by
Installation
Building Codes
Solstex® – Solar Facade System meets or exceeds North American Building Codes.
Maintenance
Warranty
Product Finish: 10-year panel manufacturer warranty against any defect in material or manufacture.
Materials & Workmanship: 1-year system manufacturer warranty against defects or deficiencies from date of substantial completion.
Power Production: 25-year manufacturer warranty ensuring power production is at 80% or higher after 25 years from date of electrical connection to local use, storage, or grid.
Unity® Attachment Technology
Unity® is Elemex’s proprietary concealed attachment technology that supports simple and elaborate designs from flat panels to complex shapes. Unity® seamlessly integrates all of Elemex’s facade surfaces by bringing all your design ideas together for a new North American standard.
Product Technical Data
- NFPA 285 Certified
- Other Testing in Progress
Did You Know Solstex® Qualifies for a 30% Tax Credit?
