Aluminum Composite Material
Discover the Different Alumitex Materials
ACM is a lightweight flat panel made up of two thin aluminum sheets bonded to a non-aluminum core. It is designed for both interior and exterior applications.
Code Compliant
The Alumitex System has been proven to meet or exceed industry code standards throughout North America.
Climate Defiant
The Alumitex system is resistant to expansion and contraction in high temperature or freezing conditions.
Lightweight
The Alumitex ACM panels with a thickness of 5/32” (4mm) weigh approximately 2 lbs per square foot.
Large Format
Large format ACM panels open a world of design possibilities.
Weatherproof
Weatherproof panels, when combined with a patented pressure-equalized rainscreen system, create the ultimate weather barrier.
UV Resistant
The Alumitex® panels are UV resistant, meaning their color is resistant to fading from exposure to the sun or extreme temperatures.
Corrosion Resistant
A PVdF finish protects the panels from the elements making them long-lasting, low maintenance, and corrosion-resistant.
Ease of Fabrication
The versatility of ACM allows for fast production and improved lead times.
Completely Customizable
The "Completely Customizable" feature is mentioned for both Aluminum Composite Material (ACM) and Aluminum Plate.
Alumitex® is Available in a Wide Variety of Standard Color Finishes and Textures.
Custom Color Options Available. Run Minimums Apply. Please Contact Us for Details.
Browse Standard Collections
Product
- ASTM D1781 – Standard test method for climbing drum peel for adhesives
- ASTM E8 – Standard test method for tension testing of metallic materials
- ASTM C297 – Standard test method for tensile strength on flat sandwich construction in flat wise plane
- ASTM C273 – Standard test method for shear properties of sandwich core materials
- ASTM C393 – Standard test method for flexural properties of sandwich construction
- ASTM C518 – Standard test method for steady-state thermal transmission properties by means of the heat flow meter apparatus
- ASTM D648 – Standard test method for deflection temperature of plastics under flexural load in the edgewise position
- ASTM D696 – Standard test method for coefficient of linear thermal expansion of plastics between –30°C and 30°C with a vitreous silica dilatometer
Fire Test Data
- NFPA 285 – Standard test method for evaluation of fire propagation characteristics of exterior non-load-bearing wall assemblies containing combustible components
- ASTM E84 – Standard test method for surface burning characteristics of building materials
- CAN/ULC S-134 – Standard test method for fire testing of exterior wall assemblies. (*Alumitex FR)
Systems Technical Data
- AAMA 508-07 – Standard test method for pressure equalization behavior & water penetration resistance
- ASTM E283 – Standard test method for determining the rate of air leakage through exterior windows, curtain walls, and doors under specified pressure difference across the specimen
- ASTM E330 – Standard test method for structural performance of exterior windows, curtain walls, and doors by uniform static air pressure difference
- ASTM E331 – Standard test method for water penetration of exterior windows, curtain walls, and doors by uniform static air pressure difference
Aluminum Plate is a high strength, low weight aluminum alloy sheet that is corrosion-resistant and has excellent formability.
Climate Defiant
The Alumitex system is resistant to expansion and contraction in both high temperature and freezing conditions, making it "Climate Defiant."
UV Resistant
The Alumitex® panels are UV resistant, meaning their color is resistant to fading from exposure to the sun or extreme temperatures.
Weatherproof
Weatherproof panels, when combined with a patented pressure-equalized rainscreen system, create the ultimate weather barrier.
Endless Versatility
The "Endless Versatility" feature of Alumitex® panels, specifically referring to Aluminum Plate, highlights its extreme durability.
Completely Customizable
The "Completely Customizable" feature is mentioned for both Aluminum Composite Material (ACM) and Aluminum Plate.
Want to know more about Ceramitex® sintered ceramic cladding features & benefits?
Alumitex® is Available in a Wide Variety of Standard Color Finishes and Textures.
Minimums of 8,000 sq. ft. may apply for custom colors.
Custom Color Options Available. Run Minimums Apply. Please Contact Us for Details.
Browse Standard Collections
Product Technical Data
- ASTM D1781 – Standard test method for climbing drum peel for adhesives
- ASTM E8 – Standard test method for tension testing of metallic materials
- ASTM C297 – Standard test method for tensile strength on flat sandwich construction in flat wise plane
- ASTM C273 – Standard test method for shear properties of sandwich core materials
- ASTM C393 – Standard test method for flexural properties of sandwich construction
- ASTM C518 – Standard test method for steady-state thermal transmission properties by means of the heat flow meter apparatus
- ASTM D648 – Standard test method for deflection temperature of plastics under flexural load in the edgewise position
- ASTM D696 – Standard test method for coefficient of linear thermal expansion of plastics between –30°C and 30°C with a vitreous silica dilatometer
Fire Test Data
- NFPA 285 – Standard test method for evaluation of fire propagation characteristics of exterior non-load-bearing wall assemblies containing combustible components
- ASTM E84 – Standard test method for surface burning characteristics of building materials
- CAN/ULC S-134 – Standard test method for fire testing of exterior wall assemblies. (*Alumitex FR)
Systems Technical Data
- AAMA 508-07 – Standard test method for pressure equalization behavior & water penetration resistance
- ASTM E283 – Standard test method for determining the rate of air leakage through exterior windows, curtain walls, and doors under specified pressure difference across the specimen
- ASTM E330 – Standard test method for structural performance of exterior windows, curtain walls, and doors by uniform static air pressure difference
- ASTM E331 – Standard test method for water penetration of exterior windows, curtain walls, and doors by uniform static air pressure difference
Endless color options.
Aluminum plate is post-painted which allows for an endless possibility of color choices. Please contact us for details.

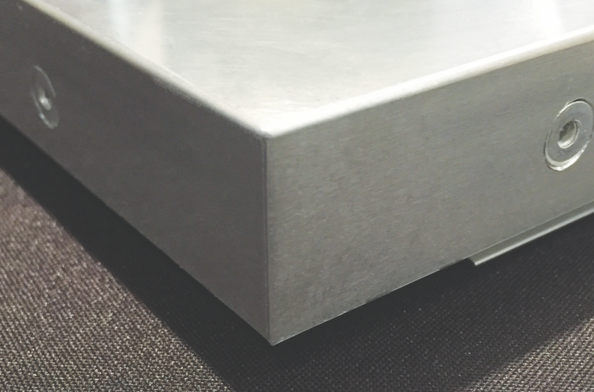

Our precision route & return fabrication process delivers a superior edge aesthetic that requires no welding or grinding.
Tru-90® Edge (Modern Innovation)
Endless color options.
National Building Code of Canada
- ASTM E330 Structural Performance of Exterior Windows, Curtain Walls and Doors under the influence of Wind Loads
- ASTM E283 Rate of Leakage through Exterior Windows, Curtain Walls and Doors
- ASTM E331 Water Penetration of Exterior Windows, Curtain Walls and Doors by Cyclic Static Air Pressure Difference
- AAMA 2605 Voluntary Specification, Performance Requirements and Test Procedures for Superior Performing Organic Coatings on Aluminum Extrusions and Panels
Fire Test Data
- CAN/ULCS114:2018, Standard Method of Test for Determination of Non-Combustibility in Building Materials
It’s Easy to Get in Touch.
Interested in learning more about how Alumitex® could be the right choice for your project? Call us, email us, or fill out the form.
