Strong. Beautiful. Lasting.
Introducing Ceramitex®. A facade system that simply outperforms. Our large format sintered ceramic facades are lightweight yet durable enough to defy graffiti, scratches, weather, and the test of time. The system is fabricated to your exacting specifications on our proprietary Unity® integrated attachment technology, giving you a complete system engineered to beautify and protect your project. Ceramitex® is North American code compliant and is supported by the Elemex® 360° Advantage.
Features & Benefits
Code Compliant
Code Compliant
The Ceramitex® System is an architectural ceramic product proven to meet or exceed industry code standards throughout North America.
Code Compliant
The Ceramitex® System is an architectural ceramic product proven to meet or exceed industry code standards throughout North America.
Climate Defiant
Climate Defiant
Resistant to expansion and contraction in high temperature or freezing conditions.
Climate Defiant
Resistant to expansion and contraction in high temperature or freezing conditions.
Lightweight
Lightweight
Sintered ceramic panels with a thickness of 6mm are approximately 3.8lbs per square foot.
Lightweight
Sintered ceramic panels with a thickness of 6mm are approximately 3.8lbs per square foot.
Large Format
Large Format
Large format sintered ceramic panels open a world of design possibilities. Offered in a range of colors and textures.
Large Format
Large format sintered ceramic panels open a world of design possibilities. Offered in a range of colors and textures.
Impact Resistant
Impact Resistant
Ceramitex® panels are strong, lightweight and extremely resilient against high traffic abrasion.
Impact Resistant
Ceramitex® panels are strong, lightweight and extremely resilient against high traffic abrasion.Durability Video
Mitered Corners
Mitered Corners
Unique to the Ceramitex® System is the ability to create large mitered returns, giving a striking dimensional appearance to any returning edge.
Mitered Corners
Unique to the Ceramitex® System is the ability to create large mitered returns, giving a striking dimensional appearance to any returning edge.
Waterproof
Waterproof
Waterproof panels combined with a patented pressure-equalized rainscreen system provide the ultimate weather barrier.
Waterproof
Waterproof panels combined with a patented pressure-equalized rainscreen system provide the ultimate weather barrier.
Graffiti-Proof
Graffiti-Proof
Ceramitex® sintered ceramic panels are easy to maintain and impervious to chemicals.
Graffiti-Proof
Ceramitex® sintered ceramic panels are easy to maintain and impervious to chemicals.Graffiti Video
UV Resistant
UV Resistant
Since the color is 100% natural, it does not deteriorate due to exposure to the sun or extreme temperatures.
UV Resistant
Since the color is 100% natural, it does not deteriorate due to exposure to the sun or extreme temperatures.
Scratch Resistant
Scratch Resistant
Panels are resistant to scratching and abrasion due to the hardness of the surface.
Scratch Resistant
Panels are resistant to scratching and abrasion due to the hardness of the surface.Durability Video

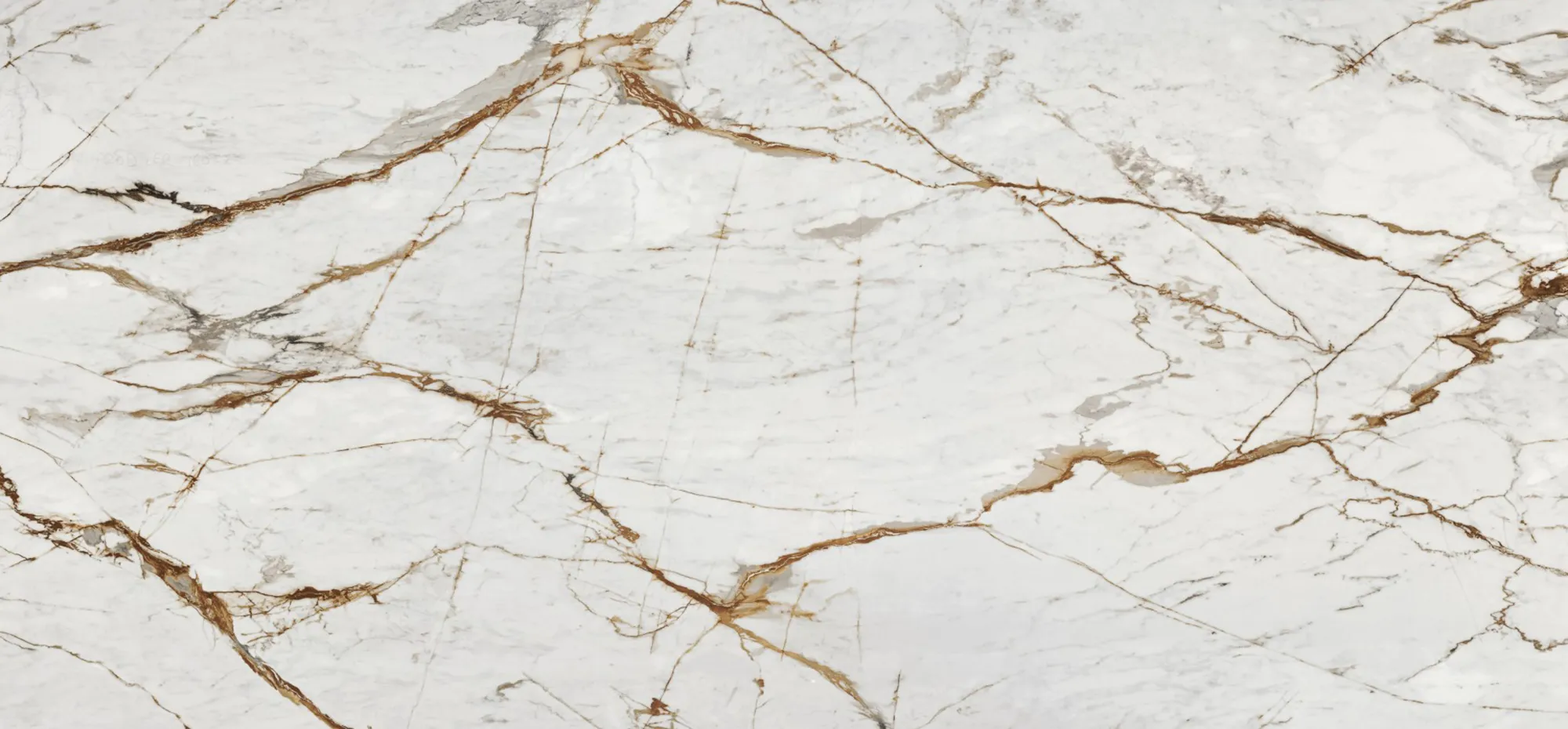

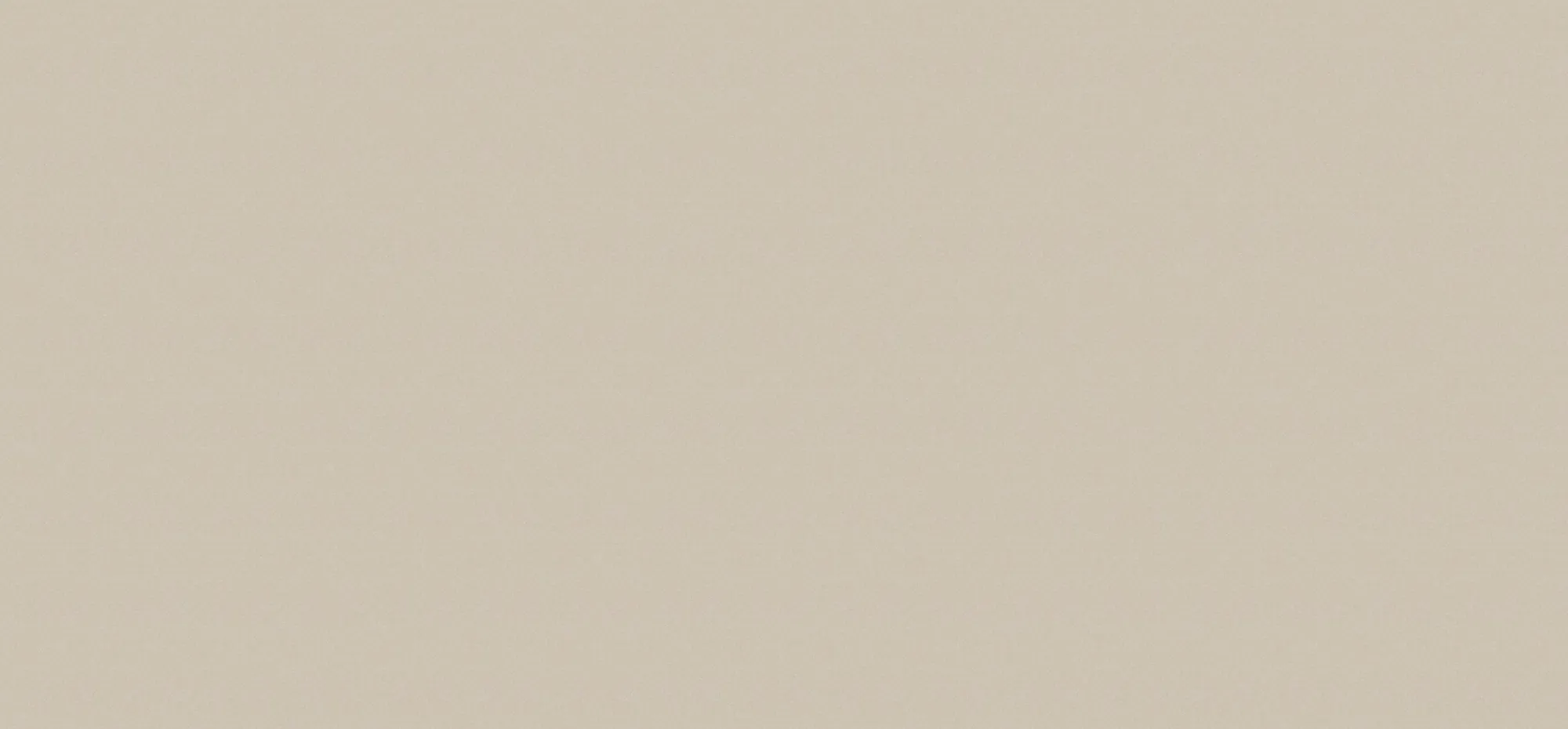

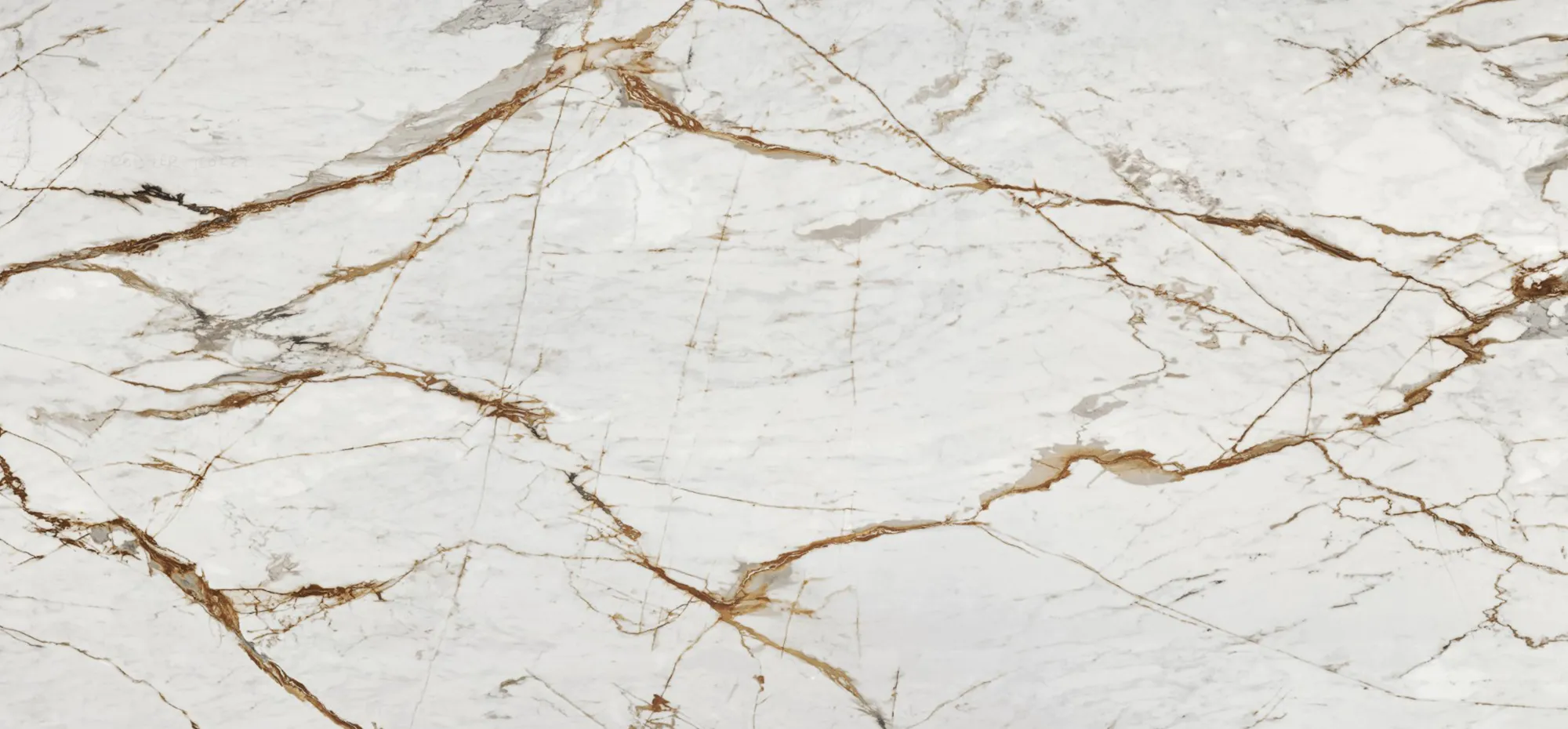

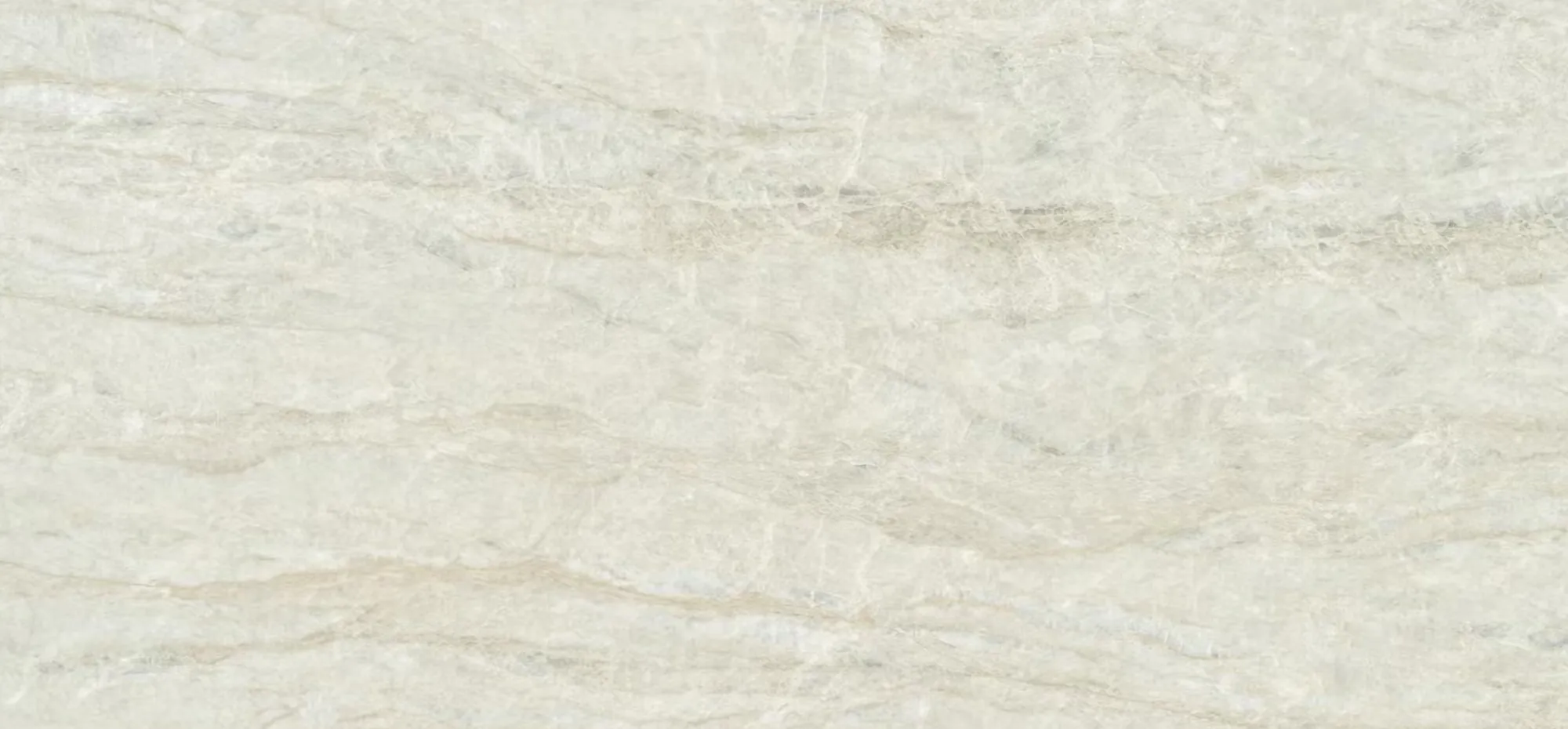

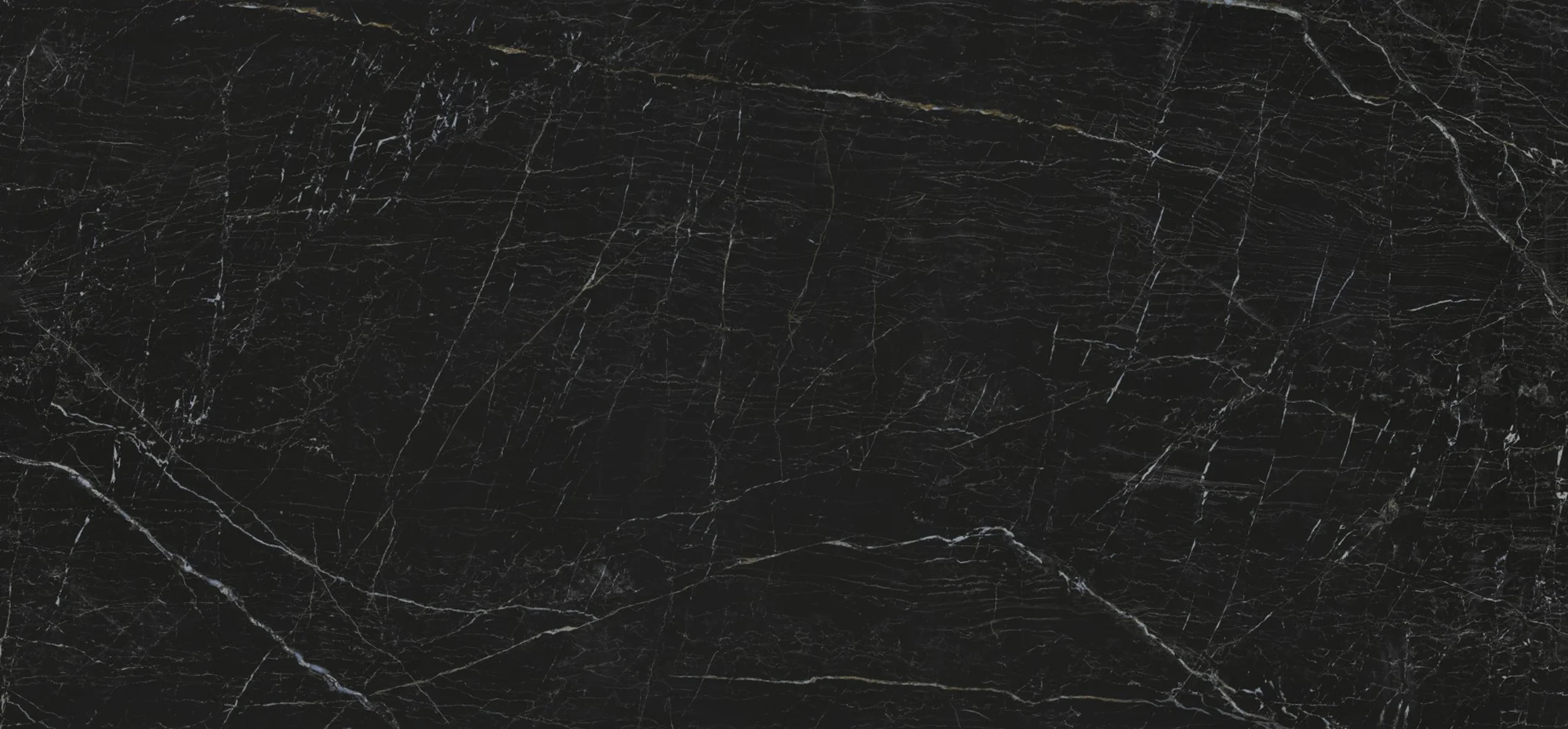

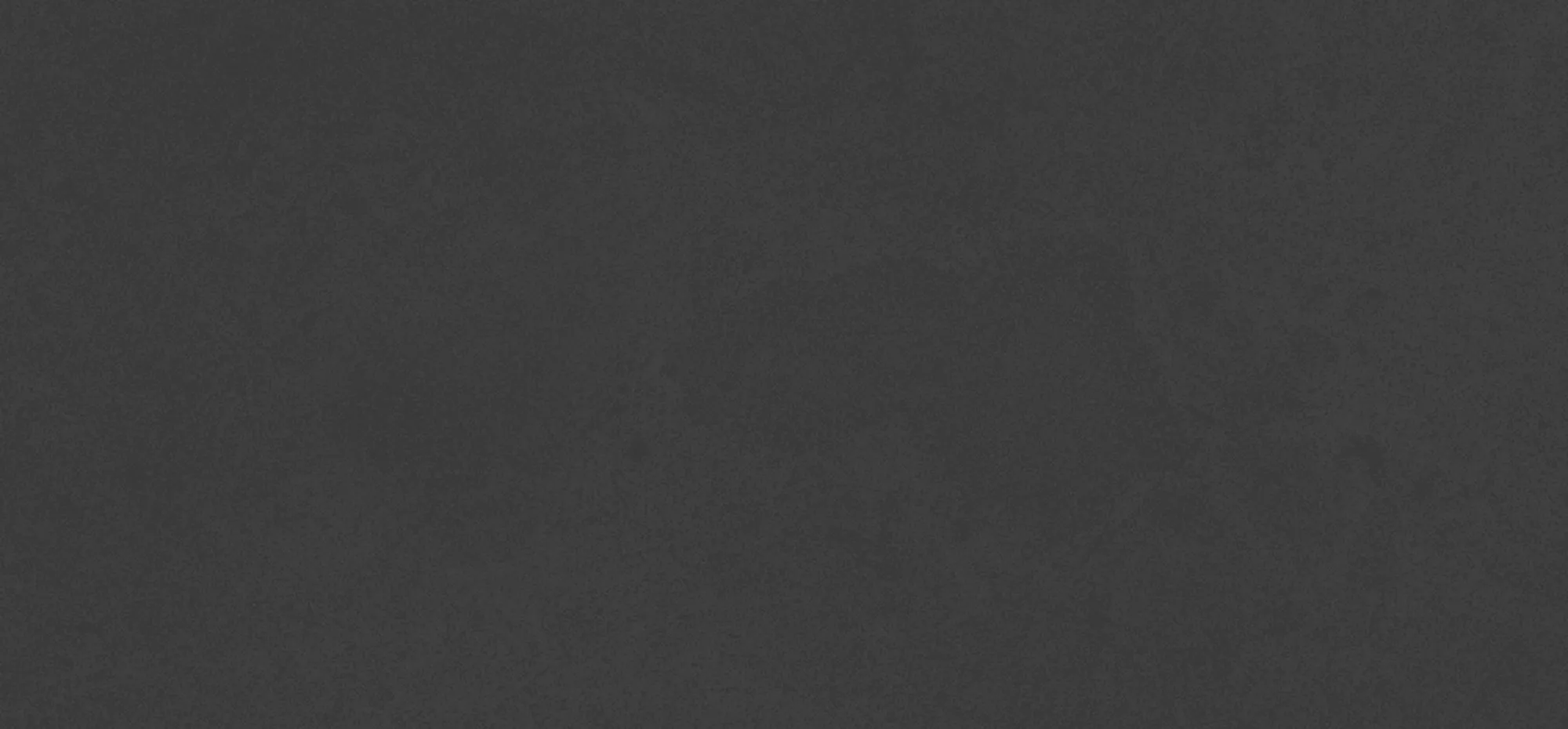

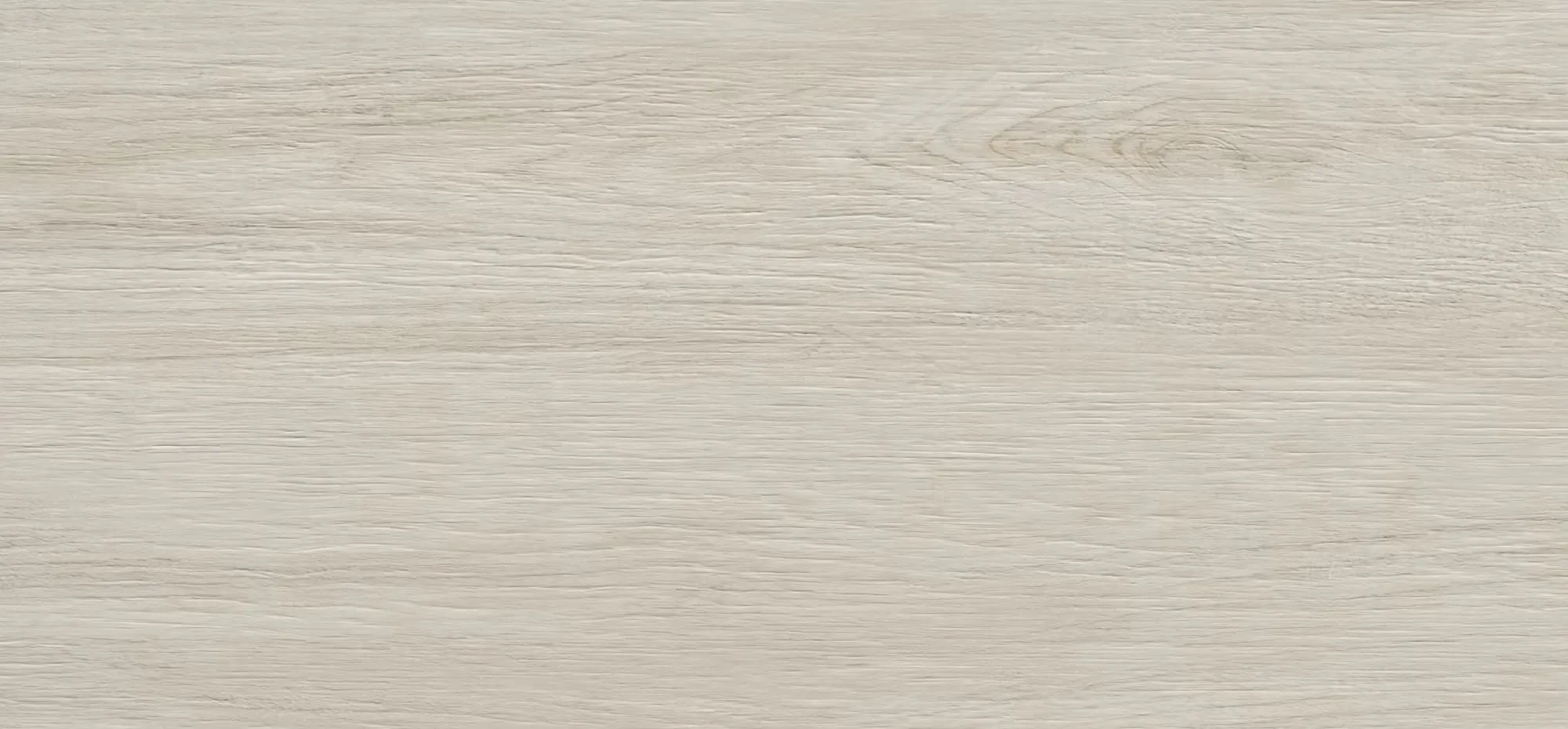

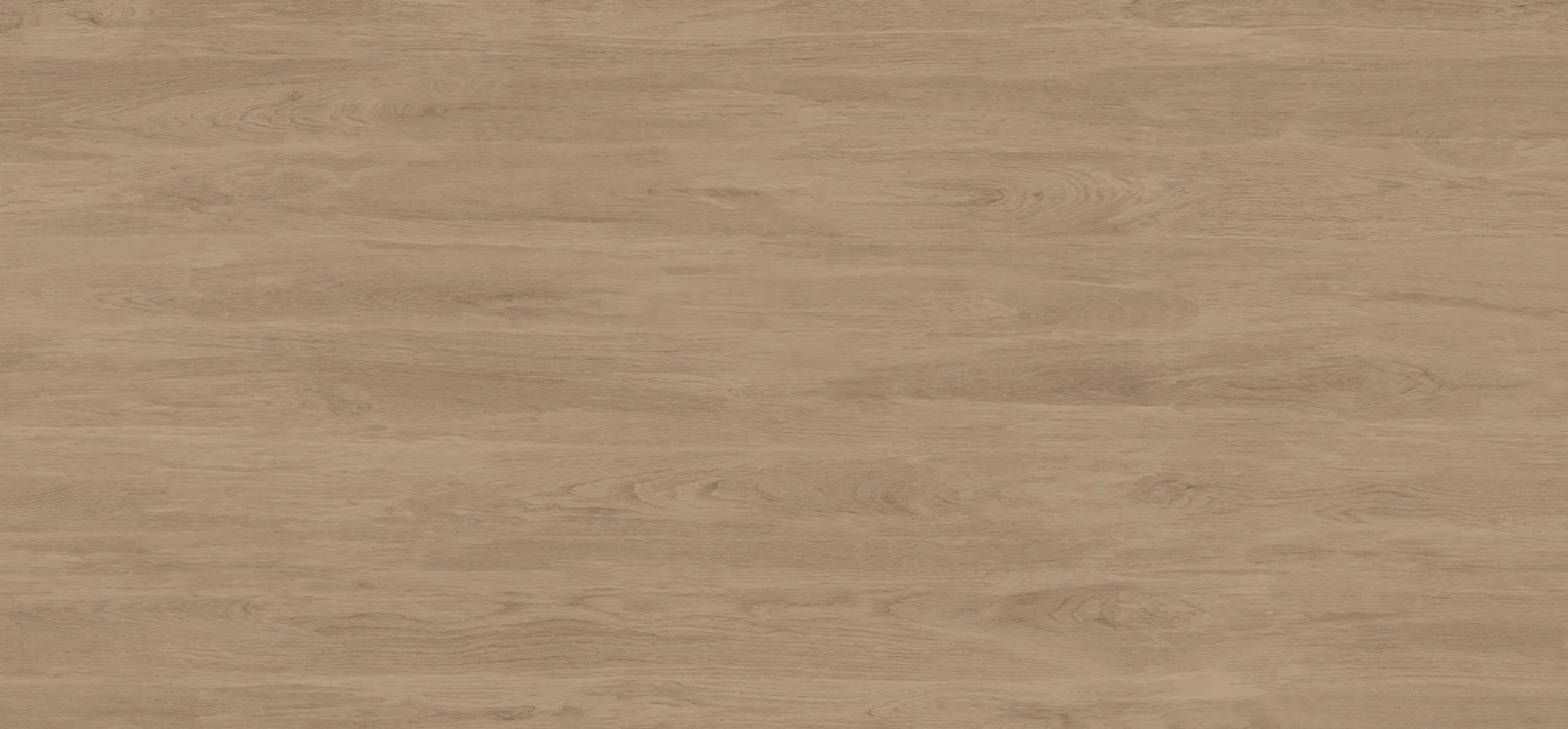

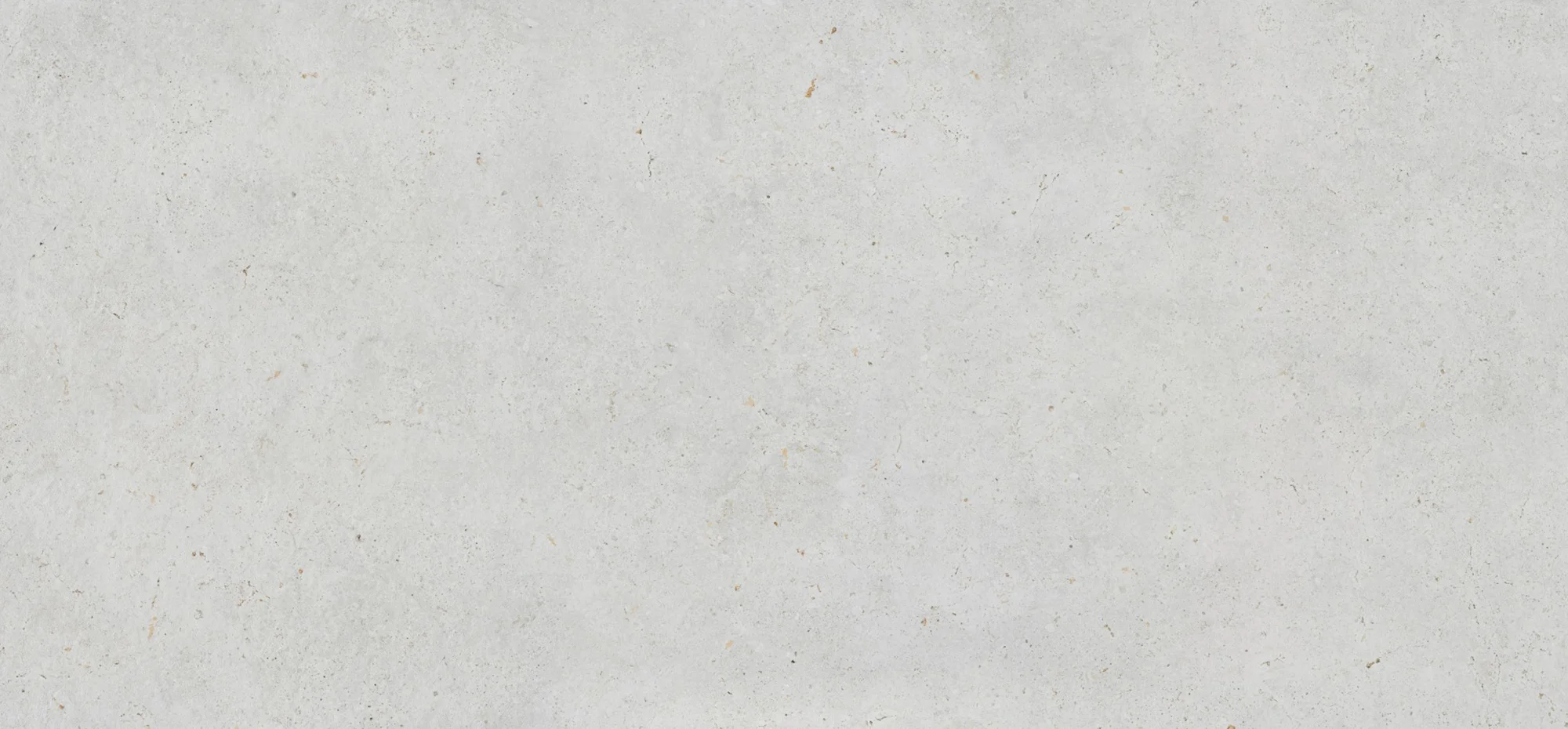

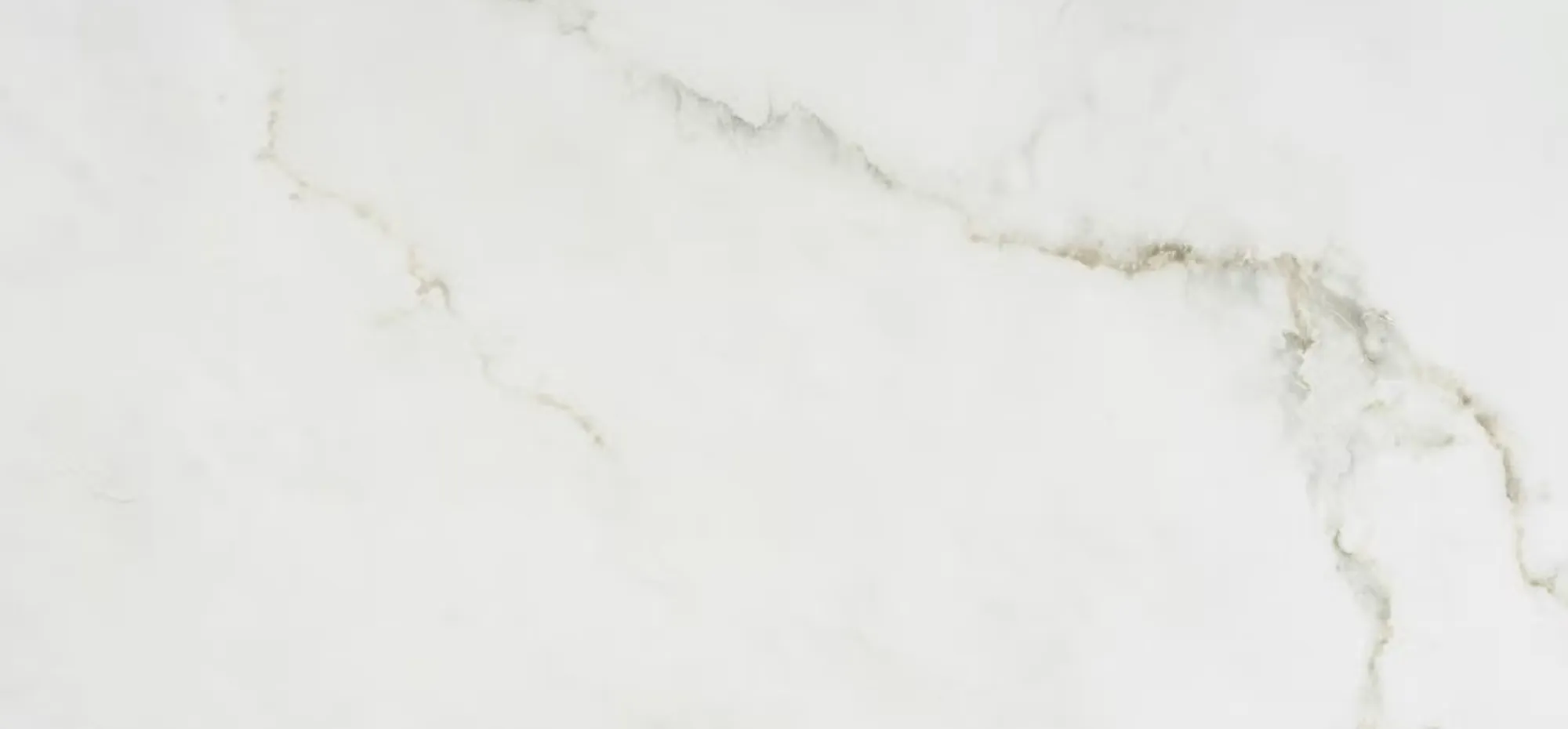

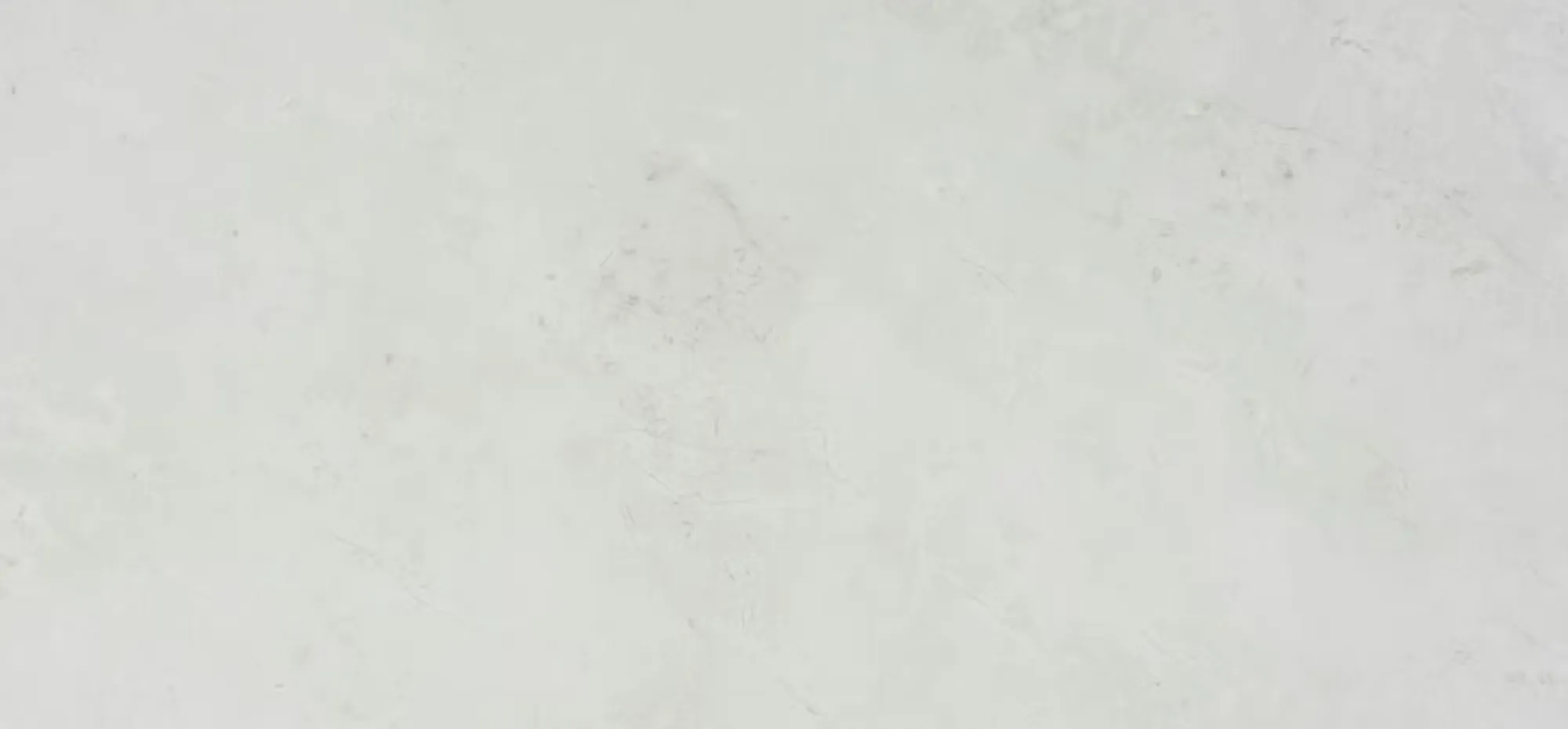

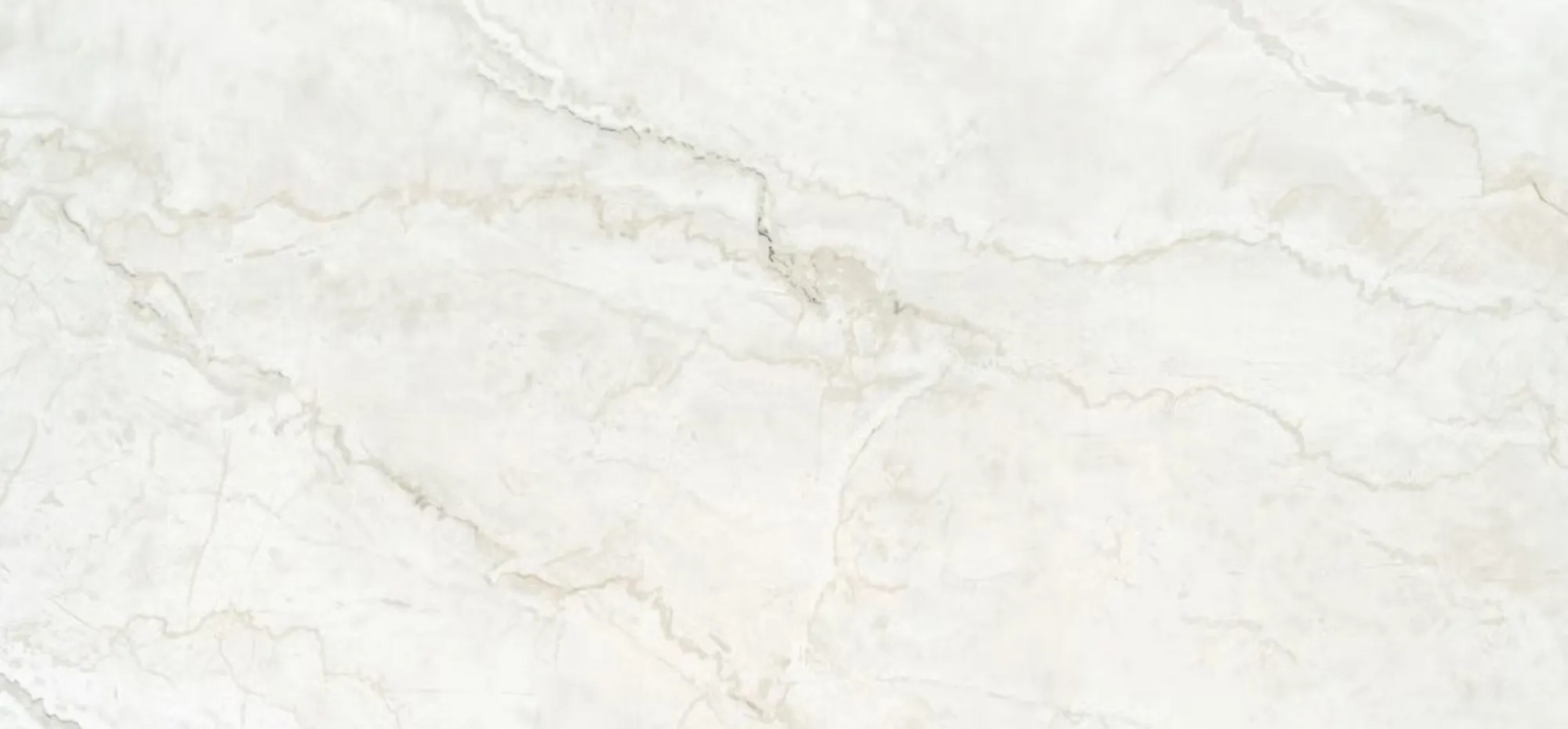

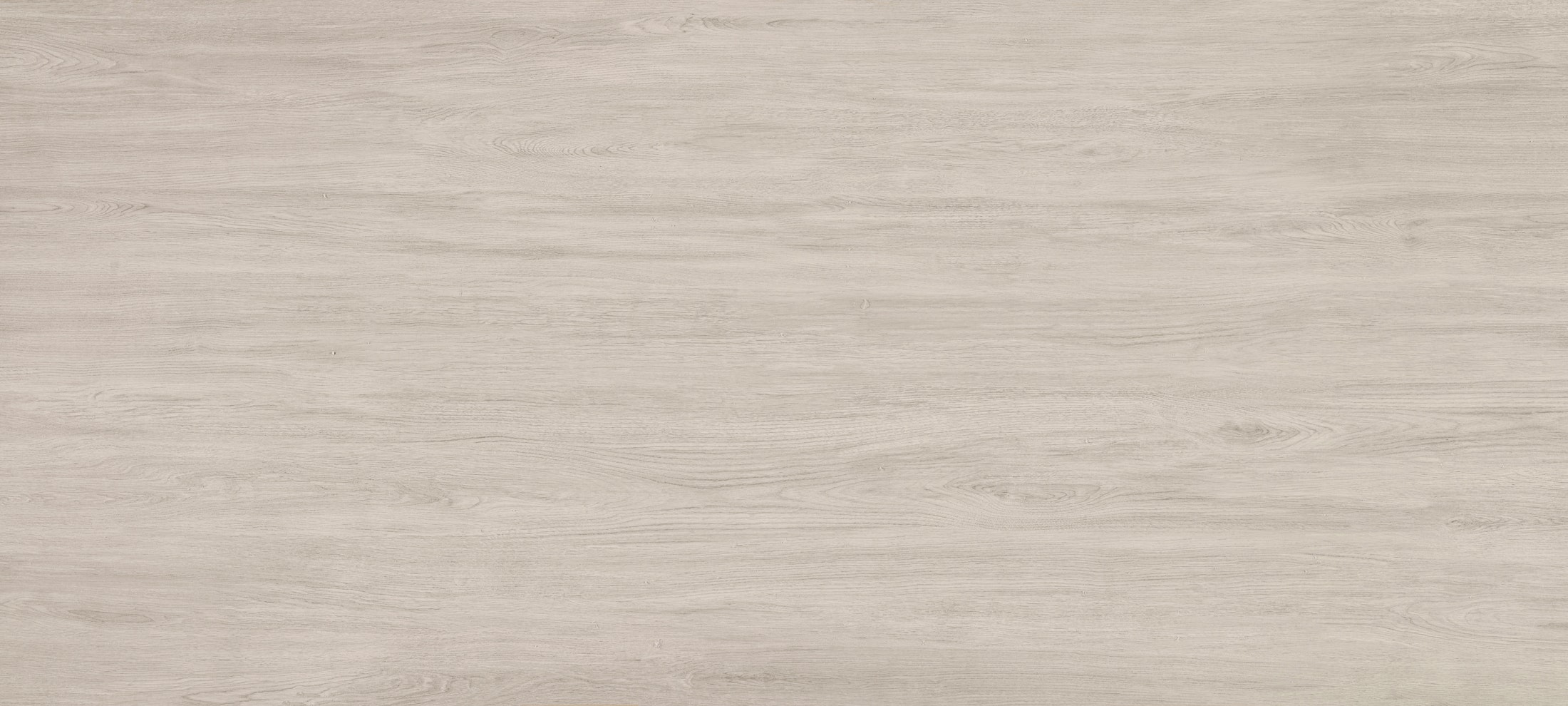

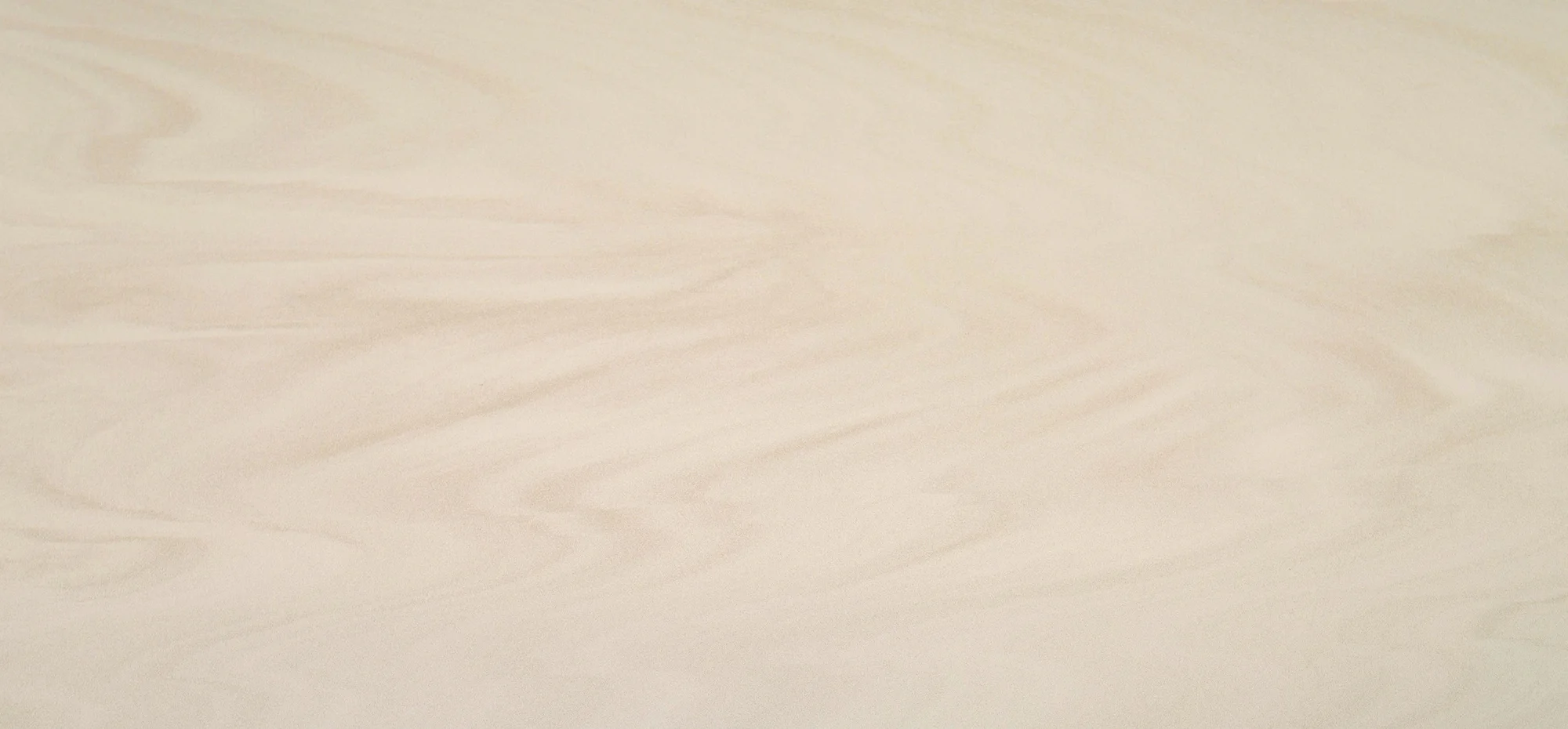

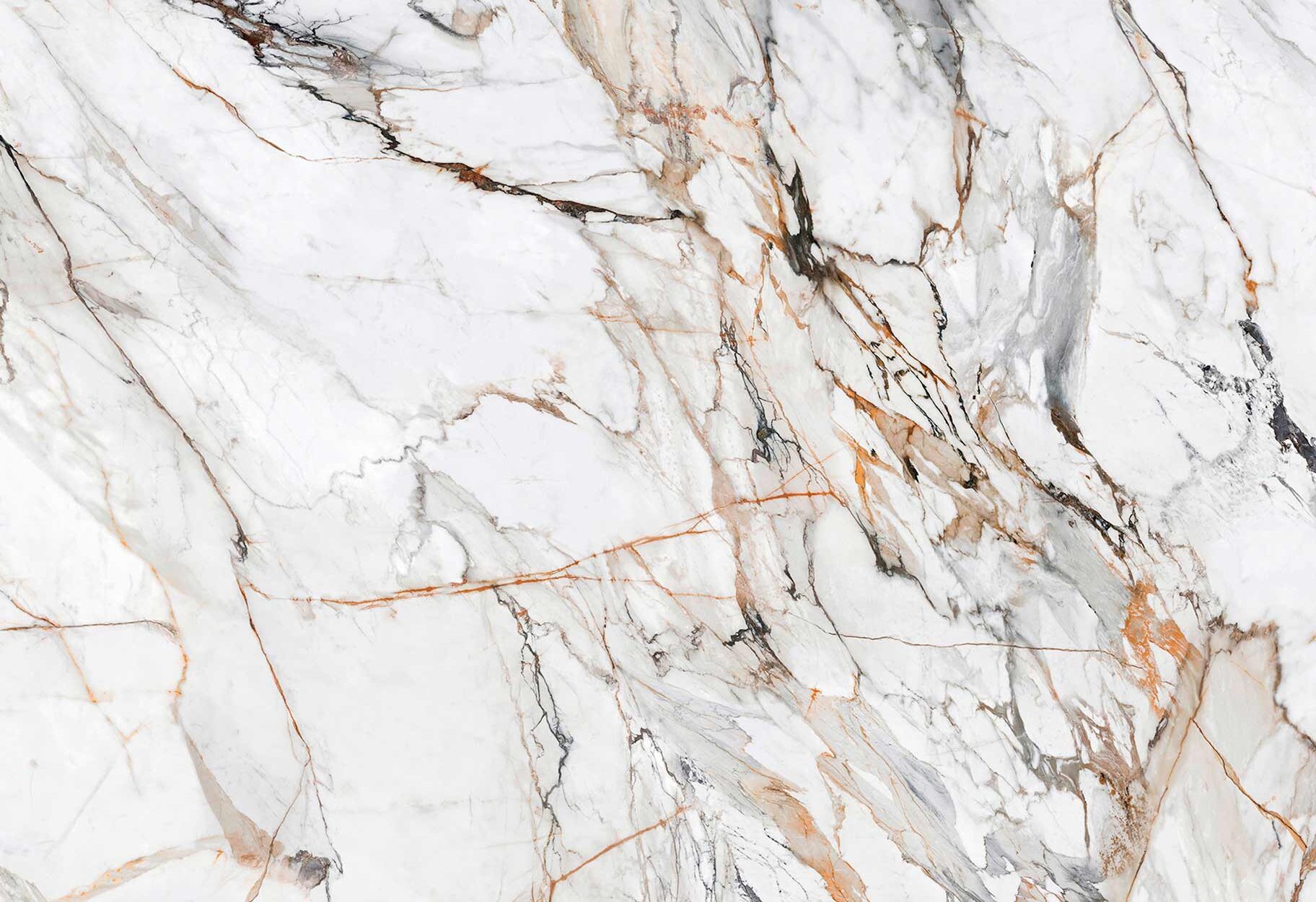

Ceramitex® is available in a wide variety of standard color finishes and textures.
Please contact representative for availability of finishes for each color. Minimums may apply.
Limited quantities currently discounted in inventory: Arctic White, Avorio, Barro, Basalt Grey, Humo, Iron Corten, Iron Moss, Nieve, Perla, Phedra, Pierre Blue
Browse Standard Collections
Product Description + Basic Use
A pressure-equalized Rear Ventilated Rainscreen system for exterior or interior wall panel used in new construction or renovation, commercial and other applications. Some typical uses include; exterior wall panels, fascia panels, ceiling panels, spandrel panels, beam and column covers, wall trim, accent panels and signage. Non-load bearing use only.
Composition + Material
Ceramitex® Sintered Ceramic panels consist of a sintered ceramic slab manufactured with fiberglass reinforced mesh backing that is adhered to our proprietary Unity® attachment technology.
Sizing + Details
Panels are available in 5’ x 10’ (1524mm x 3048mm) and 4’ x 12’ (1219mm x 3657mm). Standard panel thickness is 1/4” (6mm). Additional thicknesses available: 1/8” (3mm) and 1/2” (12mm).
Finish Options
-
Satin
Completely matte finish, highly resistant and ideal for commercial applications.
-
Silk
Matte finish with a thin layer of glaze that provides a subtle shine and a nice soft touch. This surface finish is easy to clean.
-
Riverwashed
Finish with a rough texture that evokes sensations to the touch.
-
Polished
Bright finish with a perfectly linear reflection that confers depth and elegance. Ideal for low transit decorative spaces.
-
NOTE: Please contact representative for availability of finishes for each color.
Installation
Installation guides, specifications and videos are available. Ceramitex® must be installed by an Elemex® qualified installer. Elemex® can provide training and certification to local installers. For additional details on installer training contact info@elemex.com.
Building Codes
Ceramitex® system meets or exceeds North American Building Codes.
Maintenance
Ceramitex® Sintered Ceramic Facade panels have a surface that repels dirt, is graffiti-proof and is easily cleaned with soap and water. As the panels are UV- and impact-resistant, they maintain their appearance over time.
Warranty
10 year finish warranty.
Unity® Attachment Technology
Unity® Attachment Technology: a proprietary integrated attachment technology developed and perfected by Elemex® to panelize, mount and seamlessly integrate a variety of surfaces such as: Sintered Ceramic, ACM, Aluminum Plate and other specialty veneers.
Product Technical Data
LEED ISO 14021:1999
ASTM C1026-10 Measuring Resistance to Freeze-Thaw Cycling
ASTM E695-2003 (R2009) Standard Test Method of Measuring Relative Resistance of Wall Construction to Impact Loading
BS EN 14019-2004 Curtain Walling—Impact resistance—Performance requirements standards specification
Fire Test Data
CAN/ULC S102.2-10 Standard Method of Test for Surface Burning Characteristics
CAN/ULC S114-05 Standard Method of Test for Determination of Non-combustibility in Building Materials
NFPA 285 Evaluation of Fire Propagation Characteristics of Exterior Non-Load Bearing Wall Assemblies
CAN/ULC S134-92 Standard Method of Fire Test of Exterior Wall Assemblies
ASTM E84-16a Standard Test Method for Surface Burning Characteristics of Materials
System Technical Data
ASTM C794 Adhesion-in-Peel of Elastomeric Structural Silicone
AAMA 508-07 Voluntary Test Method and Specification for Pressure Equalized Rain Screen Wall Cladding Systems: Pressure Equalized Behavior and Water Penetration Resistance
ASTM E1233 Structural Performance by Cyclic Static Air Pressure Differential
ASTM E283-04(2012) (TAS 202-94) Rate of Air Leakage Under Specified Pressure Difference Across the Specimen
ASTM E331-00(2009) (TAS 202-94) Water Penetration by Uniform Static Air Pressure Difference
ASTM E330/E330M-14 (TAS 202-94) Structural Performance by Uniform Static Air Pressure Difference
ASTM E1886-13a (TAS 203-94) Performance by Missile(s) and Exposed to Cyclic Pressure Differentials
Florida Product Approval FL26341-R0 Approved for use inside HVHZ (High Velocity Hurricane Zone)
Miami-Dade County, Florida NOA No. 16-1004.05, exp September 6, 2023
General Acceptance
OTCR – Office of Technical Certification and Research (NYC Department of Buildings) – Approved
-
